HMC213MS8

Description
GaAs MMIC SMT DOUBLE BALANCED MIXER, 1.5 - 4.5 GHz
CategoryWireless rf/communication    Radio frequency and microwave
File Size240KB,6 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Download Datasheet Parametric Compare View All

HMC213MS8 Overview

GaAs MMIC SMT DOUBLE BALANCED MIXER, 1.5 - 4.5 GHz

HMC213MS8 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHittite Microwave(ADI)
package instructionTSSOP8,.19
Reach Compliance Codecompli
ECCN codeEAR99
Characteristic impedance50 Ω
structureCOMPONENT
Maximum frequency conversion loss10 dB
Maximum input power (CW)13 dBm
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals8
Maximum operating frequency4500 MHz
Minimum operating frequency1500 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeTSSOP8,.19
RF/Microwave Device TypesDOUBLE BALANCED
surface mountYES
technologyGAAS
Terminal surfaceTin/Lead (Sn/Pb)
HMC213MS8
/
213MS8E
v002.0505
GaAs MMIC SMT DOUBLE-
BALANCED MIXER, 1.5 - 4.5 GHz
Typical Applications
The HMC213MS8 / HMC213MS8E is ideal for:
• Base Stations
Features
Ultra Small Package: MSOP8
Conversion Loss: 8.5 dB
LO / RF Isolation: 40 dB
7
MIXERS - SMT
• PCMCIA Transceivers
• Wireless Local Loop
Functional Diagram
General Description
The HMC213MS8 & HMC213MS8E are ultra miniature
double-balanced mixers in 8 lead plastic surface
mount packages (MSOP). This passive MMIC mixer
is constructed of GaAs Schottky diodes and novel
planar transformer baluns on the chip. The device can
be used as an upconverter, downconverter, biphase
(de)modulator, or phase comparator. The consistent
MMIC performance will improve system operation and
assure regulatory compliance.
Electrical Specifications,
T
A
= +25° C, As a Function of LO Drive
Parameter
Min.
Frequency Range, RF & LO
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
IP3 (Input)
1 dB Gain Compression (Input)
29
27
16
7
LO = +13 dBm
IF = 100 MHz
Typ.
1.5 - 4.5
DC - 1.5
8.5
8.5
40
35
19
10
10
10
32
26
14
5
Max.
Min.
LO = +10 dBm
IF = 100 MHz
Typ.
1.7 - 3.6
DC - 1.5
9
9
40
35
18
8
10.5
10.5
Max.
GHz
GHz
dB
dB
dB
dB
dBm
dBm
Units

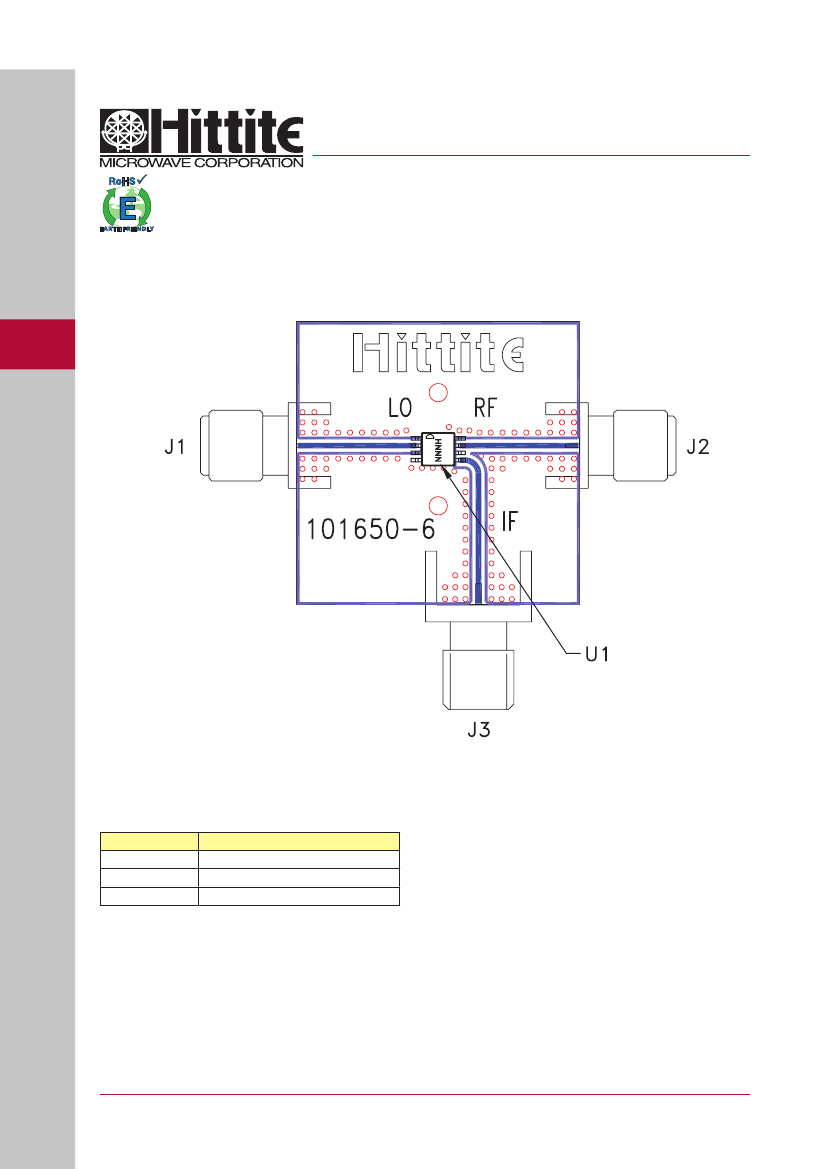

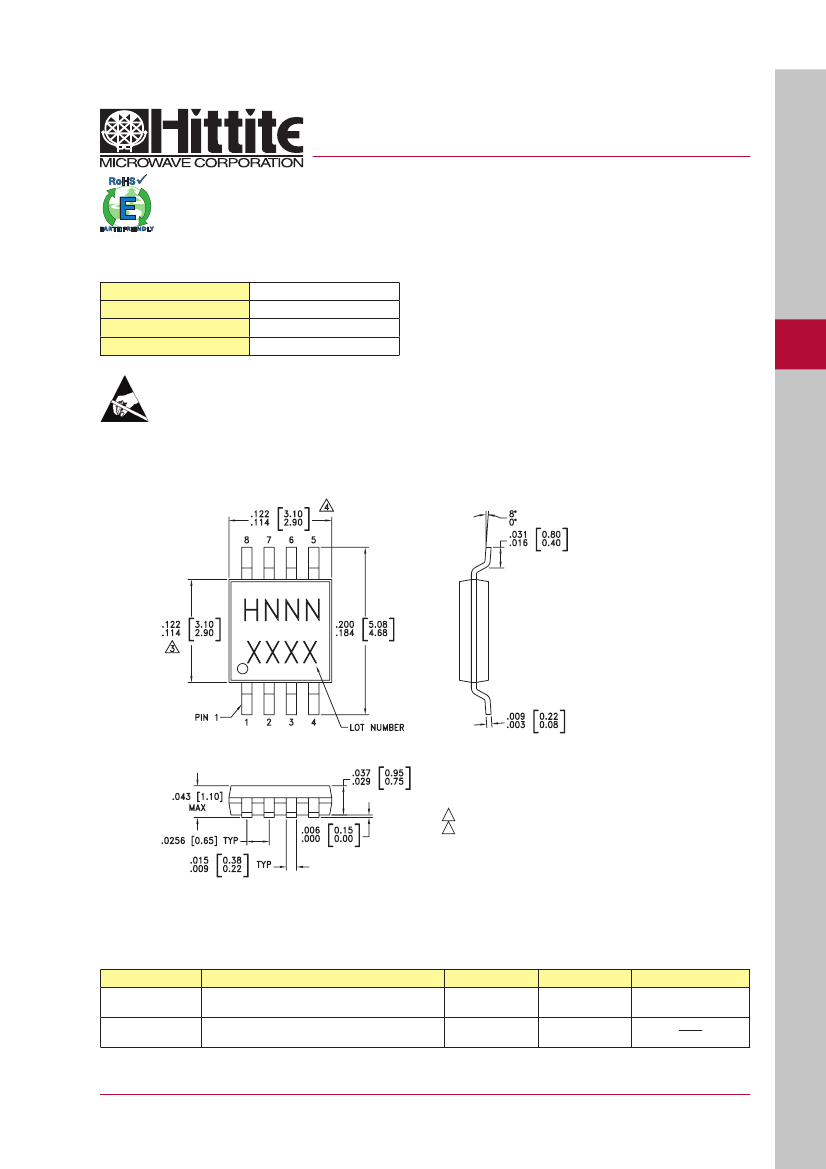

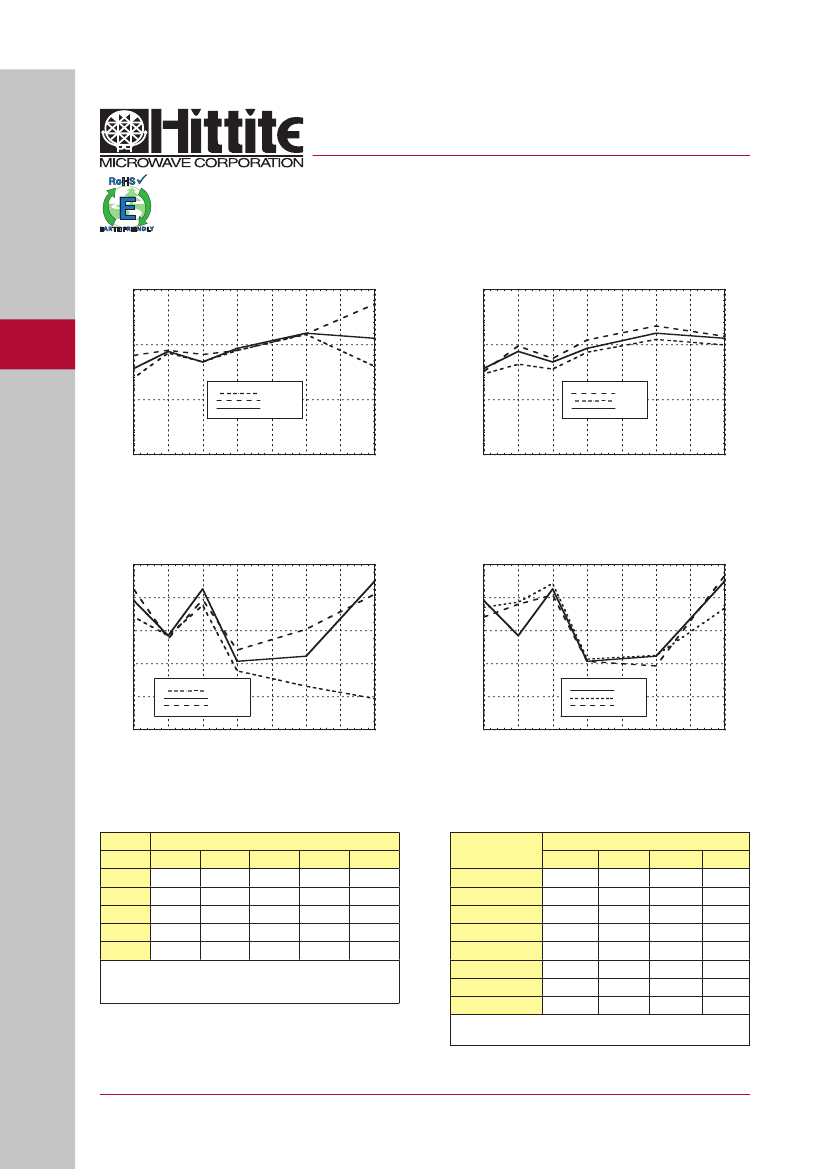

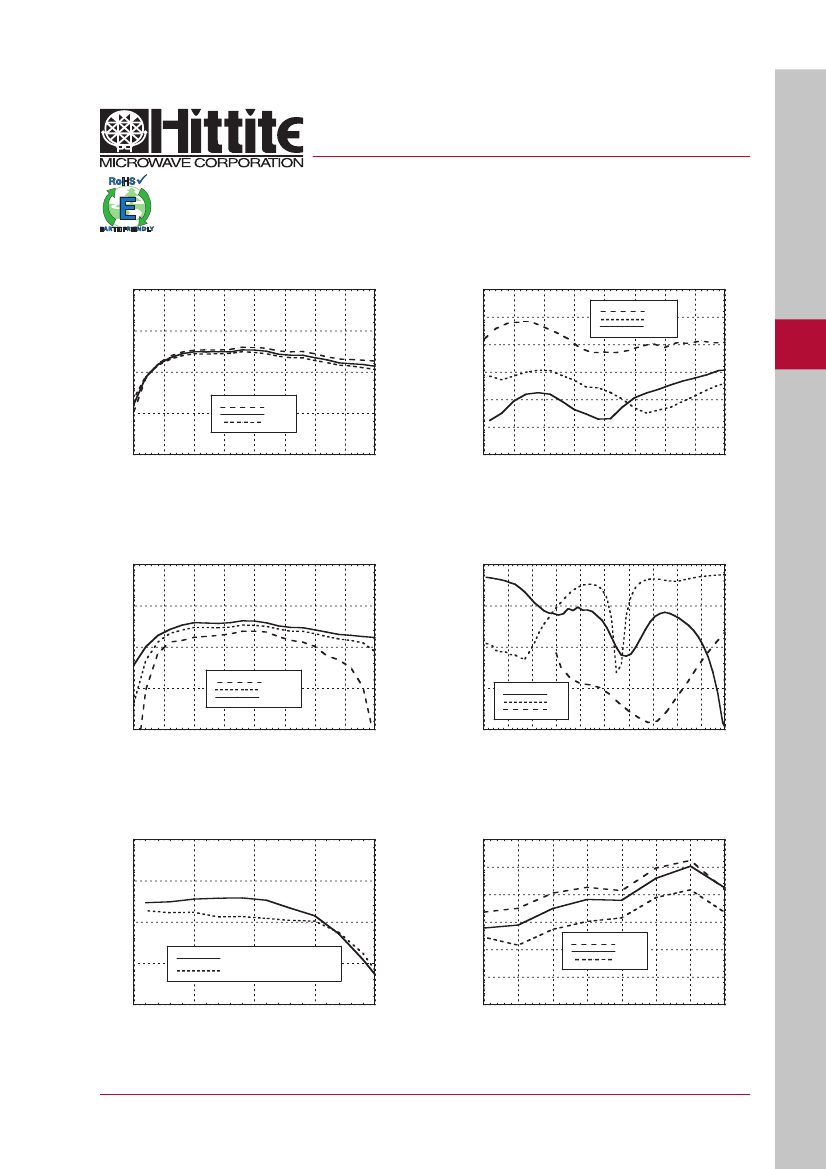

7 - 66
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com

HMC213MS8 Related Products

HMC213MS8 HMC213MS8E
Description GaAs MMIC SMT DOUBLE BALANCED MIXER, 1.5 - 4.5 GHz GaAs MMIC SMT DOUBLE BALANCED MIXER, 1.5 - 4.5 GHz
Is it lead-free? Contains lead Lead free
Is it Rohs certified? incompatible conform to
Maker Hittite Microwave(ADI) Hittite Microwave(ADI)
package instruction TSSOP8,.19 TSSOP8,.19
Reach Compliance Code compli compli
ECCN code EAR99 EAR99
Characteristic impedance 50 Ω 50 Ω
structure COMPONENT COMPONENT
Maximum frequency conversion loss 10 dB 10 dB
Maximum input power (CW) 13 dBm 13 dBm
JESD-609 code e0 e3
Installation features SURFACE MOUNT SURFACE MOUNT
Number of terminals 8 8
Maximum operating frequency 4500 MHz 4500 MHz
Minimum operating frequency 1500 MHz 1500 MHz
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Encapsulate equivalent code TSSOP8,.19 TSSOP8,.19
RF/Microwave Device Types DOUBLE BALANCED DOUBLE BALANCED
surface mount YES YES
technology GAAS GAAS
Terminal surface Tin/Lead (Sn/Pb) Matte Tin (Sn)
