Standard Products Found
Page 1 of 2
For use with TO-220 packages
576802b03700
VIS#002456

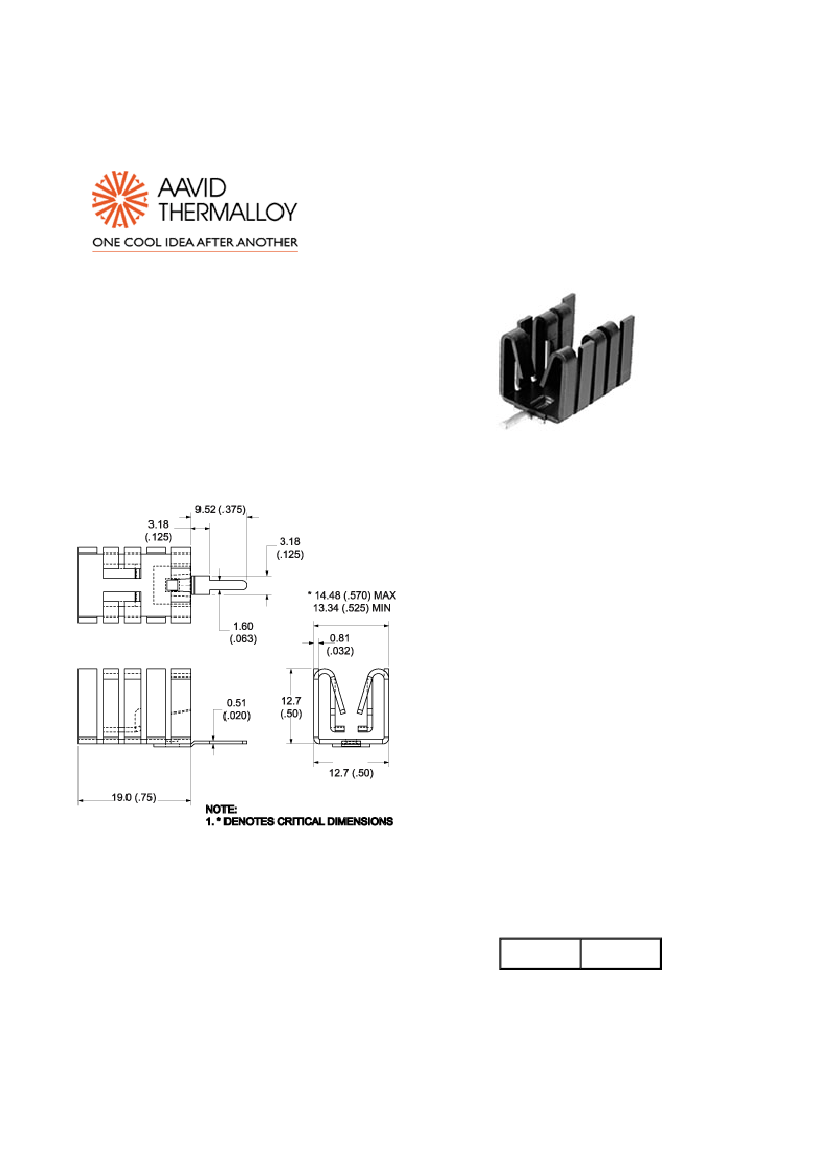

Mechanical Outline Drawing
Thermal
Resistance
27.3
Thermal resistance value is based
on a 75°C rise in natural
convection
http://www.aavidthermalloy.com/bin/stdisp_print.pl?Pnum=576802b03700
2/26/2003
Standard Products Found
Page 2 of 2
Thermal Curves
Product Information
12 Digit Part #
576802b03700
Description
For vertical mounting
with step (Tab 37)
Finish
Black
Anodize
Board Mounting
View Hole
Dimensions
Not Exactly what you need?
We offer several options for those applications which require a more unique solution. For
slight modifications of this part or other attachment options, finishes, and interface
materials, contact your
local representative.
Challenge us with your thermal
requirements - we can design custom solutions.
For technical help with our Standard Products,
please call (603) 223-1921, or contact your local Manufacturer’s Rep
