HMC603QS16E

Description
0.5 dB LSB GaAs MMIC 5-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 0.7 - 3.8 GHz
CategoryWireless rf/communication    Radio frequency and microwave
File Size336KB,6 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

HMC603QS16E Online Shopping

Suppliers Part Number Price MOQ In stock
HMC603QS16E - - View Buy Now

HMC603QS16E Overview

0.5 dB LSB GaAs MMIC 5-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 0.7 - 3.8 GHz

HMC603QS16E Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHittite Microwave(ADI)
package instructionSSOP16,.25
Reach Compliance Codecompli
ECCN codeEAR99
Nominal attenuation15.5 dB
Characteristic impedance50 Ω
structureCOMPONENT
Maximum input power (CW)30 dBm
Maximum insertion loss3 dB
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals16
Maximum operating frequency3800 MHz
Minimum operating frequency700 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSSOP16,.25
power supply3/5 V
RF/Microwave Device TypesVARIABLE ATTENUATOR
surface mountYES
technologyGAAS
Terminal surfaceMatte Tin (Sn)
HMC603QS16
/
603QS16E
v00.0805
0.5 dB LSB GaAs MMIC 5-BIT DIGITAL
POSITIVE CONTROL ATTENUATOR, 0.7 - 3.8 GHz
Typical Applications
Features
0.5 dB LSB Steps to 15.5 dB
Single Positive Control Per Bit
± 0.15 dB Typical Bit Error
High Input IP3: +50 dBm

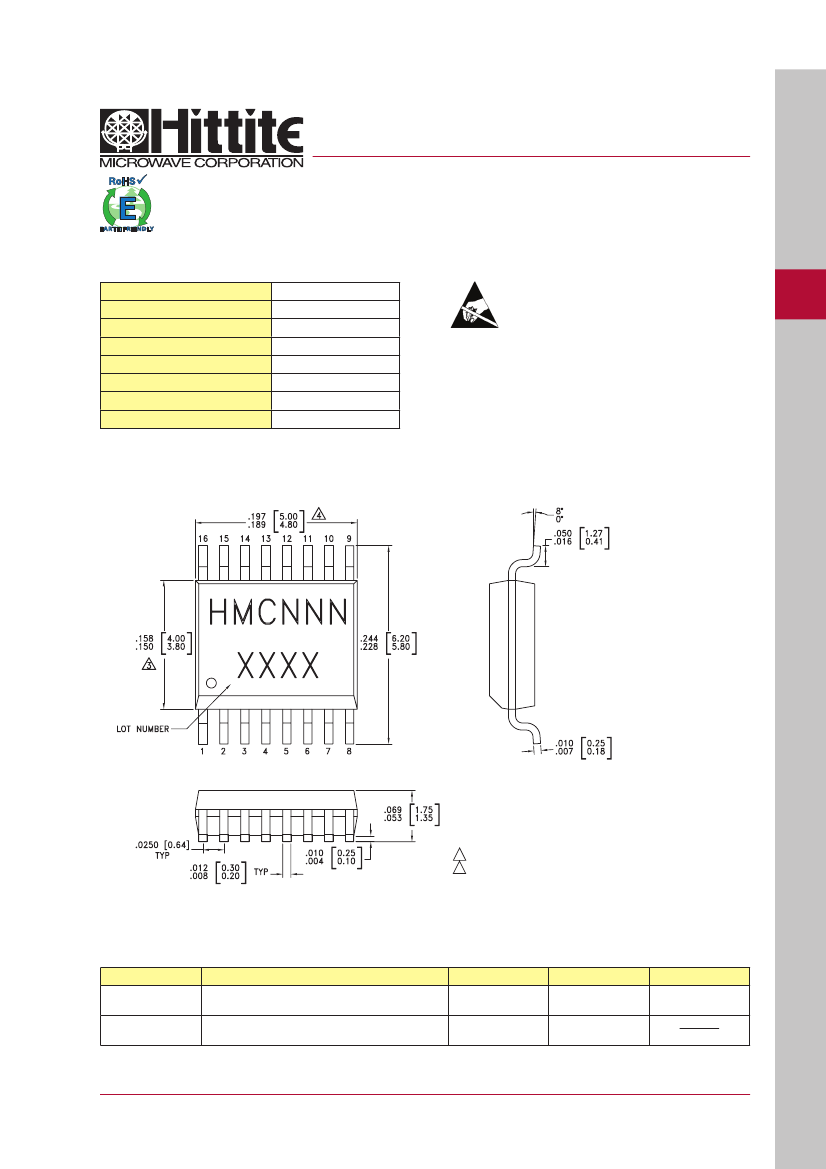

QSOP16 SMT Package
6
ATTENUATORS - SMT
The HMC603QS16 / HMC603QS16E is ideal for:
• Cellular/3G Infrastructure
• ISM, MMDS
• WLAN, WiMAX, & WiBro

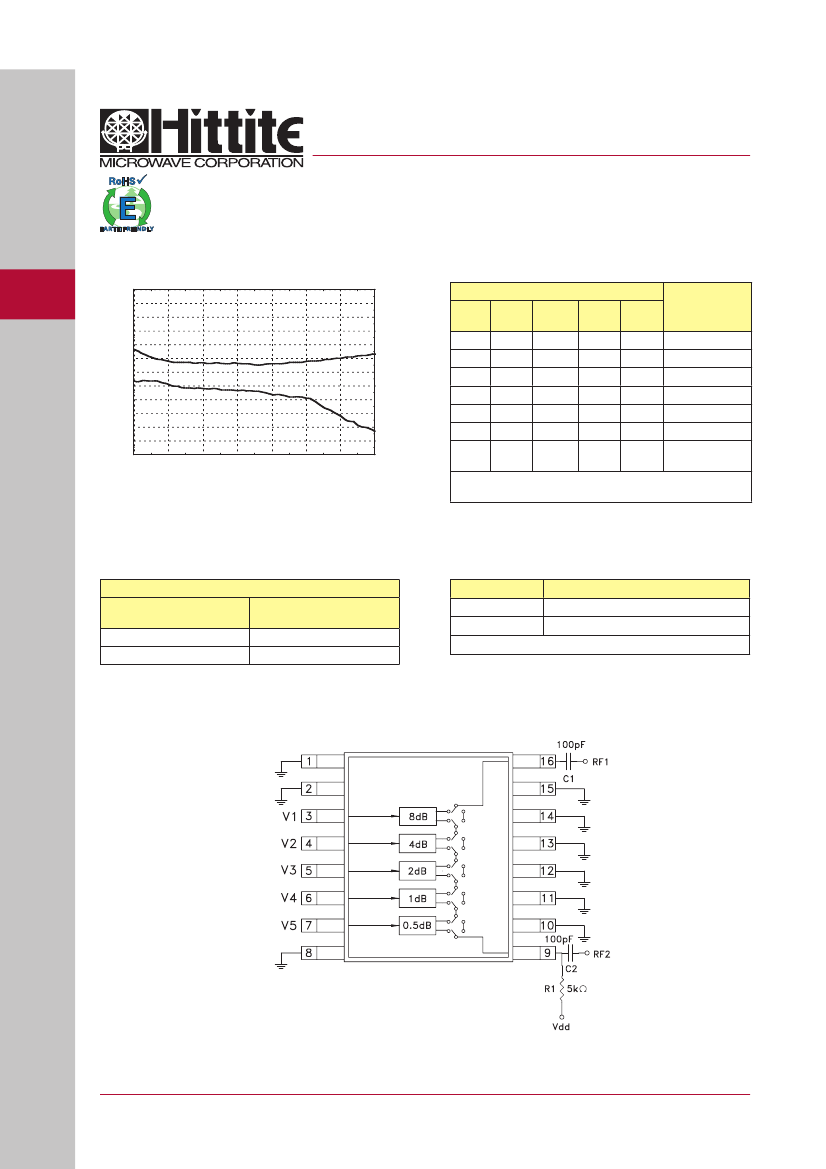

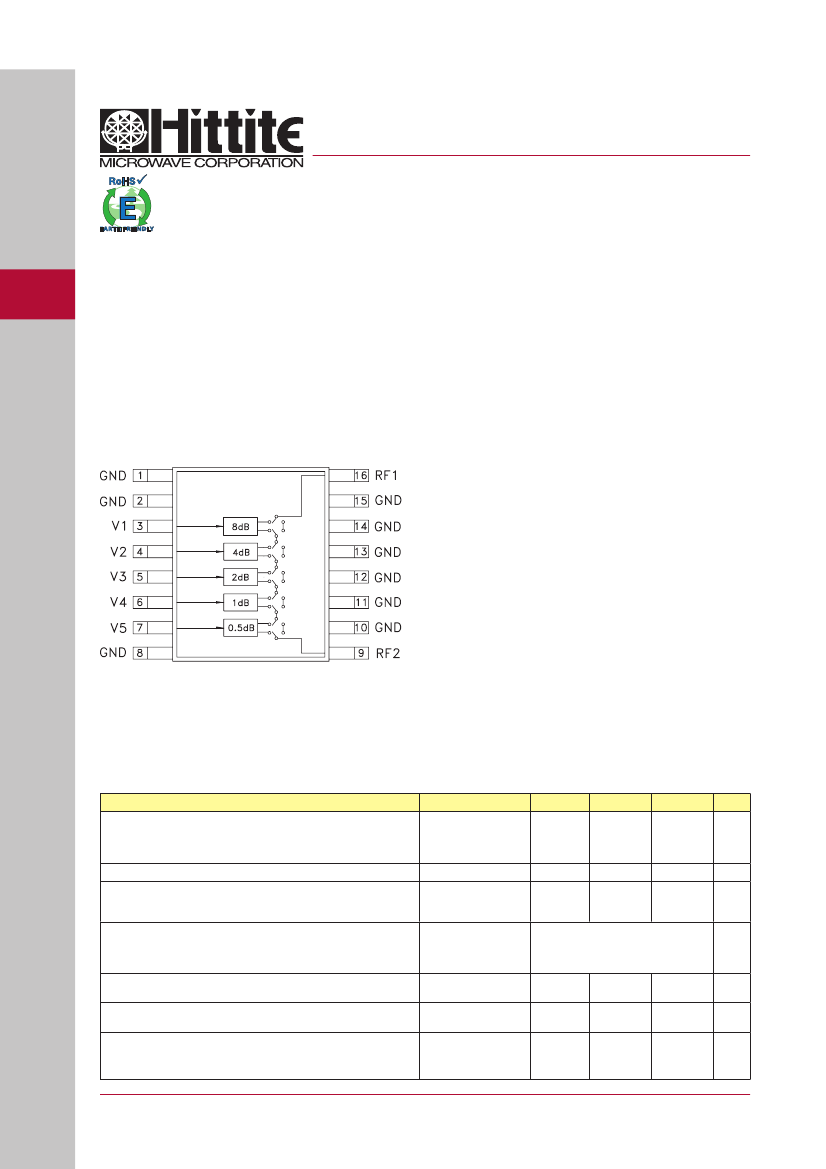

Functional Diagram
General Description
The HMC603QS16 & HMC603QS16E are general
purpose broadband 5-bit positive control GaAs IC
digital attenuators in 16 lead QSOP surface mount
plastic packages. Covering 0.7 to 3.8 GHz, the inser-
tion loss is less than 1.9 dB typical. The attenuator
bit values are 0.5 (LSB), 1, 2, 4 and 8 dB for a total
attenuation of 15.5 dB. Attenuation accuracy is excel-
lent at ± 0.15 dB typical with an IIP3 of +50 dBm.
Five bit control voltage inputs, toggled between 0
and +3 to +5V, are used to select each attenuation
state at less than 1 uA each. A single Vdd bias of
+3 to +5V applied through an external 5K Ohm
resistor is required.

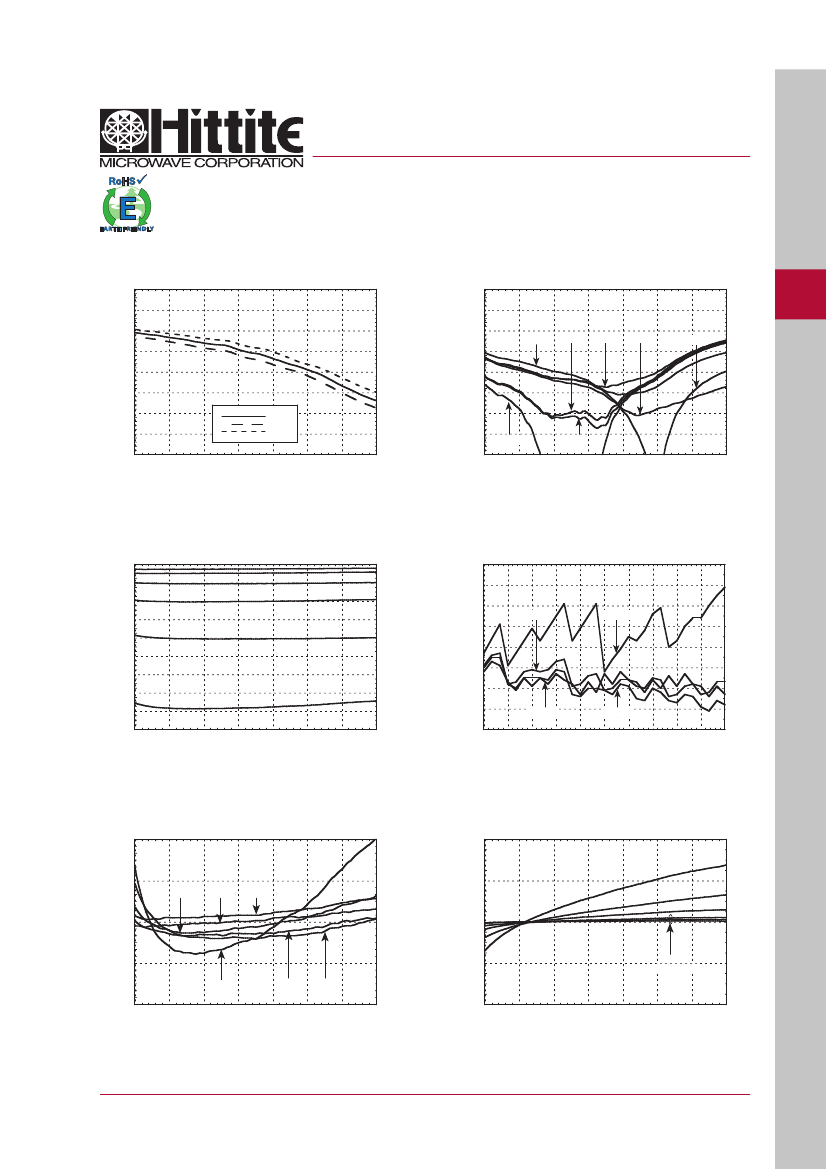

Electrical Specifications,
T
A
= +25° C, Vdd= +3V to +5V & Vctl= 0/Vdd (Unless Otherwise Stated)
Parameter
Frequency (GHz)
0.7 - 1.4 GHz
1.4 - 2.3 GHz
2.3 - 3.0 GHz
3.0 - 3.8 GHz
Min.
Typical
1.3
1.6
1.9
2.6
15.5
0.7 - 1.4 GHz
1.4 - 3.0 GHz
3.0 - 3.8 GHz
18
20
15
Max.
1.6
1.9
2.2
3.0
Units
dB
dB
dB
dB
dB
dB
dB
dB
Insertion Loss
Attenuation Range
Return Loss (RF1 & RF2, All Atten. States)
Attenuation Accuracy: (Referenced to Insertion Loss)
All States
Vdd = 5V
Vdd = 3V
REF - 2 dB States
2.5 - 15.5 dB States
0.7 -2.2 GHz
2.2 - 3.8 GHz
0.7 - 3.8 GHz
0.7 - 3.8 GHz
± (0.2 + 2% of Atten. Setting) Max.
± (0.3 + 3% of Atten. Setting) Max.
29
28
53
48
1.6
1.6
dB
dB
dBm
dBm
dBm
dBm
μs
μs
Input Power for 0.1 dB Compression
Input Third Order Intercept Point
(Two-tone Input Power = 0 dBm Each Tone)
Switching Characteristics
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
0.7 - 3.8 GHz
6 - 188
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com

HMC603QS16E Related Products

HMC603QS16E HMC603QS16
Description 0.5 dB LSB GaAs MMIC 5-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 0.7 - 3.8 GHz 0.5 dB LSB GaAs MMIC 5-BIT DIGITAL POSITIVE CONTROL ATTENUATOR, 0.7 - 3.8 GHz
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Maker Hittite Microwave(ADI) Hittite Microwave(ADI)
package instruction SSOP16,.25 SSOP16,.25
Reach Compliance Code compli compli
ECCN code EAR99 EAR99
Nominal attenuation 15.5 dB 15.5 dB
Characteristic impedance 50 Ω 50 Ω
structure COMPONENT COMPONENT
Maximum input power (CW) 30 dBm 30 dBm
Maximum insertion loss 3 dB 3 dB
JESD-609 code e3 e0
Installation features SURFACE MOUNT SURFACE MOUNT
Number of terminals 16 16
Maximum operating frequency 3800 MHz 3800 MHz
Minimum operating frequency 700 MHz 700 MHz
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Encapsulate equivalent code SSOP16,.25 SSOP16,.25
power supply 3/5 V 3/5 V
RF/Microwave Device Types VARIABLE ATTENUATOR VARIABLE ATTENUATOR
surface mount YES YES
technology GAAS GAAS
Terminal surface Matte Tin (Sn) Tin/Lead (Sn/Pb)
