VPR220S, VPR221S
Vishay Foil Resistors
Bulk Metal
®
Foil Technology Precision Foil Power Surface Mount
Resistors in TO-220 Configuration with TCR of ± 2 ppm/°C,
Tolerance of to ± 0.01 % and Power Rating to 8 W
FEATURES
•
Temperature coefficient of resistance (TCR):
± 2 ppm/°C typical (- 55 °C to + 125 °C,
+ 25 °C Ref.)
•
Tolerance: to ± 0.01 % (see tables 1 and 2)
•
Electrostatic discharge (ESD): above 25 000 V
•
Load life stability: ± 0.005 % (25 °C, 2000 h at rated power)
•
Resistance range: 0.5
Ω
to 10 kΩ
•
Power rating: 8 W chassis mounted (per MIL-PRF-39009)
•
Non inductive, non capacitive design
•
Rise time: 1 ns without ringing
•
Current noise: < - 40 dB
•
Voltage coefficient: < 0.1 ppm/V
•
Non inductive: < 0.08 µH
•
Non hot spot design
•
Thermal EMF: 0.05 µV/°C typical
•
Terminal finishes available: lead (Pb)-free
tin/lead alloy
•
Any value available within resistance range (e.g. 1K234)
•
Prototype samples available from 48 h. For more
information, please contact
foil@vishaypg.com
•
For better performances, please see VPR220SZ and
VPR221SZ datasheets
Any value at any tolerance within resistance range

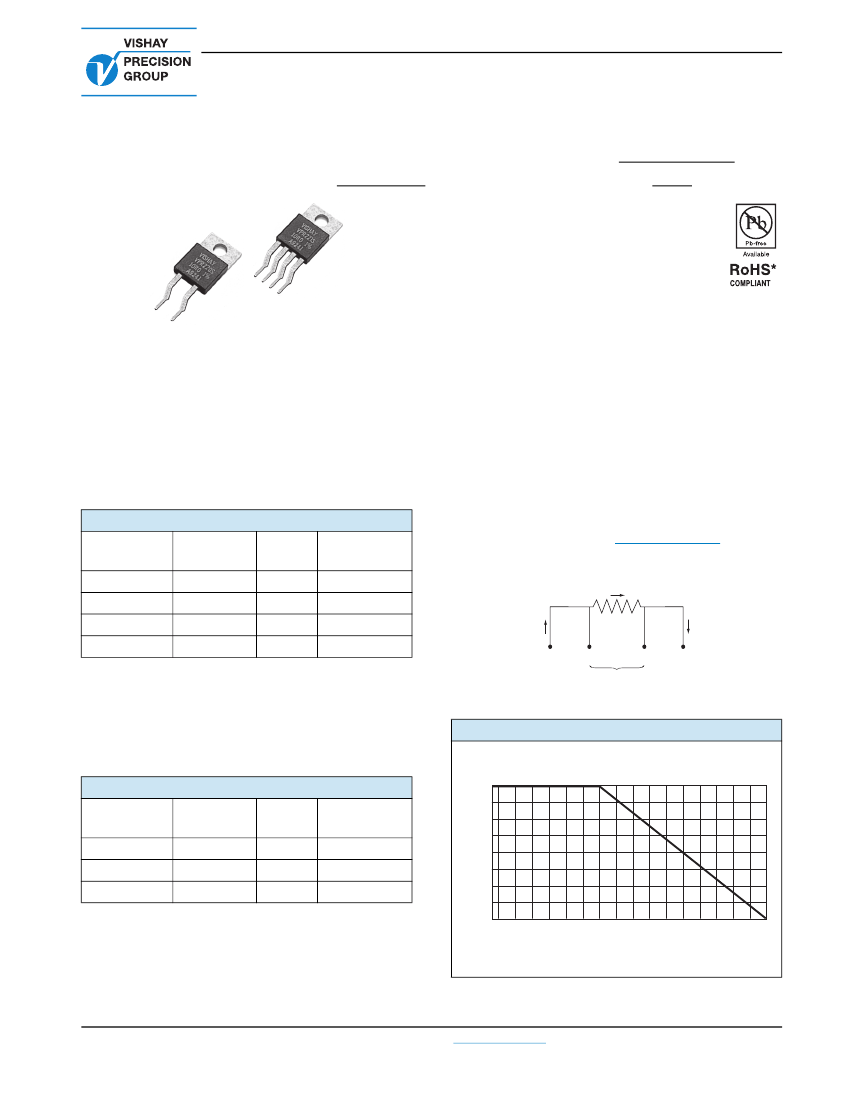

Models VPR220S AND VPR221S, made from Vishay Bulk
Metal
®
foil, offer low TCR, high stability, tight tolerance and
fast response time in a small, molded resistor. Model
VPR220S is a 2 lead device. Model VPR221S is a 4 lead
Kelvin connected device. The 4 leaded version is highly
recommended for precision applications requiring ohmic
values of 100R or less.
TABLE 1 - VPR220S
RESISTANCE
RANGE (Ω)
1)
50 to 10K
25 to < 50
10 to < 25
5 to < 10
weight = 1 g maximum
Notes
1. Lower or high values available upon request
2. - 55 °C to + 125 °C, + 25 °C ref.
TIGHTEST
TOLERANCE
± 0.01 %
± 0.02 %
± 0.05 %
± 0.1 %
TYPICAL
TCR
2)
±2
±2
±2
±2
MAXIMUM
TCR
2)
± 5 ppm/°C
± 7 ppm/°C
± 10 ppm/°C
± 13 ppm/°C
R
I
I
1
E
1
V
E
2
I
2
I
FIGURE 1 - POWER DERATING CURVE
TABLE 2 - VPR221S
Percent of Rated Power
+ 100
- 55 °C
RESISTANCE
RANGE (Ω)
1)
10 to < 500
1 to < 10
0.5 to < 1
TIGHTEST
TOLERANCE
± 0.01 %
± 0.02 %
± 0.05 %
TYPICAL
TCR
2)
±2
±2
±2
MAXIMUM
TCR
2)
± 5 ppm/°C
± 5 ppm/°C
± 5 ppm/°C
+ 75
+ 50
+ 25
weight = 1.2 g maximum
Notes
1. Lower or high values available upon request
2. - 55 °C to + 125 °C, + 25 °C ref.
* Pb containing terminations are not RoHS compliant, exemptions may apply
0
- 50
- 25
0
+ 25
+ 50
+ 75
+ 100
+ 125
+ 150
Ambient Temperature (°C)
Document Number: 63050
Revision: 23-Mar-10
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
1
VPR220S, VPR221S
Vishay Foil Resistors
FIGURE 2 - TYPICAL TCR CURVE
FIGURE 3 - TRIMMING TO VALUES
(Conceptual Illustration)
+ 150
+ 100
Δ
R
+ 50
0
- 50
Interloop Capacitance
Reduction in Series
Current Path
Before Trimming
Current Path
After Trimming
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
R
(ppm)
- 100
- 150
- 200
- 50
- 55
- 25
0
+ 20
+ 50
+ 75
+ 100
+ 125
± 2 ppm/°C (+ 25 °C Reference)
Mutual Inductance
Reduction due
to Opposing
Current in
Adjacent Lines
Ambient Temperature (°C)
Note:
Foil shown in
black,
etched spaces in
white
TABLE 3 - SPECIFICATIONS
Load Life Stability at 2000 h
± 0.05 % max.
ΔR
under full rated power at + 25 °C
8 W or 3 A
1)
on heat sink
2)
Power Rating at + 25 °C
1.5 W or 3 A
1)
in free air
Further derating not necessary
Current Noise
High Frequency Operation
Rise time
Inductance
3)
(L)
Capacitance (C)
Voltage Coefficient
4)
Operating Temperature Range
Maximum Working Voltage
Thermal EMF
5)
Notes
1. Whichever is lower
2. Heat sink chassis dimensions and requirements per MIL-R-39009/1B:
DIMENSION
L
W
H
T
INCHES
6.00
4.00
2.00
0.04
mm
152.4
101.6
50.8
1.0
1 ns without ringing
0.1 µH maximum: 0.03 µH typical
1.0 pF maximum: 0.5 pF typical
< 0.1 ppm/V
- 55 °C to + 150 °C
300 V. Not to exceed power rating
0.15 µV/°C maximum (lead effect)
< 0.010 µV (rms)/V of applied voltage (- 40 dB)
3. Inductance (L) due mainly to the leads
4. The resolution limit of existing test equipment (within the measurement capability of the equipment, or “essentially zero”)
5. µV/°C relates to EMF due to lead temperature difference
www.foilresistors.com
2
For any questions, contact:
foil@vishaypg.com
Document Number: 63050
Revision: 23-Mar-10
VPR220S, VPR221S
Vishay Foil Resistors

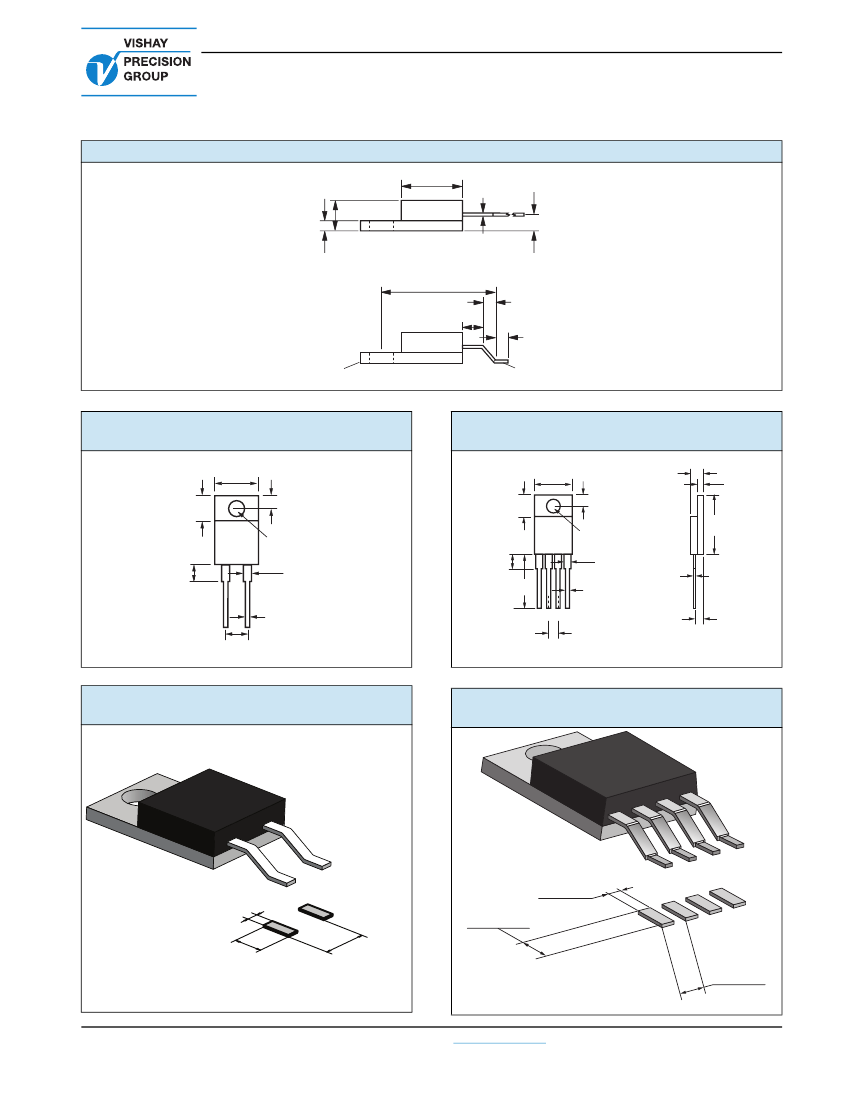

FIGURE 4 - VPR220S AND VPR221S FORMING DIMENSIONS
in inches (millimeters)
0.365 (9.27) Ref
0.015 ± 0.002
(0.38 ± 0.05)
0.150 ± 0.008
(3.81 ± 0.20)
0.050 ± 0.005
(1.27 ± 0.13)
Before Forming
0.078 ± 0.005
(1.98 ± 0.13)
0.695 ± 0.010
(17.65 ± 0.25)
0.110 (2.79) Ref
0.090 (2.286) Ref
0.090 ± 0.010
(2.29 ± 0.25)
Heat Sink
Flush with Heat Sink
Within ± 0.002 (± 0.05)
After Forming
FIGURE 5 - VPR220S DIMENSIONS
in inches (millimeters)
0.400 ± 0.010
(10.16 ± 0.25)
0.115 ± 0.005
(2.92 ± 0.13)
FIGURE 7 - VPR221S DIMENSIONS
in inches (millimeters)
0.400 ± 0.010
(10.16 ± 0.25)
0.245 ± 0.010
(6.22 ± 0.25)
VISHAY
VPR221S
1R0 1
%
0101
0.150 ± 0.008
(3.81 ± 0.20)
0.115 ± 0.005
(2.92 ± 0.13)
0.141 ± 0.005 Diameter
(3.58 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.030 ± 0.002
(0.76 ± 0.05)
0.050 ± 0.005
(1.27 ± 0.13)
0.615 Max.
(15.62)
0.245 ± 0.010
(6.22 ± 0.25)
VISHAY
VPR220S
1K0 1
%
0101
0.200 ± 0.030
(5.08 ± 0.76)
0.141 ± 0.005 Diameter
(3.58 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.200 ± 0.030
(5.08 ± 0.76)
0.540 ± 0.040
(13.72 ± 1.02)
I
1
E
1
E
2
I
2
0.100 ± 0.005
(2.54 ± 0.13)
0.015 ± 0.002
(0.38 ± 0.05)
0.030 ± 0.002
(0.76 ± 0.05)
0.200 ± 0.005
(5.08 ± 0.13)
0.078 ± 0.005
(1.98 ± 0.13)
FIGURE 6 - VPR220S LAND PATTERN
DIMENSIONS
in inches (millimeters)
FIGURE 8 - VPR221S LAND PATTERN
DIMENSIONS
in inches (millimeters)
0.050 ± 0.010
(1.27 ± 0.25)
0.050 ± 0.010
(1.27 ± 0.25)
0.120 ± 0.010
(3.05 ± 0.25)
0.200 ± 0.005
(5.08 ± 0.13)
0.10 ± 0.005
(2.54 ± 0.12)
0.120 ± 0.010
(3.05 ± 0.25)
Document Number: 63050
Revision: 23-Mar-10
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
3
VPR220S, VPR221S
Vishay Foil Resistors
TABLE 4 - GLOBAL PART NUMBER INFORMATION
NEW GLOBAL PART NUMBER: Y11235R00000Q9L (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
Ω
K
= kΩ
AER*
0
= standard part, tin/lead terminations
9
= standard part, lead (Pb)-free termination
Other
= custom
Y
1
1
2
3
5
R
0
0
0
0
0
Q
9
L
PRODUCT CODE
1122
= VPR220S
1123
= VPR221S
RESISTANCE TOLERANCE
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
PACKAGING
L
= bulk pack
FOR EXAMPLE: ABOVE GLOBAL ORDER Y1123 5R00000 Q 9 L:
TYPE: VPR221S
VALUE: 5.0
Ω
ABSOLUTE TOLERANCE: ± 0.02 %
TERMINATION: lead (Pb)-free
PACKAGING: bulk pack
HISTORICAL PART NUMBER: VPR221ST 5R0000 Q B (will continue to be used)
VPR221S
MODEL
VPR220S
VPR221S
T
TERMINATION
T
= lead (Pb)-free
None = tin/lead alloy
5R0000
OHMIC VALUE
5.0
Ω
Q
RESISTANCE
TOLERANCE
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
B
PACKAGING
B
= bulk pack
Note
* Application engineering release: for non-standard requests, please contact application engineering
www.foilresistors.com
4
For any questions, contact:
foil@vishaypg.com
Document Number: 63050
Revision: 23-Mar-10
