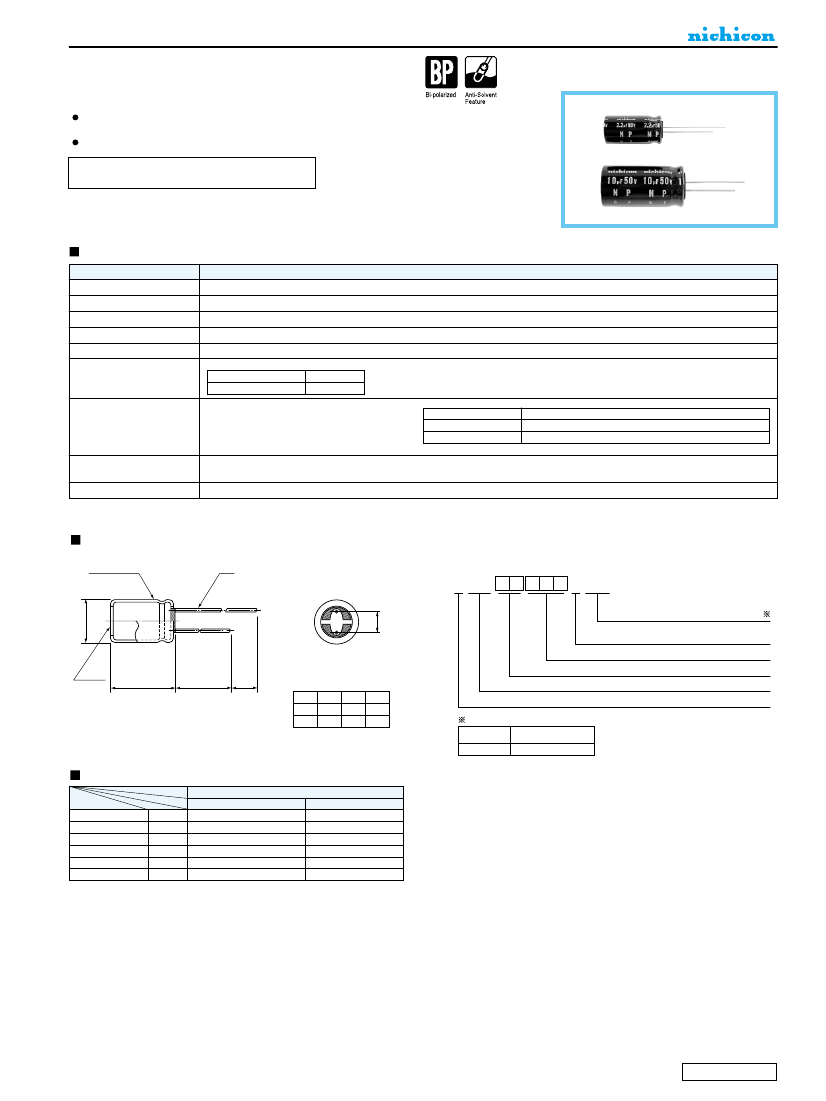

ALUMINUM ELECTROLYTIC CAPACITORS
HA
Horizontal Deflection Current Correction Use
series
Designed specifically for horizontal deflection current correction of TV's where high
frequencies and high ripple currents are applied.
Adapted to the RoHS directive (2002/95/EC).
Products which are scheduled to discontinue.
Not recommended for new designs
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Performance Characteristics
– 25 to +85°C
25 · 50V
2.2 to 10µF
±10% at 120Hz, 20°C
After 5 minutes' application of rated voltage, leakage current is 100 (µA) or less.
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage (V)
tan
δ
(MAX.)
25, 50
0.05
Capacitance change
tan
δ
Leakage Current
Endurance
After 1000 hours' application of DC 12V on
which the specified allowable ripple current is
superimposed at 70°C, capacitors meet the
characterstic requirements listed at right.
Within ±15% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 500 hours, and after performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
φ
d
Type numbering system (Example : 25V 3.3µF)
1
2
3
4
5
6
7
8
9 10 11
UHA 1 E 3 R 3 K HD
φD
+
0.5 MAX.
P
±
0.5
Configuration
Capacitance tolerance (±10%)
Rated Capacitance (3.3µF)
Pressure
relief vent
L +
1MAX.
15
MIN
4
MIN
Rated voltage (25V)
Series name
φ
D
P
φ
d
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
Configuration
φ
D
12.5 to 18
Pb-free leadwire
Pb-free PET sleeve
Type
HD
Dimensions
Cap.(µF)
code
Code
Item
2.2
3.3
4.7
5.6
6.8
10
2R2
3R3
4R7
5R6
6R8
100
25 (1E) , 50 (1H)
Case size
Rated ripple
12.5
×
25
5
16
×
25
6
16
×
31.5
7
16
×
31.5
77.5
16
×
35.5
8
18
×
35.5
107
Case size (mm)
Rated ripple
Ripple (Ap-p) at 70°C 15.75kHz
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
CAT.8100W
