RoHS
Compliant
Amplifier, Power, 1.6W
10.0-13.25 GHz
♦
1.6 Watt Saturated Output Power Level
♦
Variable Drain Voltage (4-10V) Operation
™
♦
MSAG Process
VGG
(PIN 20)
MAAP-000070-PKG003
Rev —
Advance Information
Features
VD12
Description
The
MAAP-000070-PKG0003
is a 4-stage 1.6 W power ampli-
fier with on-chip bias networks in a 20 lead MLP package, al-
lowing easy assembly. This product is fully matched to 50
ohms on both the input and output. It can be used as a power
amplifier stage or as a driver stage in high power applications.
Each device is 100% RF tested to ensure performance
compliance. The part is fabricated using M/A-COM’s GaAs
Multifunction Self-Aligned Gate (MSAG) Process.
M/A-COM’s MSAG™ process features robust silicon-like
manufacturing processes, planar processing of ion implanted
transistors and multiple implant capability enabling power, low-
noise, switch and digital FETs on a single chip. The use of re-
fractory metals and the absence of platinum in the gate metal
formulation prevents hydrogen poisoning when employed in
hermetic packaging.
(PIN 1) N/C
N/C
RF IN
N/C
N/C
VD3
N/C
N/C
YYWW
AP070G
XXXX
MACOM
VGG
N/C
N/C
VD12
VD3
N/C
N/C
RF OUT
N/C
N/C
Primary Applications
♦
Point-to-Point Radio
♦
SatCom
♦
Radio Location
Also Available in:
Description
Part Number
Die
MAAPGM0070-DIE
Ceramic Package
MAAPGM0070
Die Sample Board
MAAP-000070-SMB004
Die Mechanical Sample
MAAP-000070-MCH000
Packaged Sample Board
MAAP-000070-SMB003
(Lead Free)
Electrical Characteristics: T
B
= 40°C
1
, Z
0
= 50
Ω,
V
DD
= 8V, I
DQ
= 900mA
2
, P
in
= 7 dBm
Parameter
Bandwidth
Output Power
1-dB Compression Point
Small Signal Gain
Input VSWR
Output VSWR
Gate Current
Drain Current
1.
2.
Symbol
f
P
OUT
P1dB
G
VSWR
VSWR
I
GG
I
DD
Typical
10.0-13.25
29
31
25
2.0:1
2.5:1
10
1400
mA
mA
Units
GHz
dBm
dBm
dB
1
T
B
= MMIC Base Temperature
Adjust V
GG
between –2.5 and –1.2V to achieve specified Idq.
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Amplifier, Power, 1.6W
10.0-13.25 GHz
Maximum Operating Conditions
3
Parameter
Input Power
Drain Supply Voltage
Gate Supply Voltage
Quiescent Drain Current (No RF)
Quiescent DC Power Dissipated (No RF)
Junction Temperature
Storage Temperature
Symbol
P
IN
V
DD
V
GG
I
DQ
P
DISS
T
J
T
STG
Absolute Maximum
23.0
+12.0
-3.0
1.4
14.2
170
-55 to +150
Units
dBm
V
V
A
W
°C
°C
MAAP-000070-PKG003
Rev —
Advance Information
3. Operation beyond these limits may result in permanent damage to the part.
Recommended Operating Conditions
4
Characteristic
Drain Voltage
Gate Voltage
Input Power
Junction Temperature
Thermal Resistance
MMIC Base Temperature
Symbol
V
DD
V
GG
P
IN
T
J
Θ
JC
T
B
10.8
Note 4
Min
4.0
-2.5
Typ
8.0
-2.0
18.0
Max
10.0
-1.2
20.0
150
Unit
V
V
dBm
°C
°C/W
°C
4. Operation outside of these ranges may reduce product reliability.
5. MMIC Base Temperature = 170°C —
Θ
JC
* V
DD
* I
DQ
Operating Instructions
This device is static sensitive. Please handle with
care. To operate the device, follow these steps.
1. Apply V
GG
= -2 V, V
DD
= 0 V.
2. Ramp V
DD
to desired voltage, typically 8.0 V.
3. Adjust V
GG
to set I
DQ
, (approximately @ –2 V).
4. Set RF input.
5.
Power down sequence in reverse. Turn V
GG
off
last.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Amplifier, Power, 1.6W
10.0-13.25 GHz
MAAP-000070-PKG003
Rev —
Advance Information
AP070G

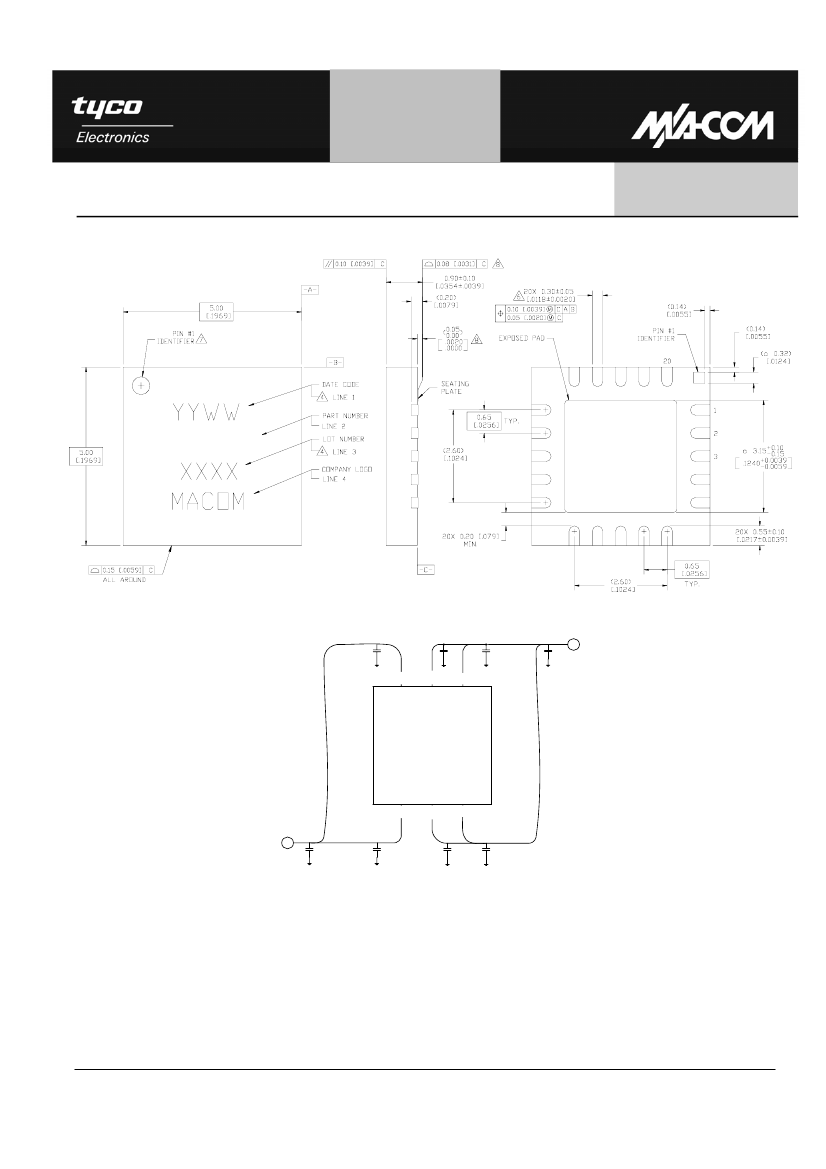

Figure 1. 5x5 mm 20-Lead MLP.
V
DD
100pF*
VGG
(PIN 20)
100pF*
100pF*
0.1μF
VD12
(PIN 1) N/C
N/C
RF IN
N/C
N/C
VD3
N/C
N/C
YYWW
AP070G
XXXX
MACOM
VGG
N/C
N/C
VD12
VD3
N/C
N/C
RF OUT
N/C
N/C
V
GG
0.1μF
100pF*
100pF*
100pF*
* Place 100pF capacitors as close to the package as possible.
Figure 2. Recommended Bias Configuration.
Note: The exposed pad centered on the package bottom must be connected to RF
and dc ground for proper electrical and thermal operation.
Refer to M/A-COM Application Note
Surface Mounting Instructions for PQFN Packages #S2083*
for assembly guidelines.
Additional Precaution: All parts must receive a bake-out of 125ºC for 24 hours prior to any solder reflow operation.
*Application Notes can be found by going to the Site Search Page of M/A-COM’s web page (http://www.macom.com/Application%20Notes/
index.htm) and searching for the required Application Note.
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
3
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Amplifier, Power, 1.6W
10.0-13.25 GHz
MAAP-000070-PKG003
Rev —
Advance Information
YYWW
APO70G
XXXX
MACOM

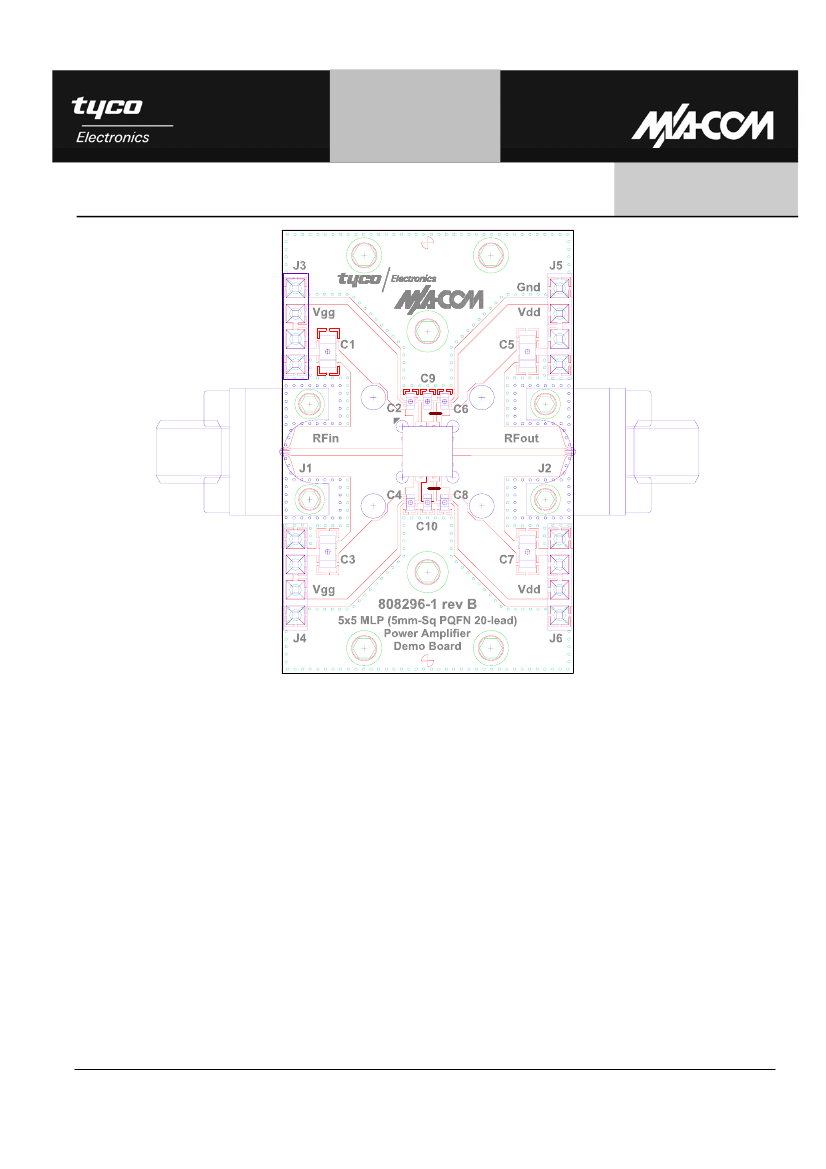

Figure 3. Demonstration Board PN MAAP-000070-SMB003 (available upon request).
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
