CLP6B-WKW-CC0E0233: DescriptionStandard LEDs - SMD White LED; CategoryLED optoelectronic/LED photoelectric; File Size510KB，15 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CLP6B-WKW-CC0E0233 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLP6B-WKW-CC0E0233	-	-	View	Buy Now

CLP6B-WKW-CC0E0233 Overview

Standard LEDs - SMD White LED

CLP6B-WKW-CC0E0233 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cree
package instruction	LCC-6
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
color	COOL WHITE
Configuration	SEPARATE, 3 ELEMENTS
Maximum forward current	0.05 A
Nominal luminous intensity	13500.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	6
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.5 mm
method of packing	TAPE AND REEL 7\"
shape	ROUND
size	4 mm
surface mount	YES
T code	T1-1/2
perspective	120 deg

Preview

Download Datasheet

View All

CLD-CT1020.007

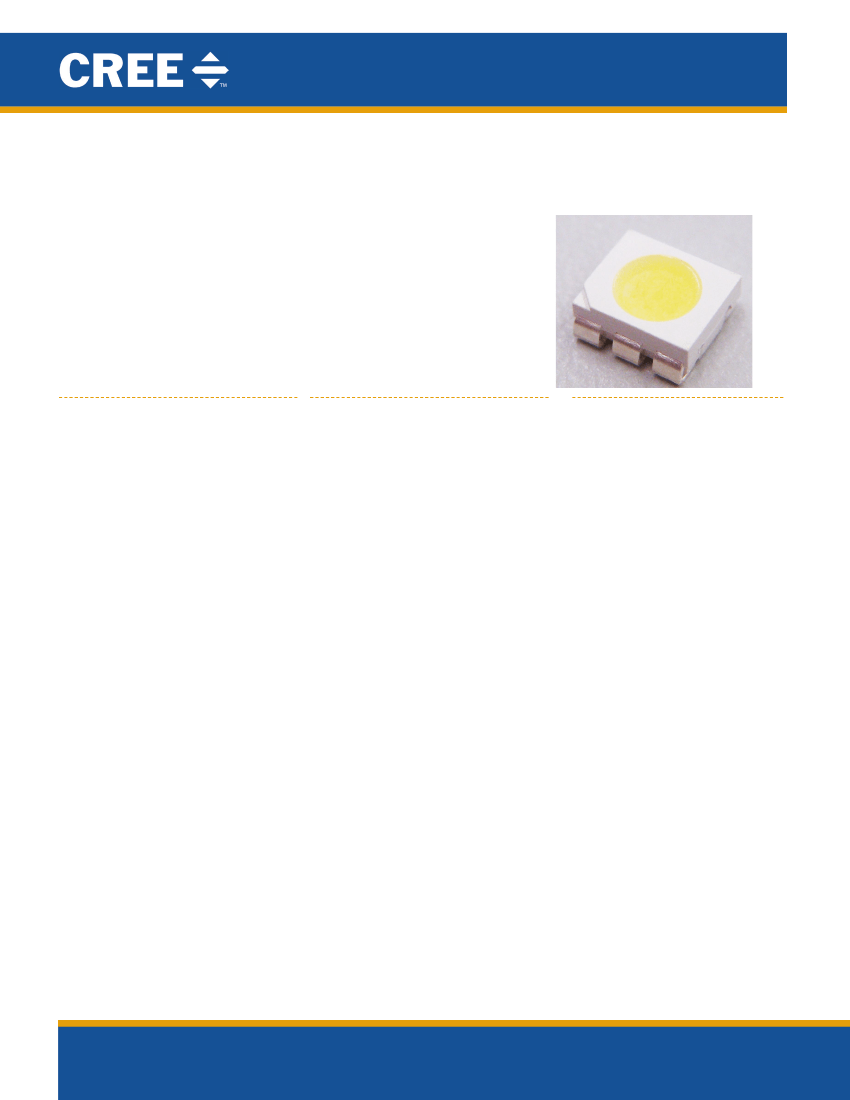

PRODUCT FAMILY DATA SHEET

Cree

PLCC6 3 in 1 SMD LED

CLP6B-WKW&MKW

PRODUCT DESCRIPTION

These SMD LEDs are packaged

and

industry-standard

PLCC6

are

package.

These high-reliability

LEDs

FEATURES

• Size (mm):6.0 x 5.0

•

Color Temperatures (K):

CLP6B-WKW:

Min.(4600), Typical.(6800)

CLP6B-MKW:

Min.(2500), Typical.(3200)

• Luminous Intensity (mcd):

Cool White(9000-22400)

Warm White (7100-18000)

• CRI:

Typical CRI for Cool White

(4600-15000k) is 72.

Typical CRI for Warm White

(2500-4600k) is 80.

• Lead-Free

• RoHS Compliant

APPLICATIONS

• Channel Letter

•

• Backlight

Portable Lighting

high-brightness

designed to work in a wide range of

environmental conditions and are

ideally suited for use in illumination

applications.

Their wide viewing angle makes

these LEDs ideally suited for channel

letters or general backlighting and

illumination applications. The flat-

top emitting surface makes it easy

for these LEDs to mate with light

pipes.

Entertainment Lighting

WWW.CREE.COM/HB

the Cree logo are registered trademarks of Cree, Inc.

Cree, the Cree logo and XLamp are registered trademarks of Cree, Inc.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

www.cree.com/xlamp
