FEATURES
VOLTAGE: 12V DC PER MODULE
CURRENT: 100mA PER MODULE
LED VIEWING ANGLE (2 0 1/2): 120°
MODULE THICKNESS: 6.0mm
PACKAGE: 20 PIECES PER REEL
WATER RESISTANCE - IP67
83.0mm X 15mm WATER RESISTANT LED MODULES
20 AWG
WIRES
83mm
(3.27")
76mm
(3.00")
83mm
(3.27")
+
+
94mm REF.
(3.70")
26.9mm
(1.06")
15.0mm
(.59")
5.7mm
(.22")
WIRES: WHITE WITH RED STRIP IS V+, PLAIN WHITE IS V-
Absolute Maximum Rating at TA = 25ºC
Parameter
Forward Current
Power Dissipation
Electrostatic Discharge
Operating Temperature
Storage Temperature
Symbol
IF
PD
ESD
Topr
Tstg
Absolute
MAX. Rating
100
1.2
800
-20~+60
-25~+80
Unit
mA
W
V
ºC
ºC
Electrical/Optical Characteristics at TA = 25ºC
Parameter
Forward Voltage DC
Color Temperature
Luminous Flux per Module
Luminous Flux per Ft.
Recommend Forward Current
Symbol
VF
TC
Condition
IF = 100mA
IF = 100mA
Min
--
--
--
--
--
Typ
12
9500
130
260
100
Max
--
--
--
--
--
Unit
V
K
Im/mod
lm/ft
mA
φ
V/Mod IF = 100mA
--
φ
V/Ft
IF(rec)
--
NOTES:
1. STANDARD MOUNTING INCLUDES ADHESIVE
BACKING AND MOUNTING HOLE FOR A #3
SCREW (SCREWS NOT INCLUDED).
2. JKL ACCESSORIES TO BE ORDERED SEPARATELY:
ZPS-1235 OR ZPS-1260 POWER SUPPLIES.
3. DUE TO WIRE GAUGE USED IN THE CONSTRUCT-
ION OF THE MODULES SERIAL RUNS SHOULD BE
LIMITED TO 11 FEET OR 20 MODULES.
4. POWER CONSUMPTION 2.4 WATTS PER FOOT.
ATTENTION
OBSERVE PRECAUTION
FOR HANDLING ELECTROSTATIC
DISCHARGE SENSITIVE DEVICES
+
DC12V
+
-
-
PLEASE REFER TO JKL APPLICATION SHEET:
JKL-AS-ZM-CHANNEL-LED FOR INSTALLATION AND
POWER RECOMMENDATIONS.
JKL PART NO.: ZM-8315-CW
METRIC
THIRD ANGLE
PROJECTION
DIMENSIONS ARE
IN mm & (INCHES)
TOLERANCE UNLESS
OTHERWISE SPECIFIED
COMPONENTS CORPORATION
TITLE
1 PL +/-
2 PL +/-
ANGLE +/-
APPV'D BY
REF.
COOL WHITE 3-LED CHANNEL LIGHT
55335
NONE
FSCM NO.
DRAWING
NO.
RELEASED
DATE
A
REV.
NO.
CHANGE COLOR TEMP TO 9500 TYP.
RELEASED
DESCRIPTION/ECO
NUMBER
3/23/16
L. WENGSTROM
L.R.
2/28/16
APPV'D
DATE
DRAWN BY
DATE
SIZE
3/23/16
MANUAL REVISIONS NOT PERMITTED

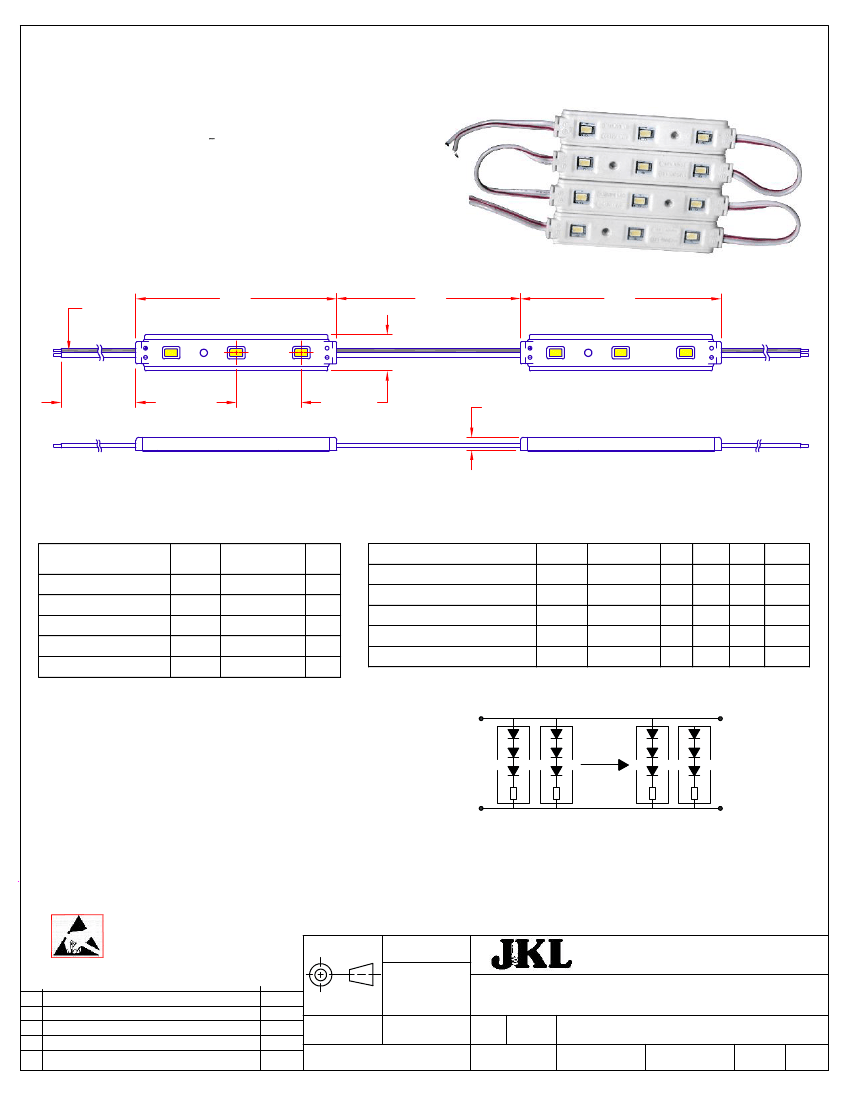

- CAD DRAWING -
SCALE
A
ZM-8315-CW
2/28/16
REVISION
DATE
3/23/16
REV.
NO.
A
1
SHEET
OF
1
