SUPERBRIGHT LED LAMP
VAOL-5EWY4
Feature
Low Power Consumption
High Intensity
I.C. compatible
Package Dimension
Applications
Commercial Outdoor Sign Board
Front Panel Indicator
Dot-Matrix Module
LED Bulb
These High Intensity LEDs are Based on
InGaN/Sapphire Material Technology
Water Transparent Lens
Description
＊Tolerance：±
0.01
Unit：±
0.25
mm
inch
Absolute Maximum Ratings at Ta＝25℃
Symbol
PD
VR
IAF
IPF
―
Topr
Tstg
Power Dissipation
Reverse Voltage
Average Forward Current
Peak Forward Current（Duty＝0.1，1kHz）
Derating Linear Form 25℃
Operating Temperature Range
Storage Temperature Range
–40
–40
Parameter
Max.
120
5
30
100
0.4
to
＋
80
to
＋
100
Unit
mW
V
mA
mA
mA∕℃
℃
℃
Lead Soldering Temperature [1.6mm（0.063inch）From Body] 260℃ For 5 Seconds.

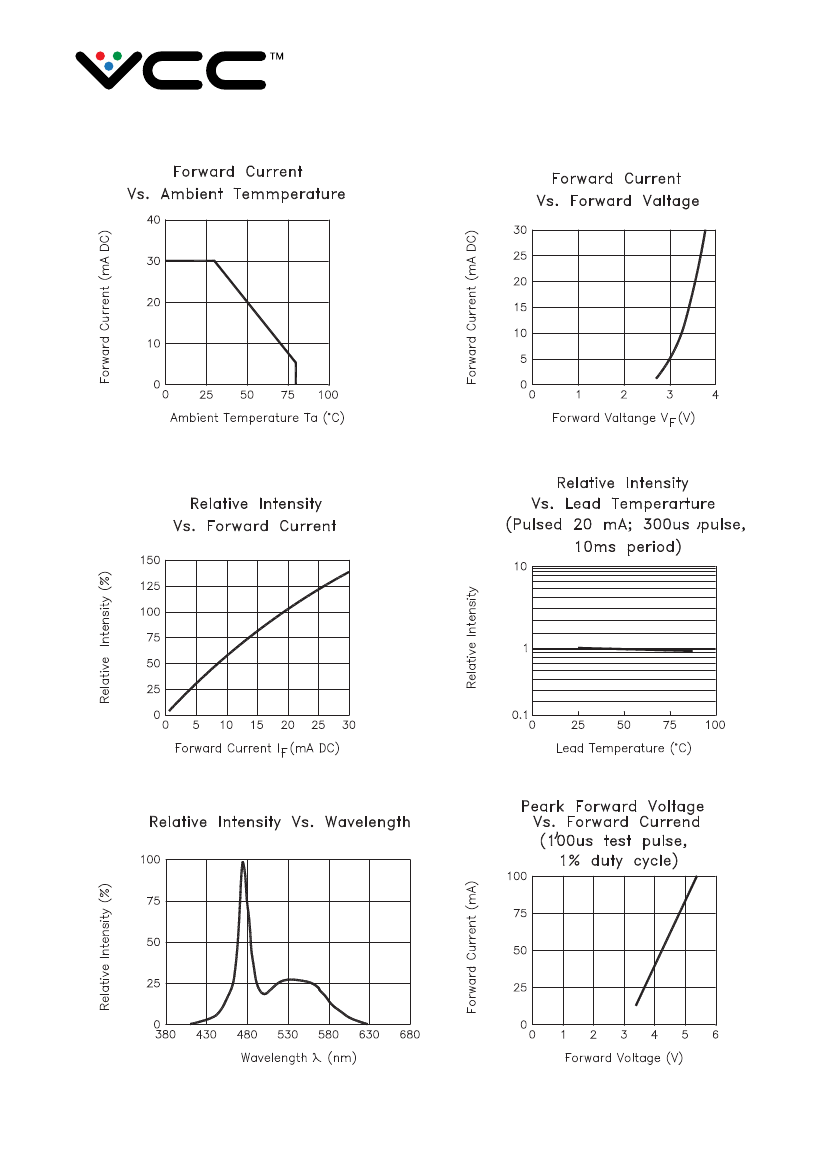

Electrical / Optical Characteristics and Curves at Ta＝25℃
Symbol
VF
IR
△θ
IV
X
Y
Parameter
Forward Voltage
Reverse Current
Half Intensity Angle
Luminous Intensity
Coordination
Coordination
Test Condition
IF＝ 20 mA
VR＝
5
V
IF＝ 20 mA
IF＝ 20 mA
IF＝ 20 mA
IF＝ 20 mA
Min.
Typ.
3.5
Max.
50
Unit
V
μA
Deg.
mcd.
15
12000
0.30
0.30
engineered to light up your design
www.vcclite.com
1.800.522.5546
SUPERBRIGHT LED LAMP
VAOL-5EWY4
Electrical Characteristics at Ta＝25
℃
Symbol
Parameter
Condition
Unit
Grade
BIN 23
Iv
Luminous Intensity
IF＝20mA
V
F
Forward Voltage
IF＝20mA
λD
Dominant Wavelength
IF＝20mA
mcd
Range
9700~13600
Grade
P0
P1
P2
P3
P4
P5
V
Range
2.8~3.0
3.0~3.2
3.2~3.4
3.4~3.6
3.6~3.8
3.8~4.0
Grade
WA
WB
WC
WD
nm
Range
Bluish White
Pure White
White
Yellowish White
BIN 24 13600~19000
Binning
Intensity: Tolerance of minimum and maximum = ± 15%
Vf: Tolerance of minimum and maximum = ± 0.05v
NOTE:
1. Static electricity and surge damages the LED. It is recommend to use a anti-static wrist
band or anti-electrostatic glove when handing the LEDs. All devices, equipment and machinery
must be properly grounded.

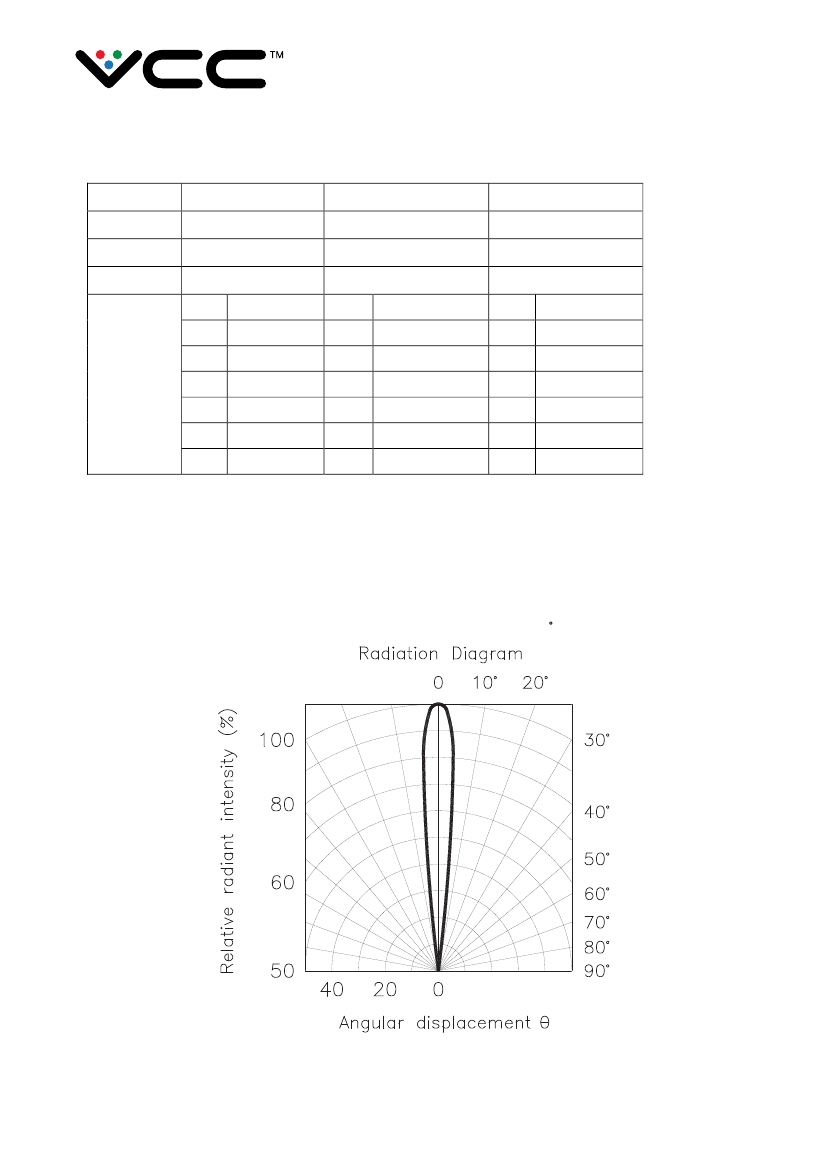

Radiation Diagram
IF=20 mA
50% Power Angle
Angle =15°
engineered to light up your design
www.vcclite.com
1.800.522.5546
