PSD-S OE LED BL ...
LED blinking light element, 24 V AC/DC
Data sheet
7950 00
1
Description
© PHOENIX CONTACT - 04/2009
This optical signal element is part of a modular signal
tower.
According to your requirements, a signal tower may
comprise any combination of up to five signal ele-
ments. You may use up to five optical signal elements
or up to four optical and one audible signal element.
An audible signal element can be used as top ele-
ment only.
A bayonet locking system establishes the mechanical
and electrical connection between the elements.
Connection elements with spring-cage or screw con-
nection can be used for electrical connection of the
signal tower.
Mounting elements for base or tube mounting can be
used to mount the signal tower.
Features
LED blinking light element for 24 V AC/DC
Colors: Red, green, yellow, blue and clear
Degree of protection: IP65, when installed or with
cover
Make sure you always use the latest documentation.
It can be downloaded at
http://www.phoenixcontact.net/download.
This data sheet is valid for all products listed on the following page:
PSD-S OE LED BL ...
Table of contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Ordering data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Example of a signal tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly notes for a signal tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembling the individual elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Example for signal tower dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2
Ordering data
Type
PSD-S OE LED BL RD
PSD-S OE LED BL GN
PSD-S OE LED BL YE
PSD-S OE LED BL CL
PSD-S OE LED BL BU
Order No.
2700114
2700121
2700123
2700128
2700132
Pcs. / Pkt.
1
1
1
1
1
Description
LED blinking light element, 24 V AC/DC, red
LED blinking light element, 24 V AC/DC, green
LED blinking light element, 24 V AC/DC, yellow
LED blinking light element, 24 V AC/DC, clear
LED blinking light element, 24 V AC/DC, blue
3
Technical data
Dimensions (in mm)
Ø70
General data
Diameter
Height
Material
70.00 mm
65.50 mm
Polycarbonate PC
56
65,5
7950 00
PHOENIX CONTACT
2
PSD-S OE LED BL ...
General data
Calotte color: PSD-S OE LED BL RD
Calotte color: PSD-S OE LED BL GN
Calotte color: PSD-S OE LED BL YE
Calotte color: PSD-S OE LED BL CL
Calotte color: PSD-S OE LED BL BU
Weight
Ambient temperature (operation)
Degree of protection
Mounting position
Connection
red
green
yellow
clear
blue
59 g
-20 °C ... 50 °C
IP65, when installed or with cover
Any
Rubber seal pre-installed for each element
Electrical data
Input voltage
Inrush current
Current consumption
Optical signal type
Signal frequency
Service life, electrical
Operating time
24 V AC/DC
Max. 500 mA
30 mA
LED flashlight
Approx. 1 Hz
max. 100,000 h
100 %
Approvals / conformities
Conformance with EMC directive 2004/108/EC
For the latest approvals, please visit
http://www.phoenixcontact.net/catalog.
7950 00
PHOENIX CONTACT
3
PSD-S OE LED BL ...
4

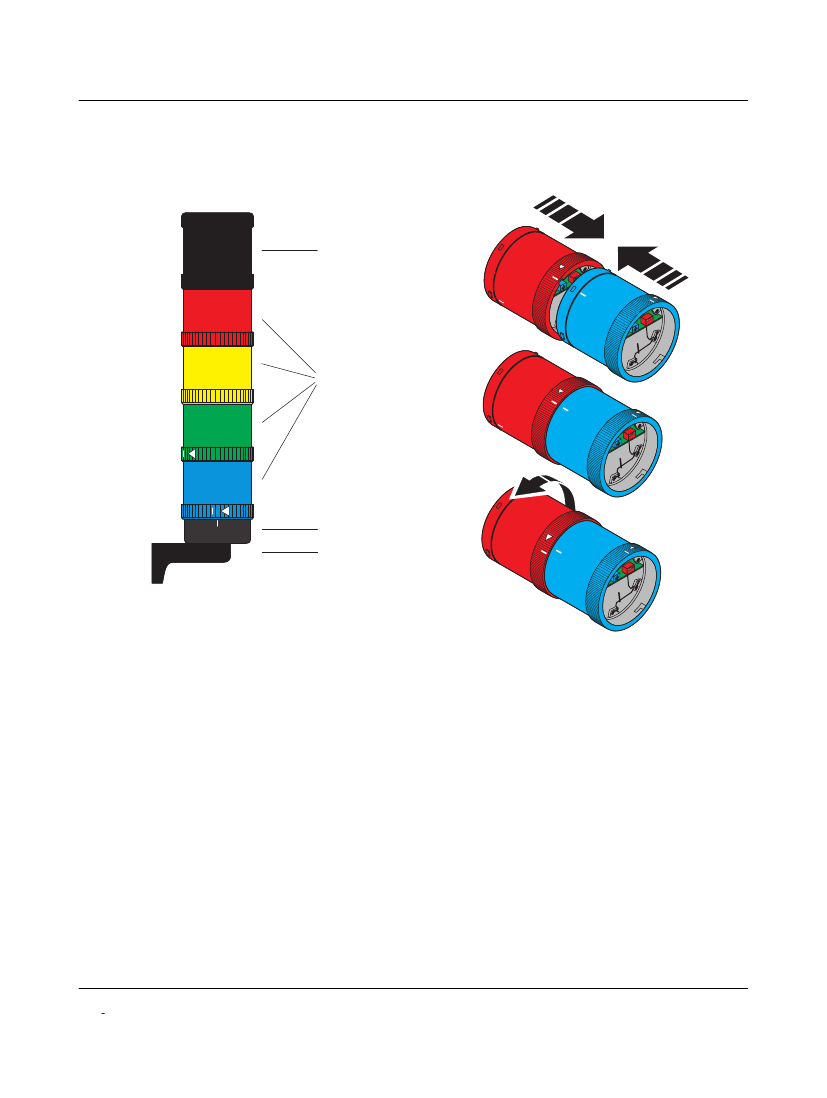

Example of a signal tower
6
Assembling the individual ele-
ments
1
1
2
3
ON
ON
1
2
3
2
ON
1
2
3
ON
1
2
3
3
ON
1
2
3
4
ON
1
2
3
Figure 1
Example of a signal tower
Figure 2
Assembling the individual elements
"
Select the elements for your application.
"
Connect the elements to be assembled so that
the markings are aligned.
"
Turn the upper element in the direction of the ar-
row.
Key:
1 Audible signal element
2 Optical signal element
3 Connection element
4 Assembly element
5
Assembly notes for a signal
tower
You may use up to five signal elements in a sig-
nal tower.
Use only one audible element in a signal tower
and position this element on top.
When closing the bayonet locking system, observe
the markings (see "Assembling the individual ele-
ments").
7950 00
PHOENIX CONTACT
4
PSD-S OE LED BL ...
7
Example for signal tower dimen-
sions
The following figure shows the dimensions of a typical
signal tower.
4 x 56 (= 224)
86
Ø70
Figure 3
Dimensions of a signal tower (example)
112
56
408
7950 00
PHOENIX CONTACT GmbH & Co. KG · 32823 Blomberg · Germany · Phone: +49-(0) 5235-3-00
PHOENIX CONTACT · P.O.Box 4100 · Harrisburg · PA 17111-0100 · USA · Phone: +717-944-130
http://www.phoenixcontact.com
5
