1.6X1.25mm BI-COLOR SMD CHIP LED LAMP
Part Number: APTB1612LVBDZGKC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Blue
Green
Features
1.6mmx1.25mm SMD LED, 0.65mm thickness.
Bi-color,low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
Low current IF=2mA operating.
RoHS compliant.
Descriptions
The Blue source color devices are made with InGaN
Light Emitting Diode.
The Green source color devices are made with InGaN
on Sapphire Light Emitting Diode.
Electrostatic discharge and power surge could damage
the LEDs.
It is recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipments and machineries must be
electrically grounded.

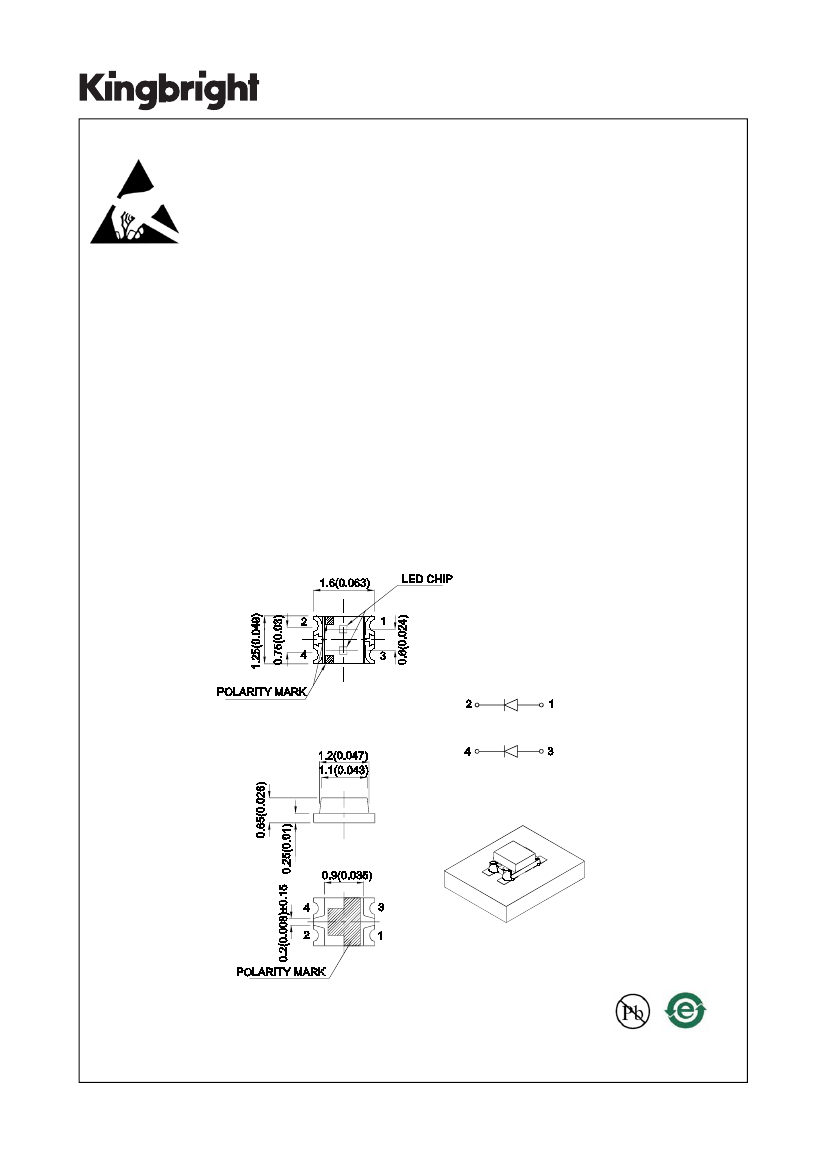

Package Dimensions
BLUE
GREEN
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3.The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAO4585
APPROVED: Wynec
REV NO: V.2B
CHECKED: Allen Liu
DATE: SEP/24/2015
DRAWN: F.T.Liu
PAGE: 1 OF 6
ERP: 1203015158
Selection Guide
Part No.
Emitting Color (Material)
Lens Type
Iv (mcd) [2]
@ 2mA
Min.
APTB1612LVBDZGKC
Blue (InGaN)
Green (InGaN)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous Flux: +/-15%.
3. Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
20
50
Water Clear
10
30
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Emitting Color
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
2.2
2.2
Min.
Typ.
465
515
470
525
22
35
100
45
2.65
2.65
3
3.1
50
50
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=2mA
I
F
=2mA
I
F
=2mA
V
F
=0V;f=1MHz
I
F
=2mA
V
R
= 5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Electrostatic Discharge Threshold (HBM)
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
90
30
100
250
5
Green
77.5
25
150
450
Units
mW
mA
mA
V
V
-40°C To +85°C
-40°C To +85°C
SPEC NO: DSAO4585
APPROVED: Wynec
REV NO: V.2B
CHECKED: Allen Liu
DATE: SEP/24/2015
DRAWN: F.T.Liu
PAGE: 2 OF 6
ERP: 1203015158

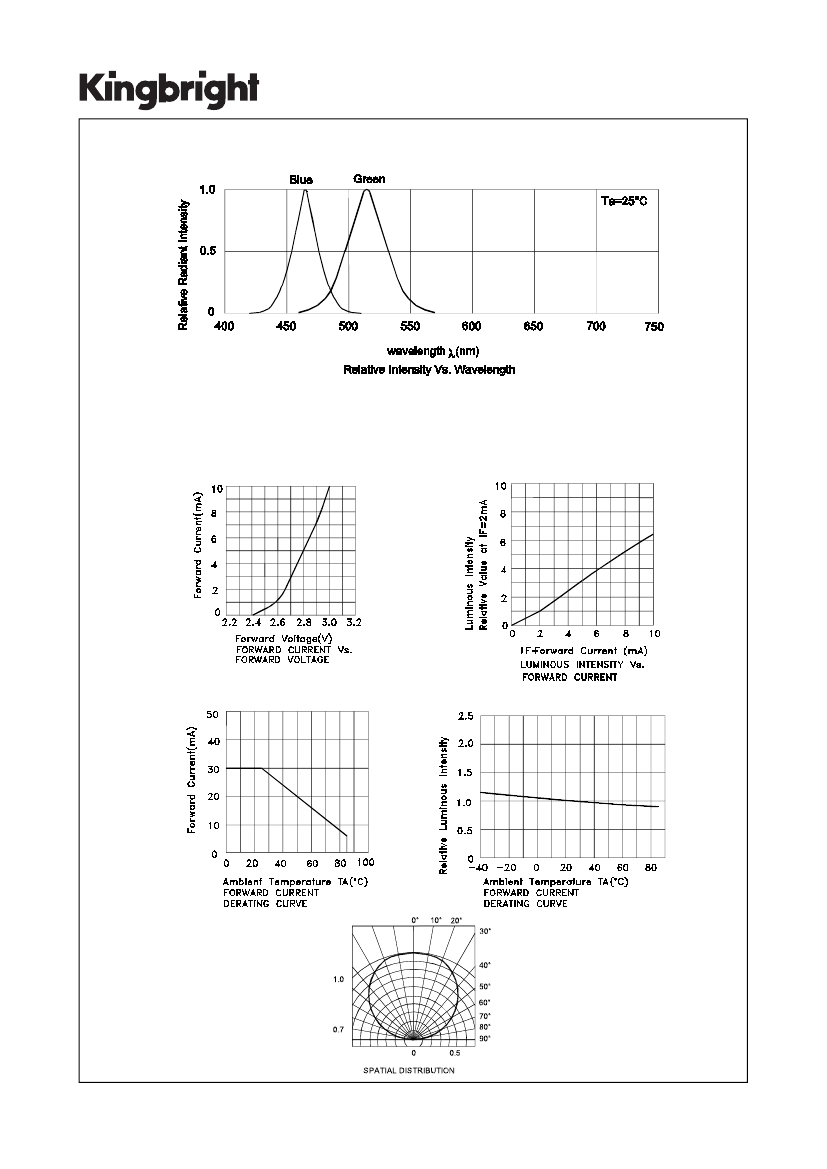

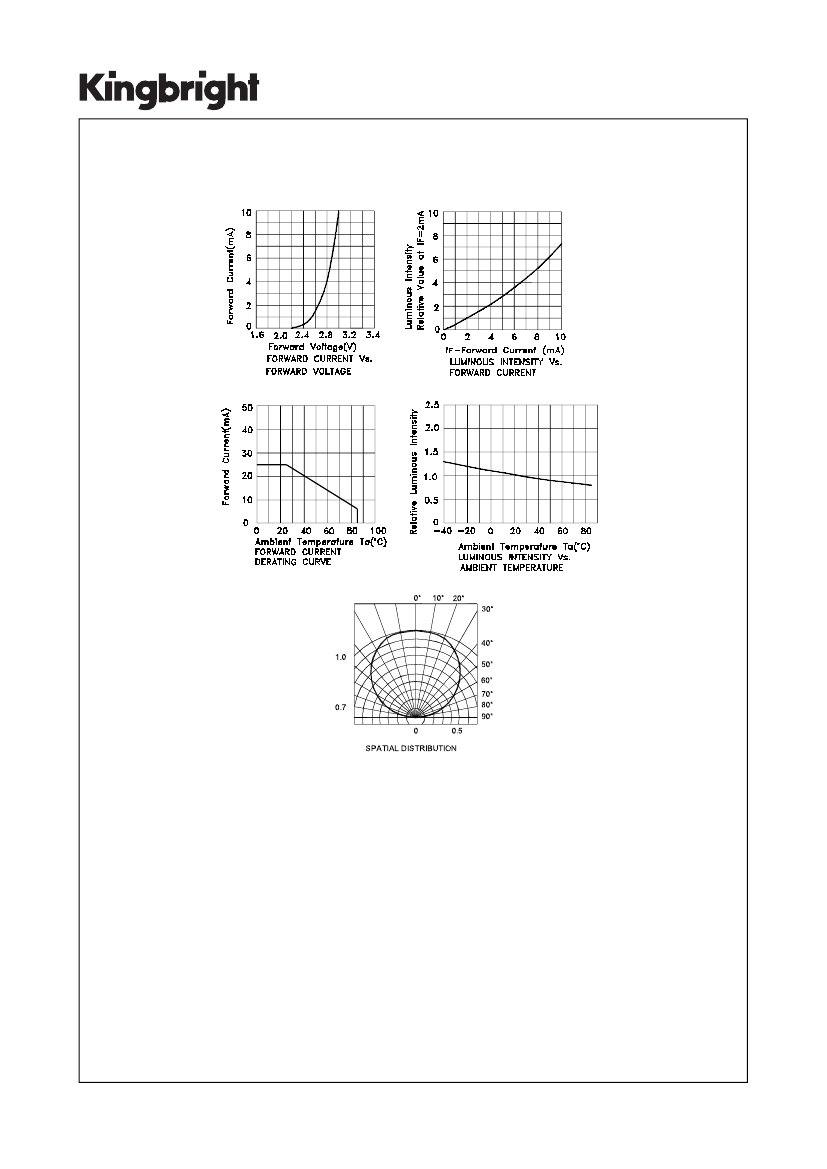

APTB1612LVBDZGKC

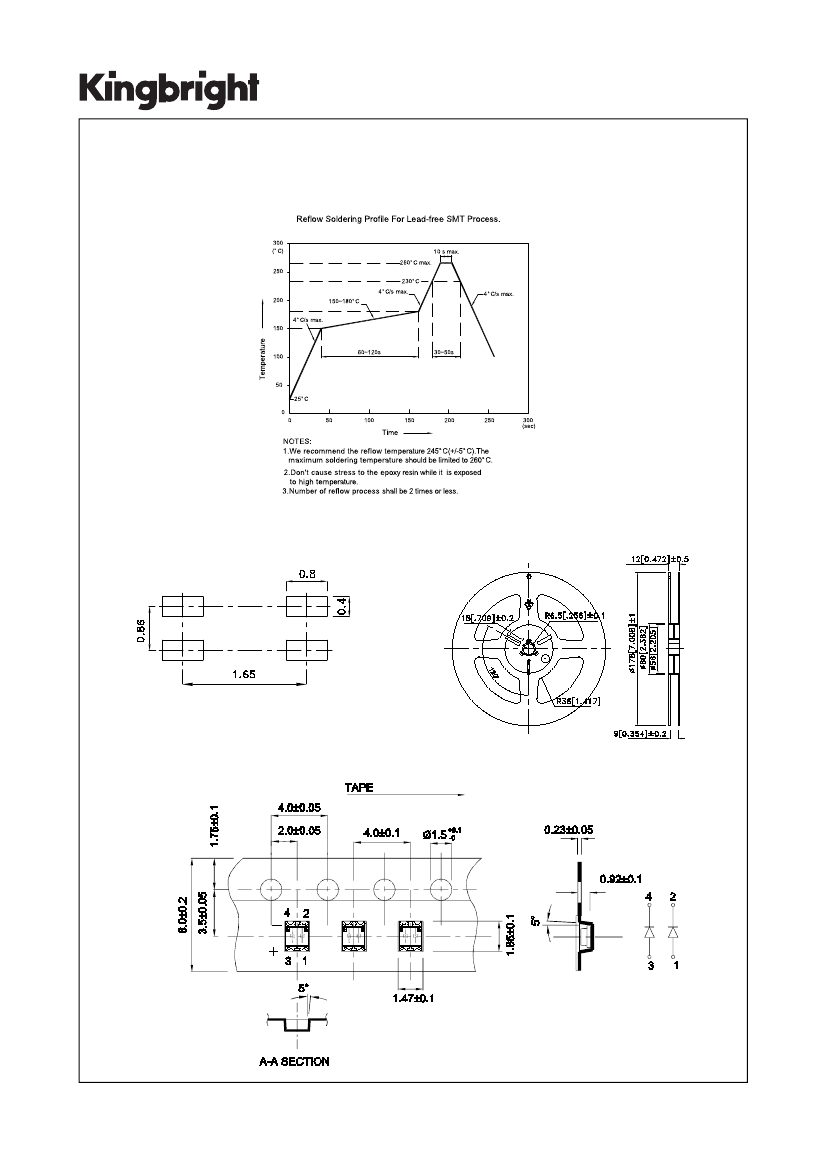

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAO4585
APPROVED: Wynec
REV NO: V.2B
CHECKED: Allen Liu
DATE: SEP/24/2015
DRAWN: F.T.Liu
PAGE: 5 OF 6
ERP: 1203015158
