PC817XJ0000F Series
PC817XJ0000F
Series
∗
DIP 4pin General Purpose
Photocoupler
4-channel package type is also available.
(model No.
PC847XJ0000F Series)
■
Description
PC817XJ0000F Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 4pin DIP, available in wide-lead
spacing option and SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V and CTR is 50% to
600% at input current of 5mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC817)
2. Package resin : UL flammability grade
(94V-0)
■
Applications
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different po-
tentials and impedances
■
Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. High collector-emitter voltage (V
CEO
:80V)
4. Current transfer ratio (CTR : MIN. 50% at I
F
=5 mA,
V
CE
=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
7. Lead-free and RoHS directive compliant
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A03102EN
Date Jun. 30. 2005
© SHARP Corporation
PC817XJ0000F Series
■
Internal Connection Diagram
1
1
4
2
3
2
3
4
Anode
Cathode
Emitter
Collector
■

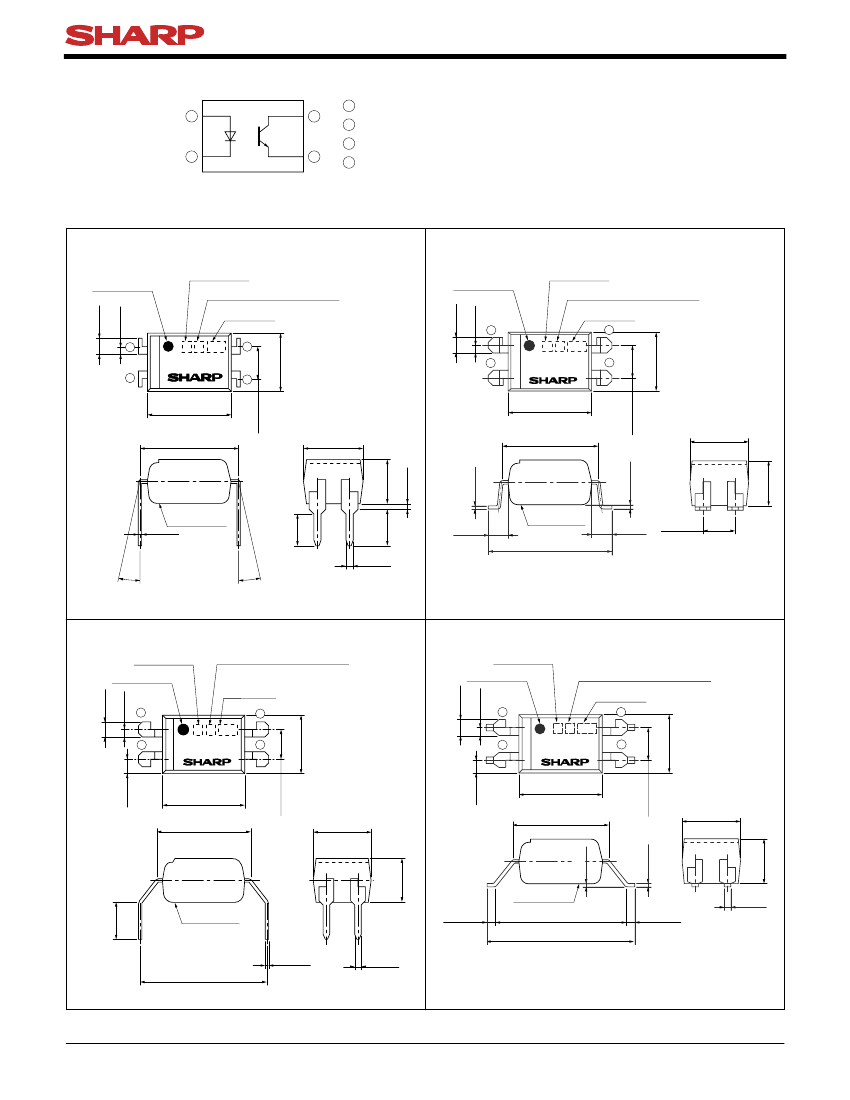

Outline Dimensions
1. Through-Hole [ex.
PC817XJ0000F]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Date code
(Unit : mm)
2. SMT Gullwing Lead-Form [ex.
PC817XIJ000F]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Date code
1
4
P C817
2
3
4.58
±0.5
1
4
2
PC817
6.5
±0.5
3
2.54
±0.25
6.5
±0.5
7.62
±0.3
2.54
±0.25
4.58
±0.5
4.58
±0.5
0.26
±0.1
0.5
TYP.
3.5
±0.5
7.62
±0.3
4.58
±0.5
0.35
±0.25
3.0
±0.5
Epoxy resin
0.26
±0.1
θ
θ
2.7
±0.5
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
2.54
±0.25
0.5
±0.1
θ
: 0 to 13˚
Product mass : approx. 0.23g
3. Wide Through-Hole Lead-Form [ex.
PC817XFJ000F]
Rank mark
Factory identification mark
Product mass : approx. 0.22g
4. Wide SMT Gullwing Lead-Form [ex.
PC817XFPJ00F]
Rank mark
Anode mark
1.2
±0.3
0.6
±0.2
Date code
1
4
Anode mark
1.2
±0.3
0.6
±0.2
Factory identification mark
Date code
1
4
4.58
±0.5
2
PC817
3
2
PC817
6.5
±0.5
7.62
±0.3
0.25
±0.25
3
1.0
±0.1
6.5
2.54
±0.5
2.54
±0.25
1.0
±0.1
±0.25
4.58
±0.5
7.62
±0.3
4.58
±0.5
4.58
±0.5
3.5
±0.5
0.5
±0.1
Sheet No.: D2-A03102EN
3.5
±0.5
Epoxy resin
0.75
±0.25
10.16
±0.5
12.0
MAX
0.75
±0.25
2.7
MIN.
Epoxy resin
0.26
±0.1
10.16
±0.5
0.5
±0.1
Product mass : approx. 0.23g
Product mass : approx. 0.22g
2
0.26
±0.1
3.5
±0.5
PC817XJ0000F Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark and Plating material
Factory identification Mark
no mark
Japan
Indonesia
China
* Up to Date code "T4" (April 2005), SnBi (Bi : TYP. 2%).
** This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see the actural status of the
production.
Country of origin
Plating material
SnCu (Cu : TYP. 2%)
SnBi (Bi : TYP. 2%)
SnCu (Cu : TYP. 2%)*
Rank mark
Refer to the Model Line-up table
Sheet No.: D2-A03102EN
3
PC817XJ0000F Series
■
Absolute Maximum Ratings
Parameter
Symbol
Forward current
I
F
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
Total power dissipation
P
tot
*2
Isolation voltage
V
iso (rms)
Operating temperature
T
opr
Storage temperature
T
stg
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
50
mA
1
A
6
V
mW
70
V
80
6
V
50
mA
mW
150
mW
200
5.0
kV
˚C
−30
to
+100
˚C
−55
to
+125
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Reverse current
Terminal capacitance
Collector dark current
Collector-emitter breakdown voltage
Emitter-collector breakdown voltage
Collector current
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Cut-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
I
R
C
t
I
CEO
BV
CEO
BV
ECO
I
C
V
CE (sat)
R
ISO
C
f
f
c
t
r
t
f
Conditions
I
F
=20mA
I
FM
=0.5A
V
R
=4V
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=5mA,
V
CE
=5V
I
F
=20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω,
−3dB
Output
Input
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
−
80
6
2.5
−
5×10
10
−
−
−
−
TYP.
1.2
−
−
30
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
10
250
100
−
−
30.0
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Transfer characteristics
Output
Input
Sheet No.: D2-A03102EN
4
PC817XJ0000F Series
■
Model Line-up
Lead Form
Package
Through-Hole
Wide Through-Hole
Rank mark
with or without
A
B
C
D
A or B
B or C
C or D
A, B or C
B, C or D
A, B, C or D
Sleeve
100pcs/sleeve
PC817XJ0000F
PC817X1J000F
PC817X2J000F
PC817X3J000F
PC817X4J000F
PC817X5J000F
PC817X6J000F
PC817X7J000F
PC817X8J000F
PC817X9J000F
PC817X0J000F
SMT Gullwing
Sleeve
100pcs/sleeve
PC817XIJ000F
PC817XI1J00F
PC817XI2J00F
PC817XI3J00F
PC817XI4J00F
PC817XI5J00F
PC817XI6J00F
PC817XI7J00F
PC817XI8J00F
PC817XI9J00F
PC817XI0J00F
PC817XFJ000F
PC817XF1J00F
PC817XF2J00F
PC817XF3J00F
PC817XF4J00F
PC817XF5J00F
PC817XF6J00F
PC817XF7J00F
PC817XF8J00F
PC817XF9J00F
PC817XF0J00F
Wide SMT Gullwing
Taping
2 000pcs/reel
I
C
[mA]
(I
F
=5mA,
V
CE
=5V,
T
a
=25˚C)
2.5 to 30.0
4.0 to 8.0
6.5 to 13.0
10.0 to 20.0
15.0 to 30.0
4.0 to 13.0
6.5 to 20.0
10.0 to 30.0
4.0 to 20.0
6.5 to 30.0
4.0 to 30.0
Model No.
Lead Form
Package
Rank mark
I
C
[mA]
(I
F
=5mA,
V
CE
=5V,
T
a
=25˚C)
2.5 to 30.0
4.0 to 8.0
6.5 to 13.0
10.0 to 20.0
15.0 to 30.0
4.0 to 13.0
6.5 to 20.0
10.0 to 30.0
4.0 to 20.0
6.5 to 30.0
4.0 to 30.0
Model No.
PC817XPJ000F PC817XFPJ00F
with or without
A
PC817XP1J00F
−
B
PC817XP2J00F
−
C
PC817XP3J00F
−
D
−
PC817XP4J00F
A or B
−
PC817XP5J00F
B or C
−
PC817XP6J00F
C or D
−
PC817XP7J00F
−
A, B or C
PC817XP8J00F
−
B, C or D
PC817XP9J00F
−
A, B, C or D
PC817XP0J00F
Please contact a local SHARP sales representative to inquire about production status.
