CLD-DS83 Rev 8e
Product family data sheet
Cree
®
XLamp
®
XQ-E LEDs
XQ-E High Density LEDs
XQ-E High Intensity LEDs

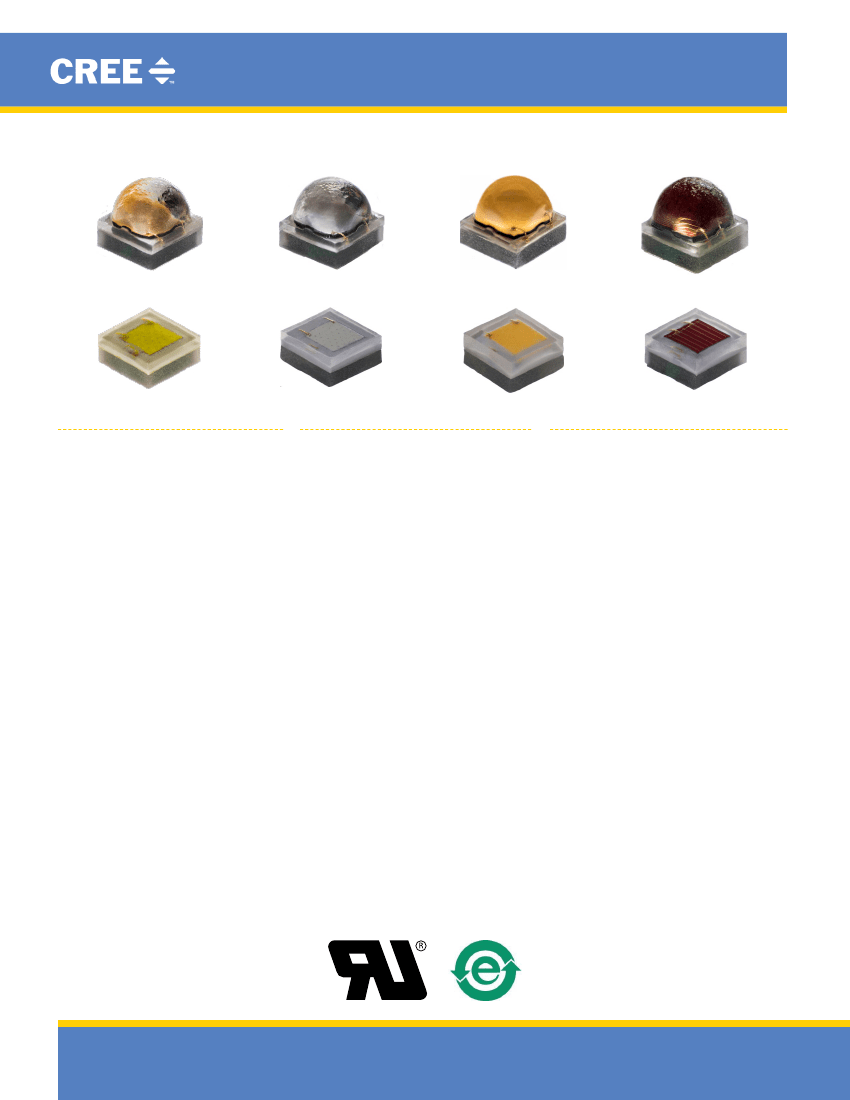

ProDuCt DEsCrIPtIon
The XLamp
®
XQ-e LeDs are available
in two versions: high density and
high intensity. The XQ-e High Density
LeD enables lighting manufacturers
to significantly reduce the size and
total cost of their LeD luminaires
versus similar performance 3.5-mm
footprint
The
LEDs,
without
sacrificing
of
optical
lumen output, efficacy or reliability.
XQ-e’s
combination
FEAturEs
•
•
Cree’s smallest lighting class LeD:
1.6 mm X 1.6 mm
Available in high-density &
high-intensity versions for design
flexibility
•
Available in 70, 80, & 90 CRI white,
royal blue, blue, green, PC amber,
red‑orange, red & high efficiency (HE)
photo red
•
•
•
•
Maximum drive current: 1 A (high
density & high intensity)
Reflow solderable ‑ JEDEC
J‑STD‑020C compatible
Unlimited floor life at
≤ 30 °C/85% RH
RoHS and ReACh compliant
UL
®
recognized component (E349212)
•
tAbLE oF ContEnts
Characteristics ............................................2
Flux Characteristics - High Density White .3
Flux Characteristics - High Density Color ..4
Flux Characteristics - High Intensity
White ............................................................6
Flux Characteristics - High Intensity
Color.............................................................7
Relative Spectral Power Distribution .........9
Relative Flux vs. Junction Temperature
..
11
electrical Characteristics .........................
14
Relative Flux vs. Current ..........................
16
Typical Spatial Distribution......................
19
Thermal Design ........................................
21
Reflow Soldering Characteristics
............
23
Notes ........................................................
24
Mechanical Dimensions ..........................
26
Tape and Reel ...........................................
28
Packaging ................................................. 30
symmetry, consistent design across all
configurations and tiny 1.6 mm X 1.6 mm
footprint simplifies manufacturing and
design while providing excellent color
mixing.
The new XQ-e High Intensity LeD uses an
innovative primary optic design optimized
to deliver maximum candela, especially
through narrow-beam secondary optics.
www.CRee.Com/XLAmp
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
XQ-E LED
CHArACtErIstICs
Characteristics
Thermal resistance, junction to solder point - white, royal blue, blue
Thermal resistance, junction to solder point - green
Thermal resistance, junction to solder point - PC amber
Thermal resistance, junction to solder point - red-orange, red, He photo red
Viewing angle (FWHM) ‑ High Density white
Viewing angle (FWHM) ‑ High Density royal blue, blue, green, PC amber
Viewing angle (FWHM) ‑ High Density red‑orange, red, HE photo red
Viewing angle (FWHM) ‑ High Intensity white
Viewing angle (FWHM) ‑ High Intensity royal blue, blue, green
Viewing angle (FWHM) ‑ High Intensity PC amber
Viewing angle (FWHM) ‑ High Intensity red‑orange, red
Temperature coefficient of voltage ‑ white
Temperature coefficient of voltage ‑ royal blue, blue
Temperature coefficient of voltage ‑ green
Temperature coefficient of voltage ‑ PC amber
Temperature coefficient of voltage ‑ red‑orange, red
Temperature coefficient of voltage ‑ HE photo red
ESD withstand voltage (HBM per Mil‑Std‑883D)‑ High Density
ESD classification (HBM per Mil‑Std‑883D) ‑ High Intensity
DC forward current
Reverse voltage
Forward voltage (@ 350 mA, 85 °C) ‑ white
Forward voltage (@ 350 mA, 25 °C) ‑ royal blue, blue
Forward voltage (@ 350 mA, 25 °C) ‑ green
Forward voltage (@ 350 mA, 25 °C) ‑ PC amber
Forward voltage (@ 350 mA, 25 °C) ‑ red‑orange, red
Forward voltage (@ 350 mA, 25 °C) ‑ HE photo red
LeD junction temperature
mA
v
v
v
v
v
v
v
°C
2.9
3.1
3.2
3.1
2.2
2.1
unit
°C/W
°C/W
°C/W
°C/W
degrees
degrees
degrees
degrees
degrees
degrees
degrees
mV/°C
mV/°C
mV/°C
mV/°C
mV/°C
mV/°C
v
Class 3A
1000
5
3.25
3.5
3.6
3.5
2.6
2.4
150
Minimum
typical
6
9
8
5
110
125
130
120
130
120
125
‑2.3
-3.3
-3.8
-3.3
‑1.8
‑1.6
8000
Maximum
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
XQ-E LED
FLuX CHArACtErIstICs - HIgH DEnsIty WHItE (t
J
= 85 °C)
The following table provides several base order codes for XLamp XQ-e High Density white LeDs. It is important to note that the base
order codes listed here are a subset of the total available order codes for the product family. For more order codes, as well as a complete
description of the order‑code nomenclature, please consult the XLamp XQ Family LEDs Binning and Labeling document.
Minimum Luminous Flux (lm)
@ 350 mA
group
R3
R2
R3
R2
R2
Neutral
White
3700 K
5300 K
Q5
Q4
Q5
Warm White
2700 K
3500 K
Q4
Q3
Q2
Q5
80-CRI
White
2700 K
3500 K
Q4
Q3
Q2
P4
90-CRI
White
2850 K
3000 K
P3
P2
N4
Flux (lm) @
85 °C
122
114
122
114
114
107
100
107
100
93.9
87.4
107
100
93.9
87.4
80.6
73.9
67.2
62
Flux (lm) @
25 °C*
141
132
141
132
132
124
116
124
116
109
101
124
116
109
101
93.3
85.5
77.8
71.7
Calculated Minimum
Luminous Flux (lm)
@ 85 °C**
700 mA
210
196
210
196
196
184
172
184
172
162
150
184
172
162
150
139
127
116
107
1.0 A
270
252
270
252
252
237
221
237
221
208
193
237
221
208
193
178
163
149
137
XQEAWT‑00‑0000‑00000LFE1
XQEAWT‑00‑0000‑00000LEE1
XQEAWT‑00‑0000‑00000BFE1
XQEAWT‑00‑0000‑00000BEE1
XQEAWT‑00‑0000‑00000LEE4
XQEAWT‑00‑0000‑00000LDE4
XQEAWT‑00‑0000‑00000LCE4
XQeAWT-00-0000-00000LDe7
XQeAWT-00-0000-00000LCe7
XQEAWT‑00‑0000‑00000LBE7
XQeAWT-00-0000-00000LAe7
XQeAWT-00-0000-00000HDe7
XQeAWT-00-0000-00000HCe7
XQEAWT‑00‑0000‑00000HBE7
XQeAWT-00-0000-00000HAe7
XQeAWT-00-0000-00000U9e7
XQeAWT-00-0000-00000U8e7
XQeAWT-00-0000-00000U7e7
XQEAWT‑00‑0000‑00000U6E7
CCt range
Color
Minimum
Cool White
5000 K
Maximum
8300 K
order Code
70-CRI
White
3700 K
8300 K
Notes:
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on
CRI measurements. See the Measurements section (page 24).
•
Typical CRI for Cool White (5000 K – 8300 K CCT) is 70.
•
Typical CRI for Neutral White (3700 K – 5300 K CCT) is 75.
•
Typical CRI for Warm White (2700 K – 3500 K CCT) is 80.
•
Minimum CRI for 70-CRI White is 70.
•
Minimum CRI for 80-CRI White is 80.
•
Minimum CRI for 90-CRI White is 90.
*
Flux values @ 25 °C are calculated and for reference only.
** Calculated flux values at 700 mA and 1 A are for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
XQ-E LED
FLuX CHArACtErIstICs - HIgH DEnsIty CoLor (t
J
= 25 °C)
The following tables provide several base order codes for XLamp XQ-e High Density color LeDs. It is important to note that the base
order codes listed here are a subset of the total available order codes for the product family. For more order codes, as well as a complete
description of the order‑code nomenclature, please consult the XLamp XQ Family LEDs Binning and Labeling document.
Dominant Wavelength range
Color
Minimum
group
DWL
(nm)
Maximum
group
DWL
(nm)
Minimum radiant Flux
(mW) @ 350 mA
group
36 (Q)
35 (P)
34 (N)
Royal
Blue
D36
450
D57
465
33 (M)
32 (L)
31 (K)
30 (J)
Flux (mW)
600
575
550
525
500
475
450
Calculated
Minimum
PPF
(µmol/s)*
2.27
2.18
2.08
1.99
1.90
1.80
1.71
order Code
XQEROY‑00‑0000‑000000Q01
XQEROY‑00‑0000‑000000P01
XQEROY‑00‑0000‑000000N01
XQEROY‑00‑0000‑000000M01
XQEROY‑00‑0000‑000000L01
XQEROY‑00‑0000‑000000K01
XQEROY‑00‑0000‑000000J01
Dominant Wavelength range
Color
Minimum
group
DWL
(nm)
Maximum
group
DWL
(nm)
Minimum Luminous
Flux (lm) @ 350 mA
group
M3
Flux (lm)
45.7
39.8
35.2
30.6
order Code
XQEBLU‑00‑0000‑000000301
XQEBLU‑00‑0000‑000000201
XQEBLU‑00‑0000‑000000Z01
XQEBLU‑00‑0000‑000000Y01
Blue
B3
465
B6
485
M2
K3
K2
Dominant Wavelength range
Color
Minimum
group
DWL
(nm)
Maximum
group
DWL
(nm)
Minimum Luminous
Flux (lm) @ 350 mA
group
Q5
Flux (lm)
107
100
93.9
Calculated
Minimum
PPF
(µmol/s)*
0.98
0.91
0.86
order Code
XQEGRN‑00‑0000‑000000D01
XQEGRN‑00‑0000‑000000C01
XQEGRN‑00‑0000‑000000B01
Green
G2
520
G4
535
Q4
Q3
Note
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a
tolerance of ±2 on CRI measurements. See the Measurements section (page 24).
*
Photosynthetic Photon Flux (PPF) values are calculated and for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
XQ-E LED
FLuX CHArACtErIstICs - HIgH DEnsIty CoLor (t
J
= 25 °C) - Continued
Color
Color bin
Minimum Luminous Flux
(lm) @ 350 mA
group
PC Amber
Y2
P4
P3
Flux (lm)
80.6
73.9
XQEAPA‑00‑0000‑000000901
XQEAPA‑00‑0000‑000000801
order Code
Dominant Wavelength range
Color
Minimum
group
DWL
(nm)
Maximum
group
DWL
(nm)
Minimum Luminous
Flux (lm) @ 350 mA
group
Q3
Q2
Flux (lm)
93.9
87.4
80.6
73.9
67.2
order Code
XQERDO‑00‑0000‑000000B01
XQERDO‑00‑0000‑000000A01
XQERDO‑00‑0000‑000000901
XQERDO‑00‑0000‑000000801
XQERDO‑00‑0000‑000000701
Red-
Orange
O3
610
O4
620
P4
P3
P2
Dominant Wavelength range
Color
Minimum
group
DWL
(nm)
Maximum
group
DWL
(nm)
Minimum Luminous
Flux (lm) @ 350 mA
group
P3
Flux (lm)
73.9
67.2
62
56.8
Calculated
Minimum
PPF
(µmol/s)*
1.92
1.75
1.61
1.48
order Code
XQERED‑00‑0000‑000000801
XQERED‑00‑0000‑000000701
XQERED‑00‑0000‑000000601
XQERED‑00‑0000‑000000501
Red
R2
620
R3
630
P2
N4
N3
Peak Wavelength range
Color
group
He
Red
P2
Min.
PWL
(nm)
650
group
P5
Max.
PWL
(nm)
670
Minimum radiant Flux
(mW) @ 350 mA
group
27
26
Flux (mW)
375
350
Calculated
Minimum
PPF
(µmol/s)*
2.06
1.93
order Code
XQEEPR‑00‑0000‑000000A01
XQEEPR‑00‑0000‑000000901
Note
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a
tolerance of ±2 on CRI measurements. See the Measurements section (page 24).
*
Photosynthetic Photon Flux (PPF) values are calculated and for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
Power technology
京公网安备 11010802033920号
EEWORLD
