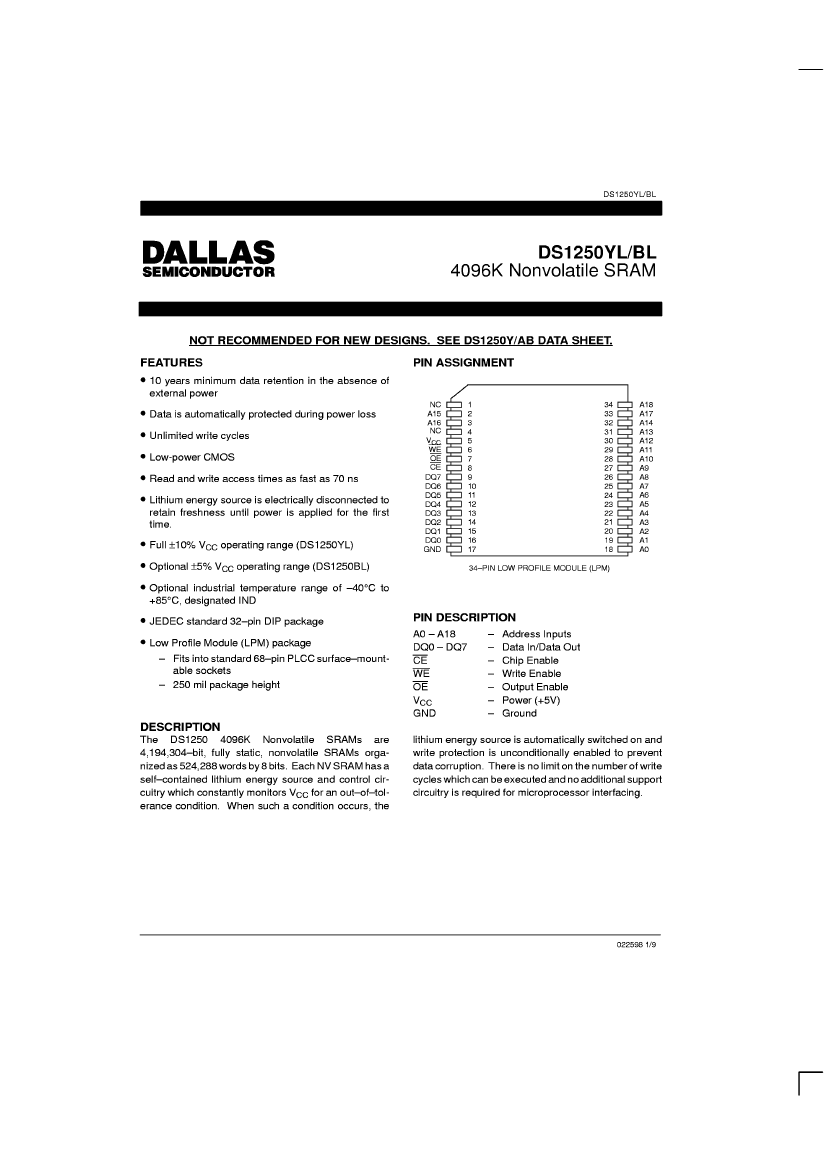

512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34
| Parameter Name | Attribute value |
| Maker | DALLAS |
| Reach Compliance Code | unknow |
| Maximum access time | 70 ns |
| JESD-30 code | R-XDMA-U34 |
| memory density | 4194304 bi |
| Memory IC Type | NON-VOLATILE SRAM MODULE |
| memory width | 8 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 34 |
| word count | 524288 words |
| character code | 512000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 512KX8 |
| Output characteristics | 3-STATE |
| Exportable | YES |
| Package body material | UNSPECIFIED |
| Encapsulate equivalent code | MODULE,34LEAD,1.0 |
| Package shape | RECTANGULAR |
| Package form | MICROELECTRONIC ASSEMBLY |
| Parallel/Serial | PARALLEL |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum standby current | 0.005 A |
| Maximum slew rate | 0.085 mA |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | J INVERTED |
| Terminal location | DUAL |
| DS1250BL-70 | DS1250BL-100 | DS1250YL-70 | DS1250BL | DS1250YL-70-IND | DS1250YL-100-IND | DS1250YL-100 | DS1250BL-100-IND | DS1250BL-70-IND | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 | 512K X 8 NON-VOLATILE SRAM MODULE, 70 ns, DMA34 |
| Maker | DALLAS | DALLAS | DALLAS | - | DALLAS | DALLAS | - | DALLAS | DALLAS |
| Reach Compliance Code | unknow | unknow | unknow | - | unknow | unknow | unknow | unknow | unknow |
| Maximum access time | 70 ns | 100 ns | 70 ns | - | 70 ns | 100 ns | 100 ns | 100 ns | 70 ns |
| JESD-30 code | R-XDMA-U34 | R-XDMA-U34 | R-XDMA-U34 | - | R-XDMA-U34 | R-XDMA-U34 | R-XDMA-U34 | R-XDMA-U34 | R-XDMA-U34 |
| memory density | 4194304 bi | 4194304 bi | 4194304 bi | - | 4194304 bi | 4194304 bi | 4194304 bi | 4194304 bi | 4194304 bi |
| Memory IC Type | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE | - | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE | NON-VOLATILE SRAM MODULE |
| memory width | 8 | 8 | 8 | - | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 34 | 34 | 34 | - | 34 | 34 | 34 | 34 | 34 |
| word count | 524288 words | 524288 words | 524288 words | - | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words |
| character code | 512000 | 512000 | 512000 | - | 512000 | 512000 | 512000 | 512000 | 512000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | - | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | - | 85 °C | 85 °C | 70 °C | 85 °C | 85 °C |
| organize | 512KX8 | 512KX8 | 512KX8 | - | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | - | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | YES | YES | YES | - | YES | YES | YES | YES | YES |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Encapsulate equivalent code | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 | - | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 | MODULE,34LEAD,1.0 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | - | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | - | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| power supply | 5 V | 5 V | 5 V | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum standby current | 0.005 A | 0.005 A | 0.005 A | - | 0.005 A | 0.005 A | 0.005 A | 0.005 A | 0.005 A |
| Maximum slew rate | 0.085 mA | 0.085 mA | 0.085 mA | - | 0.085 mA | 0.085 mA | 0.085 mA | 0.085 mA | 0.085 mA |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | - | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | - | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | J INVERTED | J INVERTED | J INVERTED | - | J INVERTED | J INVERTED | J INVERTED | J INVERTED | J INVERTED |
| Terminal location | DUAL | DUAL | DUAL | - | DUAL | DUAL | DUAL | DUAL | DUAL |
