DS1330YL-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DS1330YL-100

DS1330YL-100: Description32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34; Categorystorage storage; File Size219KB，9 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1330YL-100 Overview

32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34

DS1330YL-100 Parametric

Parameter Name	Attribute value
Maker	DALLAS
Reach Compliance Code	unknown
Maximum access time	100 ns
Other features	10 YEAR DATA RETENTION
JESD-30 code	R-PDSO-U34
memory density	262144 bit
Memory IC Type	NON-VOLATILE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	34
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ-I
Encapsulate equivalent code	MODULE,34LEAD,1.0
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00015 A
Maximum slew rate	0.085 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J INVERTED
Terminal location	DUAL
Base Number Matches	1

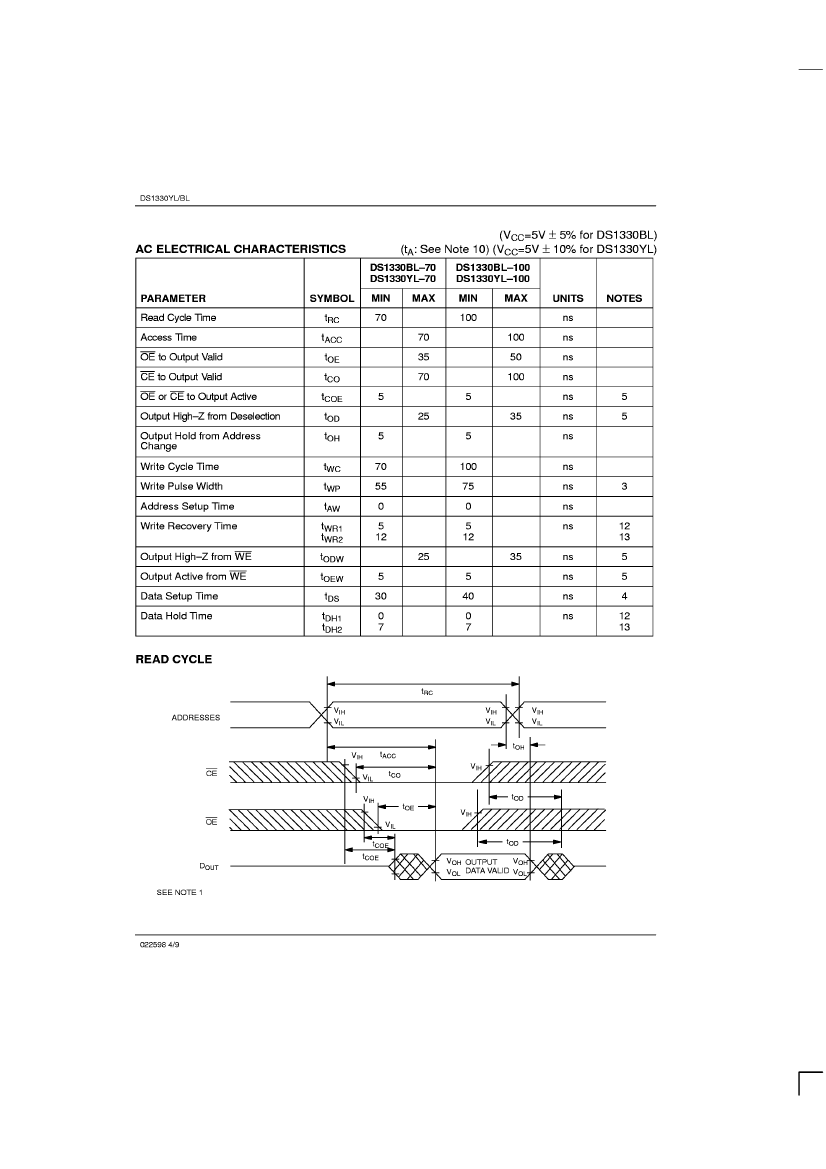

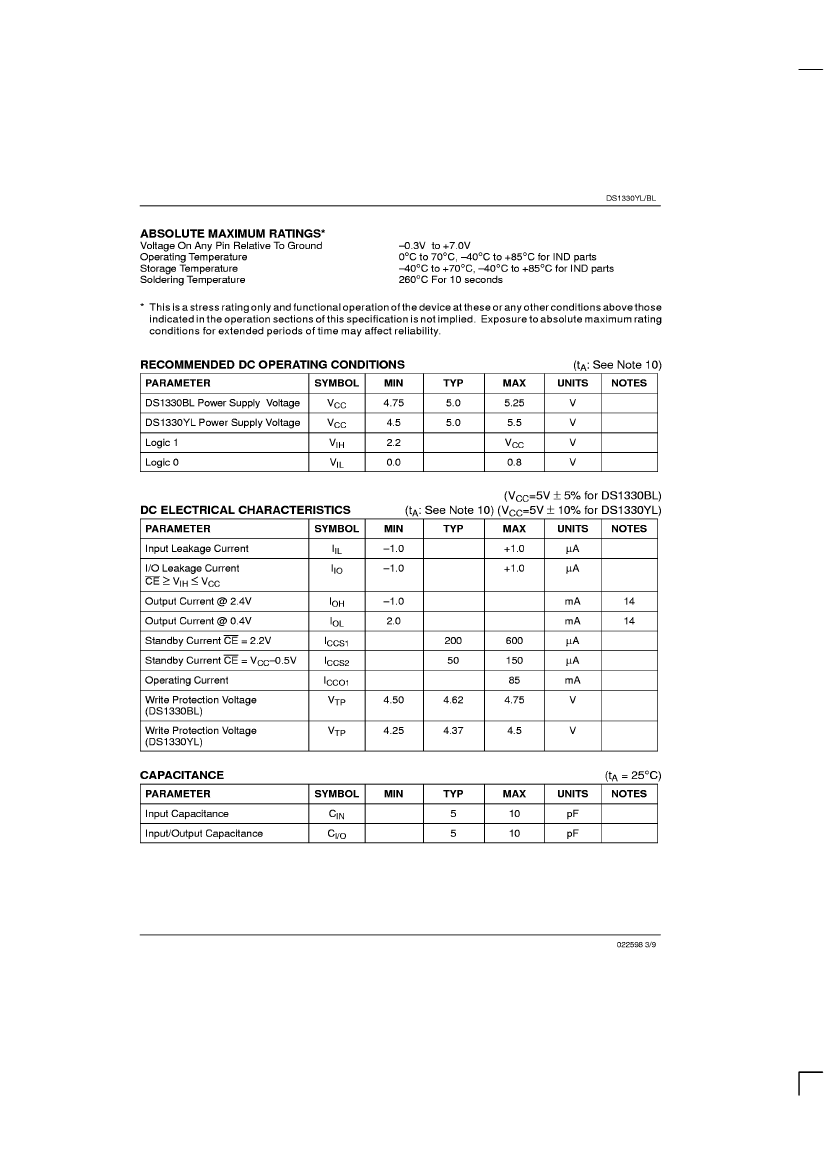

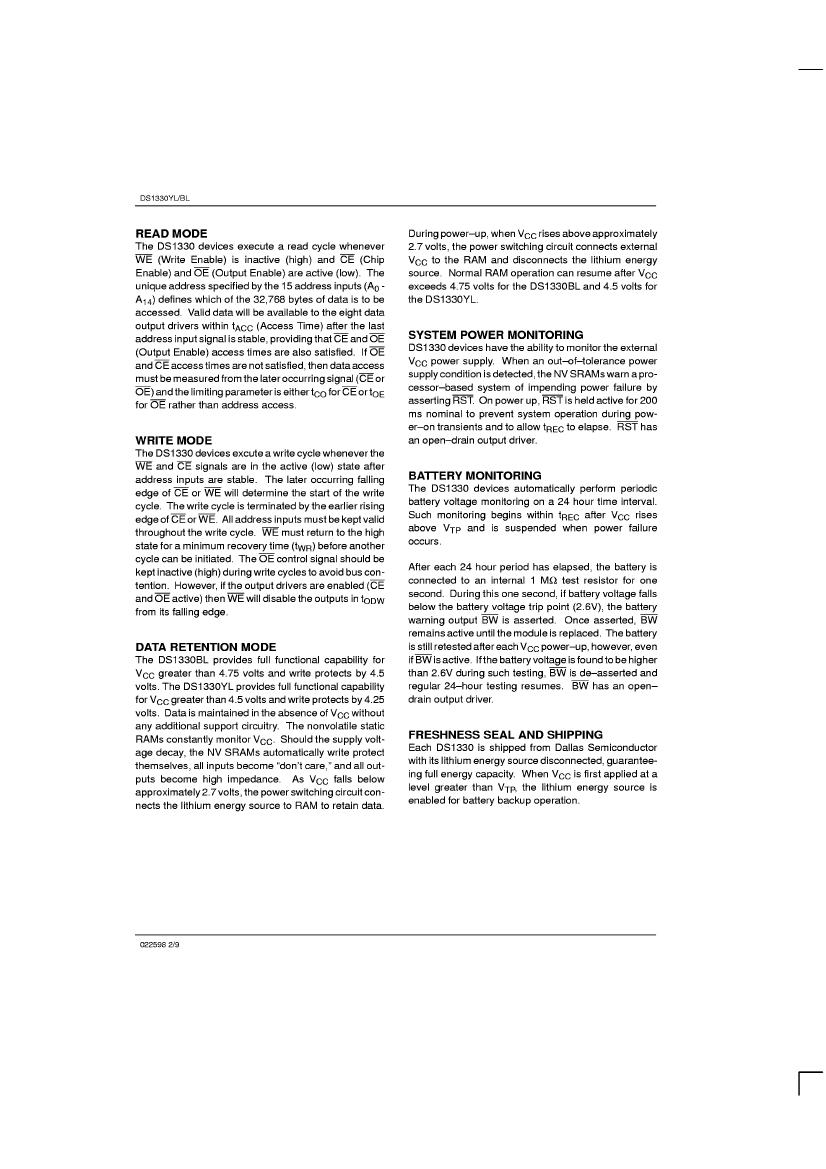

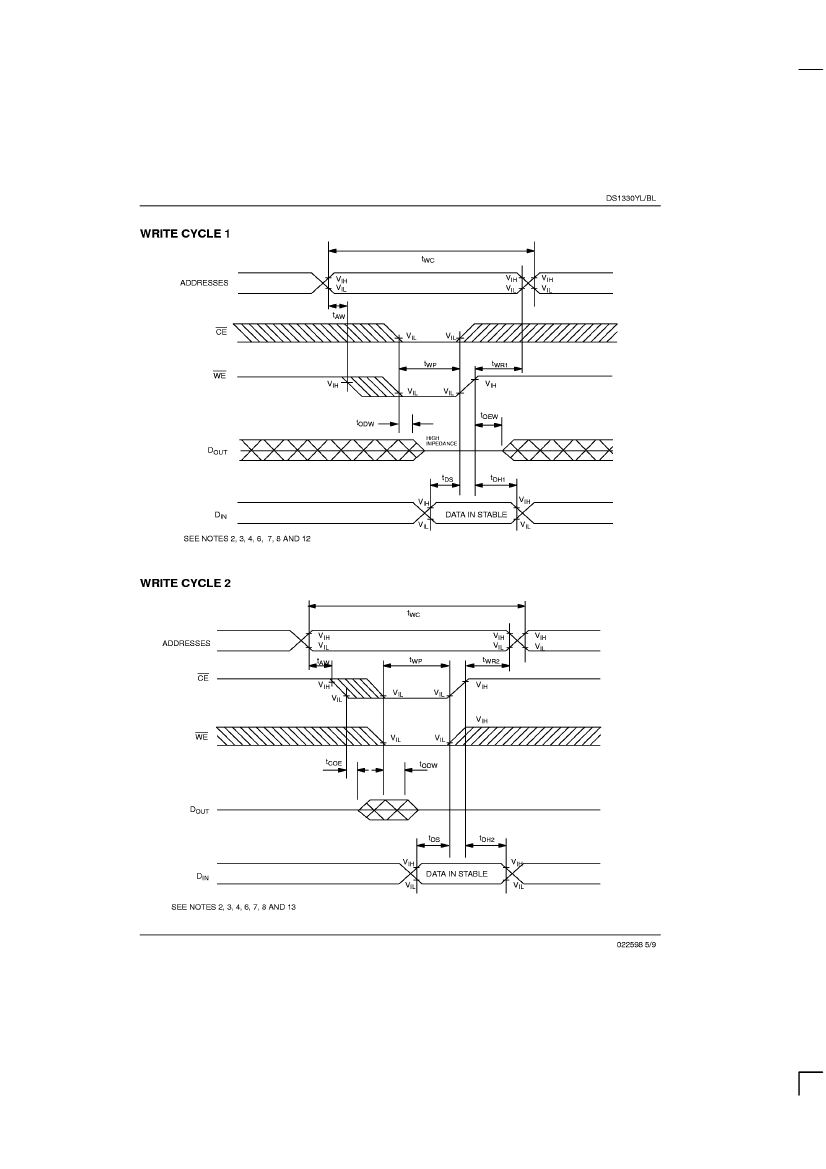

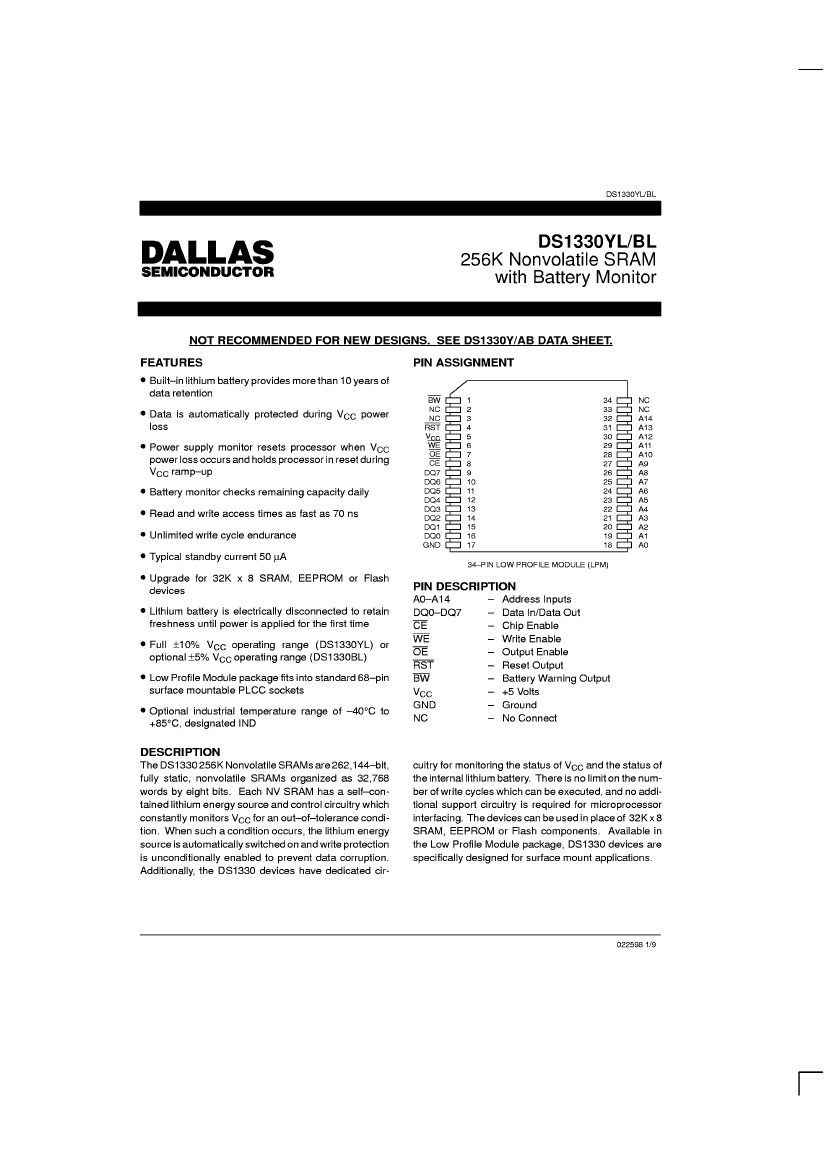

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DS1330YL-100 Related Products

	DS1330YL-100	DS1330BL-70	DS1330YL-70	DS1330YL	DS1330YL-70-IND	DS1330YL-100-IND	DS1330BL-70-IND	DS1330BL-100-IND	DS1330BL-100
Description	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34	32K X 8 NON-VOLATILE SRAM MODULE, 70 ns, PDSO34
Maker	DALLAS	DALLAS	DALLAS	-	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
Reach Compliance Code	unknown	unknow	unknow	-	unknow	unknown	unknow	unknow	unknow
Maximum access time	100 ns	70 ns	70 ns	-	70 ns	100 ns	70 ns	100 ns	100 ns
Other features	10 YEAR DATA RETENTION	10 YEAR DATA RETENTION	10 YEAR DATA RETENTION	-	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION
JESD-30 code	R-PDSO-U34	R-PDSO-U34	R-PDSO-U34	-	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34	R-PDSO-U34
memory density	262144 bit	262144 bi	262144 bi	-	262144 bi	262144 bit	262144 bi	262144 bi	262144 bi
Memory IC Type	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	-	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE
memory width	8	8	8	-	8	8	8	8	8
Number of functions	1	1	1	-	1	1	1	1	1
Number of terminals	34	34	34	-	34	34	34	34	34
word count	32768 words	32768 words	32768 words	-	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	-	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	85 °C	85 °C	85 °C	85 °C	70 °C
organize	32KX8	32KX8	32KX8	-	32KX8	32KX8	32KX8	32KX8	32KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	-	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00015 A	0.00015 A	0.00015 A	-	0.00015 A	0.00015 A	0.00015 A	0.00015 A	0.00015 A
Maximum slew rate	0.085 mA	0.085 mA	0.085 mA	-	0.085 mA	0.085 mA	0.085 mA	0.085 mA	0.085 mA
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.5 V	-	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.5 V	-	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	MOS	MOS	MOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J INVERTED	J INVERTED	J INVERTED	-	J INVERTED	J INVERTED	J INVERTED	J INVERTED	J INVERTED
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
