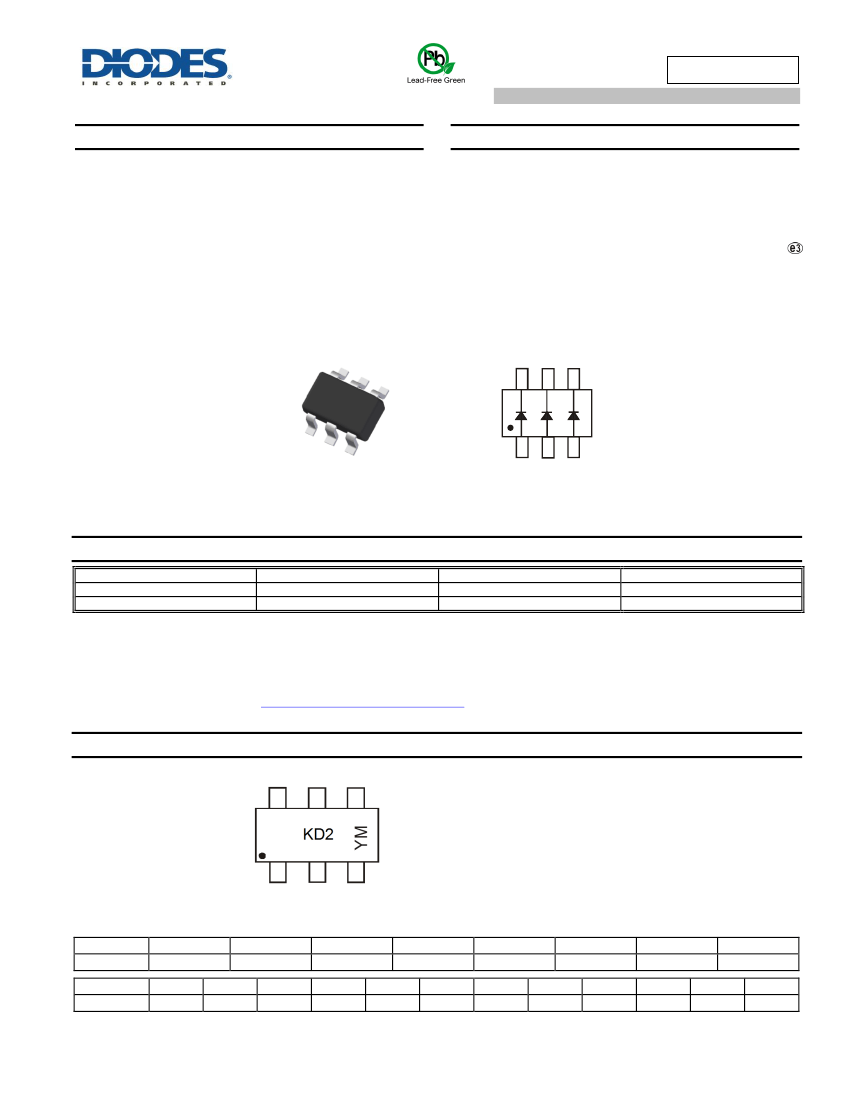

BAS16HTWQ
SURFACE MOUNT SWITCHING DIODE ARRAY
Features
Fast Switching Speed
High Reverse Breakdown Voltage
Low Leakage Current
Low Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT363
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe;
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (Approximate)
ADVANCED INFORMATION
SOT363
C
1
C
2
C
3
A
1
A
2
A
3
Top View
Top View
Internal Schematic
Ordering Information
(Notes 4 & 5)
Part Number
BAS16HTWQ-13
BAS16HTWQ-13R
Notes:
Qualification
Automotive
Automotive
Case
SOT363
SOT363
Packaging
10,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. The "-13R" suffix indicates that the devices are rotated 180° in the carrier tape as compared with the standard "-13" suffix devices. For exact packaging
details, go to our website at
http://www.diodes.com/products/packages.html.
Marking Information
SOT363
KD2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: C = 2015)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2015
C
Jan
1
Feb
2
2016
D
Mar
3
2017
E
Apr
4
May
5
2018
F
Jun
6
2019
G
Jul
7
Aug
8
2020
H
Sep
9
2021
I
Oct
O
Nov
N
2022
J
Dec
D
BAS16HTWQ
Document number: DS38373 Rev. 2 - 2
1 of 5
www.diodes.com
February 2016
© Diodes Incorporated
BAS16HTWQ
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
@ t = 1.0µs
Non-Repetitive Peak Forward Surge Current
@ t = 1.0ms
@ t = 1.0s
I
FSM
Value
100
71
200
500
4
1.0
0.5
A
Unit
V
V
mA
mA
ADVANCED INFORMATION
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Repetitive Peak Forward Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Thermal Resistance Junction to Solder Point (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
R
θJSP
T
J
, T
STG
Value
250
500
260
-65 to +150
Unit
mW
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 8)
Symbol
V
(BR)R
V
F
Min
100
Max
0.715
0.855
1.0
1.25
0.5
50
30
30
1.5
4.0
1.75
Unit
V
Test Condition
I
R
= 2.5µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 80V
V
R
= 80V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 25V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
I
F
= 10mA; t
R
= 20nS
Forward Voltage
V
Reverse Current (Note 8)
I
R
C
T
t
RR
V
FR
µA
nA
pF
nS
V
Total Capacitance
Reverse Recovery Time
Forward Recovery Voltage
Notes:
6. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
7. Soldering points at pins C
1
, C
2
and C
3
.
8. Short duration pulse test used to minimize self-heating effect.
BAS16HTWQ
Document number: DS38373 Rev. 2 - 2
2 of 5
www.diodes.com
February 2016
© Diodes Incorporated
BAS16HTWQ
300
Note 6
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
10000
1000
T
A
= 150°C
P
D
, POWER DISSIPATION (mW)
250
200
100
10
1
0.1
T
A
= 75°C
ADVANCED INFORMATION
150
T
A
= 25°C
T
A
= 0°C
100
50
T
A
= -40°C
0.01
0.001
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (
C)

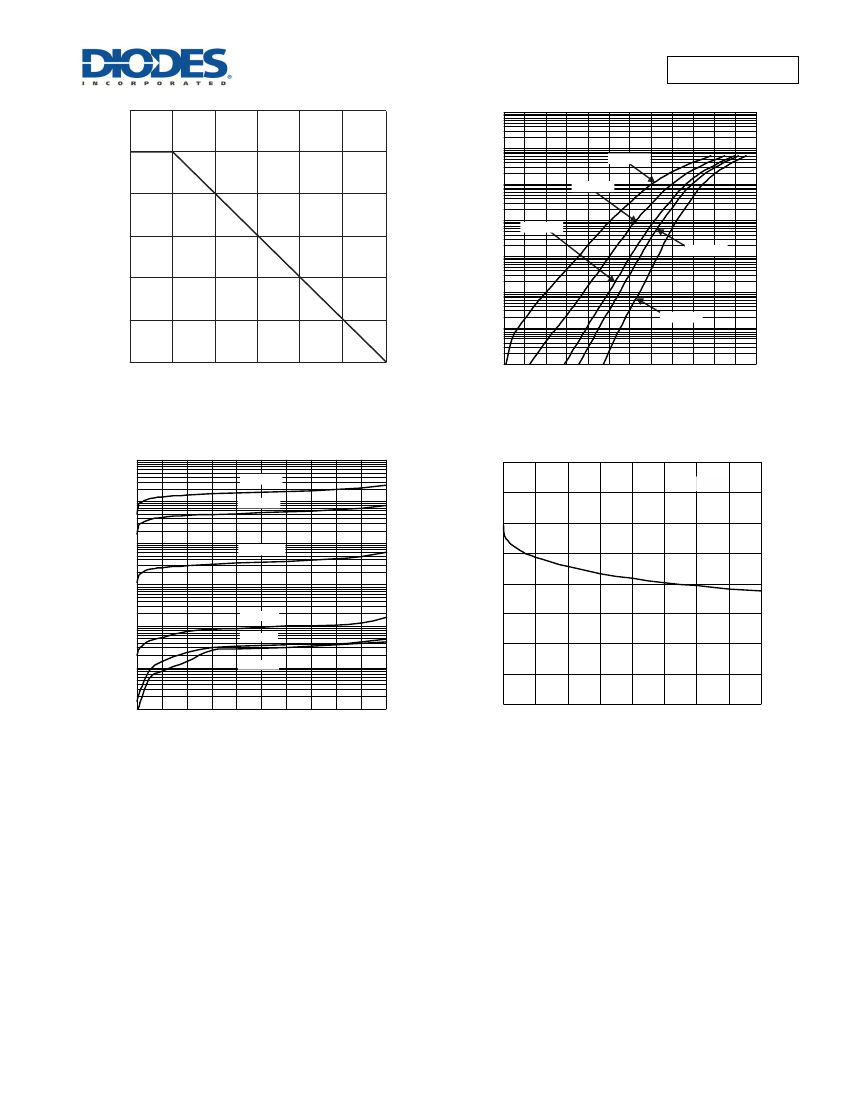

Fig. 1 Power Derating Curve, Total Package
0
100 200 300 400 500 600 700 800 900 1000 1100 1200
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics, Per Element
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
100000
T
A
= 150°C
0.7
f = 1MHz
0.65
C
T
, TOTAL CAPACITANCE (pF)
10000
T
A
= 125°C
0.6
0.55
0.5
0.45
0.4
0.35
0.3
1000
T
A
= 75°C
100
T
A
= 25°C
10
T
A
= 0°C
T
A
= -40°C
1
0.1
0
10 20 30 40 50 60 70 80 90 100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
0
5
10
15
20
25
30
35
40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs.
Reverse Voltage, Per Element
BAS16HTWQ
Document number: DS38373 Rev. 2 - 2
3 of 5
www.diodes.com
February 2016
© Diodes Incorporated
BAS16HTWQ

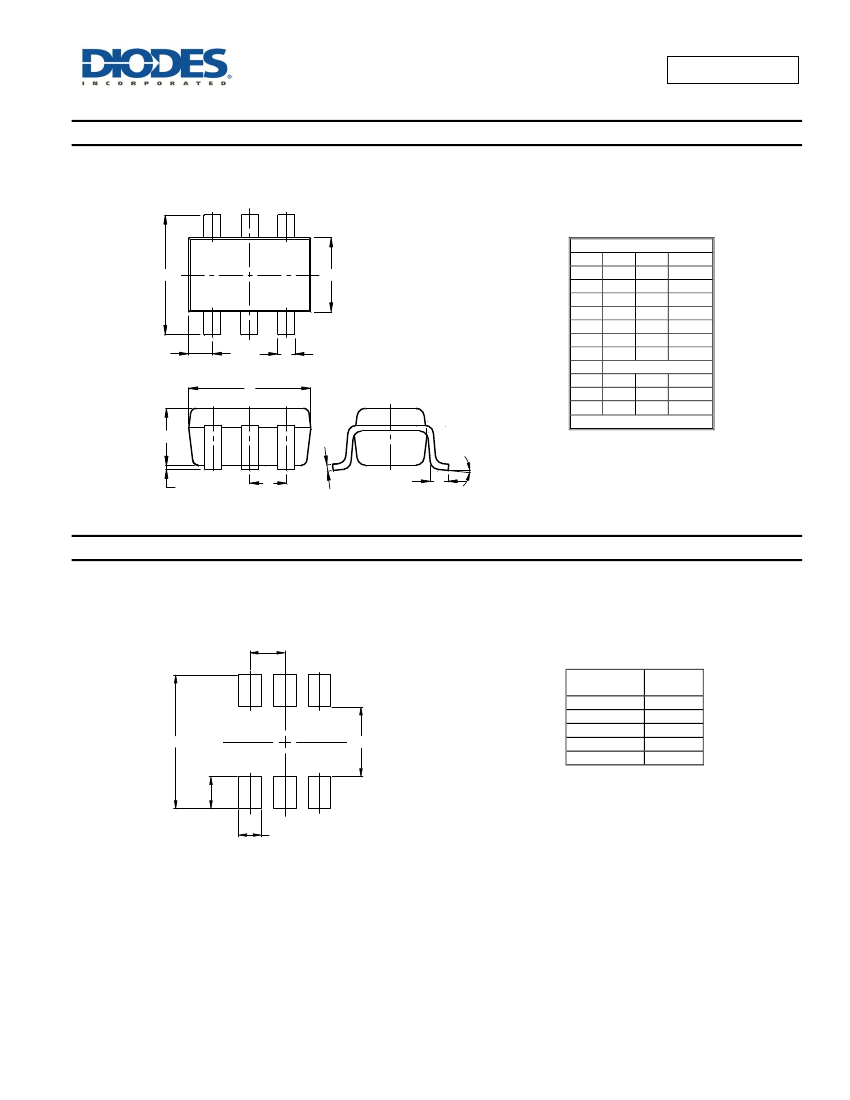

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
ADVANCED INFORMATION
E
E1
F
b
D
SOT363
Dim Min Max
Typ
A1
0.00 0.10
0.05
A2
0.90 1.00
1.00
b
0.10 0.30
0.25
c
0.10 0.22
0.11
D
1.80 2.20
2.15
E
2.00 2.20
2.10
E1
1.15 1.35
1.30
e
0.650 BSC
F
0.40 0.45 0.425
L
0.25 0.40
0.30
a
0°
8°
--
All Dimensions in mm
A2
c
A1
e
L
a
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
C
Dimensions
C
G
X
Y
Y1
Value
(in mm)
0.650
1.300
0.420
0.600
2.500
Y1
G
Y
X
BAS16HTWQ
Document number: DS38373 Rev. 2 - 2
4 of 5
www.diodes.com
February 2016
© Diodes Incorporated
BAS16HTWQ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
ADVANCED INFORMATION
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2016, Diodes Incorporated
www.diodes.com
BAS16HTWQ
Document number: DS38373 Rev. 2 - 2
5 of 5
www.diodes.com
February 2016
© Diodes Incorporated
