DS1963L

4k-BIT MONETARY iButton™

www.dalsemi.com

SPECIAL FEATURES

4096 bits of read/write nonvolatile memory

Overdrive mode boosts communication

speed to 142 kbits per second

256-bit scratchpad ensures integrity of data

transfer

Memory partitioned into 256-bit pages for

packetizing data

Data integrity assured with strict read/write

protocols

Four 32-bit read-only non rolling-over page

write cycle counters

32 factory-preset tamper-detect bits to

indicate physical intrusion

On-chip 16-bit CRC generator for

safeguarding data transfers

Operating temperature range from -40°C to

+70°C

Over 10 years of data retention

Button shape is self-aligning with cup-

shaped probes

Durable stainless steel case engraved with

registration number withstands harsh

environments

Easily affixed with self-stick adhesive

backing, latched by its flange, or locked with

a ring pressed onto its rim

Presence detector acknowledges when reader

first applies voltage

Meets UL#913 (4th Edit.); Intrinsically Safe

Apparatus, approved under Entity Concept

for use in Class I, Division 1, Group A, B, C

and D Locations (application pending)

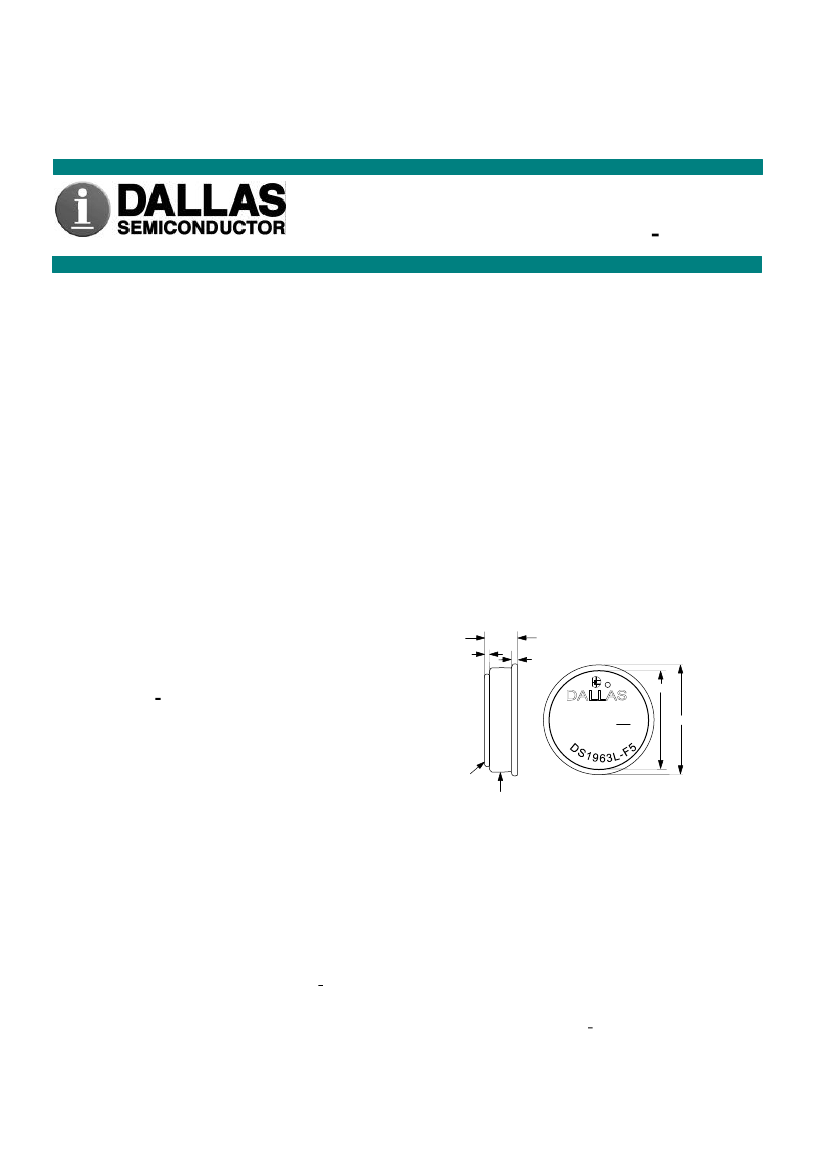

F5 MICROCAN

5.89

0.36

0.51

1993

COMMON iButton FEATURES

Unique, factory-lasered and tested 64-bit

registration number (8-bit family code + 48-

bit serial number + 8-bit CRC tester) assures

absolute traceability because no two parts are

alike

Multidrop controller for MicroLAN

Digital identification and information by

momentary contact

Chip-based data carrier compactly stores

information

Can be accessed while affixed to object

Economically communicates to host with a

single digital signal at 16.3 kbits per second

Standard 16-mm diameter and 1-Wire

protocol ensure compatibility with iButton

device family

16.25

YYWW REGISTERED RR

17.35

000000FBD8B3

DATA

GROUND

All dimensions in millimeters.

ORDERING INFORMATION

DS1963L-F5

DS9096P

DS9101

DS9093RA

DS9093F

DS9092

F5 MicroCan

Self-Stick Adhesive Pad

Multi-Purpose Clip

Mounting Lock Ring

Snap-In Fob

iButton Probe

EXAMPLES OF ACCESSORIES

1 of 24

090399

DS1963L

iButton DESCRIPTION

The DS1963L Monetary iButton is a rugged read/write data carrier that acts as a localized database that

can be easily accessed with minimal hardware. The nonvolatile memory offers a simple solution to

storing and retrieving information pertaining to the object to which the iButton is associated. Data is

transferred serially via the 1-Wire protocol which requires only a single data lead and a ground return.

The scratchpad is an additional page that acts as a buffer when writing to memory. Data is first written

to the scratchpad where it can be read back. After the data has been verified, a copy scratchpad

command will transfer the data to memory. This process ensures data integrity when modifying the

memory. A 48-bit serial number is factory lasered into each DS1963L to provide a guaranteed unique

identity which allows for absolute traceability. The durable MicroCan package is highly resistant to

environmental hazards such as dirt, moisture, and shock. Its compact coin-shaped profile is self-aligning

with mating receptacles, allowing the DS1963L to be easily used by human operators. Accessories

permit the DS1963L to be mounted on almost any surface including plastic key fobs, photo-ID badges

and printed circuit boards.

APPLICATION

The DS1963L Monetary iButton can store encrypted data which represents money. The unique

registration number, the page write cycle counters, CRC generator and tamper-detect bits prevent

unauthorized refilling of the purses. Four independent change purses can be randomly accessed from

the on-chip directory. Tamper-detect bits report if the purses have experienced physical tampering. Each

write cycle (“Monetary Transaction”) generates a unique number to audit the dispensing and refilling of

the purses. A change purse can be decremented with less than 100 ms touch dwell time for rapid

processing in crowded public facilities.

OVERVIEW

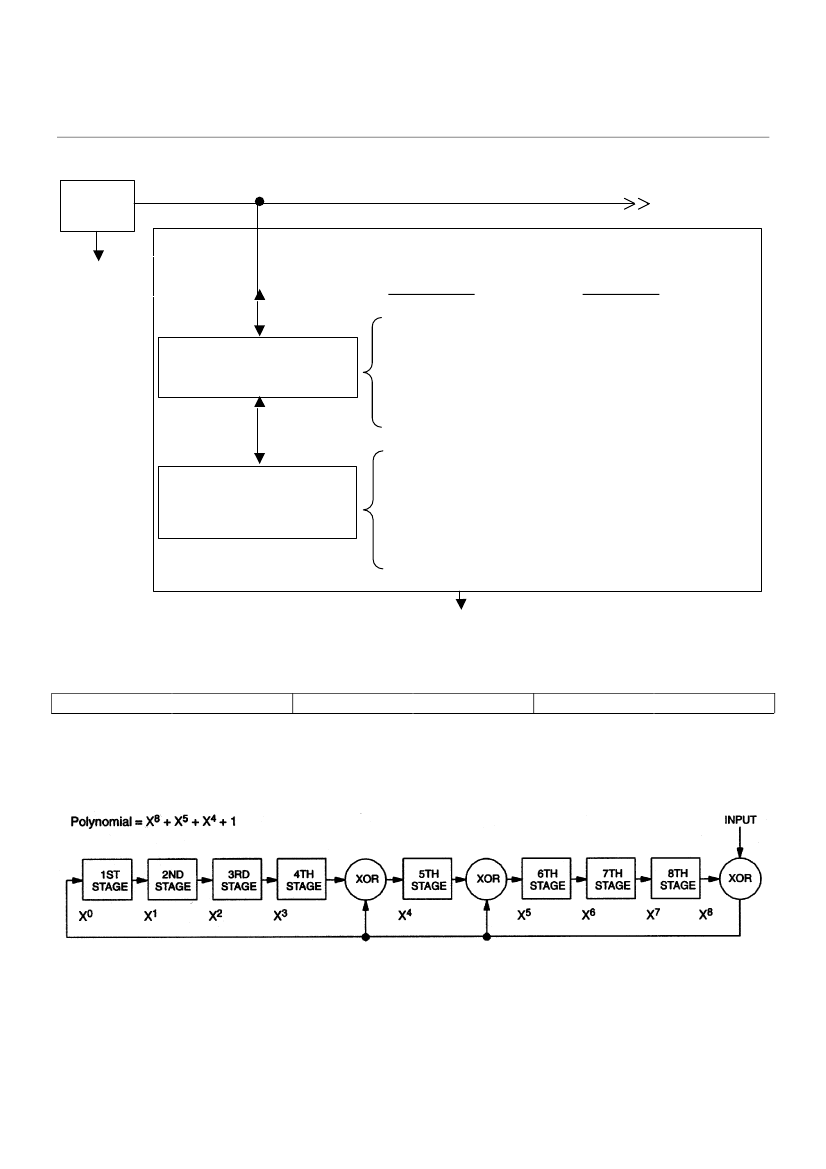

The block diagram in Figure 1 shows the relationships between the major control and memory sections of

the DS1963L. The DS1963L has four main data components: 1) 64-bit lasered ROM, 2) 256-bit

scratchpad, 3) 4096-bit SRAM, and 4) four 32-bit read-only page write cycle counters. The hierarchical

structure of the 1-Wire protocol is shown in Figure 2. Each of these counters is associated with one of the

256-bit memory pages. The four counters of the DS1963L are associated with pages 12 to 15. The

contents of the counter are read together with the memory data using a special command. The bus master

must first provide one of the six ROM Function Commands, 1) Read ROM, 2) Match ROM, 3) Search

ROM, 4) Skip ROM, 5) Overdrive-Skip ROM or 6) Overdrive-Match ROM. Upon completion of an

Overdrive ROM command byte executed at standard speed, the device will enter Overdrive mode where

all subsequent communication occurs at a higher speed. The protocol required for these ROM function

commands is described in Figure 9. After a ROM function command is successfully executed, the

memory functions become accessible and the master may provide any one of the five memory function

commands. The protocol for these memory function commands is described in Figure 7. All data is read

and written least significant bit first.

2 of 24

DS1963L

MEMORY

The memory map in Figure 5 shows a 32-byte page called the scratchpad and additional 32-byte pages

called memory. The DS1963L contains pages 0 through 15 which make up the 4096-bit SRAM. The

scratchpad is an additional page that acts as a buffer when writing to memory.

ADDRESS REGISTERS AND TRANSFER STATUS

Because of the serial data transfer, the DS1963L employs three address registers, called TA1, TA2 and

E/S (Figure 6). Registers TA1 and TA2 must be loaded with the target address to which the data will be

written or from which data will be sent to the master upon a Read command. Register E/S acts like a byte

counter and Transfer Status register. It is used to verify data integrity with write commands. Therefore,

the master only has read access to this register. The lower 5 bits of the E/S register indicate the address of

the last byte that has been written to the scratchpad. This address is called Ending Offset. Bit 5 of the E/S

integer multiple of 8. Bit 6 has no function; it always reads 0. Note that the lowest 5 bits of the target

address also determine the address within the scratchpad, where intermediate storage of data will begin.

This address is called byte offset. If the target address (TA1) for a Write command is 03CH for example,

then the scratchpad will store incoming data beginning at the byte offset 1CH and will be full after only

four bytes. The corresponding ending offset in this example is 1FH. For best economy of speed and

efficiency, the target address for writing should point to the beginning of a new page; i.e., the byte offset

will be 0. Thus the full 32-byte capacity of the scratchpad is available, resulting also in the ending offset

of 1FH. However, it is possible to write one or several contiguous bytes somewhere within a page. The

ending offset together with the Partial Flag support the master checking the data integrity after a Write

command. The highest valued bit of the E/S register, called AA or Authorization Accepted, acts as a flag

to indicate that the data stored in the scratchpad has already been copied to the target memory address.

Writing data to the scratchpad clears this flag.

WRITING WITH VERIFICATION

To write data to the DS1963L, the scratchpad has to be used as intermediate storage. First the master

issues the Write Scratchpad command to specify the desired target address, followed by the data to be

written to the scratchpad. Under certain conditions (see Write Scratchpad command) the master will

receive an inverted CRC16 of the command, address and data at the end of the write scratchpad command

sequence. Knowing this CRC value, the master can compare it to the value it has calculated itself to

decide if the communication was successful and proceed to the Copy Scratchpad command. If the master

could not receive the CRC16, it has to send the Read Scratchpad command to read back the scratchpad to

verify data integrity. As preamble to the scratchpad data, the DS1963L repeats the target address TA1

and TA2 and sends the contents of the E/S register. If the PF flag is set, data did not arrive correctly in the

scratchpad. The master does not need to continue reading; it can start a new trial to write data to the

scratchpad. Similarly, a set AA flag indicates that the Write command was not recognized by the iButton.

If everything went correctly, both flags are cleared and the ending offset indicates the address of the last

byte written to the scratchpad. Now the master can continue reading and verifying every data byte. After

the master has verified the data, it has to send the Copy Scratchpad command. This command must be

followed exactly by the data of the three address registers TA1, TA2 and E/S. The master may obtain the

contents of these registers by reading the scratchpad or derive it from the target address and the amount of

data to be written. As soon as the DS1963L has received these bytes correctly, it will copy the data to the

requested location beginning at the target address.
