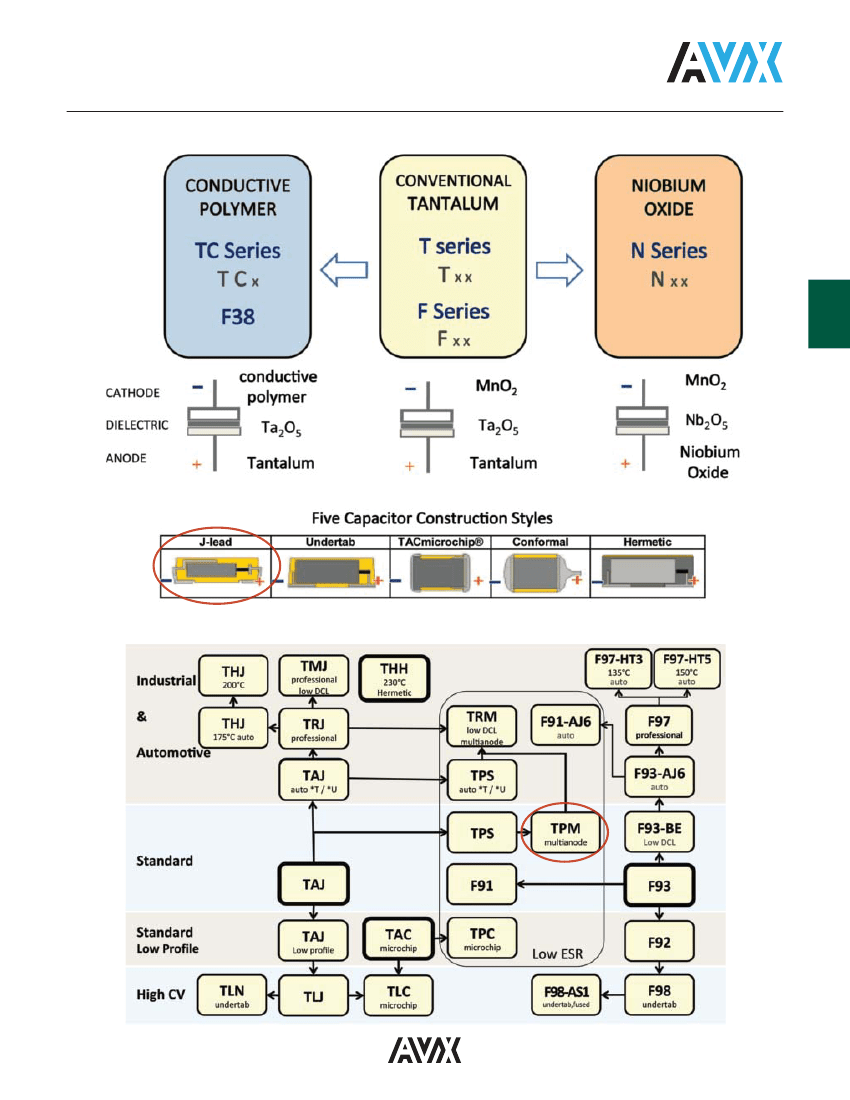

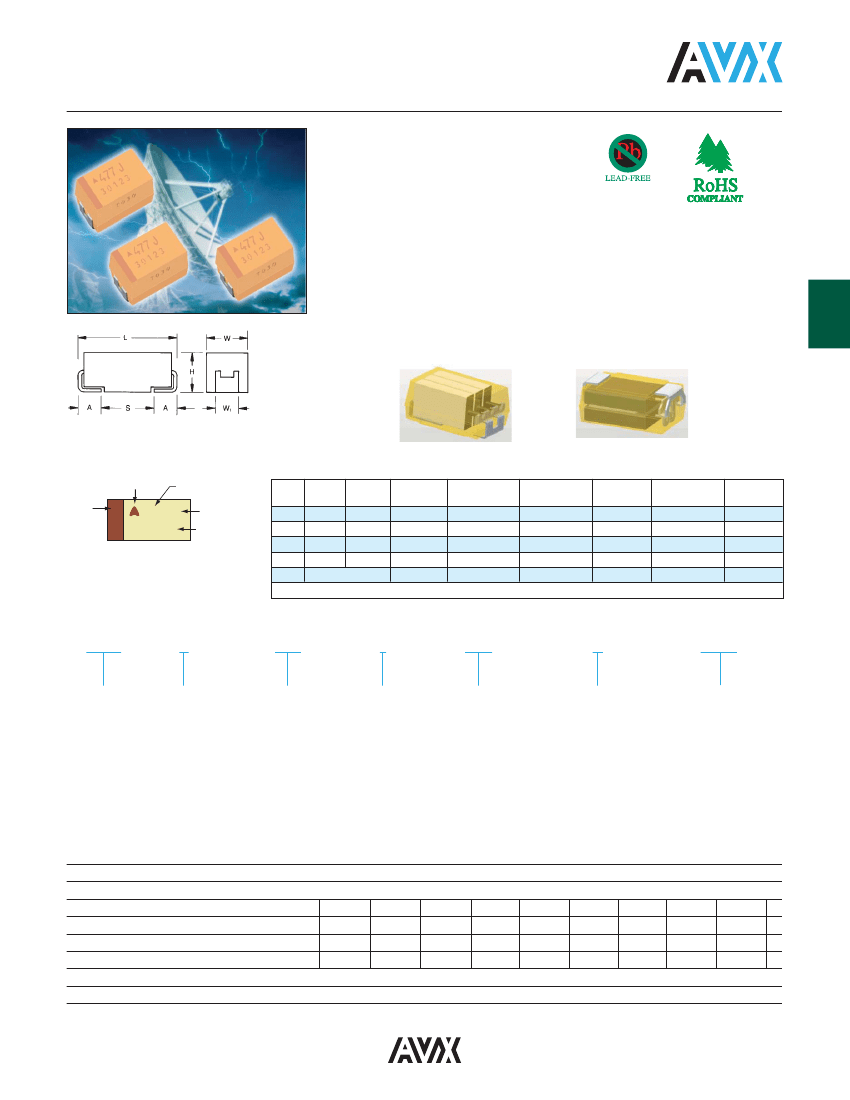

TPM Multianode
Tantalum Ultra Low ESR Capacitor
FEATURES
• Multi-anode construction
• Super low ESR
• CV range: 10-2200μF / 2.5-50V
• 5 case sizes available
• “Mirror” multi-anode construction used with
D, Y case capacitors reduces ESL to half
LEAD-FREE COMPATI-
BLE
COMPONENT
SnPb termination option is not
RoHS compliant.
APPLICATIONS
• High power DC/DC general applications
MULTIANODE
CONSTRUCTION
MULTIANODE TPM D, Y LOW SELF
INDUCTANCE CONSTRUCTION
“MIRROR” DESIGN
MARKING
D, E, U, V, Y CASE
AVX LOGO
Capacitance Value in pF
227 = 220μF
Rated Voltage Code
A = 10V
ID Code
Polarity
Band
(Anode+)
CASE DIMENSIONS:
millimeters (inches)
Code
D
E
U
V
Y
EIA
Code
2917
2917
2924
2924
2917
EIA
Metric
7343-31
7343-43
7361-43
7361-38
7343-20
L±0.20
(0.008)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
W+0.20 (0.008) H+0.20 (0.008)
-0.10 (0.004)
-0.10 (0.004)
4.30 (0.169)
4.30 (0.169)
6.10 (0.240)
6.10 (0.240)
4.30 (0.169)
2.90 (0.114)
4.10 (0.162)
4.10 (0.162)
3.55 (0.140)
W
1
±0.20)
(0.008)
2.40 (0.094)
2.40 (0.094)
3.10 (0.120)
3.10 (0.120)
A+0.30 (0.012)
-0.20 (0.008)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
S Min.
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
227 A
XXXXX
2.00 (0.079) max 2.40 (0.094)
W1 dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
TPM
E
Type
Case Size
See table
above
108
M
004
R
0018
Capacitance Code
pF code: 1st two
digits represent
significant figures,
3rd digit represents
multiplier (number of
zeros to follow)
Tolerance
K=±10%
M=±20%
Rated DC Voltage
002=2.5Vdc
004=4Vdc
006=6.3Vdc
010=10Vdc
016=16Vdc
020=20Vdc
025=25Vdc
035=35Vdc
050=50Vdc
Packaging
R = Pure Tin 7" Reel
S = Pure Tin 13" Reel
H = Tin Lead 7" Reel
(Contact Manufacturer)
ESR in mΩ
K = Tin Lead 13" Reel
(Contact Manufacturer)
H, K = Non RoHS
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
All technical data relate to an ambient temperature of +25°C
10 μF to 2200 μF
±10%, ±20%
2.5
4
6.3
10
16
20
25
35
50
1.7
2.7
4
7
10
13
17
23
33
3.3
5.2
8
13
20
26
32
46
65
2.2
3.4
5
8
13
16
20
28
40
-55°C to +125°C
1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance, 60% confidence level
+85°C:
+125°C:
+85°C:
+125°C:
030918
93
TPM Multianode
Tantalum Ultra Low ESR Capacitor
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
6.8
10
15
22
33
47
68
100
150
220
330
470
680
685
106
156
226
336
476
686
107
157
227
337
477
687
D(25,35)
D(25,35)
D(25)
E(18,23)
D(25,45)
E(18,23)
U(18,23)
V(18)
E(15,18)
Y(30)
(M)
D(25,35)
D(30)
E(18,23,30)
E(18,23)
U(18,23)
V(23)
E(25)
(M)
V(20)
(M)
D(100)
D(40,50)
D(40,50)
E(30,40)
E(25,40)
U(30,40)
D(45,55)
E(35,45)
E(35)
D(65)
D(55)/E(65)
E(45,55)
E(45,60)
D(70)
E(60,100)
E(50,65)
E(55,65)
D(140)
E(120)
E(75,100)
E(75,100)
2.5V (e)
4V (G)
6.3V (J)
Rated Voltage DC (V
R
) to 85°C
10V (A)
16V (C)
20V (D)
25V (E)
35V (V)
50V (T)
Y(45)
(M)
Y(45)
(M)
D(35)
D(35)
E(23,35)
E(23,30)
U(23,30)
1000
1500
2200
108
158
228
D(25)
E(12,15,18)
U(18,23)
E(18)
(M)
Released ratings
(M tolerance only)
, (ESR ratings in mOhms in parentheses)
Note: Voltage ratings are minimum values. AVX reserves the right to supply
higher voltage ratings in the same case size, to the same reliability standards.
94
030918
TPM Multianode
Tantalum Ultra Low ESR Capacitor
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Rated
Category Category
Voltage Temperature Voltage Temperature
(V)
(ºC)
(V)
(ºC)
DCL
Max.
(μA)
DF
Max.
(%)
ESR
Max.
@ 100kHz
(mΩ)
100kHz RMS Current (A)
MSL
25ºC
85ºC
125ºC
TPMD336*025#0065
TPMD476*025#0055
TPME476*025#0065
TPME686*025#0045
TPME686*025#0055
TPME107*025#0045
TPME107*025#0060
TPMD226*035#0070
TPME226*035#0060
TPME226*035#0100
TPME336*035#0050
TPME336*035#0065
TPME476*035#0055
TPME476*035#0065
TPMD106*050#0140
TPME106*050#0120
TPME156*050#0075
TPME156*050#0100
TPME226*050#0075
TPME226*050#0100
D
D
E
E
E
E
E
D
E
E
E
E
E
E
D
E
E
E
E
E
33
47
47
68
68
100
100
22
22
22
33
33
47
47
10
10
15
15
22
22
25
25
25
25
25
25
25
35
35
35
35
35
35
35
50
50
50
50
50
50
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
25 Volt @ 85°C
17
125
17
125
17
125
17
125
17
125
17
125
17
125
35 Volt @ 85°C
23
125
23
125
23
125
23
125
23
125
23
125
23
125
50 Volt @ 85°C
33
125
33
125
33
125
33
125
33
125
33
125
8.3
11.8
11.8
17
17
25
25
7.7
8
8
12
12
16
16
5
5
7.5
7.5
11
11
8
8
6
6
6
14
14
8
6
6
6
6
6
6
8
6
6
6
8
8
65
55
65
45
55
45
60
70
60
100
50
65
55
65
140
120
75
100
75
100
1.981
2.153
2.038
2.449
2.216
2.449
2.121
1.909
2.121
1.643
2.324
2.038
2.216
2.038
1.350
1.500
1.897
1.643
1.897
1.643
1.783
1.938
1.834
2.205
1.994
2.205
1.909
1.718
1.909
1.479
2.091
1.834
1.994
1.834
1.215
1.350
1.708
1.479
1.708
1.479
0.792
0.861
0.815
0.980
0.886
0.980
0.849
0.763
0.849
0.657
0.930
0.815
0.886
0.815
0.540
0.600
0.759
0.657
0.759
0.657
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Moisture Sensitivity Level (MSL) is defined according to J-STD-020
All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
The EIA & CECC standards for low ESR Solid Tantalum Capacitors allow an ESR movement to 1.25 times catalogue limit post mounting.
For typical weight and composition see page 273.
NOTE: AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards.
QUALIFICATION TABLE
TEST
Condition
TPM series (Temperature range -55ºC to +125ºC)
Characteristics
Visual examination
DCL
ΔC/C
DF
ESR
Visual examination
DCL
ΔC/C
DF
ESR
DCL
ΔC/C
DF
ESR
Visual examination
DCL
ΔC/C
DF
ESR
Visual examination
DCL
ΔC/C
DF
ESR
Visual examination
DCL
ΔC/C
DF
ESR
no visible damage
initial limit
within ±10% of initial value
initial limit
1.25 x initial limit
no visible damage
1.5 x initial limit
within ±10% of initial value
1.2 x initial limit
1.25 x initial limit
+20ºC
IL*
n/a
IL*
1.25 x IL*
-55ºC
n/a
+0/-10%
1.5 x IL*
2.5 x IL*
+20ºC
IL*
±5%
IL*
1.25 x IL*
+85ºC
10 x IL*
+10/-0%
1.5 x IL*
1.25 x IL*
+125ºC
12.5 x IL*
+12/-0%
2 x IL*
+20ºC
IL*
±5%
IL*
Endurance
Apply rated voltage (Ur) at 85ºC and / or category-
voltage (Uc) at 125ºC for 2000 hours through a circuit
impedance of ≤0.1Ω/V. Stabilize at room temperature
for 1-2 hours before measuring.
Humidity
Store at 65ºC and 95% relative humidity for 500
hours, with no applied voltage. Stabilize at room
temperature and humidity for 1-2 hours before
measuring.
Step
1
2
3
4
5
6
Temperature°C
+20
-55
+20
+85
+125
+20
Duration(min)
15
15
15
15
15
15
Temperature
Stability
1.25 x IL* 1.25 x IL*
Surge
Voltage
Apply 1.3x category voltage (Uc) at 125ºC for
1000 cycles of duration 6 min (30 sec charge,
5 min 30 sec discharge) through a charge /
discharge resistance of 1000Ω
Mechanical
Shock
MIL-STD-202, Method 213, Condition C
Vibration
MIL-STD-202, Method 204, Condition D
no visible damage
initial limit
within ±5% of initial value
initial limit
1.25 x initial limit
no visible damage
initial limit
within ±5% of initial value
initial limit
initial limit
no visible damage
initial limit
within ±5% of initial value
initial limit
initial limit
*Initial Limit
96
030918
