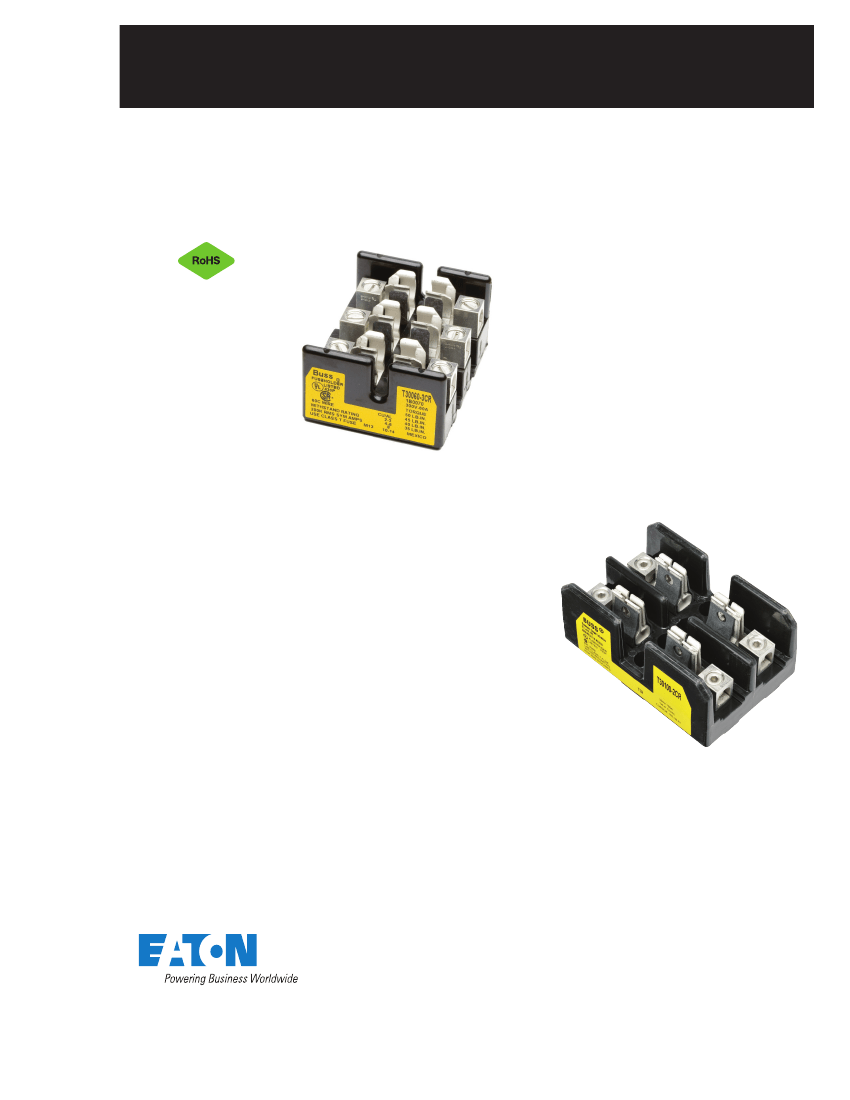

Technical Data 1115
Effective November 2016
Supersedes December 2015
BUSSMANN
SERIES
Class T 300V open fuse blocks
Materials
•
•
Phenolic
Glass polyester on 600A
94 VO
UL Flammability
•
Recommended fuses:
•
JJN (see data sheet no. 1025)
Catalog symbol:
•
T300_
Description:
A range of open 1-, 2- and 3-pole blocks for
Class T fuses.
Specifications:
Ratings
•
•
•
Volts: 300V
Amps: 1/2-600A
Withstand rating: 200kA RMS Sym.
Agency information
•
•
UL
®
Listed, UL 512, Guide IZLT, File E14853
CSA
®
Certified, C22.2 No. 39, Class 6225-01,
File 47235
CE
RoHS compliant
•
•
Technical data 1115
Effective November 2016
Class T 300V open fuse blocks
Catalog numbers:
Amps
1/2–30
Poles
2
3
4
2
3
4
1
2
3
1
3
1
1
Catalog numbers/terminals
Screw
Box lug
T30030-2SR
T30030-2CR
T30030-3SR
T30030-3CR
T30030-4SR
T30030-4CR
T30060-2SR
T30060-2CR
T30060-3SR
T30060-3CR
T30060-4SR
T30060-4CR
—
T30100-1CR
—
T30100-2CR
—
T30100-3CR
—
T30200-1C
—
T30200-3C
—
T30400-1C
—
T30600-1C
Figure number
1
Wire range
SR #10 Cu, CR #6-14 Cu-Al
31–60
1
SR #12 Al, CR#2-14 Cu
61–100
101-200
201–400
401–600
2
3a
3b
4
5
1/0-#8 Cu-Al
250kcmil- #6 Cu-Al
600kcmil-2/0 Cu-Al
(2) 600kcmil-4/0 Cu-Al

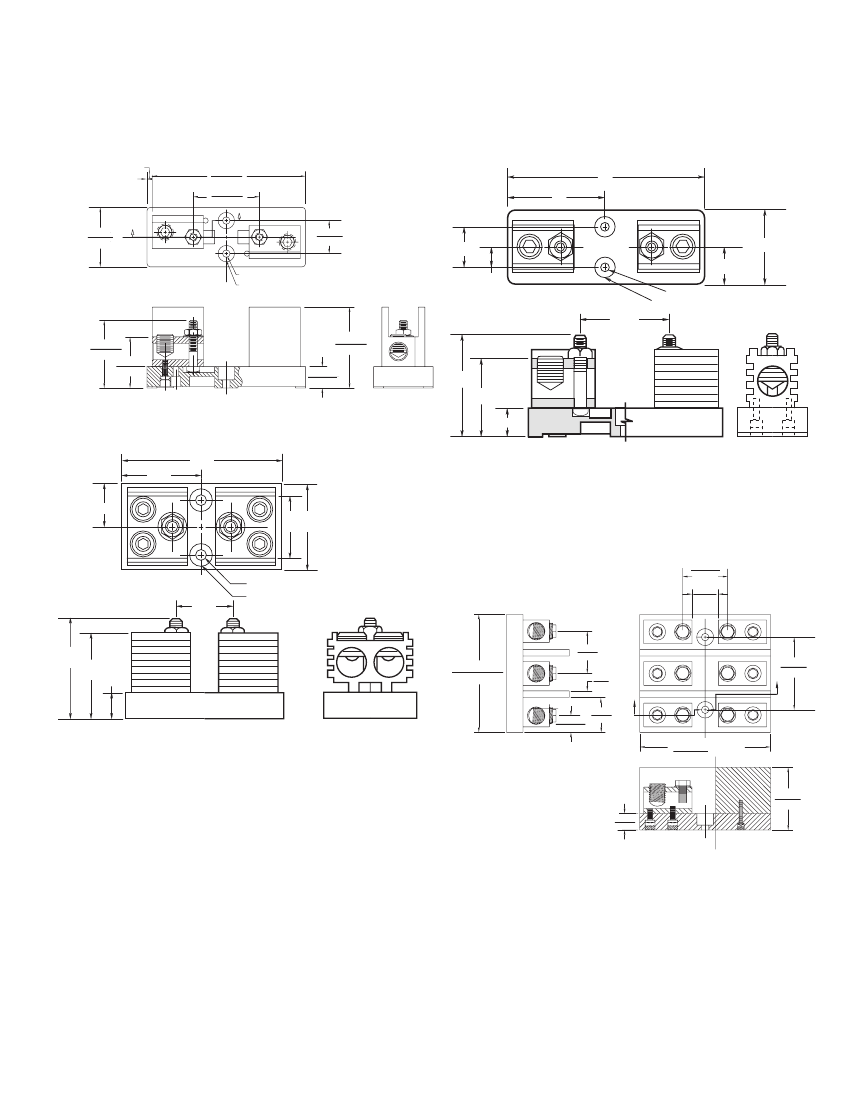

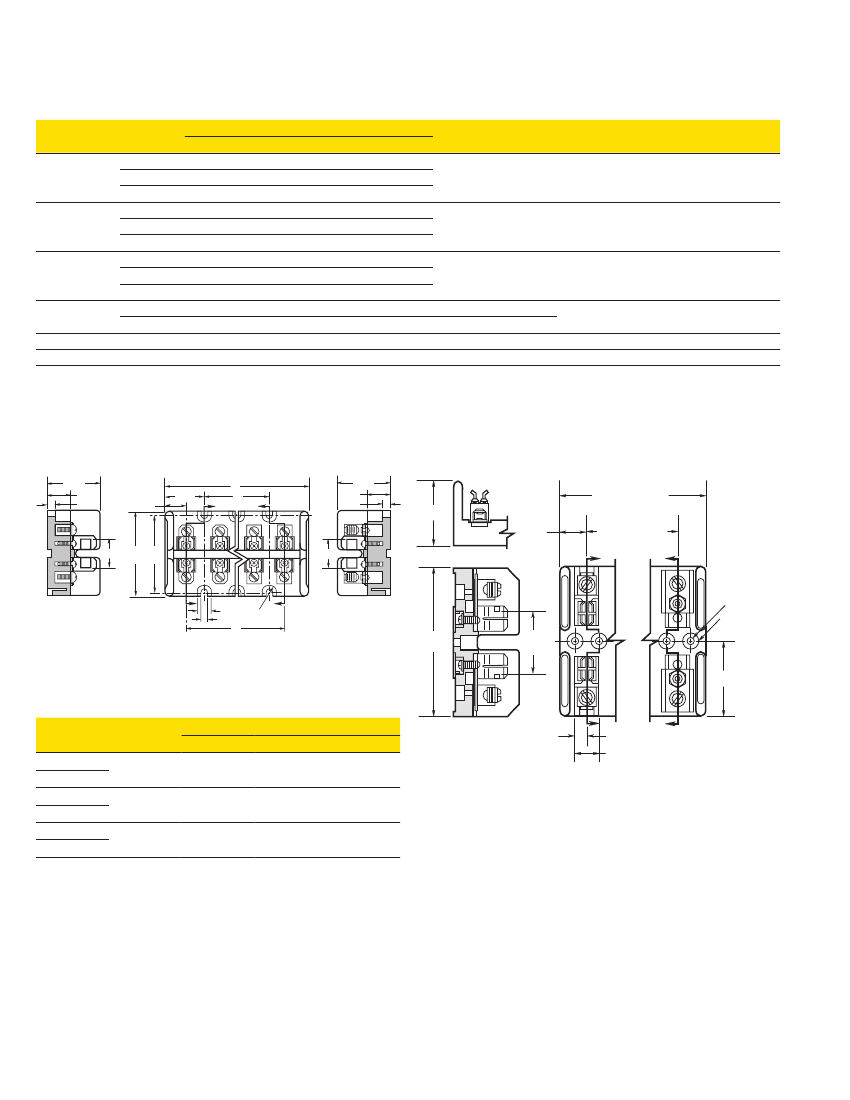

Dimensions – in:
Figure 1. 1/2 to 60A
1.63"
0.72"
0.16"
A
B
1.63"
0.72"
0.16"
Figure. 2. 61 to 100A
1.69"
(1-pole)
3.09"
(2-pole)
4.5"
(3-pole)
0.84"
1.41"
(2-pole)
2.81"
(3-pole)
X
Z
0.69"
1.20"
X
Z
2.06"
0.91"
2.75" 2.5"
0.91"
T30030-S
Section X-X
X
Z
0.44"
Full
0.20"
Radius
C
T30060-C
Section Z-Z
4.78"
2.25"
Ref.
0.52" C'bore
0.55" Deep
0.22" Dia.
2.39"
Dimensions - in
Amps
30
60
30
60
30
60
Poles
2
3
4
A
2.41
3.44
4.47
B
—
1.03
2.06
C
1.03
2.06
3.09
X
0.38"
0.75"
Z
2
