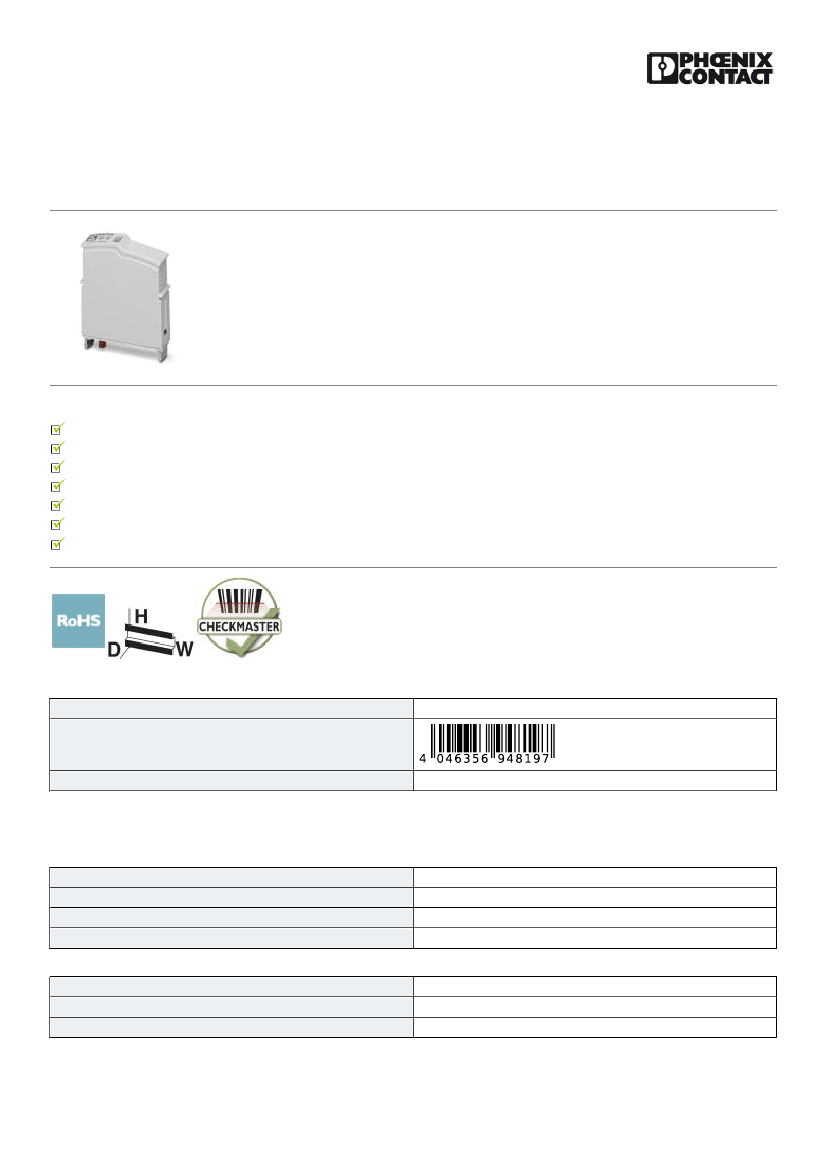

Type 2 surge protection plug - VAL-SEC-T2-350-P - 2905346
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Replacement plug for surge arresters from the VALVETRAB SEC product range for L-N and L-PEN paths.
Your advantages
Varistor arrester with a low leakage current
Extremely narrow design, just 12 mm per position
High continuous voltage of 350 V AC for 230/400 V AC networks with high voltage fluctuations
Pluggable
Low voltage protection level of 1.5 kV
Optical, mechanical status indicator
Plugs can be checked with CHECKMASTER 2
Key Commercial Data
Packing unit
GTIN
GTIN
4046356948197
1 pc
Technical data
Dimensions
Height
Width
Depth
Horizontal pitch
46.4 mm
11.7 mm
59.4 mm
0.6 Div.
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
IP20
-40 °C ... 80 °C
-40 °C ... 80 °C
11/26/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2905346
Type 2 surge protection plug - VAL-SEC-T2-350-P - 2905346
Technical data
Ambient conditions
Altitude
Permissible humidity (operation)
Shock (operation)
Vibration (operation)
≤ 2000 m (amsl (above mean sea level))
5 % ... 95 %
30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
General
IEC test classification
EN type
IEC power supply system
Mode of protection
Mounting type
Color
Housing material
Degree of pollution
Flammability rating according to UL 94
Type
Number of positions
Surge protection fault message
II
T2
T2
TN
TT
L-N
L-PEN
on base element
light grey RAL 7035
PA 6.6-FR 20% GF
PBT-FR
2
V-0
Male
1
optical
Protective circuit
Nominal voltage U
N
Nominal frequency f
N
Maximum continuous voltage U
C
Nominal discharge current I
n
(8/20) µs
Maximum discharge current I
max
(8/20) µs
Short-circuit current rating I
SCCR
Voltage protection level U
p
Residual voltage U
res
240 V AC (TN)
240 V AC (TT)
50 Hz (60 Hz)
350 V AC
20 kA
40 kA
25 kA (in case of 315 A gG backup fuse)
50 kA (in case of 200 A gG backup fuse)
≤ 1.5 kV
≤ 1.5 kV (at I
n
)
≤ 1.3 kV (at 10 kA)
≤ 1.2 kV (at 5 kA)
≤ 1.1 kV (at 4 kA)
≤ 1 kV (at 2 kA)
TOV behavior at U
T
Response time t
A
415 V AC (5 s / withstand mode)
457 V AC (120 min / safe failure mode)
≤ 25 ns
11/26/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2905346
Type 2 surge protection plug - VAL-SEC-T2-350-P - 2905346
Technical data
Protective circuit
Max. backup fuse with branch wiring
315 A (gG)
Connection data
Connection method
pluggable
UL specifications
SPD Type
Maximum continuous operating voltage MCOV
Nom. voltage
Mode of protection
Power distribution system
Nominal frequency
Voltage protection rating VPR
Nominal discharge current I
n
Short-circuit current rating (SCCR)
1CA
350 V AC
277 V AC
L-N
Single phase
50/60 Hz
1200 V
20 kA
50 kA
Standards and Regulations
Standards/regulations
IEC 61643-11 2011
EN 61643-11 2012
Drawings
Dimensional drawing
46,4
11,7
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / IECEE CB Scheme / CCA / KEMA-KEUR / CCA / UL Recognized / KEMA-KEUR / cUL Recognized / IECEE CB Scheme / EAC / cULus
Recognized
Ex Approvals
59,4
52,3
11/26/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2905346
Type 2 surge protection plug - VAL-SEC-T2-350-P - 2905346
Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE000023D
IECEE CB Scheme
http://www.iecee.org/
NL-34357
CCA
NTR-NL 7348
KEMA-KEUR
http://www.dekra-certification.com
2196453.01
CCA
NTR-NL 7347
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 330181
KEMA-KEUR
http://www.dekra-certification.com
2185820.01
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 330181
IECEE CB Scheme
http://www.iecee.org/
NL-34356
EAC
RU C-
DE.A*30.B01561
cULus Recognized
