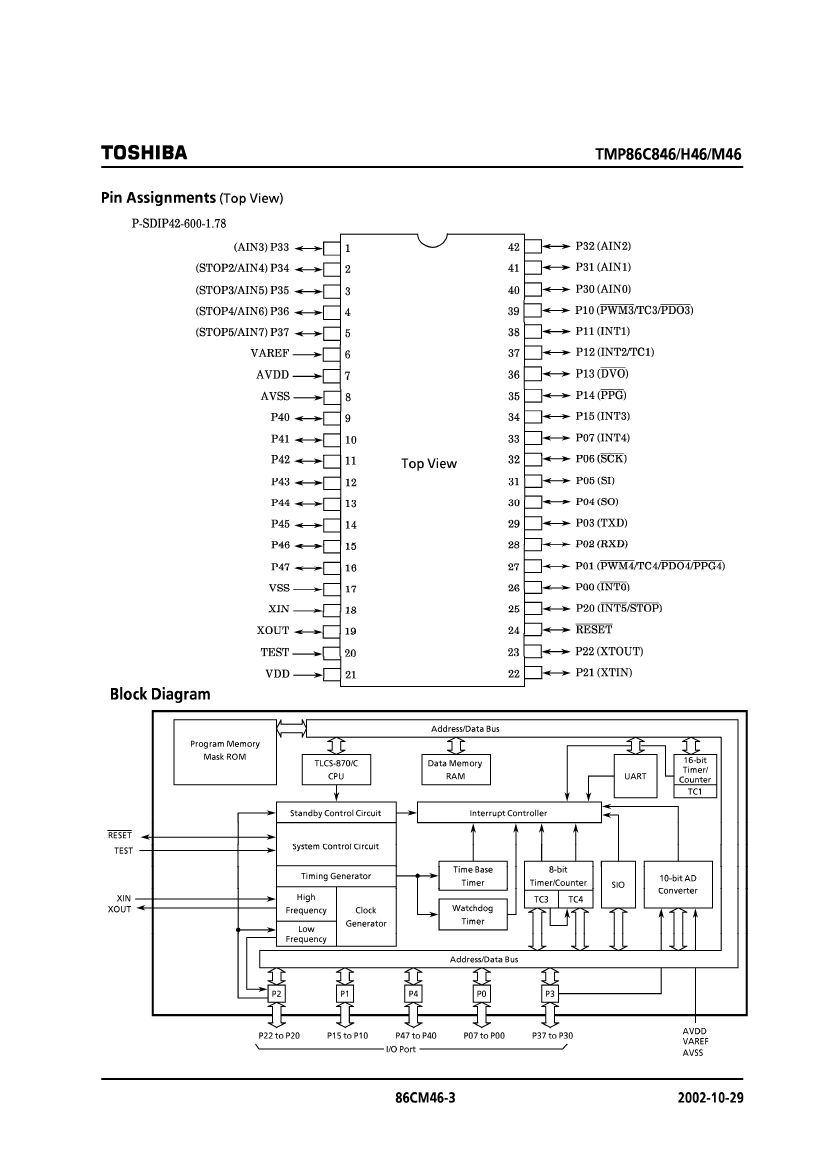

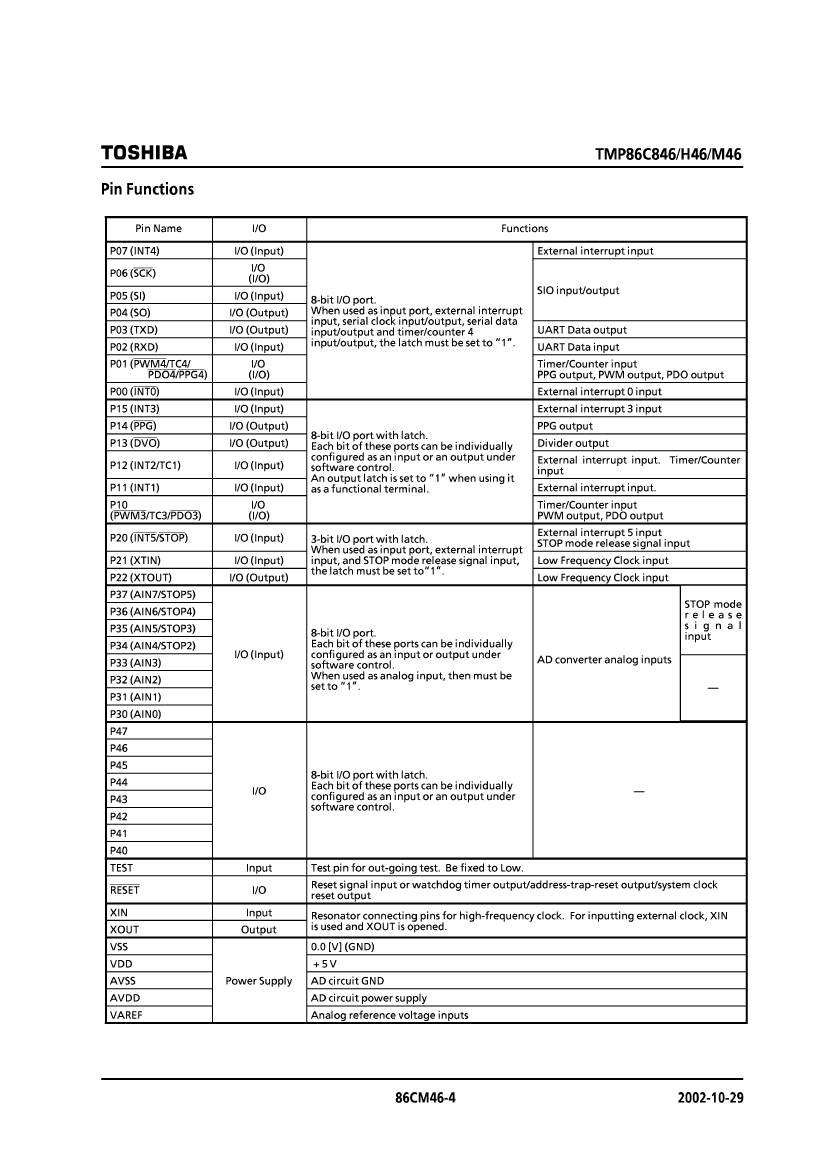

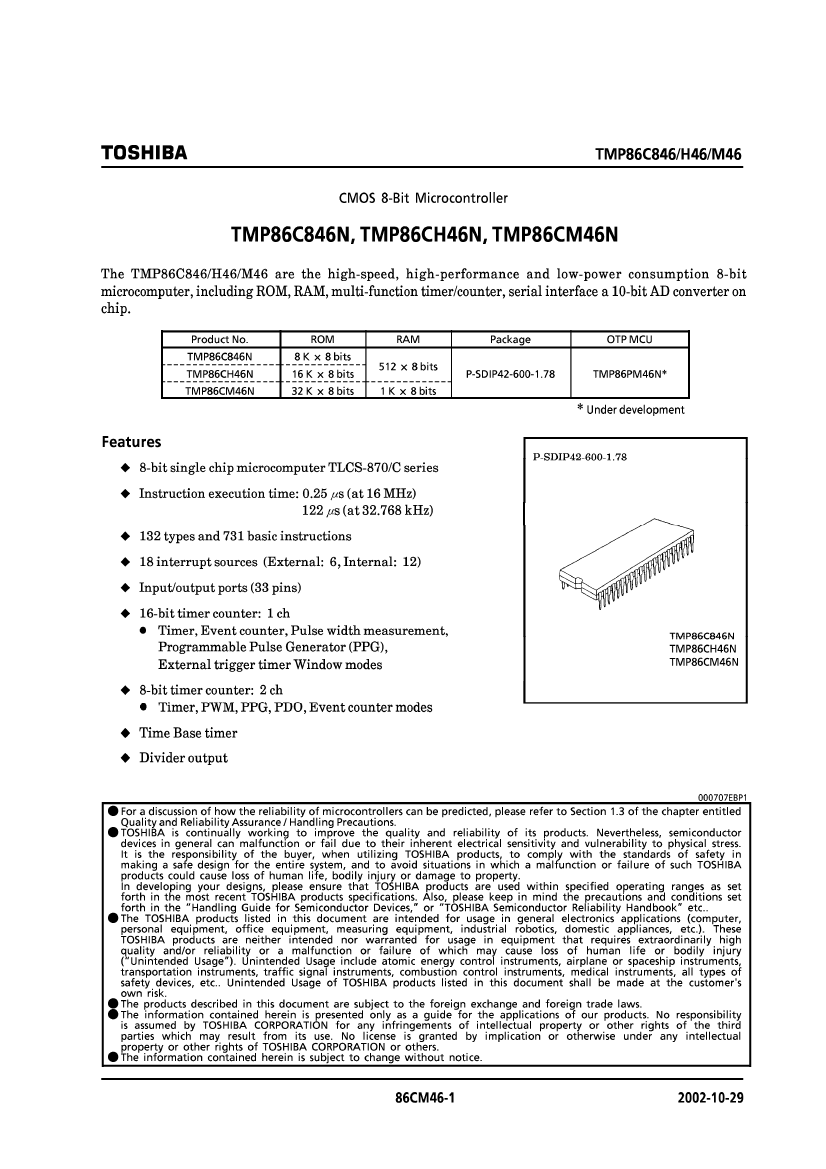

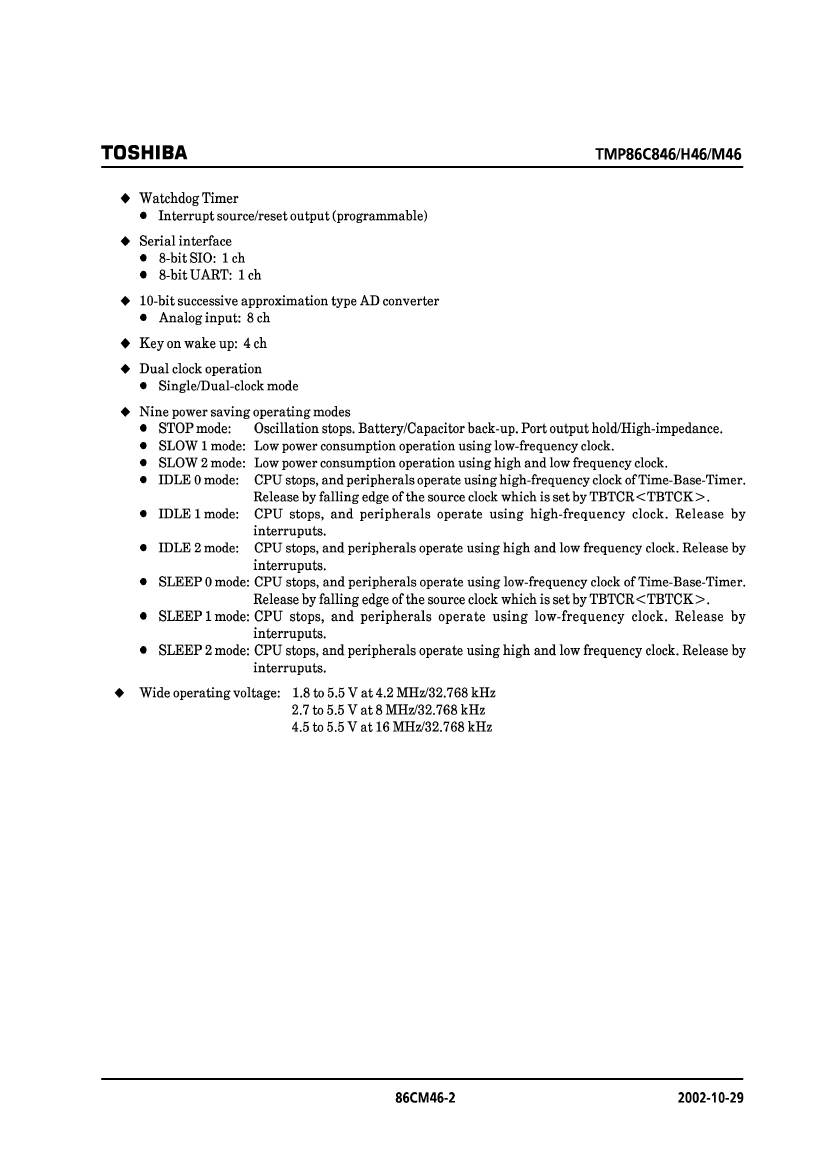

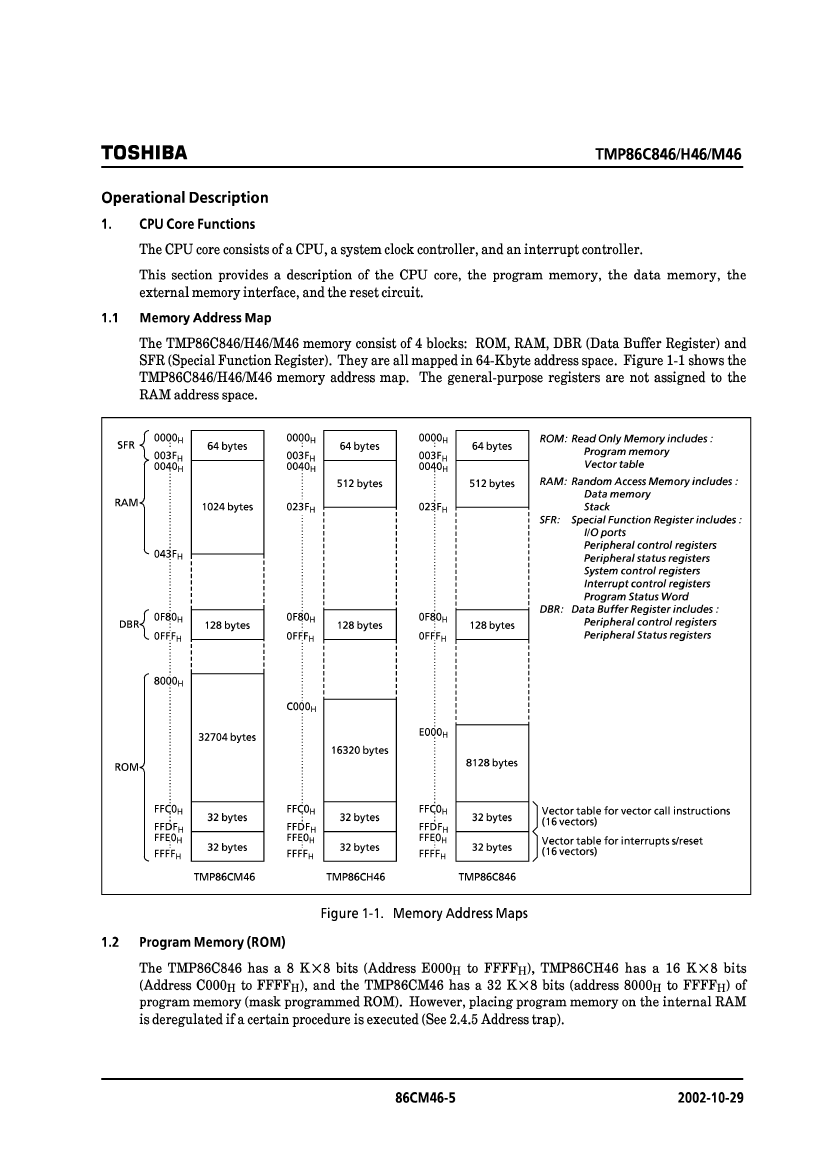

TMP86CH46N: DescriptionCMOS 8-bit MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size529KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP86CH46N Overview

CMOS 8-bit MICROCONTROLLER

TMP86CH46N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V MINIMUM SUPPLY
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
Number of I/O lines	33
Number of terminals	42
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	16384
ROM programmability	MROM
speed	16 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

TMP86CH46N Related Products

	TMP86CH46N	TMP86C846N	TMP86CM46N
Description	CMOS 8-bit MICROCONTROLLER	CMOS 8-bit MICROCONTROLLER	CMOS 8-bit MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, SDIP42,.6	0.600 INCH, 1.78 MM PITCH, PLASTIC, SDIP-42	0.600 INCH, 1.78 MM PITCH, PLASTIC, SDIP-42
Contacts	42	42	42
Reach Compliance Code	unknow	unknow	unknow
Has ADC	YES	YES	YES
Other features	ALSO OPERATES AT 1.8V MINIMUM SUPPLY	ALSO OPERATES AT 1.8V MINIMUM SUPPLY	ALSO OPERATES AT 1.8V MINIMUM SUPPLY
bit size	8	8	8
CPU series	TLCS-870/C	TLCS-870/C	TLCS-870/C
maximum clock frequency	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDIP-T42	R-PDIP-T42	R-PDIP-T42
Number of I/O lines	33	33	33
Number of terminals	42	42	42
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SDIP	SDIP
Encapsulate equivalent code	SDIP42,.6	SDIP42,.6	SDIP42,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	512	512	1024
rom(word)	16384	8192	32768
ROM programmability	MROM	MROM	MROM
speed	16 MHz	16 MHz	16 MHz
Maximum slew rate	9 mA	9 mA	9 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.78 mm	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it lead-free?	-	Contains lead	Contains lead
length	-	38 mm	38 mm
width	-	15.24 mm	15.24 mm
