V15
︳
Features
* Universal Input: 90-264Vac
* EMI Meets EN55022 Class B and
CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CEC & ErP Level V
(Output Cable Length
≦
1800mm)

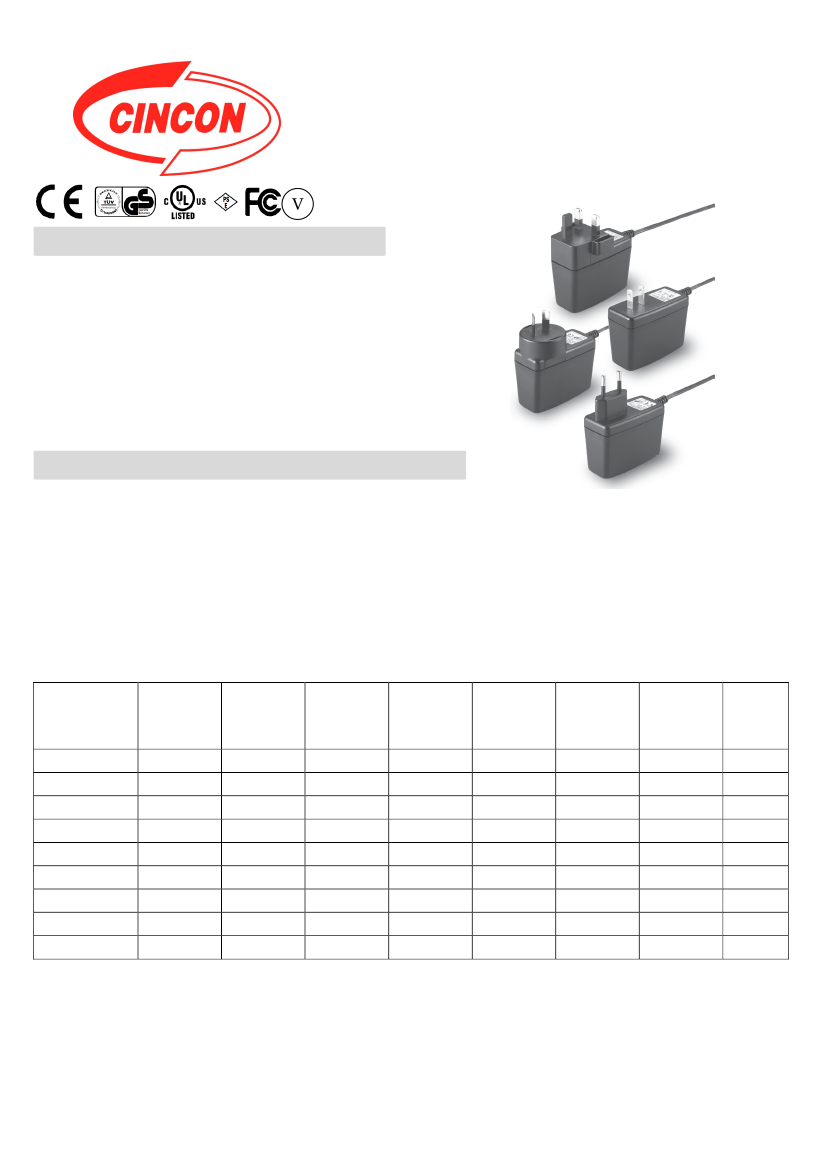

TRG15 SERIES
15W SWITCHING
ADAPTER
Ordering information
TR15XX
Model No.
-
x
AC Plug Type
A: USA 2 Pin
E: Europe 2 Pin
U: British 3 Pin
S: Australia 2 Pin
XX
DC Plug Type
X
OVP Option
E: With OVP Option
XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
MODEL
OUTPUT
VOLTAGE
MAX. LOAD
MIN. LOAD
RIPPLE &
NOISE
VOLTAGE
ACCURACY
LINE
REGULATION
LOAD
REGULATION
% EFF.
(Typ.)
TRG1505
TRG1506
TRG1507
TRG1509
TRG1512
TRG1512-01
TRG1515
TRG1518
TRG1524
5V
6V
7.5V
9V
12V
13.6V
15V
18V
24V
2.0A
1.5A
1.6A
1.4A
1.0A
1.0A
1.0A
0.83A
0.63A
0A
0A
0A
0A
0A
0A
0A
0A
0A
1%
1%
1%
1%
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±4%
±3%
±3%
±2%
±2%
±2%
±2%
±2%
±2%
72%
76%
77%
77%
80%
81%
81%
83%
83%
Specifications are subject to change without notice.
1
V15
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…......................................................... 90~264Vac
Frequency ………………………………………….……………....... 47 to 63Hz
Input Current ……………………....... 100Vac/0.5A max.,240Vac/0.25A max.
Inrush Current ………………….…………...................... 50A max. @ 240Vac
Leakage Current …………………………………………….……. 0.25mA max.
TRG15R Series Derating Curve
TRG1505, 1506, 1507, 1509, 1512, 1512-01
100%
Rat ed Load(%)
80%
60%
40%
20%
0%
0
10
20
30
40
o
Ambient Temperature( C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ………………………………………………. 10ms typ. @115Vac
Short Circuit Protection …………….………… Hiccup Mode (Auto Recovery)
Over Voltage Protection ………………................. TVS Component to Clamp
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 4,242VDC
Operating Temperature ............................ 0
℃
~ 60
℃
(see derating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity ....................................................... 93% RH max. Non condensing
Cooling ………………………………….………………… Natural Convection
Switching Frequency ………………………….……………….. 87KHz Typical
MTBF ……… MIL-HDBK-217F, GB, at 25℃/115VAC ………. 200K hrs min.
Altitude ……………………..………………...…………….…..………... 2000m
Dimensions ……..…….. 2.835x2.047x1.378Inches (72.00x52.00x35.00mm)
Weight ………………………………………………………. 140g(0.31 Pounds)
TRG1515, 1518, 1524
100%
Rated Load(%)
75%
50%
25%
0%
0
10
20
30
40
o
Ambient Temperature( C)
50
60
20LFM(Natural Convection)
SAFETY AND EMC:
Emission and Immunity ……........ EN55022 Class B, FCC Part 15 Class B
EN61000-6-3, EN61000-3-2, EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety ………………………………… IEC60950-01, EN60950-1, UL60950-1
NOTE:
1. Voltage setpoint at 60% full load
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 60% to 100% full load and from 60%
to 20% load (60% +/- 40% load)
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
