C1206C100JBRACTU datasheet, PDF

Datasheet> All Categories > Passive components> C1206C100JBRACTU

C1206C100JBRACTU: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 630volts 10pF X7R 5%; CategoryPassive components; File Size1MB，22 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C1206C100JBRACTU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C1206C100JBRACTU	-	-	View	Buy Now

C1206C100JBRACTU Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 630volts 10pF X7R 5%

C1206C100JBRACTU Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Details
Capacitance	10 pF
Voltage Rating DC	630 VDC
Dielectric	X7R
Tolerance	5 %
Case Code - in	1206
Case Code - mm	3216
Height	-
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Termination	-
Product	General Type MLCCs
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	3.2 mm
Package / Case	1206 (3216 metric)
Termination Style	SMD/SMT
Voltage Rating AC	-
Width	1.6 mm
Class	Class 1
NumOfPackaging	3
Factory Pack Quantity	2500
Unit Weight	0.000571 oz

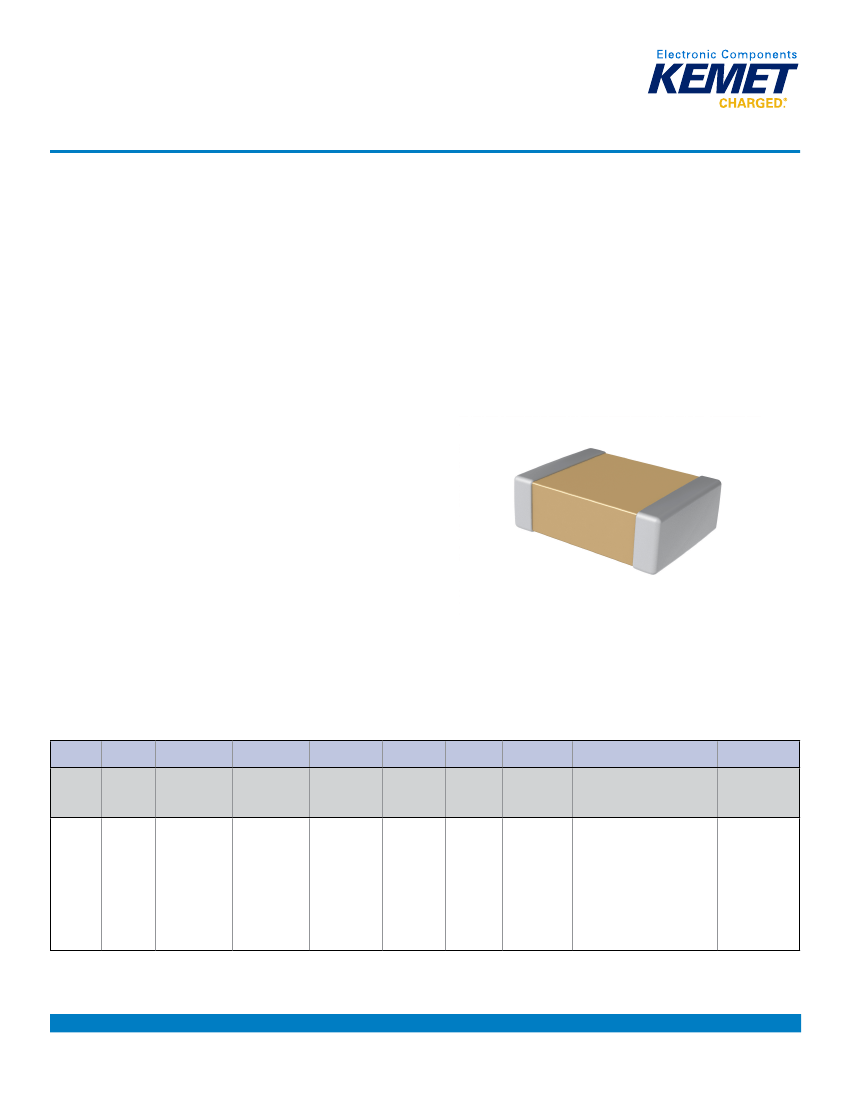

Preview

Download Datasheet

View All

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage X7R Dielectric, 500 – 3,000 VDC

(Commercial Grade)

Overview

KEMET’s High Voltage surface mount MLCCs in X7R

Dielectric feature a 125°C maximum operating temperature

and are considered “temperature stable.” The Electronics

Industries Alliance (EIA) characterizes X7R dielectric as

a Class II material. Components of this classification

are fixed, ceramic dielectric capacitors suited for

bypass and decoupling applications or for frequency

discriminating circuits where Q and stability of capacitance

characteristics are not critical. X7R exhibits a predictable

change in capacitance with respect to time and voltage

and boasts a minimal change in capacitance with reference

to ambient temperature. Capacitance change is limited to

±15% from −55°C to +125°C.

Available in a variety of case sizes and industry leading

CV values (capacitance/voltage), these devices exhibit

low leakage current and low ESR at high frequencies.

Conventional uses include both snubbers and filters

in applications such as switching power supplies and

lighting ballasts. Their exceptional performance at

high frequencies has made high voltage MLCC's the

preferred dielectric choice of design engineers worldwide.

In addition to their use in power supplies, these capacitors

are widely used in industries related to automotive

(hybrid), telecommunications, medical, military, aerospace,

semiconductors and test/diagnostic equipment.

In addition to Commercial Grade, Automotive Grade devices

are available which meet the demanding Automotive

Electronics Council's AEC-Q200 qualification requirements.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

1210

154

Rated

Voltage

(VDC)

C = 500

B = 630

D = 1,000

F = 1,500

G = 2,000

Z = 2,500

H = 3,000

Dielectric

R = X7R

Failure

Rate/Design

A = N/A

Termination Finish

C = 100% Matte Sn

L = SnPb (5% Pb minimum)

Packaging/

Grade (C-Spec)

See

"Packaging

C-Spec

Ordering

Options

Table"below

Case Size

Specification/

Capacitance Capacitance

Ceramic

(L" x W")

Series

Code (pF)

Tolerance

0603

0805

1206

1210

1808

1812

1825

2220

2225

C = Standard

Two

significant

digits +

number of

zeros.

J = ±5%

K = ±10%

M = ±20%

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

C1010_X7R_HV_SMD • 11/29/2017
