ADC804 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ADC804

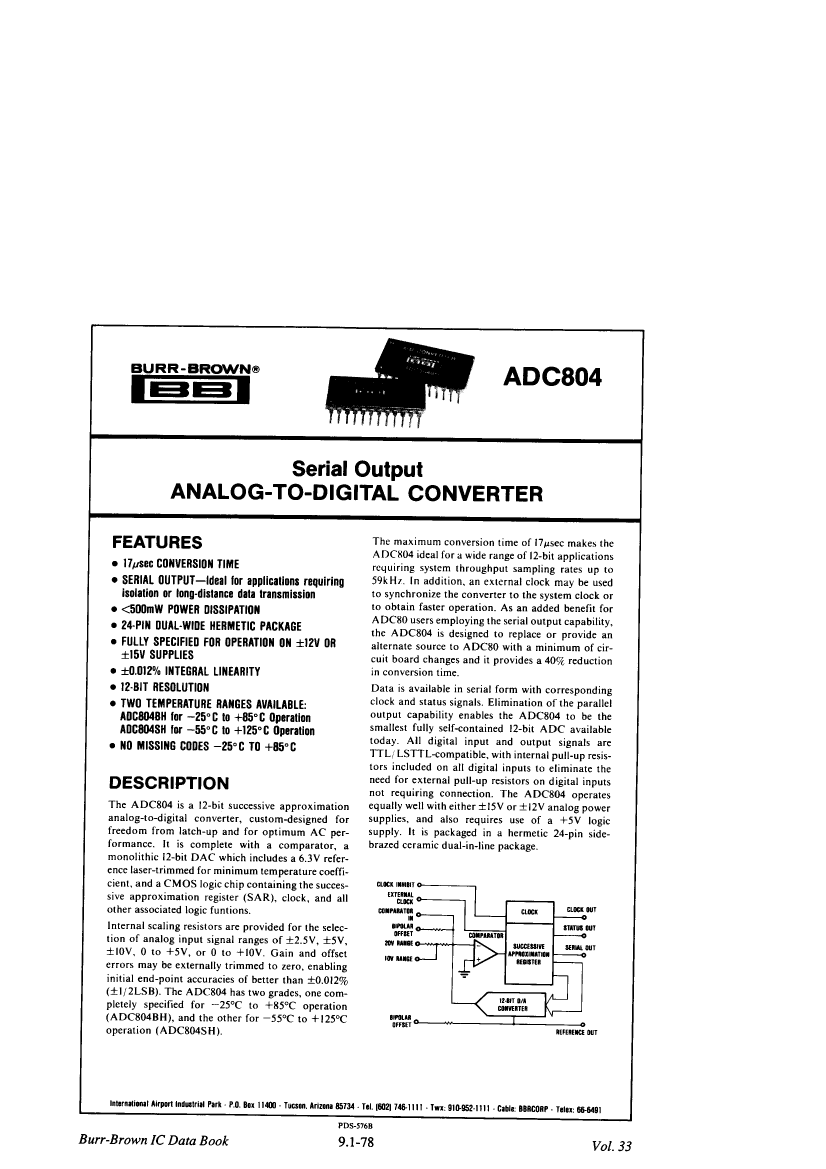

Preview

ADC804: DescriptionSERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER; File Size696KB，8 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Compare View All

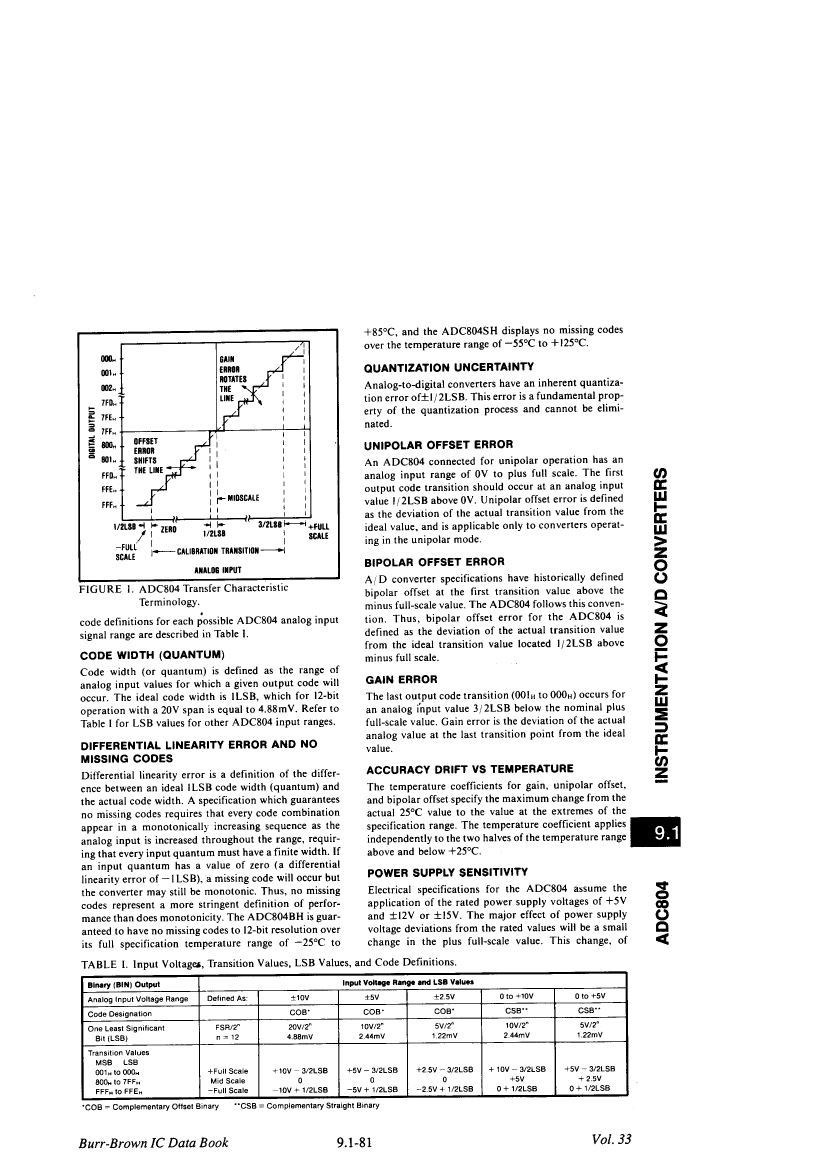

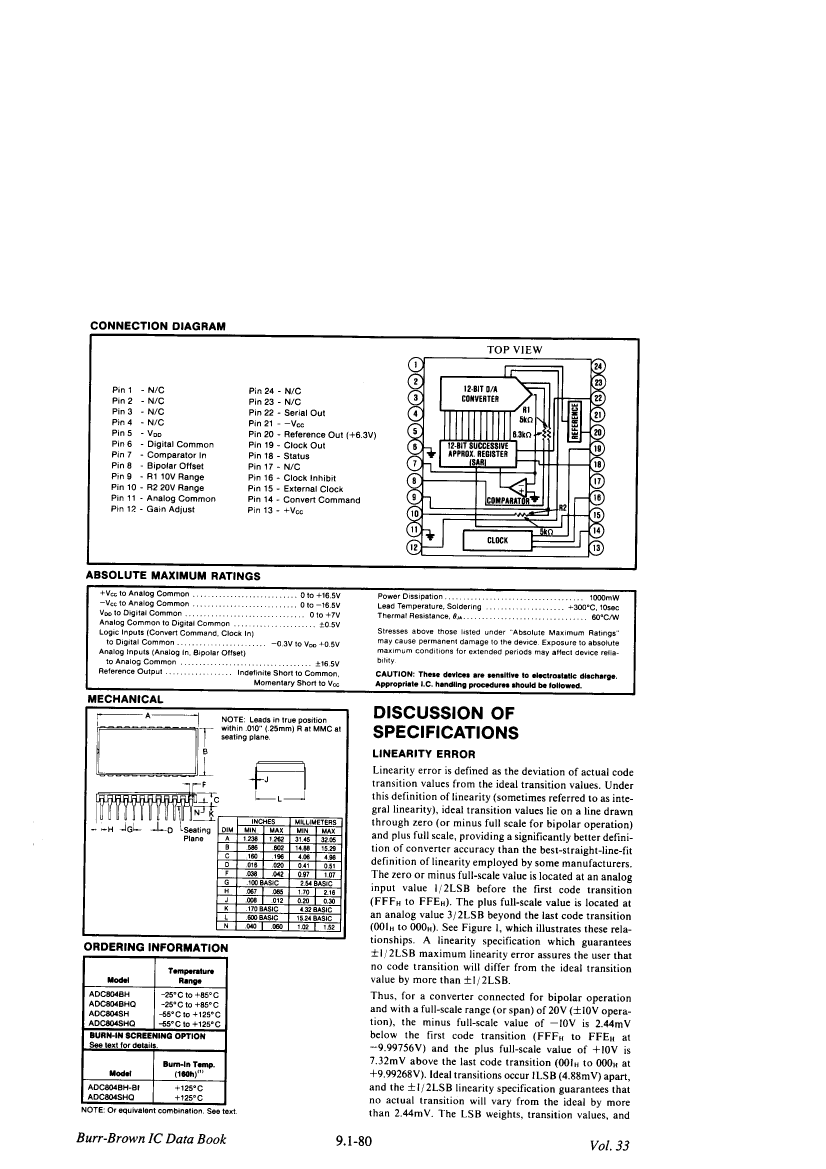

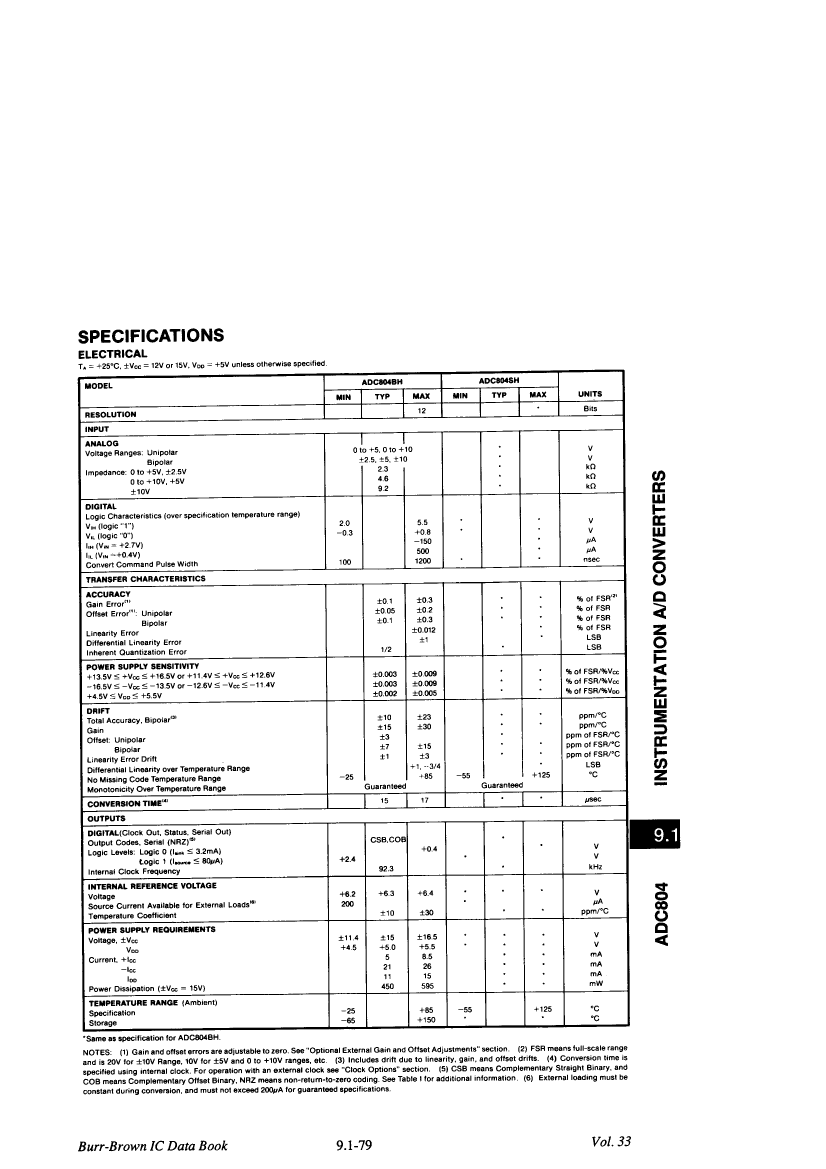

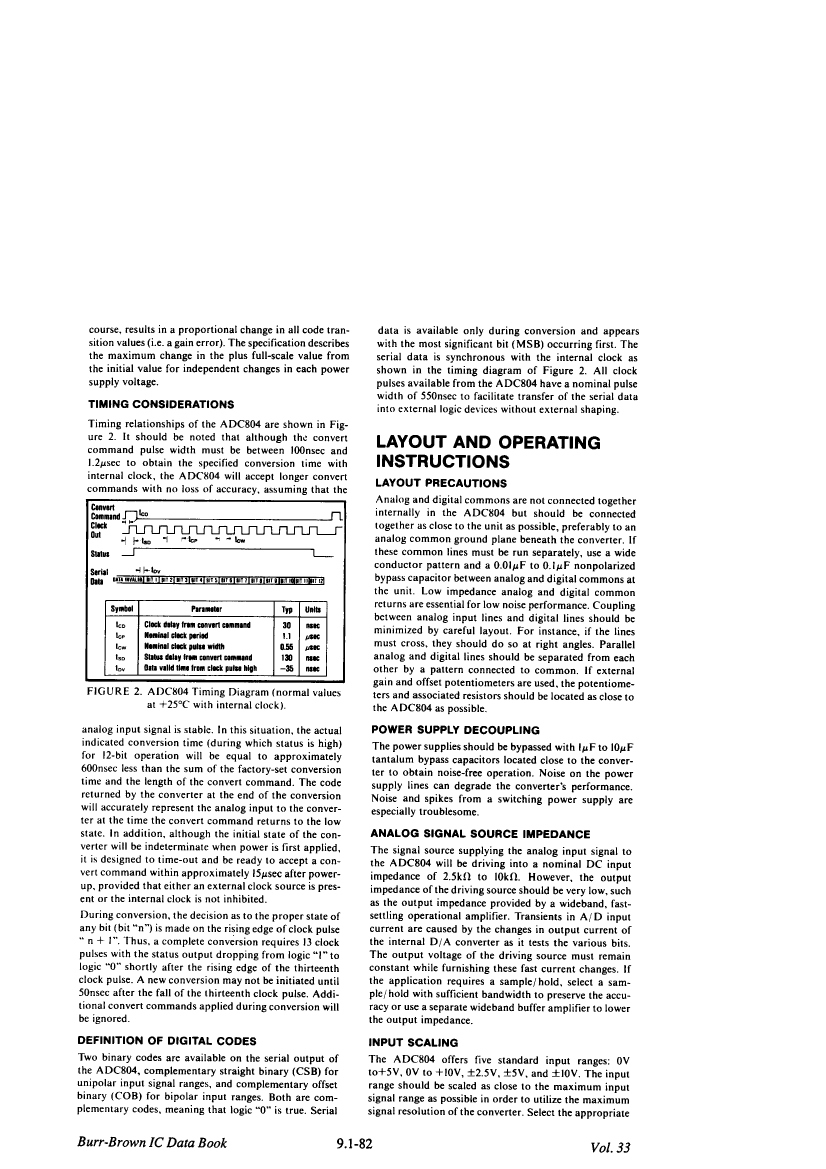

ADC804 Overview

SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER

Preview

Download Datasheet

View All

ADC804 Related Products

	ADC804	ADC804BH-BI	ADC804BH	ADC804SH	ADC804BHQ	ADC804SHQ
Description	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER	SERIAL OUTPUT ANALOG-TO-DIGITAL CONVERTER
Maker	-	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	-	unknown	unknown	unknown	unknown	unknown
Is Samacsys	-	N	N	N	N	N
Maximum analog input voltage	-	10 V	10 V	10 V	10 V	10 V
Minimum analog input voltage	-	-10 V	-10 V	-10 V	-10 V	-10 V
Maximum conversion time	-	17 µs	17 µs	17 µs	17 µs	17 µs
Converter type	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	-	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
Maximum linear error (EL)	-	0.012%	0.012%	0.012%	0.012%	0.012%
Nominal negative supply voltage	-	-15 V	-15 V	-15 V	-15 V	-15 V
Number of analog input channels	-	1	1	1	1	1
Number of digits	-	12	12	12	12	12
Number of functions	-	1	1	1	1	1
Number of terminals	-	24	24	24	24	24
Maximum operating temperature	-	85 °C	85 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-	-25 °C	-25 °C	-55 °C	-25 °C	-55 °C
Output bit code	-	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format	-	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Package body material	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	-	26 mA	26 mA	26 mA	26 mA	26 mA
Nominal supply voltage	-	15 V	15 V	15 V	15 V	15 V
surface mount	-	NO	NO	NO	NO	NO
Temperature level	-	OTHER	OTHER	MILITARY	OTHER	MILITARY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	1
