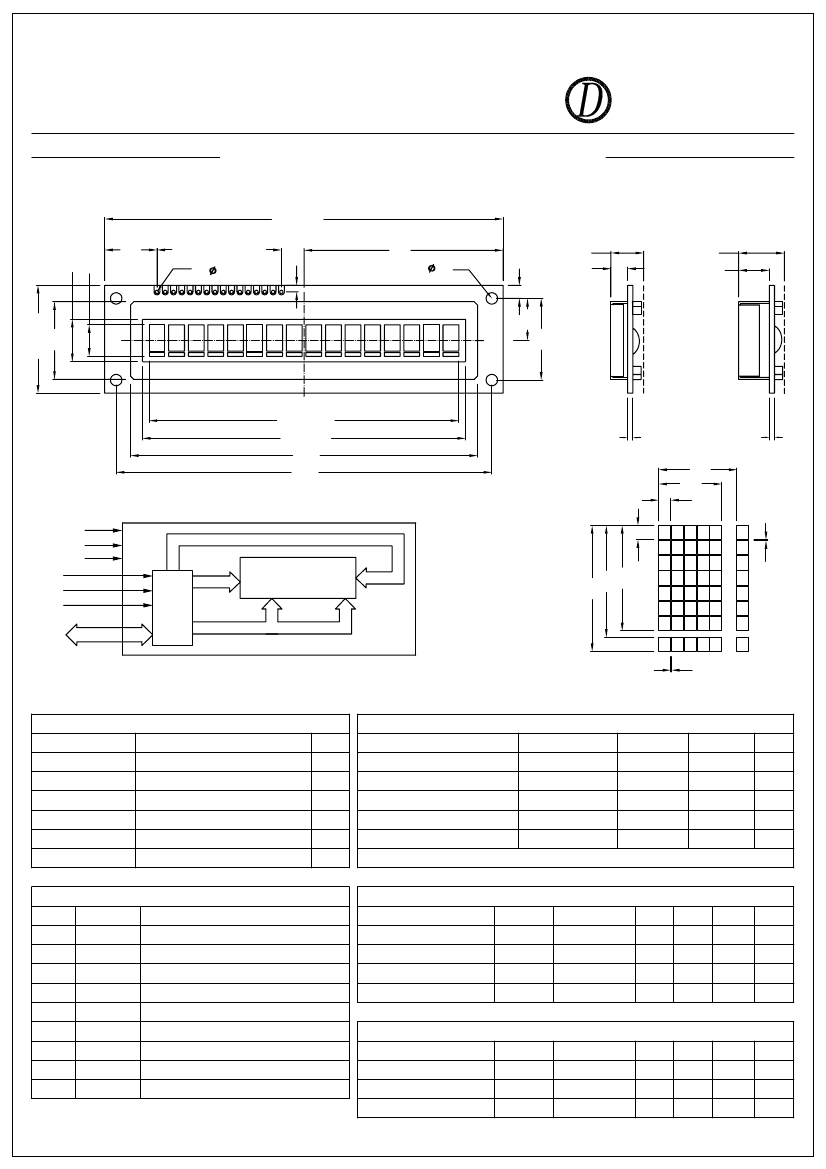

AMC1601B
CONTOUR DRAWING & BLOCK DIAGRAM
13.0[V.A.]
9.66[A.A.]
122.0± 0.5
2.0
4.0
16.0
P2.54X(16-1)=38.1
16- 1.0
1
16
ORIENT DISPLAY
NO B/L
61.0
4- 3.5
10.0[MAX.]
5.1± 0.5
14.0[MAX.]
9.4± 0.5
LED B/L
33.0± 0.5
23.8
C
L
C
L
C
L
94.84[A.A.]
99.0[V.A.]
106.2
115.0
1.6± 0.1
6.00
4.84
0.92
1.6± 0.1
9.66
8.56
8.06
1.10
CONTROLLER*
E
R/W
RS
DB0
DB7
8
8
LCD PANEL
16X1 CHARACTERS
8
40
40
*S6A0069 OR EQUIVALENT
0.06
MECHANICAL SPECIFICATION
ITEM
Module Size
Viewing Area
Character Font
Character Size
Character Pitch
Dot Size
ABSOLUTE MAXIMUM RATINGS
UNIT
mm
mm
dots
mm
mm
mm
PARAMETER
Supply Voltage
LCD Supply Voltage
Input Voltage
Operating Temperature*
Storage Temperature*
SYMBOL
Vdd
Vlcd(Vdd-V0)
Vin
Top
Tstr
MIN.
-0.3
-13.5
-0.3
0/-20
-10/-30
MAX.
7.0
0.3
Vdd+0.3
50/70
60/80
UNIT
V
V
V
°C
°C
SPECIFICATION
122.0X33.0X10.0/14.0
99.0X13.0
5 x 7 + Cursor
4.84X8.06
6.0
0.92X1.10
*T1/T2: T1for standard temperature LCM, T2 for wide temperature LCM
PIN CONNECTIONS
PIN
1
2
3
4
5
6
15
16
SYMBOL
Vss
Vdd
V0
RS
R/W
E
A
K
DESCRIPTION
Power Supply : 0V
Power Supply : +5V
Power Supply for LCD
Register Select
Read/Write
Enable
Data Bus
Anode for backlight
Cathode for backlight
ELECTRICAL CHARACTERISTICS(Ta=25° C)
ITEM
SYMBOL CONDITION MIN. TYP. MAX. UNIT
-
Supply Voltage(logic)
5.5
Vdd
4.5
5.0
V
Supply Current(logic)
Idd
Vdd=5.0
0.7
1.0
1.5
mA
-
Driving Voltage(LCD)
Vlcd
4.1
4.7
5.0
V
-
-
Driving Current(LCD)
Ilcd
0.2
0.4
mA
BACKLIGHT CHARACTERISTICS (Ta=25° C)
PARAMETER
Supply Voltage
LED Forward Current
LED Dissipation
SYMBOL CONDITION MIN. TYP. MAX. UNIT
Vf
If
Pd
If=160mA
3.8
-
-
4.1
160
656
4.3
-
-
V
mA
mW
7 to 14 DB0-DB7
0.06
Vdd
V0
Vss
12.9
25.0
