Inductors also available in surface mount packages
Customized inductance values available
Inductance is stable within
±10%
with DC current
from 0 to 100mA
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
RoHS-5
Compliant
Part No.
B2005
B2013
B2023
B2024
B2025
B2026
B2086
B2113
B2114
B2116
B2117
B2118
B8098
3
3
3
RoHS-6
Compliant
Part No.
B2005NL
B20013NL
-
-
-
-
B2086NL
-
-
-
-
-
B8098NL
3
3
3
Inductance
(each winding)
(mH)
9.0
±
30%
9.0 ± 30%
6.0
±
5%
4.0
±
5%
3.0
±
5%
10.0
±
5%
4.0
±10%
2.25
±
10%
1.425
±
10%
1.65
±
10%
1.35
±
10%
0.8
±
10%
4.0
±
10%
DC Resistance
(each winding)
(Ω MAX)
0.60
1.00
4.00
3.00
2.50
4.50
3.60
2.25
2.25
2.25
2.25
2.00
3.60
Isolation Volage
(between windings)
(Vrms)
1500
1500
1500
1500
1500
1500
1250
500
500
500
500
500
1250
Function
Common Mode Choke
Common Mode Choke
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Coupled Inductor for POTS Low Pass Filter
Mounting
THT
SMT
THT
THT
THT
THT
SMT
THT
THT
THT
THT
THT
SMT
1.
100kHz, 20mVrms,.
2.
1.0kHz, 1.0Vrms, 0 mA (each winding).
3.
For Tape & Reel packaging, add the suffix “T” to this part number (B2013T or B2013NLT)
Notes:
The B2005 and B2013 are common mode chokes that reduce common mode voltages in the low frequency range that may be caused by telephone ringing signals or by
interference from radio transmitters in the ADSL frequency range. The chokes are also designed to accommodate DC currents up to 100mA.

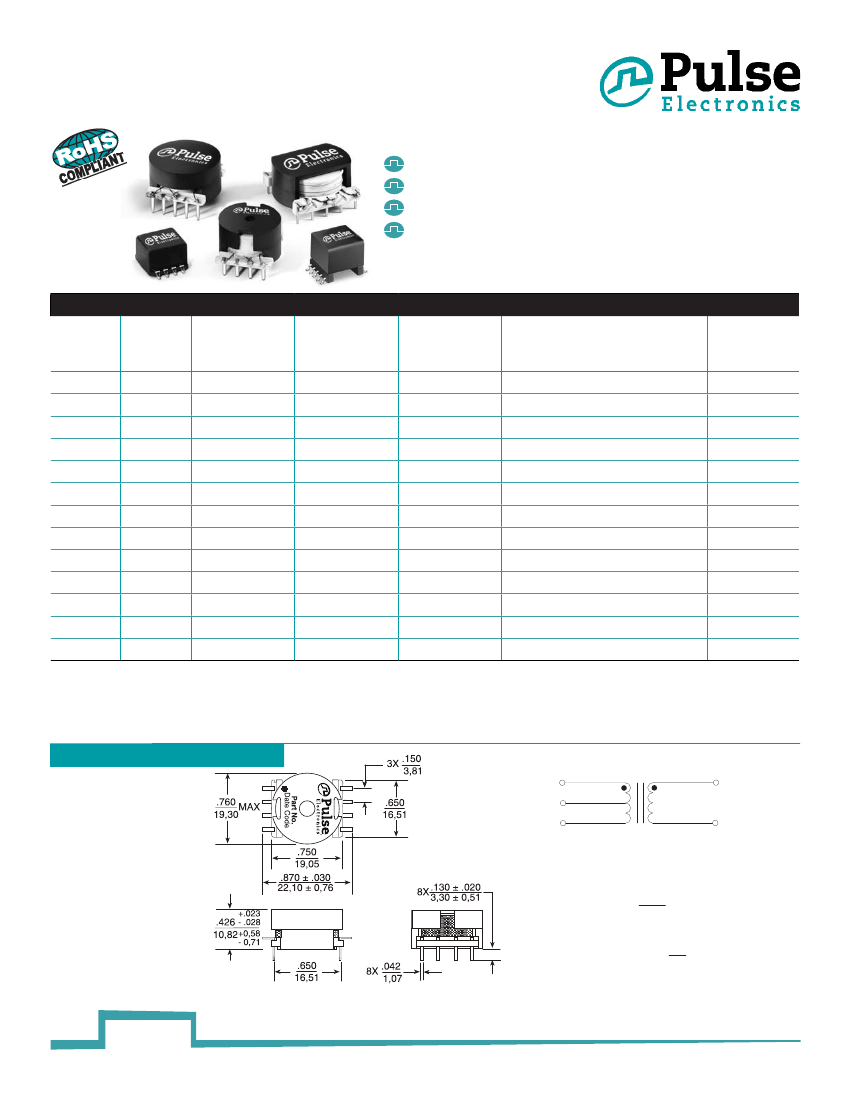

Mechanical
B2024 / B2025 / B2113 / B2114 / B2116 / B2117
1
3
4
Schematic
5
8
Weight
...................9.5 grams
Tray
............................30/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B902.E (02/12)
pulseelectronics.com
Inductors And
Common Mode Chokes
For Use in ADSL POTS Low Pass Filters

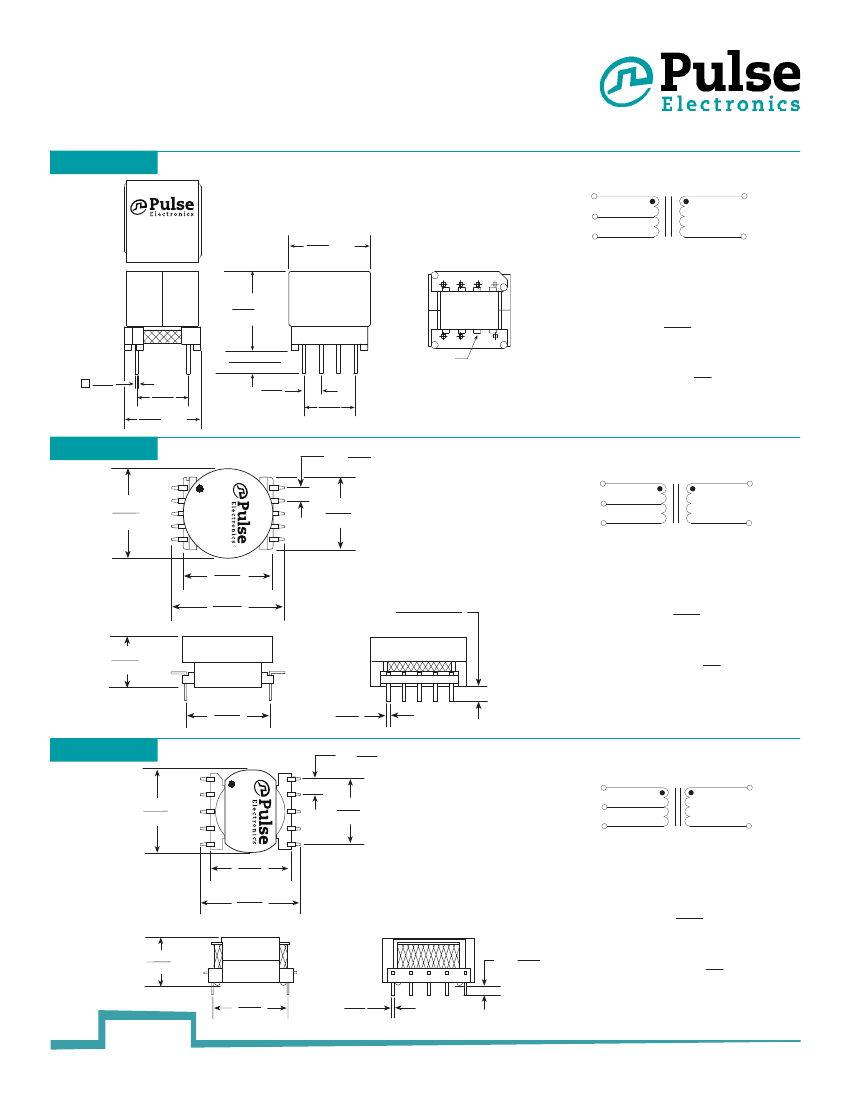

Mechanicals
B2118
1
3
4
Schematics
5
8
Weight
...................3.6 grams
Tray
............................75/tray
Inches
Dimensions:
mm
Pin 7 Removed
BOTTOM VIEW
Date Code
Country of Mfg.
B2118
.470
11,94 MAX
.465
11,81 MAX
7X
.020
5,08
.134 ± .015
3,40 ± 0,38
.295
7,49
.435
11,05 MAX
.098
2,50
.295
7,49
Unless otherwise specified,
all tolerances are
±
.010
0,25
B2023
B2023
Date Code
4X
.150
3,81
.930
MAX
23,62
.750
19,05
1
3
5
Weight
...................15.0 grams
Tray
..............................45/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
6
10
.900
22,86
1.020
25,91
.450
MAX
11,43
.800
20,32
.042
1,07
10X .155 ± .020
3,94 ± 0,51
10X
B2026
B2026
Date Code
4 X .200
5,08
.800
20,32
1.030 MAX
26,16
1
3
5
Weight
...................17.5 grams
Tray
.............................25/tray
Inches
Dimensions:
mm
10X .110
2,79
6
10
.900
22,86
1.080
27,43
.500 MAX
12,70
.800
20,32
10X .025
0,64
Unless otherwise specified,
all tolerances are
±
.010
0,25
2
pulseelectronics.com
B902.E (02/12)
Inductors And
Common Mode Chokes
For Use in ADSL POTS Low Pass Filters

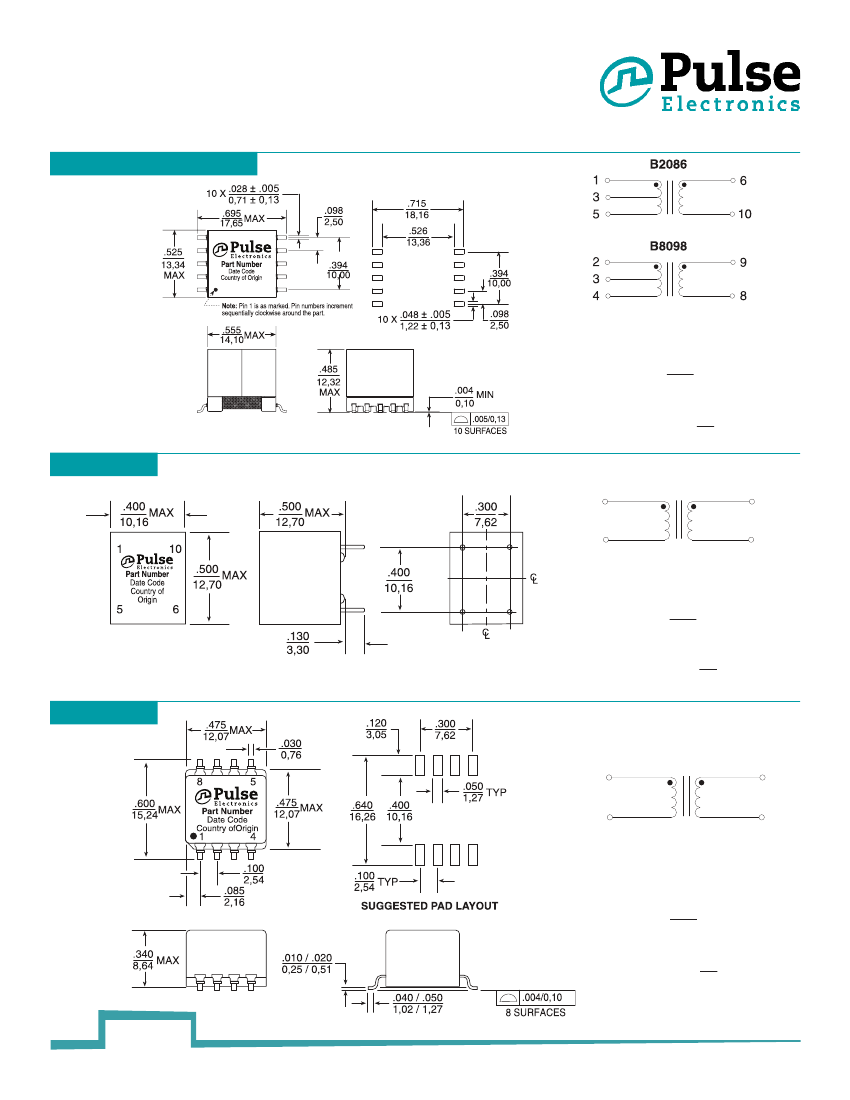

Mechanicals
B2086 / B2086NL / B8098 / B8098NL
Schematics
Weight
...................6.2 grams
Tape & Reel
...............150/reel
Tray
............................60/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
B2005 / B2005NL
1
10
Weight
...................3.7 grams
Tray
............................40/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
5
6
B2013 / B2013NL
1
4
Weight
...................2.5 grams
Tape & Reel
..............250/reel
Tray
............................40/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
3
8
5
pulseelectronics.com
B902.E (02/12)
Inductors And
Common Mode Chokes
For Use in ADSL POTS Low Pass Filters
Performance Description
The series of coupled inductors shown on this data sheet are current and temperature, high self-resonant frequency, low
ideal for use in Asymmetrical Digital Subscriber Line (ADSL) applications where a low pass filter is required to separate
the voice frequencies from the data frequencies that are carried on an ADSL line. In spite of their small footprint and low
profile, these coupled inductors provide excellent electrical performance. They have stable inductance with varying DC
current and temperature, high self-resonant frequency, low coupling capacitance, and excellent balance. The common
mode chokes were developed to reduce common mode voltages in the low frequency range that is used for voice
transmission. The chokes are also designed to accommodate DC currents up to 100 mA.
Application Circuit
The following schematic depicts a typical LC filter that
incorporates the use of a common mode choke in addition
to the LC network. As shown in the frequency response
graph below, at low frequencies, the amplitude of the
output signal is roughly equal to the amplitude of the
Choke
Input
ADSL & POTS
Signals
Capacitor
Capacitor
Inductor
input signal. At higher frequencies, the amplitude of the
output decreases. Thus, the network passes low frequency
voice signals with only a small degree of attenuation,
while it suppresses high frequency signals and acts as a
low pass filter.
Inductor
Inductor
Output
POTS Signal
Only
Capacitor
Frequency Response
10 dB/REF 0 dB
0 dB
-100 dB
100 Hz
1 KHz
10 KHz
100 KHz
For More Information
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technol-
Super Ocean Finance
#03-02
Zhongyuan Road
ogy Bldg.
Ctr.
PM Industrial Bldg.
Zhongli City
10th Kejinan Road
2067 Yan An Road
Singapore 368363
Taoyuan County 320
High-Tech Zone
West
Taiwan R. O. C.
Nanshan District
Shanghai 200336
Tel: 886 3 4356768
Shenzen, PR China
China
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Tel: 858 674 8100
Tel: 49 7032 78060
518057
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Tel: 86 755 33966678
Tel: 86 21 62787060
Fax: 86 755 33966700
Fax: 86 2162786973
