RV24A-10-40R1-B55 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> RV24A-10-40R1-B55

Preview

RV24A-10-40R1-B55: DescriptionPotentiometers Linear 500K Solder Lugs; CategoryPassive components; File Size18KB，1 Pages; ManufacturerAlpha (Taiwan)

Download Datasheet Parametric Compare View All

RV24A-10-40R1-B55 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RV24A-10-40R1-B55	-	-	View	Buy Now

RV24A-10-40R1-B55 Overview

Potentiometers Linear 500K Solder Lugs

RV24A-10-40R1-B55 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Alpha (Taiwan)
Product Category	Potentiometers
RoHS	No -; RoHS Version Available
Termination Style	Solder Lug
Product	Potentiometer
Number of Gangs	1 Gang
Resistance	500 kOhms
Taper	Linear
Mounting Style	Panel Mount
Power Rating	500 mW (1/2 W)
Tolerance	20 %
Element Type	Carbon
Number of Turns	1 Turn
Shaft Type	Smooth
Type	Rotary Plastic
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

MOUSER STOCK NO.

MOUSER

E LECTRONICS

31VA Series

31VC Series

31VJ Series

Potentiometers

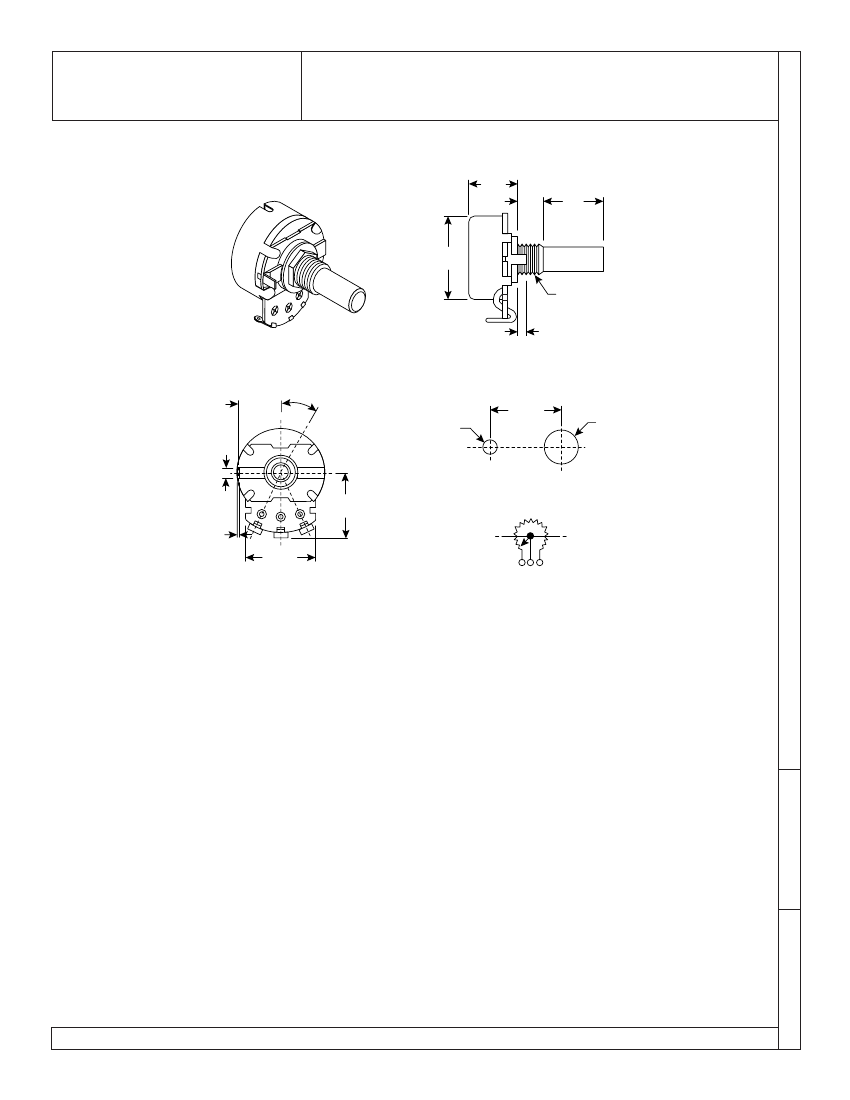

.453

.256

*

ø.945

M8 x .75mm

31VA, 31VC, 31VJ Series

Dimensions (In.)

(except where noted)

.472

30°

.098

.472

ø.118

ø.323

.110

Mounting Holes

.740

.047

.787

Shaft Shown in

Full C.C.W. Position

12 3

Potentiometers

Specifications:

•

Resistance tolerance: ±20%

•

Taper: linear(31VA series, 31VC series), audio(31VJ series)

•

Maximum working voltage: 500V(linear taper)

250V(audio taper)

•

Power Dissipation: .5W(linear taper)

.25W(audio taper)

•

Insulation resistance: > 100MΩ @ 500VDC

•

Minimum resistance: if total R < 2K then

≤

20Ω

if total R > 2K then

≤

100Ω

if total R > 1m then

≤

200Ω

•

Rotation life: 15,000 cycles

•

Resistive element: carbon composition

•

Electrical rotation angle: 285° ± 5°

•

Rotation angle: 300° ± 5°

•

Rotation torque: 20~200 gf.cm

•

Shaft stop strength: > 6Kgf.cm/min

•

Terminals: solder lugs

•

Shaft length*: .335"(31VA series, 31VJ series), 1.32"(31VC series)

8-

143103

Date:

1-12-98

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com
