PM5-A7G28V: DescriptionLED Panel Mount Indicators IP67 Blk Al Grn 7mm 515nm 800mcd Smoked; CategoryLED optoelectronic/LED; File Size166KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5-A7G28V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5-A7G28V	-	-	View	Buy Now

PM5-A7G28V Overview

LED Panel Mount Indicators IP67 Blk Al Grn 7mm 515nm 800mcd Smoked

PM5-A7G28V Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Panel Mount Indicators
RoHS	Details
Illumination Color	Green
Mounting Hole Size	8.1 mm
Mounting Style	Nut and Washer
Termination Style	Screw Terminal
Lens Color/Style	Smoked
LED Size	7 mm
Vf - Forward Voltage	12 VAC to 28 VAC, 12 VDC to 28 VDC
Wavelength/Color Temperature	515 nm
Packaging	Bulk
Luminous Intensity	800 mcd
IP Rating	IP67
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

B

C

Engineering Release

Engineering Update w/o Changes

07/28/11

08/11/16

T. Y.

J. C.

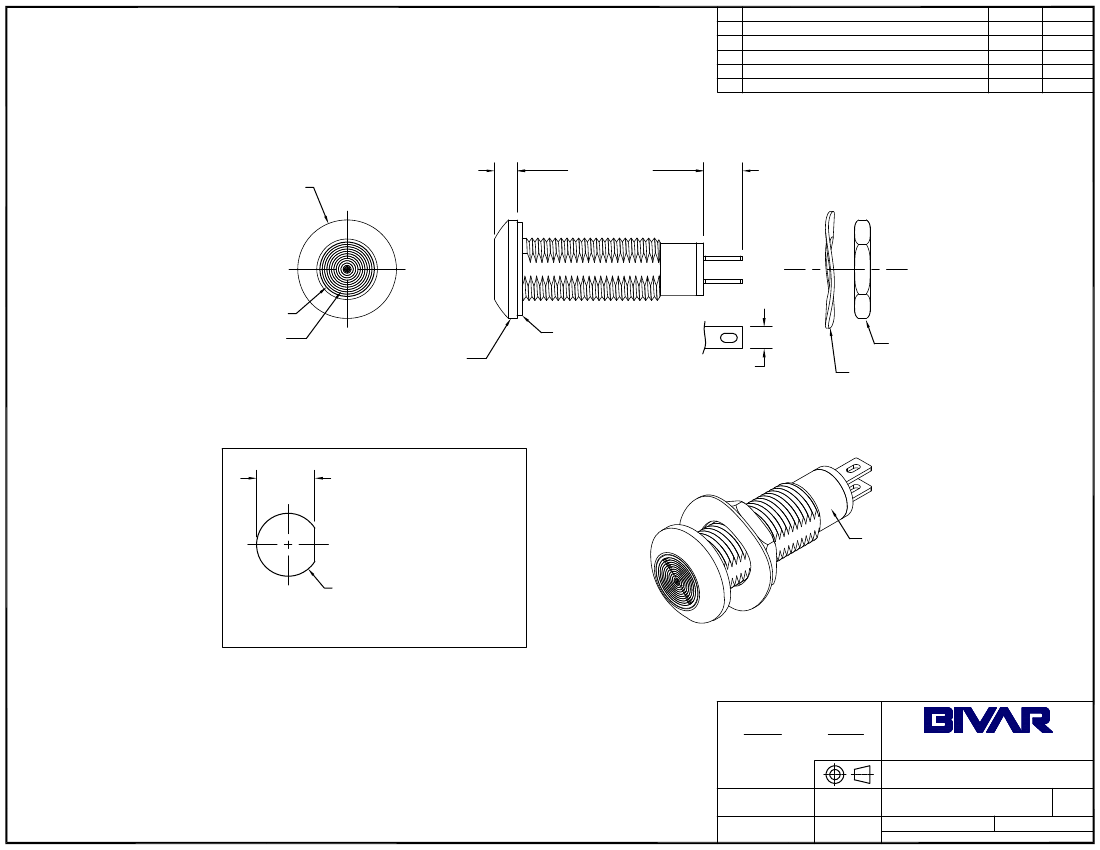

0.114 [2.9mm]

Ø.500 [Ø12.7mm]

0.94 [24.0mm]

0.20 [5.0mm]

Ø.276 [Ø7.0mm]

SMOKED FRESNEL LENS

BLACK ANODIZED

ALUMINUM HOUSING

VITON SEALING RING

303 SS NUT

MOUNTING TORQUE 0.65 Nm

ZINC PLATED STEEL LOCK WASHER

0.11 [2.8mm] TYP.

COPPER W/ SILVER FINISH

0.295+0.004 7.5mm+0.1mm

-0.000

-0.0mm

[

]

BIVAR LOGO &

POWER INPUT

Ø.319+.004 Ø8.1mm+0.1mm

-.000

-0.0mm

RECOMMENDED MOUNTING HOLE

1.5 - 13.0mm PANEL THICKNESS

[

]

NOTES:

1. SEALED TO IP67 RATING

2. WIDE RANGE VOLTAGE INPUT

3. BI-POLAR OPERATION

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

6. INSERT VITON RING ON PANEL MOUNT ASSEMBLY PRIOR TO PANEL INSTALLATION

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

R. Paje

CHECKED:

02/23/11

DATE:

TITLE:

WATER TIGHT PANEL MOUNT

LED ASSEMBLY, 8.1MM MOUNTING

REVISION:

PART NO:

PM5-A7XXX

CAGE CODE : 32559

C

T. Yin

02/23/11

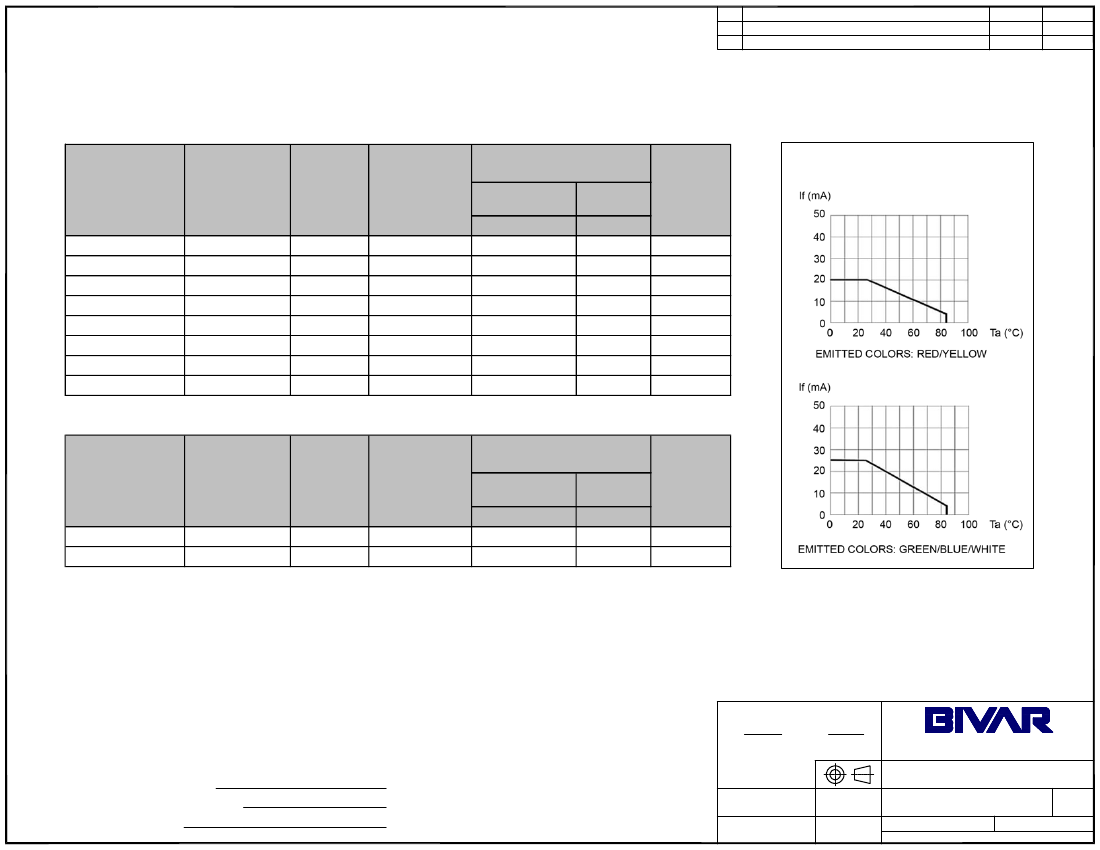

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
