H-301CR-1-120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> H-301CR-1-120

H-301CR-1-120: DescriptionLED Mounting Hardware LED Holder 3mm 2 Level Black; CategoryLED optoelectronic/LED; File Size38KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric View All

H-301CR-1-120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H-301CR-1-120	-	-	View	Buy Now

H-301CR-1-120 Overview

LED Mounting Hardware LED Holder 3mm 2 Level Black

H-301CR-1-120 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Mounting Hardware
RoHS	Details
Packaging	Bulk
NumOfPackaging	1
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

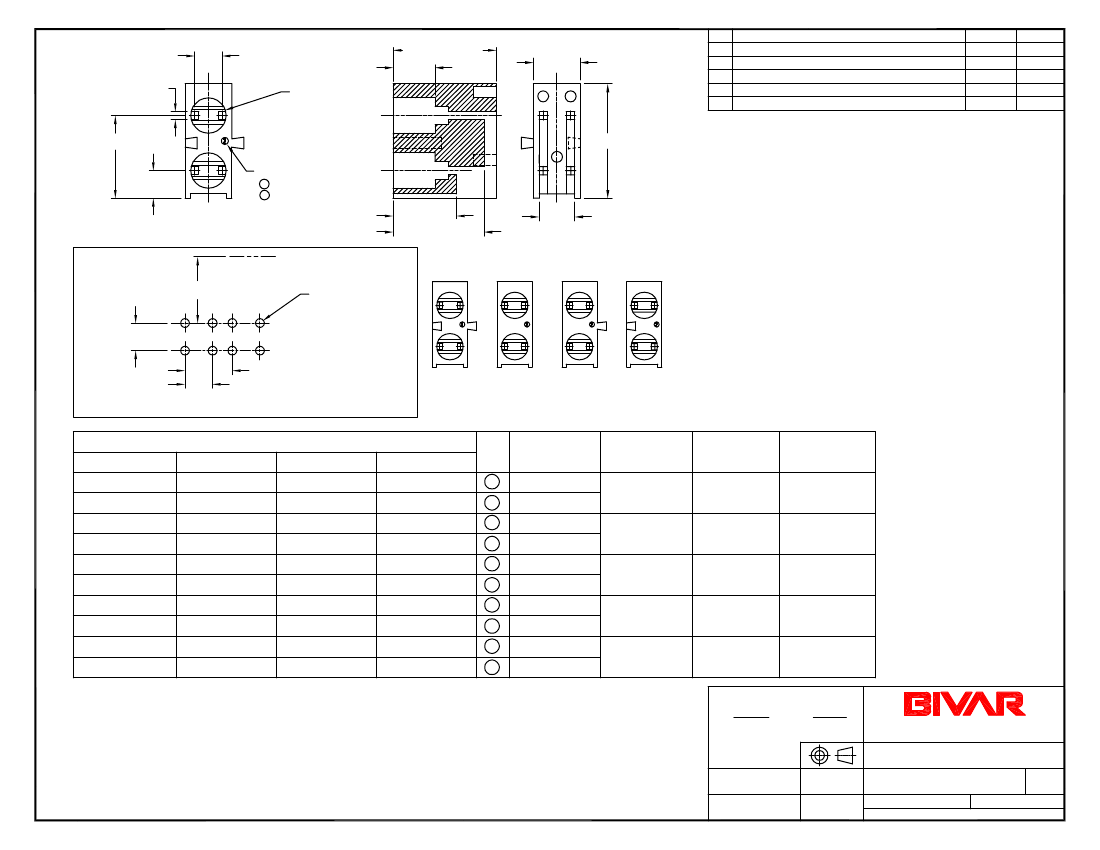

0.100 [2.5mm]

TYP.

0.030 [0.8mm] SQ.

TYP.

0.375 [9.5mm]

0.152 [3.9mm]

DIA

TYP.

Cathode I.D.

Mark

1 (H-30XCR-1-XXX)

2 (H-30XCR-2-XXX)

0.230 [5.8mm]

0.330 [8.4mm]

Holder Faces

0.130 [3.3mm]

0.170 [4.3mm]

Engineering Update w/o Changes

02/27/04

M. C.

C/L 2

C/L 1

0.240 [6.1mm]

Ø.032+.003

-.002

TYP.

0.100 [2.5mm]

0.172 [4.4mm] Holder Pitch

0.100 [2.5mm] LED Lead

H-300CR

H-301CR

H-302CR

H-303CR

Recommended Mounting Holes

MARK

H-300CR SERIES H-301CR SERIES H-302CR SERIES H-303CR SERIES

H-300CR-1-100

H-300CR-2-100

H-300CR-1-120

H-300CR-2-120

H-300CR-1-140

H-300CR-2-140

H-300CR-1-160

H-300CR-2-160

H-300CR-1-180

H-300CR-2-180

H-301CR-1-100

H-301CR-2-100

H-301CR-1-120

H-301CR-2-120

H-301CR-1-140

H-301CR-2-140

H-301CR-1-160

H-301CR-2-160

H-301CR-1-180

H-301CR-2-180

H-302CR-1-100

H-302CR-2-100

H-302CR-1-120

H-302CR-2-120

H-302CR-1-140

H-302CR-2-140

H-302CR-1-160

H-302CR-2-160

H-302CR-1-180

H-302CR-2-180

H-303CR-1-100

H-303CR-2-100

H-303CR-1-120

H-303CR-2-120

H-303CR-1-140

H-303CR-2-140

H-303CR-1-160

H-303CR-2-160

H-303CR-1-180

H-303CR-2-180

PART NO.

DIA

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.180 [4.6mm]

.380 [9.7mm]

.495 [12.6mm]

C/L 1

C/L 2

.100 [2.5mm]

.300 [7.6mm]

.415 [10.6mm]

.120 [3.0mm]

.320 [8.1mm]

.435 [11.0mm]

.140 [3.6mm]

.340 [8.6mm]

.455 [11.6mm]

.160 [4.1mm]

.360 [9.1mm]

.475 [12.1mm]

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

2. MATERIAL: NYLON 6/6, 94V-0, BLACK. BIVAR MATERIAL CODE 22-BK.

RTP POLYAMIDE NYLON 6/6, 0200 FR, BLACK OR MODIFIED PLASTICS MN6/6-SE BK.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

TITLE:

DATE:

FAX: (949) 951-3974

BI-LEVEL T-1 (3mm) LED HOLDER

INTERLOCKING, VARIABLE CENTERLINE

RECESSED CAVITY

REVISION:

PART NO:

Ty Yin

CHECKED:

02/27/04

DATE:

H-300XCR-X-XXX

CAGE CODE : 32559

D. Green

02/27/04

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
