Infrared Receiver Control Receiver Module
EAIRMIA1

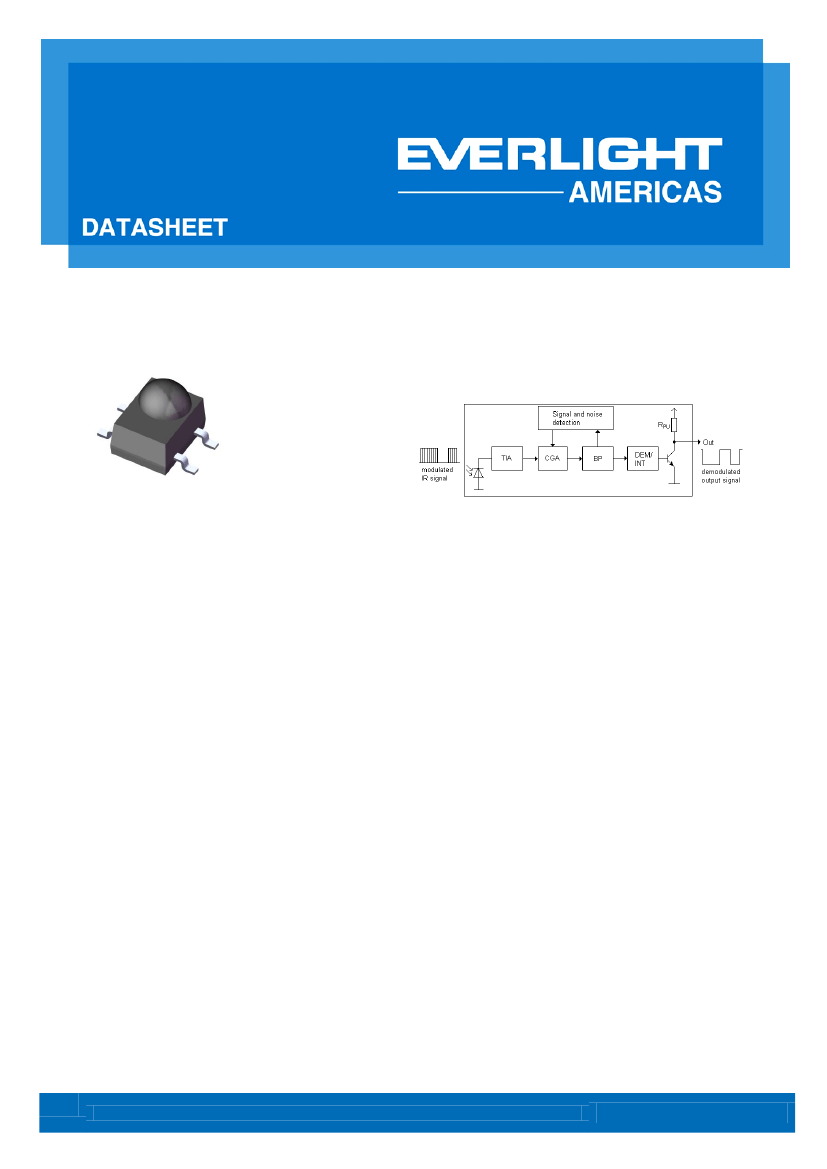

Block Diagram
1
2
Pin Configuration
1. GND
2. GND
3. OUT
4. Vcc
4
3
Features
‧High
protection ability against EMI
‧
Available for various carrier frequencies
‧Circular
lens for improve reception characteristic
‧
Min burst length: 8 cycles
‧
Min gap length: 12 cycles
‧
Low operating voltage and low power consumption
‧
High immunity against ambient light
‧
High immunity against TFT and PDP backlight
‧
Long reception range
‧
High sensitivity
‧
Pb free and RoHS compliant
‧Compliance
with EU REACH.
‧Compliance
Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description
The device is miniature SMD type infrared receiver that has been developed and designed by utilizing the latest IC
technology.
The PIN diode and preamplifier are assembled onto a lead frame and molded into an epoxy package which operated an IR
filter. The demodulated output signal can directly be decoded by a microprocessor.
Applications
‧Light
detecting portion of remote control
‧AV
instruments such as Audio, TV, VCR, CD, MD, etc
‧Home
appliances such as Air-conditioner, Fan, etc
‧Other
devices using IR remote control
‧CATV
set top boxes
‧Multi-media
Equipment
1
Copyright © 2010, Everlight Americas Inc. Release Date : Feb. 21, 2012 Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
Infrared Receiver Control Receiver Module
EAIRMIA1

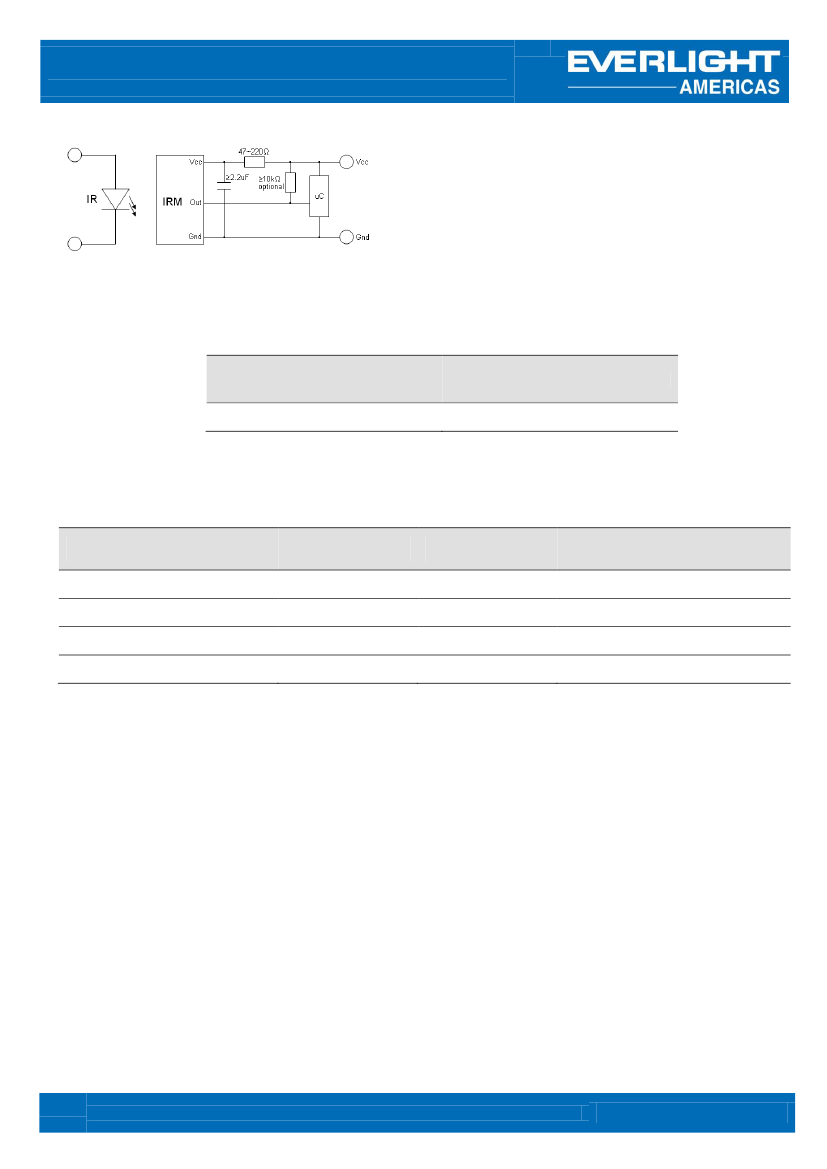

Application Circuit
Parts Table
Model No.
EAIRMIA1
Carrier Frequency
38 kHz
Absolute Maximum Ratings (Ta=25℃)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
*
1
*1
Symbol
Vcc
Topr
Tstg
Tsol
Rating
6
-20 ~ +85
-40 ~ +85
260
Unit
V
℃
℃
℃
4mm from mold body for less than 10 seconds
2
Copyright © 2010, Everlight Americas Inc. Release Date : Feb. 21, 2012 Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
Infrared Receiver Control Receiver Module
EAIRMIA1
Electro-Optical Characteristics (Ta=25℃)
Parameter
Current consumption
Supply voltage
Peak wavelength
Reception range
High level pulse width
Low level pulse width
High level output voltage
Low level output voltage
Internal pull up resistor
Symbol
Icc
V
CC
λ
p
L
0
L
45
T
H
T
L
V
OH
V
OL
R
PU
Min.
-
2.7
---
8
5
450
450
Vcc-0.4
---
34
Typ.
0.4
-
940
---
---
-
-
---
0.2
40
Max.
0.6
5.5
---
---
---
750
750
---
0.5
46
Unit
mA
V
nm
m
Condition
No input signal
See chapter
‚Test method’
Test signal
according to
figure 1
μs
μs
V
V
kΩ
I
SINK
≦2mA
3
Copyright © 2010, Everlight Americas Inc. Release Date : Feb. 21, 2012 Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
Infrared Receiver Control Receiver Module
EAIRMIA1
Test method
The specified electro-optical characteristics are valid under the following conditions.
1. Measurement environment
A place without extreme light reflections.
2. External light
The environment contains an ordinary, white fluorescent lamp without high frequency modulation. The color
temperature is 2856K and the illumination at the IR receiver is less than 10 Lux (Ev≦10Lux).
3. Standard transmitter
The test transmitter is calibrated by using the circuit shown in figure 2. The radiation intensity of the transmitter is
adjusted until
Vo=400mVp-p.
Both, the test transmitter and the photo diode, have a peak wavelength of 940nm.
The photo diode for calibration is PD438B (λp=940nm, Vr=5V).
4. The measurement system is shown in Fig.-3

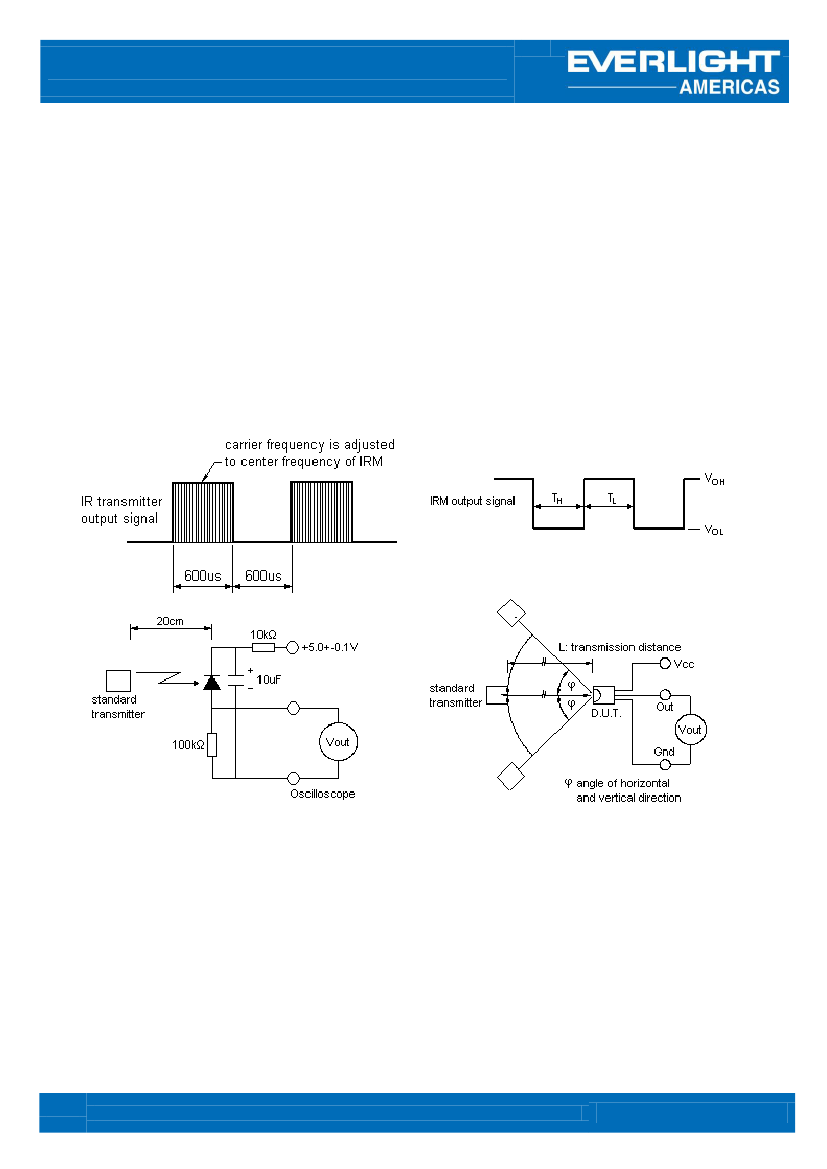

Fig.-1 Transmitter Wave Form
D.U.T output Pulse
Fig.-2 standard transmitter calibration
Fig.-3
Measuring System
4
Copyright © 2010, Everlight Americas Inc. Release Date : Feb. 21, 2012 Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
Infrared Receiver Control Receiver Module
EAIRMIA1

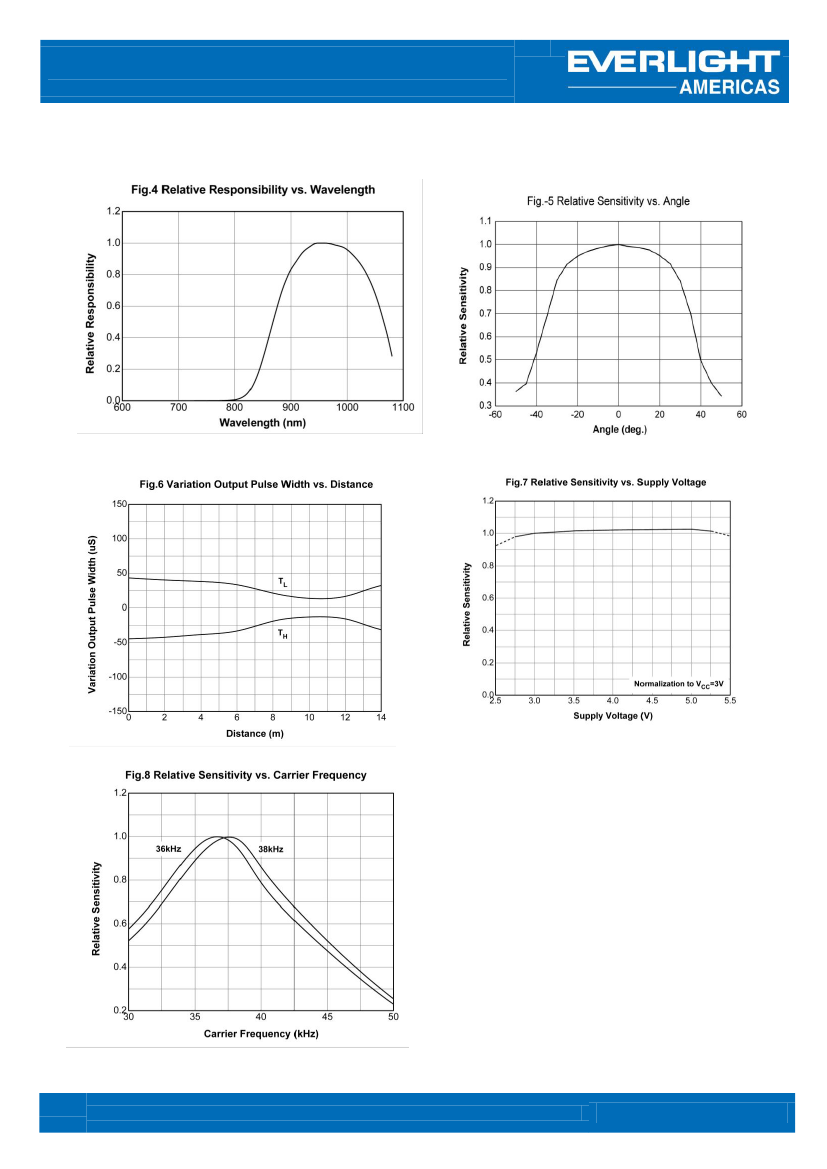

Typical Electro-Optical Characteristics Curves
5
Copyright © 2010, Everlight Americas Inc. Release Date : Feb. 21, 2012 Issue No: 1 Rev.1
www.everlightamericas.com
