PS2501-1-M-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PS2501-1-M-A

PS2501-1-M-A: DescriptionTransistor Output Optocouplers Hi-Iso Photo 1-Ch; CategoryLED optoelectronic/LED; File Size363KB，13 Pages; ManufacturerCEL; Websitehttp://www.cel.com/

Download Datasheet Parametric View All

PS2501-1-M-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS2501-1-M-A	-	-	View	Buy Now

PS2501-1-M-A Overview

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

PS2501-1-M-A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CEL
Product Category	Transistor Output Optocouplers
RoHS	Details
Output Type	NPN Phototransistor
Number of Channels	1 Channel
If - Forward Current	80 mA
Maximum Collector Emitter Voltage	80 V
Maximum Collector Current	50 mA
Isolation Voltage	5000 Vrms
Maximum Collector Emitter Saturation Voltage	300 mV
Vf - Forward Voltage	1.4 V
Vr - Reverse Voltage	6 V
Pd - Power Dissipation	150 mW
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 100 C
Packaging	Tube
Configuration	1 Channel
Current Transfer Ratio	300 %
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

PHOTOCOUPLER

PS2501-1,-4,PS2501L-1,-4

HIGH ISOLATION VOLTAGE

SINGLE TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

−NEPOC

Series−

DESCRIPTION

The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an

NPN silicon phototransistor.

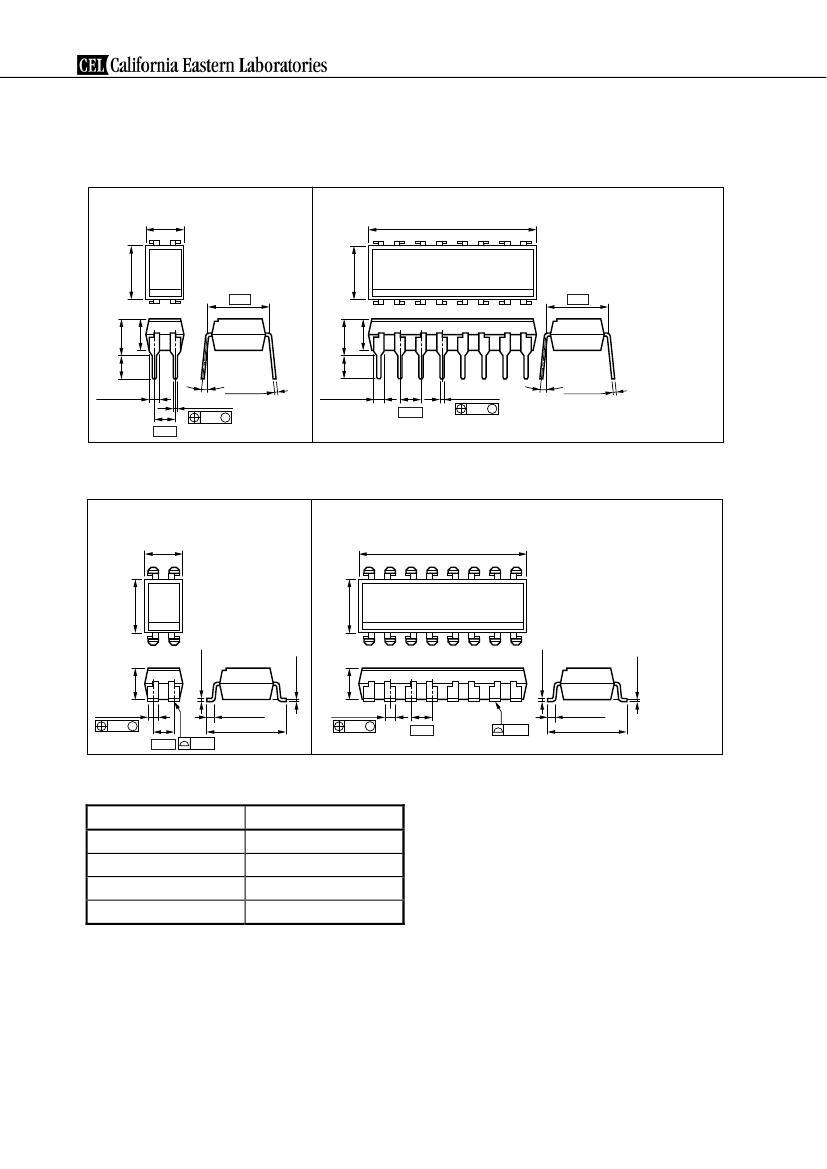

The PS2501-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -4 are lead bending type (Gull-

wing) for surface mount.

FEATURES

• High isolation voltage (BV = 5 000 Vr.m.s.)

• High collector to emitter voltage (V

CEO

= 80 V)

• High-speed switching (t

= 3

s TYP., t

= 5

s TYP.)

• Ordering number of tape product: PS2501L-1-F3: 2 000 pcs/reel

• Safety standards

• UL approved: No. E72422

PIN CONNECTION

(Top View)

PS2501-1, PS2501L-1

1. Anode

2. Cathode

3. Emitter

4. Collector

APPLICATIONS

• Power supply

• Telephone/FAX.

• FA/OA equipment

• Programmable logic controller

PS2501-4, PS2501L-4

16 15 14 13 12 11 10 9

2 3 4 5 6 7 8

1, 3, 5, 7. Anode

2, 4, 6, 8. Cathode

9, 11, 13, 15. Emitter

10, 12, 14, 16. Collector

Document No. PN10225EJ05V0DS (5th edition)

Date Published February 2010 NS

The mark

shows major revised points.

" in the PDF file and specifying it in the "Find what:" field.

The revised points can be easily searched by copying an "
