Z-Power LED X10490
Technical Data Sheet
X42180-07
Z-Power series is designed for
high current operation and
high flux output applications.
X42180-07
Features
• Super high flux output

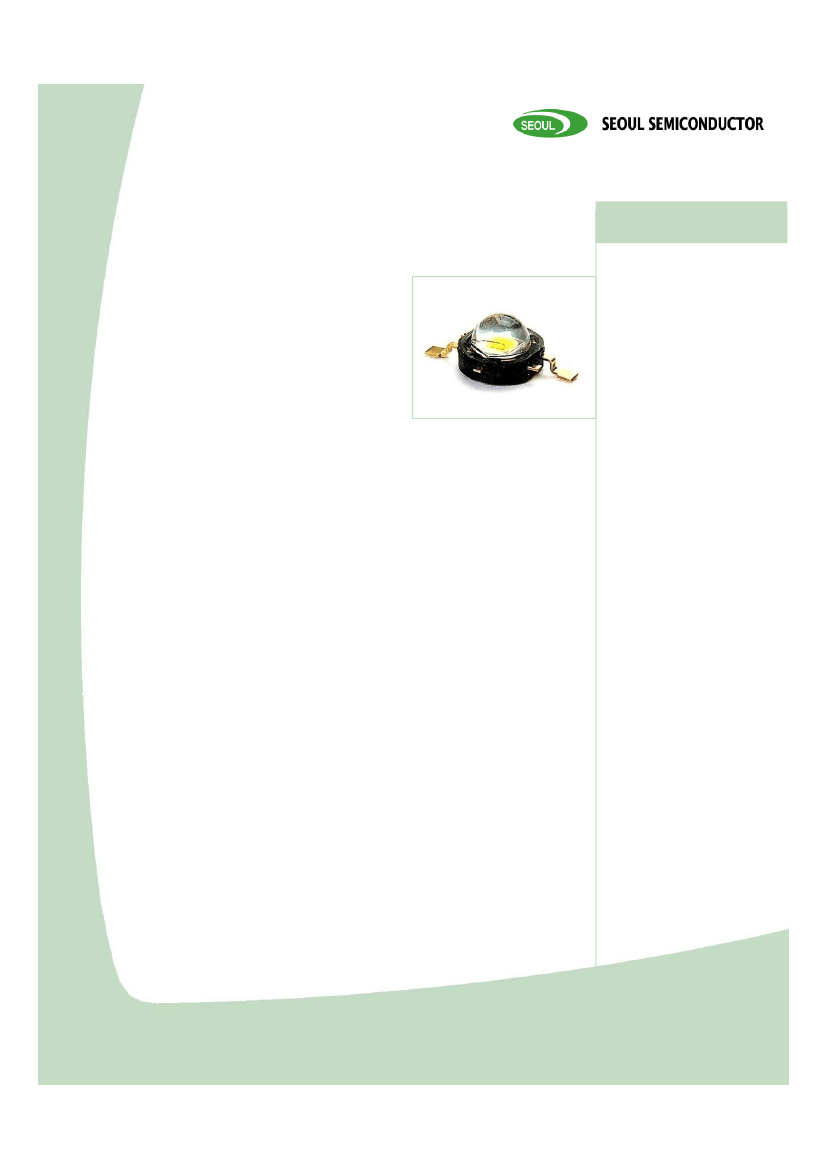

사진
and high luminance
• Designed for high
current operation
• Low thermal resistance
• SMT solderable
Z-Power LED's thermal performance
exceeds other power LED solutions.
It incorporates state of the art SMD design and Thermal
emission material.
Z Power LED is ideal light sources for general illumination
applications, custom designed solutions, automotive and
large LCD backlights.
• Lead free product
• RoHS compliant
Applications
• Mobile phone flash
• Automotive interior /
Exterior lighting
• Automotive signal lighting
• Automotive forward
lighting
• Torch
• Architectural lighting
• LCD TV / Monitor backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative / Pathway
lighting
• Remote / Solar powered
lighting
• Household appliances
*The appearance and specifications of the product may be changed
for improvement without notice.
Rev. 20
FEBRUARY. 2013
1
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Full Code of Z-Power LED Series
Full code form : X
1
X
2
X
3
X
4
X
5
X
6
X
7
– X
8
X
9
– X
10
X
11
X
12
X
13
X
14
1. Part Number
- X
1
: Color
- X
2
: Z-Power LED series number
- X
3
: LENS type
- X
4
: Chip quantity (or Power Dissipation)
- X
5
: Package outline size
- X
6
: Type of PCB
- X
7
: Grade of characteristic code
2. Internal Number
- X
8,
X
9
: Revision No.
3. Code Labeling
- X
10
: Luminous flux (or Radiant flux for royal blue)
- X
11
X
12
X
13
: Dominant wavelength (or x,y coordinates rank code)
- X
14
: Forward voltage
4. Sticker Diagram on Reel & Aluminum Vinyl Bag
RANK :
QUANTITY : 500
LOT NUMBER : XXXXXXXXXX-XXX-XXX-XXXXXXX
SSC PART NUMBER : XXXXXXX-XX
X
10
X
11
X
12
X
13
X
14
X
1
X
2
X
3
X
4
X
5
X
6
X
7
-X
8
X
9
For more information about binning and labeling, refer to the Application Note -1
Rev. 20
FEBRUARY. 2013
2
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet

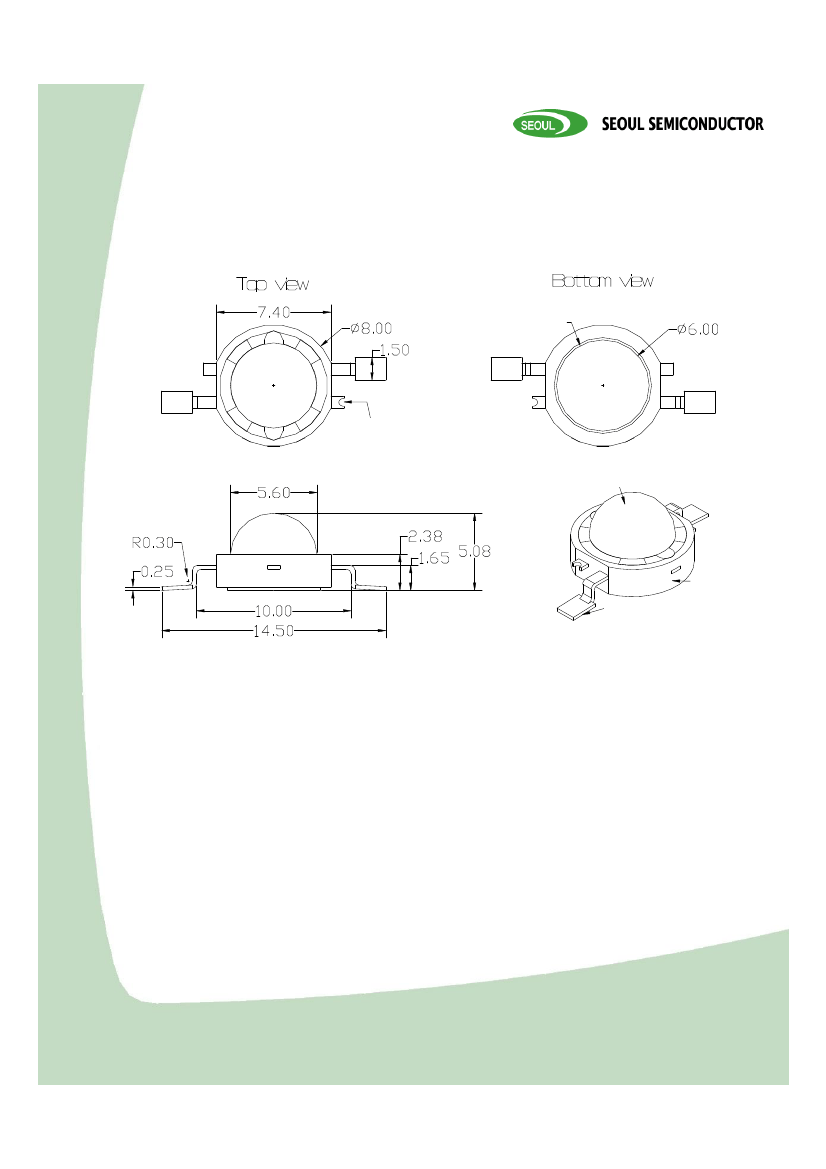

Outline Dimension
1. Dome Type
SLUG
Cathode Mark
Lens
Body
Lead
Notes :
1. All dimensions are in millimeters. (tolerance :
±0.2
)
2. Scale : none
3. Slug of package is connected to anode.
*The appearance and specifications of the product may be changed for improvement without
notice.
Rev. 20
FEBRUARY. 2013
3
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Characteristics for Z-Power LED
1. Pure White (W42180-07)
1-1 Electro-Optical characteristics at I
F
=350mA, T
A
=25ºC
Value
Parameter
T rank
Luminous Flux
[1]
Symbol
Min
Ф
V [2]
Ф
V [2]
CCT
R
a
V
F
2Θ ½
Rθ
J-B
Rθ
J-C
70
91
-
-
-
Typ
80
108
6300
73
3.1
127
10.1
8.5
Max
91
118.5
-
-
-
Unit
lm
lm
K
-
V
deg.
ºC /W
ºC /W
U rank
Correlated Color Temperature
[3]
CRI
Forward Voltage
[4]
View Angle
Thermal resistance
[5]
Thermal resistance
[6]
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[7]
Symbol
I
F
P
d
T
j
T
opr
T
stg
-
Value
800
3.28
145
-40 ~ +85
-40 ~ +100
±10,000V
HBM
Unit
mA
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
10%
on flux and power measurements.
[2] Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT
5%
tester tolerance.
[4] A tolerance of
0.06V
on forward voltage measurements
[5], [6] Rθ
J-B
is measured with a SSC metal core pcb.(25 ºC
T
J
110 ºC)
Rθ
J-C
is measured with only emitter.(25 ºC
T
J
110 ºC)
[7] It is included the zener chip to protect the product from ESD.
--------------------------Caution--------------------------
1. Please do not drive at rated current more than 5 sec. without proper heat sink.
Rev. 20
FEBRUARY. 2013
4
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Characteristics for Z-Power LED
2. Warm White (N42180-07)
2-1 Electro-Optical characteristics at I
F
=350mA, T
A
=25ºC
Value
Parameter
Luminous Flux
[1]
Symbol
Min
Ф
V [2]
CCT
R
a
V
F
2Θ 1/2
Rθ
J-B
Rθ
J-C
-
-
-
-
Typ
72
3000
93
3.1
126
10.1
8.5
Max
-
-
-
-
Unit
lm
K
-
V
deg.
ºC /W
ºC /W
Correlated Color Temperature
[3]
CRI
Forward Voltage
[4]
View Angle
Thermal resistance
[5]
Thermal resistance
[6]
2-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[7]
Symbol
I
F
P
d
T
j
T
opr
T
stg
-
Value
800
3.28
145
-40 ~ +85
-40 ~ +100
±10,000V
HBM
Unit
mA
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
10%
on flux and power measurements.
[2] Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT
5%
tester tolerance
[4] A tolerance of
0.06V
on forward voltage measurements
[5], [6] Rθ
J-B
is measured with a SSC metal core pcb.(25 ºC
T
J
110 ºC)
Rθ
J-C
is measured with only emitter.(25 ºC
T
J
110 ºC)
[7] It is included the zener chip to protect the product from ESD.
--------------------------Caution--------------------------
1. Please do not drive at rated current more than 5 sec. without proper heat sink
Rev. 20
FEBRUARY. 2013
5
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
