SMD
B

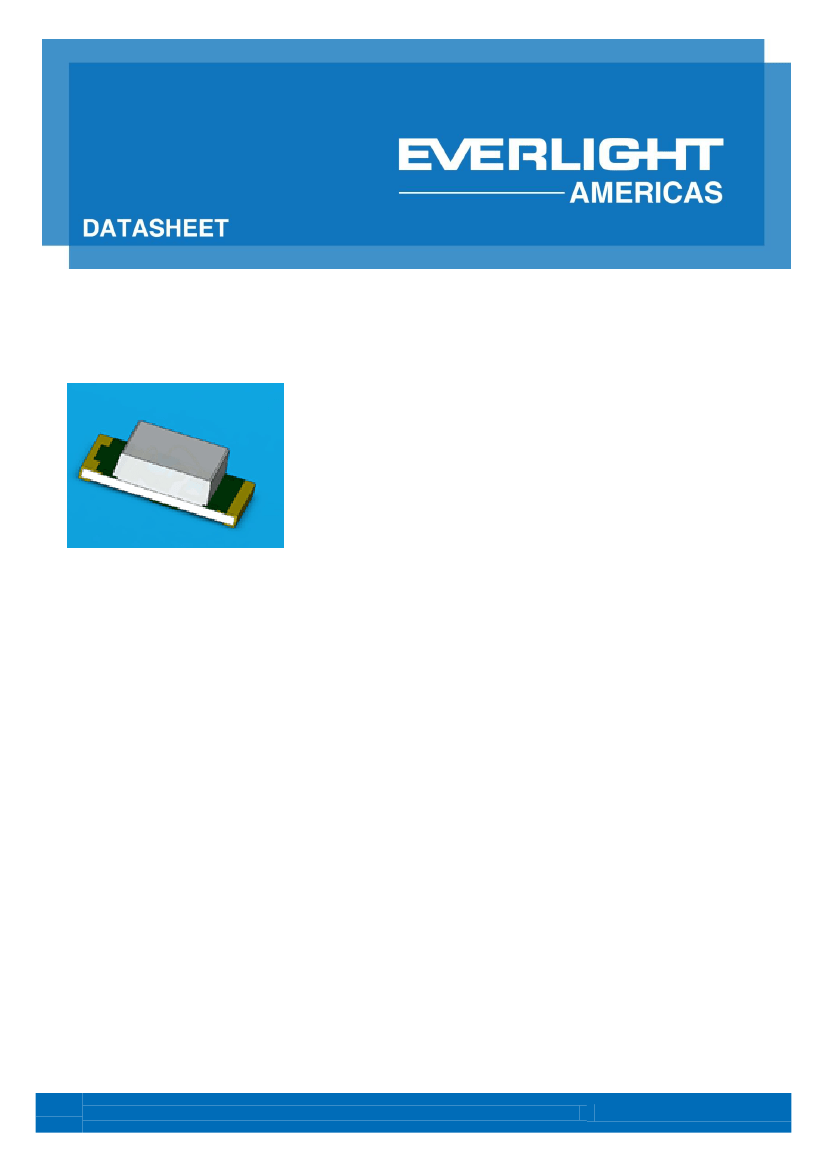

EAST16084BA0
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow solder process.
․Mono-color
type.
․Pb-free.
․ESD
Protection.
․The
product itself will remain within RoHS compliant version.
․Compliance
with EU REACH.
․Compliance
Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description
․The
SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher
packing density, reduced storage space and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
1
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 11-Nov-2013. Issue No: 1
www.everlightamericas.com
DATASHEET
SMD
REFLECTOR
EAST16084BA0
Device Selection Guide
Chip
Materials
InGaN
Emitted Color
Blue
Resin Color
Water Clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
FP
Pd
T
opr
Tstg
ESD
HBM
T
sol
Rating
5
10
100
40
-40 ~ +85
-40 ~ +90
2000
Unit
V
mA
mA
mW
℃
℃
V
Electrostatic Discharge
Soldering Temperature
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Symbol
Iv
2θ
1/2
λ
p
λ
d
△λ
V
F
Min.
11.5
-----
-----
465
-----
2.50
Typ.
-----
120
468
-----
25
-----
Max.
28.5
-----
-----
475
-----
3.10
Unit
mcd
deg
nm
nm
nm
V
Condition
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
I
F
=5mA
Note:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage
±0.1V
2
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 11-Nov-2013. Issue No: 1
www.everlightamericas.com
DATASHEET
SMD
REFLECTOR
EAST16084BA0
Bin Range of Luminous Intensity
Bin Code
L1
L2
M1
M2
Min.
11.5
14.5
18.0
22.5
Max.
14.5
18.0
22.5
28.5
mcd
I
F
=5mA
Unit
Condition
Bin Range Of Dom. Wavelength
Bin Code
X
Y
Min.
465.0
470.0
Max.
470.0
475.0
nm
I
F
=5mA
Unit
Condition
Bin Range Of Forward Voltage
Bin Code
9
10
11
Min.
2.50
2.70
2.90
Max.
2.70
2.90
3.10
V
I
F
=5mA
Unit
Condition
Note:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage
±0.1V
3
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 11-Nov-2013. Issue No: 1
www.everlightamericas.com
DATASHEET
SMD
REFLECTOR
EAST16084BA0

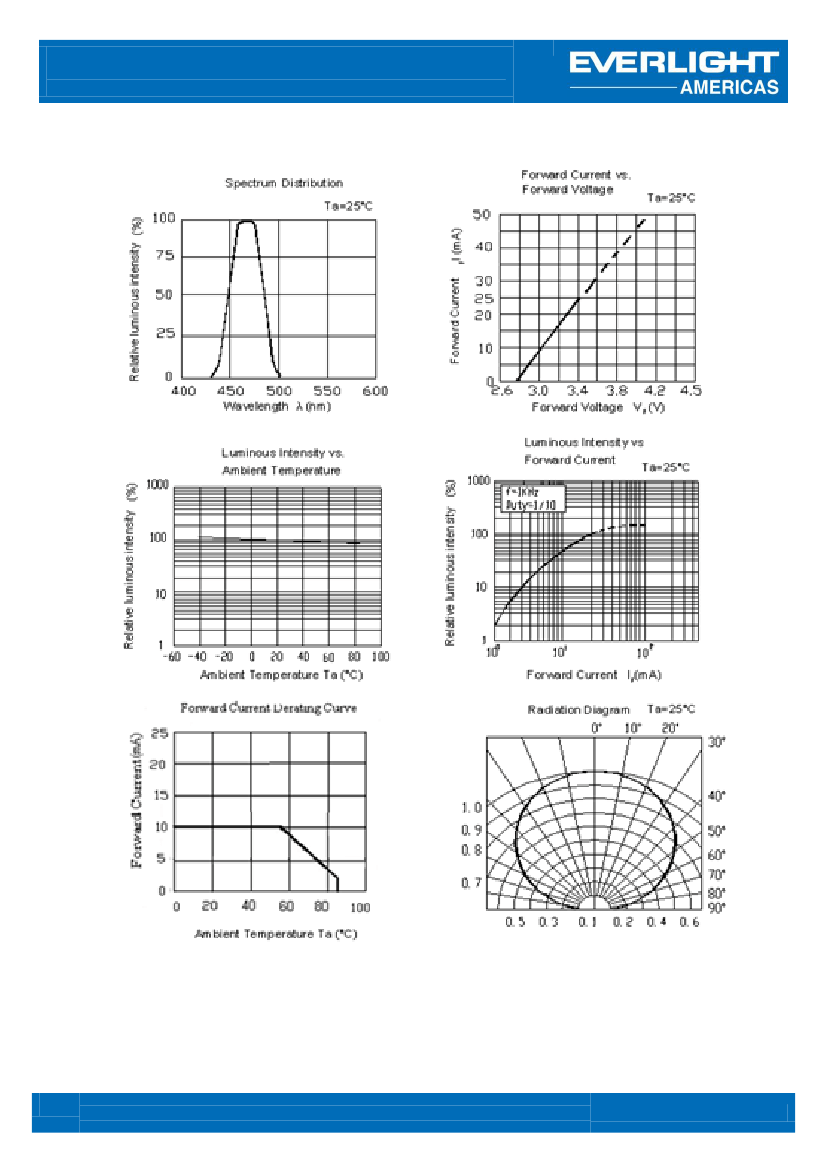

Typical Electro-Optical Characteristics Curves
4
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 11-Nov-2013. Issue No: 1
www.everlightamericas.com
DATASHEET
SMD
REFLECTOR
EAST16084BA0

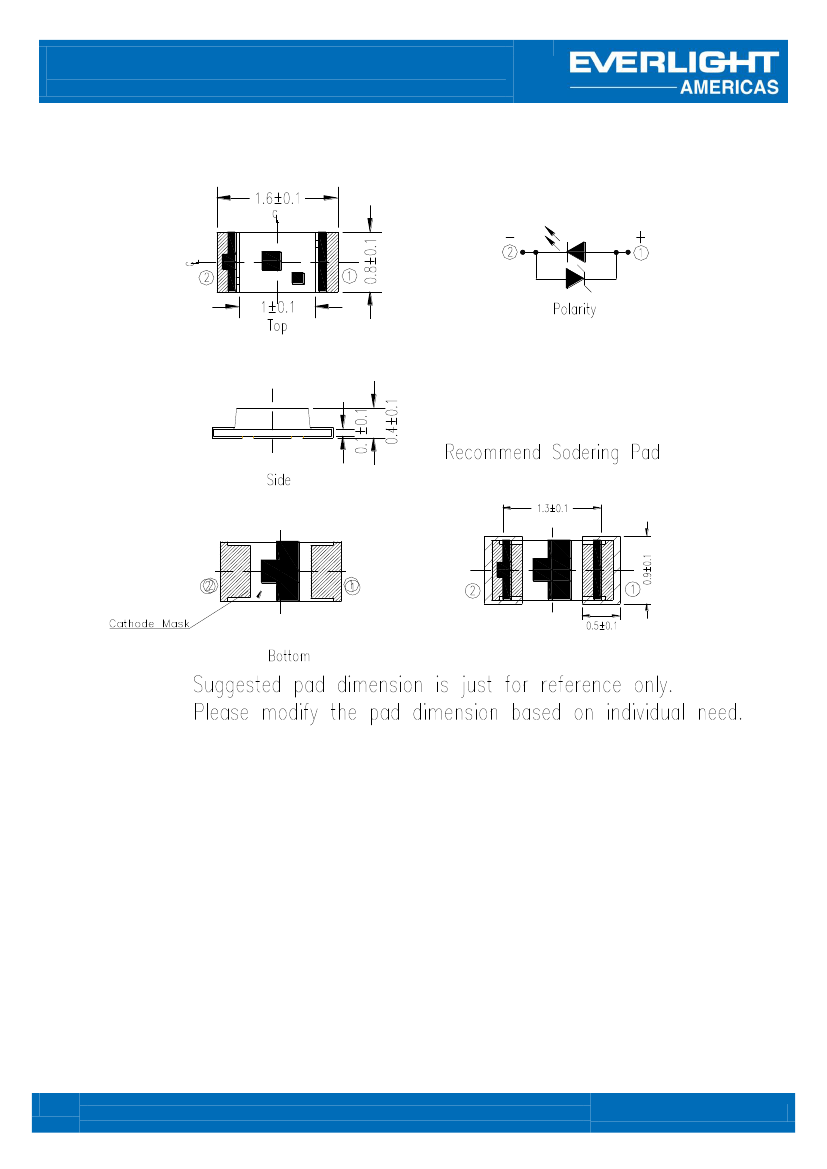

Package Dimension
Note: Tolerances unless mentioned ±0.1mm. Unit = mm
5
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 11-Nov-2013. Issue No: 1
www.everlightamericas.com
