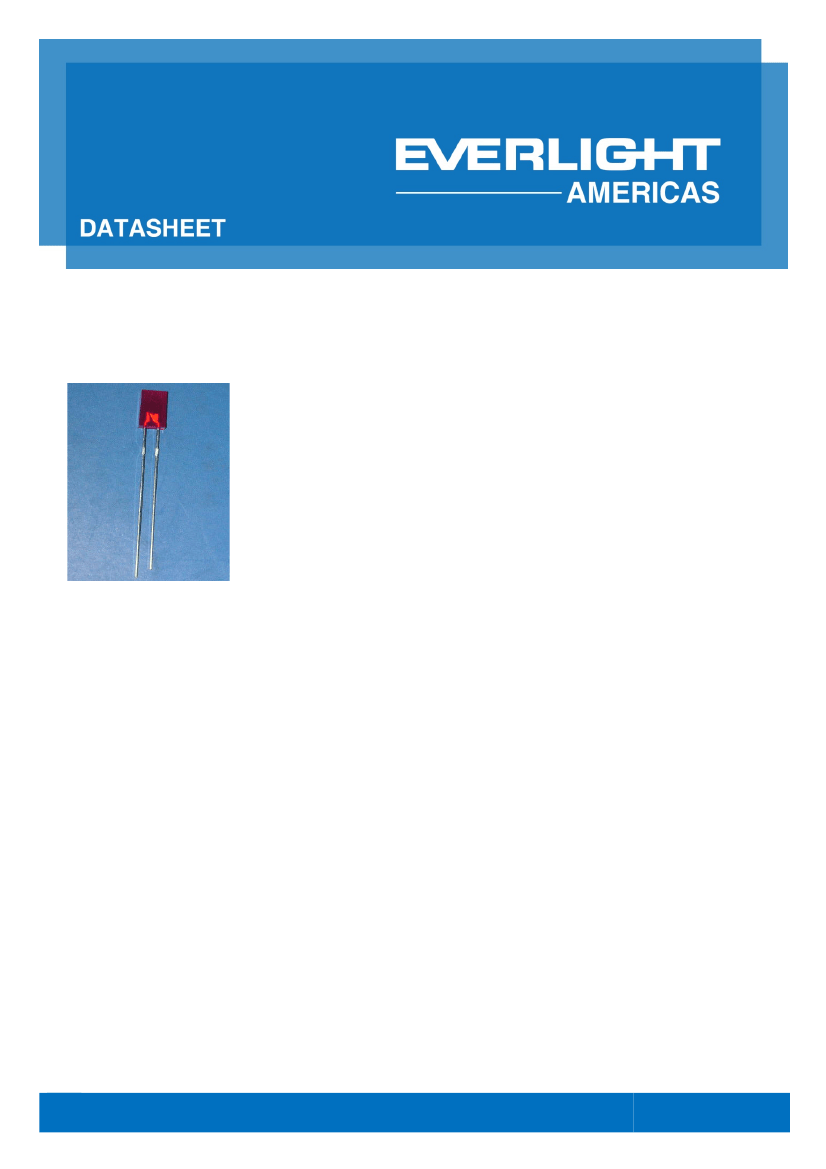

LAMP
EALP02RRARA0
Features
• Choice of various viewing angles
• Available on tape and reel.
• Reliable and robust
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Description
•The series is specially designed for applications requiring higher brightness
•The led lamps are available with different colors, intensities..
Applications
• TV set
• Monitor
• Telephone
• Computer
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jul
.07.2014
. Issue No:
DLE-xxxxxxx
_Rev.1
www.everlightamericas.com
DATASHEET
LAMP
EALP02RRARA0
Device Selection Guide
Chip
Materials
AlGaInP
Emitted Color
Brilliant Red
Resin Color
Red Diffused
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
I
F
I
FP
V
R
P
d
T
opr
Tstg
T
sol
Rating
25
60
5
60
-40 ~ +85
-40 ~ +100
Unit
mA
mA
V
mW
Electro-Optical Characteristics (Ta=25℃)
℃
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ
1/2
λ
p
λ
d
∆λ
V
F
I
R
Min.
10
-----
-----
-----
-----
-----
-----
Typ.
20
180
632
624
20
2.0
-----
Max.
-----
-----
-----
-----
-----
2.4
10
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jul
.07.2014
. Issue No:
DLE-xxxxxxx
_Rev.1
℃
260
for 5 sec.
Unit
mcd
deg
nm
nm
nm
V
µA
www.everlightamericas.com
℃
℃
Conditio
n
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
DATASHEET
LAMP
EALP02RRARA0

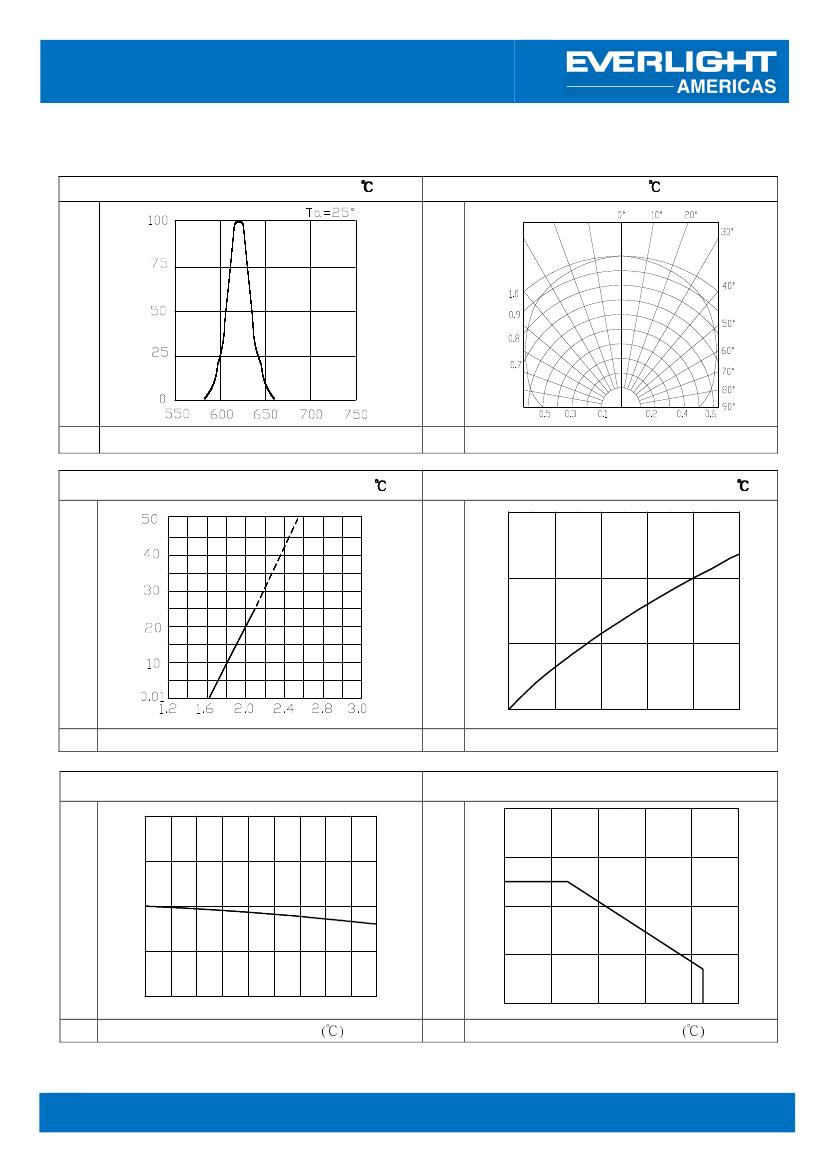

Typical Electro-Optical Characteristics Curves
Relative Intensity (a.u.)
Wavelength (nm)
Radiation Angle
Relative Intensity (a.u.)
1.5
Relative Intensity(a.u.)
Forward Current (mA)
1.0
0.5
0.0
0
5
10
15
20
25
Forward Voltage (V)
Relative Intensity vs. Ambient Temp.
2.0
Forward Current (mA)
Forward Current vs. Ambient Temp.
40
Relative Intensity(a.u.)
Forward Current (mA)
1.5
30
1.0
20
0.5
10
0.0
25
30
35
40
45
50
55
60
) ℃(
65
70
0
0
20
40
60
80
) ℃(
100
Ambient Temperature Ta
Ambient Temperature Ta
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jul
.07.2014
. Issue No:
DLE-xxxxxxx
_Rev.1
www.everlightamericas.com
℃
℃
℃
℃
℃
℃
℃
℃
Forward Current vs. Forward Voltage (Ta=25
)
Relative Intensity vs. Forward Current (Ta=25
℃
℃
℃
℃
℃
℃
℃
℃
Relative Intensity vs. Wavelength (Ta=25
)
Directivity (Ta=25
)
)
DATASHEET
LAMP
EALP02RRARA0
Package Dimension
Note: Note:
1. All dimensions are in millimeters
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared, the tolerance is ±0.25mm.
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jul
.07.2014
. Issue No:
DLE-xxxxxxx
_Rev.1
www.everlightamericas.com
DATASHEET
LAMP
EALP02RRARA0
Moisture Resistant Packing Materials
Label Explanation
CPN: Customer's
Production Number
P/N : Production Number
QTY: Packing Quantity
CAT:
Ranks of Luminous Intensity
HUE:
Ranks of Dominant Wavelength
REF:
Ranks of Forward Voltage
LOT No: Lot Number
Packing Specification
■
Anti-electrostatic bag
■
Inner Carton
■
Outside Carton
■
Packing Quantity
1. Min 200 To 500 PCS/1 Bag, 5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jul
.07.2014
. Issue No:
DLE-xxxxxxx
_Rev.1
