4.70 mm (0.180’’) 8-Character 5x7 Dot Matrix
Alphanumeric Programmable Display™
Lead (Pb) Free Product - RoHS Compliant
Red
Yellow
High Efficiency Red
Green
High Efficiency Green
DESCRIPTION
PDSP1880
PDSP1881
PDSP1882
PDSP1883
PDSP1884
FEATURES
• Eight 4.70 mm (0.180") Dot Matrix Characters in Red,
Yellow, High Efficiency Red, Green, or
High Efficiency Green
• Built-in 128 Character ROM,
Mask Programmable for Custom Fonts
• Readable from 2.5 meters (8 Feet)
• Built-in Decoders, Multiplexers and Drivers
• Wide Viewing Angle, X Axis ± 55°, Y Axis 65°
• Programmable Features:
– Individual Flashing Character
– Full Display Blinking
– Multi-Level Dimming and Blanking
– Clear Function
– Self Test
• Internal or External Clock
• End Stackable Dual-In-Line Plastic Package
• Read/Write Capability
• 16 User Definable Characters
The PDSP1880 (Red), PDSP1881 (Yellow), PDSP1882
(High Efficiency Red), PDSP1883 (Green), and
PDSP1884 (High Efficiency Green) are eight digit,
5 x 7 dot matrix, alphanumeric Programmable Displays.
The 4.70 mm (0.180’’) high digits are packaged in a rug-
ged, high quality, optically transparent, 7.62 mm (0.300’’)
lead spacing, 30 pin plastic DIP.
The on-board CMOS has a built-in 128 character ROM.
The PDSP188X also has a user definable character
(UDC) feature, which uses a RAM that permits storage of
16 arbitrary characters, symbols or icons that are soft-
ware-definable by the user. The character ROM itself is
mask programmable and easily modified by the manufac-
turer to provide specified custom characters.
The PDSP188X is designed for standard microprocessor
interface techniques, and is fully TTL compatible. The
Clock I/O and Clock Select pins allow the user to cas-
cade multiple display modules.
ESD Warning:
Standard precautions for
CMOS handling should be
observed.
2006-03-30
1
PDSP1880, PDSP1881, PDSP1882, PDSP1883, PDSP1884
Maximum Ratings
(T
A
=25°C)
Parameter
Operating temperature range
Storage temperature range
DC Supply Voltage,
V
CC
to GND
(max. voltage with no LEDs on)
Operating Voltage,
V
CC
to GND
(max. voltage with 20 dots/digits on)
Input Voltage Levels,
all inputs
Solder Temperature
1.59 mm (0.063“) below seating plane, t < 5.0 s
Relative Humidity (non-condensing)
ESD (100 pF, 1.5 kΩ)
(each pin)
V
Z
T
S
Symbol
T
op
T
stg
V
CC
Value
– 40 … + 85
– 55 … + 100
-0.3 to + 7.0
5.5
-0.3 to
V
CC
+ 0.3
260
85
4.0
Unit
°C
°C
V
V
V
°C
%
kV
Optical Characteristics at 25°C
(V
CC
=5.0 V at 100% brightness level)
Description
Symbol
Values
High Efficiency Green
PDSP1884
125
500
568
574
µcd/dot
µcd/dot
nm
nm
High Efficiency Red
PDSP1882
Unit
Red
PDSP1880
Yellow
PDSP1881
Peak Luminous Intensity
Peak Wavelength
Dominant Wavelength
(min.)
I
Vpeak
(typ.)
(typ.)
λ
peak
(typ.)
λ
dom
70
125
660
639
125
205
583
585
125
350
630
626
125
275
565
570
2006-03-30
3
Green
PDSP1883
PDSP1880, PDSP1881, PDSP1882, PDSP1883, PDSP1884
Enlarged Character Format
Dimensions in mm (inch)
Switching Specifications
(over operating temperature range and
V
CC
=4.5 V)
Symbol
Description
Display Access Time—Write
Display Access Time—Read
Address Setup Time to CE
Chip Enable Active Time—Write
Chip Enable Active Time—Read
Address Hold Time to CE
Chip Enable Recovery Time
Chip Enable Active Prior to
Rising Edge—Write
Chip Enable Active Prior to
Rising Edge—Read
Chip Enable Hold to Rising Edge
of Read/Write Signal
Write Active Time
Data Valid Prior to
Rising Edge of Write Signal
Data Write Time
Chip Enable Active Prior to Valid
Data
Read Active Prior to Valid Data
Read Data Float Delay
Reset Active Time
Min.
210
230
10
140
160
20
60
140
160
0
100
50
20
160
95
10
300
Units
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
2.49 (0.098)
0.71 (0.028) typ.
C0 C1 C2 C3 C4
R1
R2
R3
R4
R5
R6
T
acc
T
acc
T
acs
T
ce
4.52 (0.178)
T
ce
T
ach
T
cer
T
ces
T
ces
0.254 (0.010) typ.
R7
T
ceh
0.56 (0.022) typ.
IDOD5015
T
w
T
wd
T
dh
T
r
T
rd
T
df
T
rc

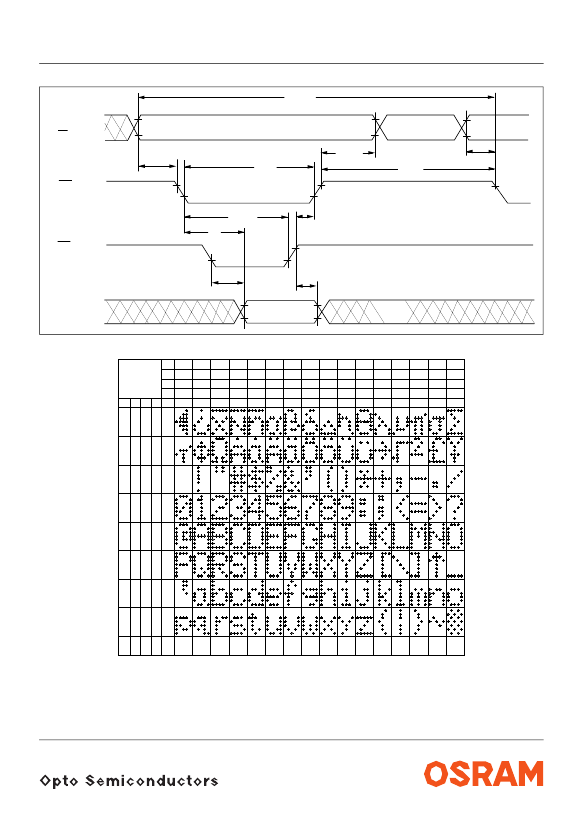

Write Cycle Timing Diagram
Tacc
A0-A3
FL
Tach
Tacs
CE
Tces
Tw
WR
Twd
D0-D7
Tdh
Tceh
Tce
Tcer
Tacs
2006-03-30
4
