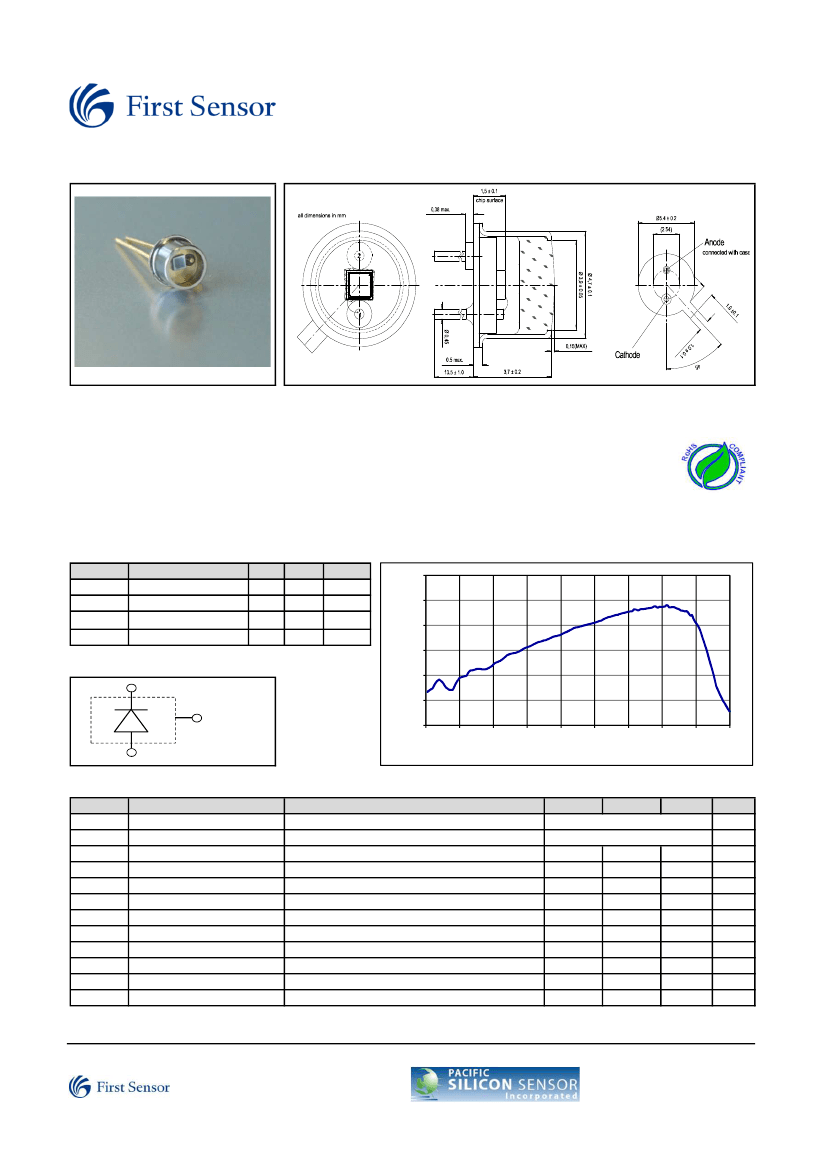

First Sensor PIN Photo Diode Data Sheet
Part Description PS1.0-2 TO
Order # 501103
Version 11-05-11
Features
• 1000 µm x 1000 µm active area
• High sensitivity
• High shunt resistance
• UV/blue enhanced
Description
UV-blue enhanced square active
area PIN photodiode with 1.0 mm²
active area. Metal can type hermetic
TO52 package with UV clear glass
window cap.
Application
• UV exposure meters
• Pollution monitoring
• Medical equipment
• Fluorescence detector
RoHS
2002/95/EC
Absolute maximum ratings
Symbol
T
STG
T
OP
V
max
I
PEAK
Parameter
Storage temp
Operating temp
Max reverse voltage
Peak DC current
Min
-55
-40
Max
125
100
20
10
Unit
°C
°C
V
mA
Spectral response (23 °C)
0,6
0,5
Responsivity (A/W)
0,4
0,3
0,2
0,1
0,0
200
300
400
500
600
700
800
900
1000
1100
Schematic
PIN 1
PIN 2
PIN 2
Wavelength [nm]
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Capacitance
Capacitance
Responsivity
Responsivity
Rise time
Rise time
Breakdown voltage
Shunt resistance
N.E.P.
Test Condition
Typ
1000 x 1000
1.0
0.01
50
16
0.29
0.22
200
50
20
30
5000
10000
7.2 E-15
Min
Max
Unit
µm
mm²
nA
pF
pF
A/W
A/W
ns
ns
V
MΩ
W/√Hz
I
D
C
C
t
R
V
BR
V
R
= 5 V
V
R
= 0 V
V
R
= 5 V
λ = 450 nm
λ = 340 nm
V
R
= 0 V; λ = 410 nm; R
L
= 50 Ω
V
R
= 5 V; λ = 410 nm; R
L
= 50 Ω
I
R
= 2 µA
V
R
= 10 mV
V
R
= 5 V; λ = 410 nm; R
L
= 50 Ω
0.05
European, International Sales:
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
Phone: +49-30-6399-2399
Fax: +49-30-6399-23752
E-Mail: sales.opto@first-sensor.com
USA:
Pacific Silicon Sensor, Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
Phone: +1-818-706-3400
Fax: +1-818-889-7053
E-Mail: sales@pacific-sensor.com
First Sensor PIN Photo Diode Data Sheet
Part Description PS1.0-2 TO
Order # 501103
Version 11-05-11

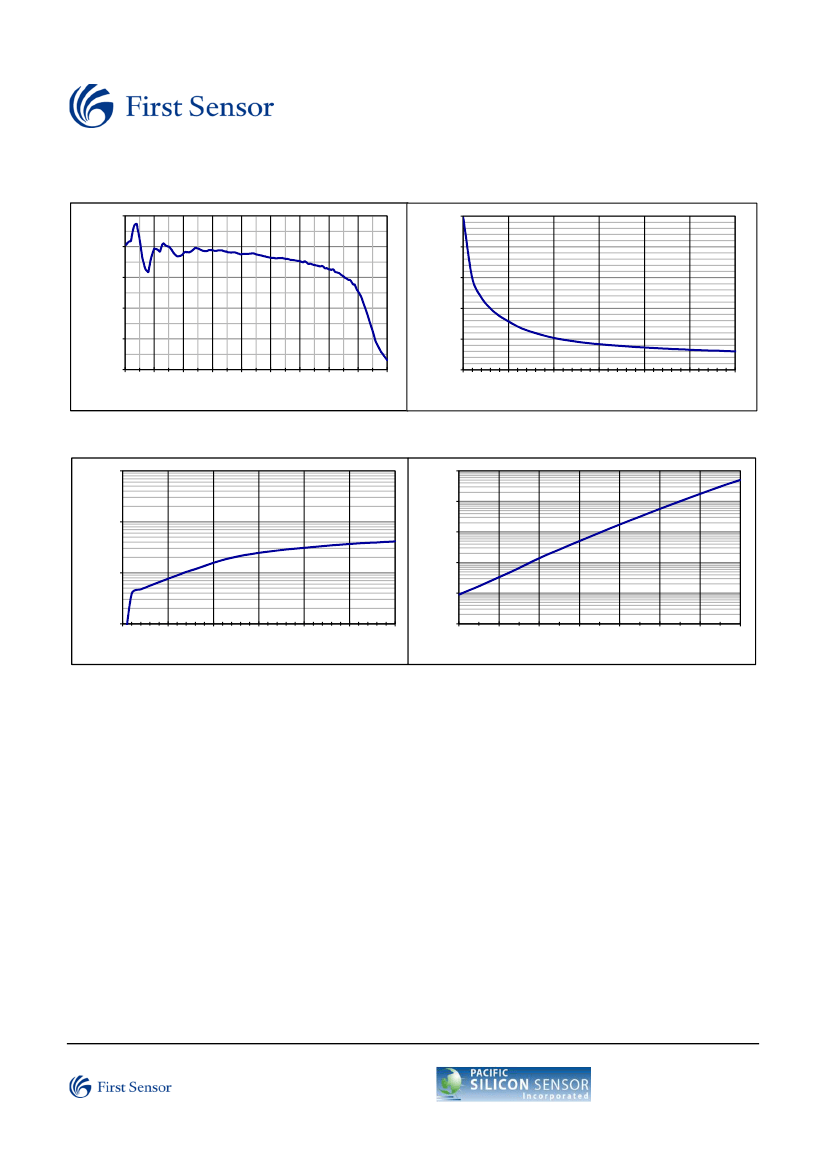

Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
50,00
Quantum efficiency (%)
80
40,00
60
Capacitance (pF)
200
300
400
500
600
700
800
900
1000
1100
30,00
40
20,00
20
10,00
0
0,00
0
5
10
15
20
25
30
Wavelength (nm)
Reverse bias (V)
Dark current as fct of bias (23 °C)
1,0E-09
Dark current as fct of temperature (V
R
= 5 V)
1,0E-07
1,0E-08
Dark current (A)
1,0E-10
Dark current (A)
0
5
10
15
20
25
30
1,0E-09
1,0E-10
1,0E-11
1,0E-11
1,0E-12
1,0E-12
30
40
50
60
70
80
90
100
Reverse bias [V]
Temperature [°C]
Application hints:
Please refer to document "Instructions for handling and processing"
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
