FCN13706_ANGELA-M: DescriptionLED Lighting Reflectors Pack Round 1 Pos 119.5mm D 79.31mm H; CategoryLED optoelectronic/LED; File Size2MB，40 Pages; ManufacturerLedil; Websitehttp://www.ledil.com

Download Datasheet Parametric View All

FCN13706_ANGELA-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FCN13706_ANGELA-M	-	-	View	Buy Now

FCN13706_ANGELA-M Overview

LED Lighting Reflectors Pack Round 1 Pos 119.5mm D 79.31mm H

FCN13706_ANGELA-M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ledil
Product Category	LED Lighting Reflectors
RoHS	Details
Type	Medium Beam Reflectors
For Use With	Bridgelux VERO13, VERO18
Shape	Round
Viewing Angle	16 deg, 19 deg
Packaging	Tray
Color	Metal
Diameter	119.5 mm
Height	79.31 mm
Length	-
Operating Temperature Range	-
Termination Style	-
Width	-
NumOfPackaging	1
Factory Pack Quantity	45

Preview

Download Datasheet

View All

PRODUCT DATASHEET

Angela series

last update 3/11/2016

DETAILS

Product Number

Family

Type

Color

Diameter

Height

Style

Optic Material

Holder Material

Fastening

Status

ROHS Compliant

Date Updated

production ready

Yes

3/11/2016

FCN13706_ANGELA-M

Angela

RefPack

metal

119,5 mm

79,31 mm

round

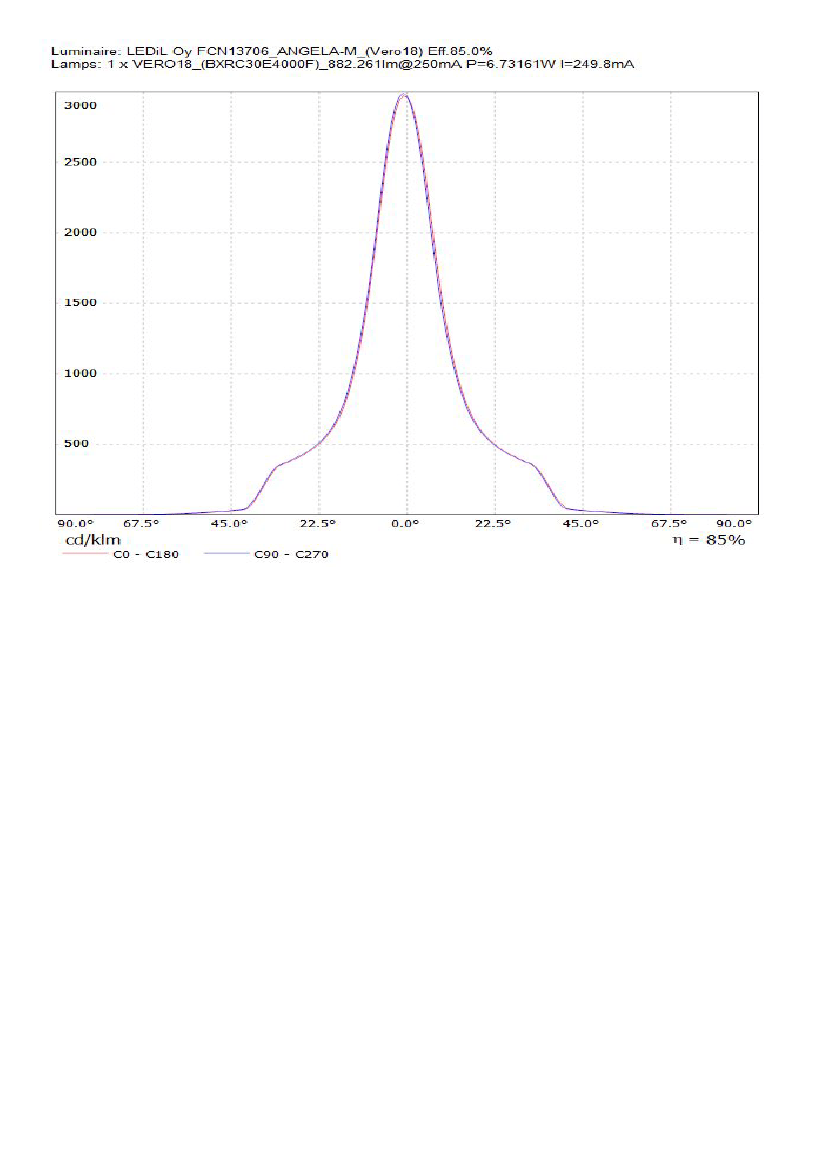

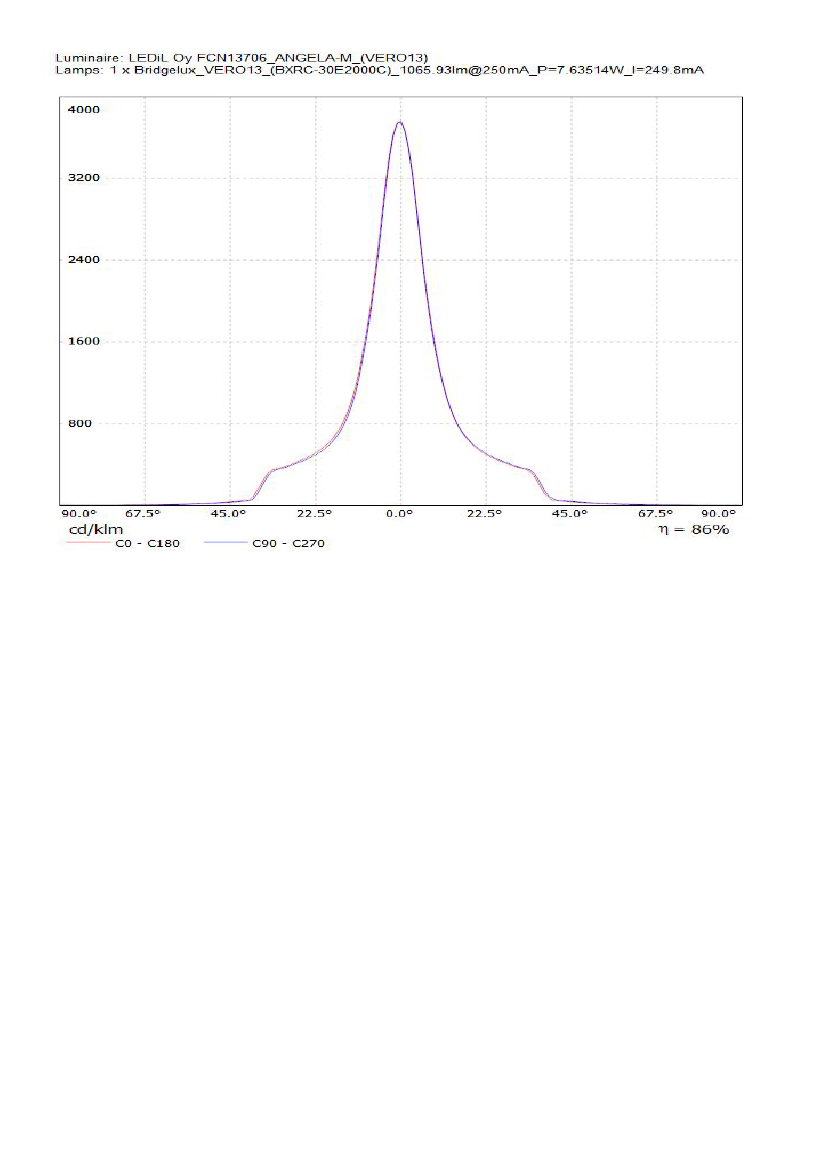

OPTICAL PROPERTIES

Viewing

LED

VERO18

VERO13

V15 Gen6

V10 Gen7

CLU720/721

CLL03x/CLU03x

CLU700/701

CLL02x/CLU02x (LES10)

Angle

19 deg

16 deg

17 deg

sim: 15

14 deg

17 deg

12 deg

14 deg

Light

Beam

Medium

Effi-

ciency

85 %

87 %

92 %

cd/lm

3.000

3.600

3.900

Connector

LEDiL: LEDiL

Bender Wirth: 456 Typ L2

sim: 90 % sim: 7.030 Bender Wirth: 434 Typ L1

83 %

88 %

83 %

84 %

83 %

84 %

4.000

3.400

5.200

4.300

3.800

4.700

4.500

Bender Wirth: 433 Typ L1

Bender Wirth: 434 Typ L1

Bender Wirth: 437 Typ L1

Bender Wirth: 441 Typ L1

Bender Wirth: 438 Typ L1

CXA/B 1816 & CXA/B 1820 & CXA 1850 15 deg

CXA/B 15xx

LUXEON CoB 1202/1203

CXM-14

CXM-9

COB L-Type (LES 9)

COB J-Type

COB L-Type (LES 11)

Soleriq P9

Soleriq P13

Soleriq S13

LC026B / 033B / 040B

ZC12/18

ZC4/6

SLE G5 LES11

13 deg

sim: 17

sim: 14

13 deg

17 deg

15 deg

13 deg

16 deg

15 deg

19 deg

sim: 17

sim: 14

14 deg

sim: 83 % sim: 3.400 Bender Wirth: 433 Typ L1

sim: 84 % sim: 4.300 Bender Wirth: 434 Typ L1

85 %

83 %

88 %

83 %

4.500

3.500

3.900

4.200

3.600

3.800

3.000

Bender Wirth: 438 Typ L1

Bender Wirth: 463 Typ L2

Bender Wirth: 438 Typ L1

Bender Wirth: 461 Typ L1

Bender Wirth: 437 Typ L1

Bender Wirth: 450 Typ L2

sim: 83 % sim: 3.400 Bender Wirth: 433 Typ L1

sim: 84 % sim: 4.300 Bender Wirth: 434 Typ L1

84 %

4.400

Bender Wirth: 434 Typ L1
