STQ-2016

Description
TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, PDSO16
CategoryTopical application    Wireless rf/communication
File Size387KB,8 Pages
ManufacturerSIRENZA
Websitehttp://www.sirenza.com/
Download Datasheet Parametric Compare View All

STQ-2016 Overview

TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, PDSO16

STQ-2016 Parametric

Parameter NameAttribute value
Number of functions1
Number of terminals16
Minimum operating temperature-40 Cel
Maximum operating temperature85 Cel
Processing package description5 X 6.40 MM, 1 MM HEIGHT, GREEN, MO-153, TSSOP-16
EU RoHS regulationsYes
stateTransferred
Communication typeRF AND BASEBAND CIRCUIT
jesd_30_codeR-PDSO-G16
jesd_609_codee3
moisture_sensitivity_level1
Packaging MaterialsPLASTIC/EPOXY
ckage_codeHTSSOP
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
eak_reflow_temperature__cel_270
qualification_statusCOMMERCIAL
seated_height_max1.2 mm
Rated supply voltage5 V
surface mountYES
Temperature levelINDUSTRIAL
terminal coatingMATTE TIN
Terminal formGULL WING
Terminal spacing0.6500 mm
Terminal locationDUAL
ime_peak_reflow_temperature_max__s_NOT SPECIFIED
length5 mm
width4.4 mm

STQ-2016 Preview

Product Description
The Sirenza Microdevices’ STQ-2016 is a direct quadrature
modulator targeted for use in a wide range of communica-
tions systems, including cellular/PCS, CDMA2000, UMTS,
and ISM datacom. This device features a wide 700-2500 MHz
operating frequency band, excellent carrier and sideband
suppression, and a low broadband noise floor.
The STQ-2016 uses silicon germanium (SiGe) device tech-
nology and delivers a typical output power of -11dBm with
greater than 60dB IM3 suppression. A digital input shut-down
feature is included that, when enabled, attenuates the output
by 60dB. The device is packaged in an industry standard 16
pin TSSOP with exposed paddle for superb RF and thermal
ground. The STQ-2016Z is packaged in a RoHs compliant
and Green 16-pin TSSOP with matte tin finish.
STQ-2016
STQ-2016Z
Pb
RoHS Compliant
&
Green
Package
700-2500 MHz Direct Quadrature Modulator
16 pin TSSOP with Exposed Ground Pad
Package Footprint: 0.197 x 0.252 inches, (5.0 x 6.4 mm)
Package Height: 0.039 inches (1.0 mm)
Product Features

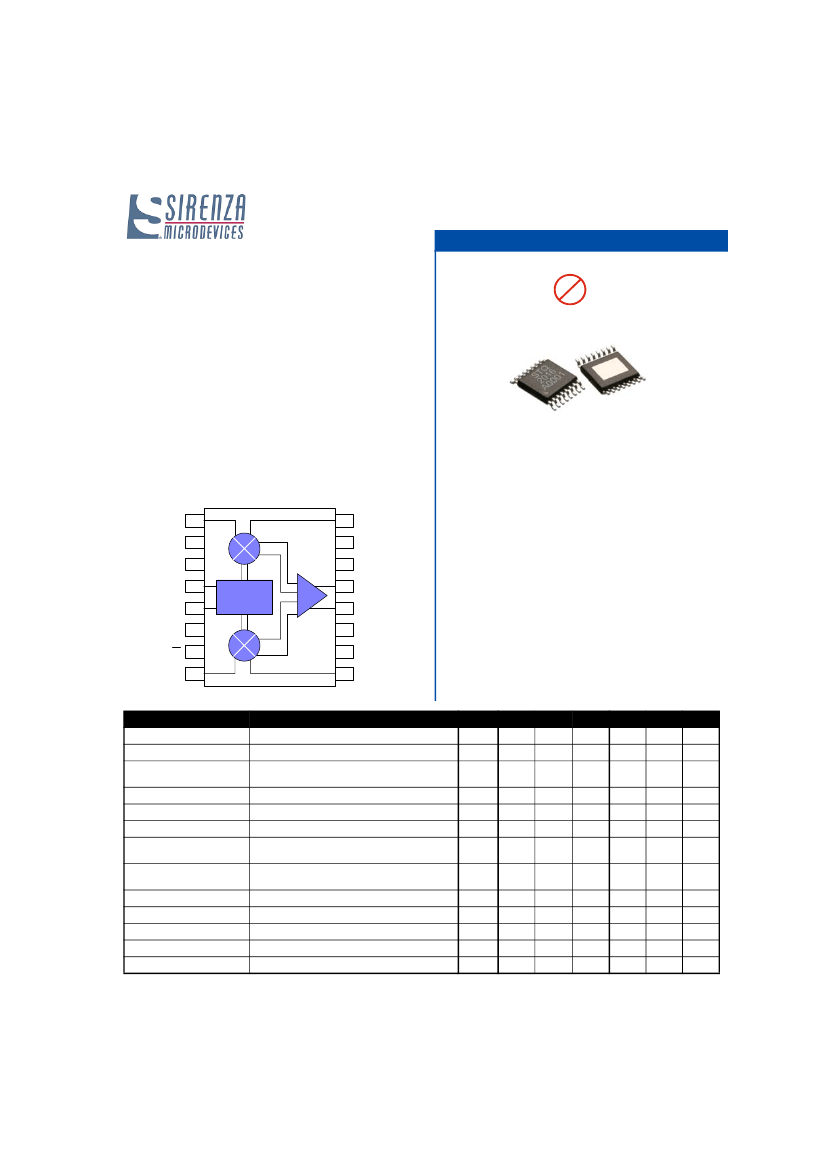

Functional Block Diagram
BBQP
VCC
VEE
LOP
LON
VEE
SD
BBIP
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
BBQN
VCC
VEE
RFP
RFN
VEE
VCC
BBIN
Excellent carrier feedthrough, -40 dBm con-
stant with output power
Output P1dB +3dBm
Wide baseband input, DC - 500 MHz
Superb phase accuracy and amplitude bal-
ance, ±0.5 deg./±0.2 dB
Very low noise floor, -155 dBm/Hz
Low LO drive requirement, -5 dBm
Cellular/PCS/CDMA2000/UMTS transceivers
ISM band transceivers, 900 & 2400 MHz
GMSK, QPSK, QAM, SSB modulators
Units
MHz
Min.
700
-13.0
-10.5
20
+3
+4
-40
34
58
40
62
-154
-2
-0.2
+4.75
±0.5
±0.05
+5
73
25
-152
+2
+0.2
+5.25
86
-2
-0.2
+4.75
-34
34
58
0
Typ.
Max.
1000
-9.0
Min.
1700
-15.0
-11.5
16
+3
-40
40
65
-155
±0.5
±0.05
+5
73
25
-153
+2
+0.2
+5.25
86
-32
Typ.
Max.
2500
-9.0
LO
QUADRATURE
GENERATOR
Applications
Product Specifications – RF Output: T
A
= 25ºC
Parameters
RF Frequency Range
Output Power
RF Port Return Loss
Output P1dB
Carrier Feedthrough
Sideband Suppression
IM3 Suppression
Broadband Noise Floor
Quadrature Phase Error
I/Q Amplitude Balance
Supply Voltage (Vcc)
Supply Current
Device Thermal Resistance junction-case
baseband 200kHz @ 600mVp-p differential
matched to 50Ω
(refer to schematics on pages 6 & 7)
(I/Q inputs = 3.74 Vp-p differential typical)
Test Conditions (see page 2)
dBm
dB
dBm
dBm
dB
two-tone baseband input @ 600mVp-p differen-
tial per tone
baseband inputs tied to 1.9V
DC
, -20MHz offset
from carrier
dB
dBm/Hz
deg
dB
V
mA
ºC/W
The information provided herein is believed to be reliable at press time. Sirenza Microdevices assumes no responsibility for inaccuracies or ommisions.
Sirenza Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Sirenza Microdevices does not authorize or warrant any Sirenza Microdevices product
for use in life-support devices and/or systems.
Copyright 2001 Sirenza Microdevices, Inc. All worldwide rights reserved.
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
1
http://www.sirenza.com
EDS-102083 Rev F
STQ-2016 Direct Quadrature Modulator
Test Conditions
(for all product specification tables unless otherwise noted)
V
CC
(pins 2,10,15)
T
A
Baseband Input
(Pins 1, 8, 9, 16)
LO Input
(Pins 4, 5)
+5V
+25ºC
1.9V DC bias, 200kHz fre-
quency, 300mVp-p per pin =
600mVp-p differential drive, I
and Q signals in quadrature
-5dBm @ 1960 MHz
Product Specifications - Baseband Modulation Input: T
A
= 25ºC
Parameters
Baseband Frequency Input
Baseband Input Resistance
Baseband Input Capacitance
Additional Test Conditions
-3dB bandwidth, baseband inputs terminated in 50 ohms
per pin
per pin
Unit
MHz
kohms
pF
Min.
DC
4.4
0.5
Typ.
Max.
500
Product Specifications - LO Input: T
A
= 25ºC
Parameters
LO Frequency
LO Drive Level
LO Port Return Loss
matched to 50Ω (refer to schematics on pages 6 & 7)
Additional Test Conditions
Unit
MHz
dBm
dB
Min.
700
-8
-5
16
Typ.
Max.
2500
-2
Product Specifications – Miscellaneous: T
A
= 25ºC
Parameters
Shut-Down Attenuation
Shut-Down Pin Resistance
Shut-Down Pin Capacitance
Shut-down Control
Voltage Thresholds
Shut-Down Settling Time
@ 1MHz
@ 1MHz
Shut-down disabled (normal operation)
Shut-down enabled
Additional Test Conditions
Unit
dB
kohm
pF
V
V
ns
3.75
0.0
<450
Min.
Typ.
60
11.9
5.2
Vcc
1.5
Max.
C a r r ie r S u p p r e s s io n v s . O u t p u t P o w e r
40
35
Carrier Suppression [dB]
30
25
20
15
S S B P ou t = -12 .5 dB m
10
5
0
1 40 0
S S B P ou t = 0 dB m
1 50 0
1 60 0
1 70 0
18 0 0
19 0 0
2000
C a rri e r F re q u e n c y [M H z ]
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
2
http://www.sirenza.com
EDS-102083 Rev F
STQ-2016 Direct Quadrature Modulator
700 - 1000 MHz Typical Device Performance
SSB Power vs. LO Frequency
-5
Output P1dB vs. LO Frequency
10
8
6
4
2
0
700
-9
-11
-13
-15
700
750
800
850
900
950
1000
Output P1dB (dBm)
-7
SSB Power (dBm)
750
800
850
900
950
1000
LO Frequency (MHz)
LO Frequency (MHz)
Carrier Feedthrough vs. LO Frequency
-30
Sideband Suppression vs. LO Frequency
50
Sideband Suppression (dBm)
46
42
38
34
30
700
Carrier Feedthrough (dBm)
-34
-38
-42
-46
-50
700
750
800
850
900
LO Frequency (MHz)
950
1000
750
800
850
900
950
1000
LO Frequency (MHz)
Intermodulation Distortion vs.
SSB Output Power @880 MHz
0
Output Power (dBm)
Return Loss (dB)
0
RF & LO Port Return Losses
RFPort
LO Port
10
-20
-40
-60
-80
-100
-12
-10
-8
-6
-4
-2
0
2
4
6
BB Input Level (dBVp-p diff.)
fundamental (each tone)
3rd intermod. (each tone)
20
30
40
700
750
800
850
900
950
1000
Frequency (MHz)
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
3
http://www.sirenza.com
EDS-102083 Rev F
STQ-2016 Direct Quadrature Modulator

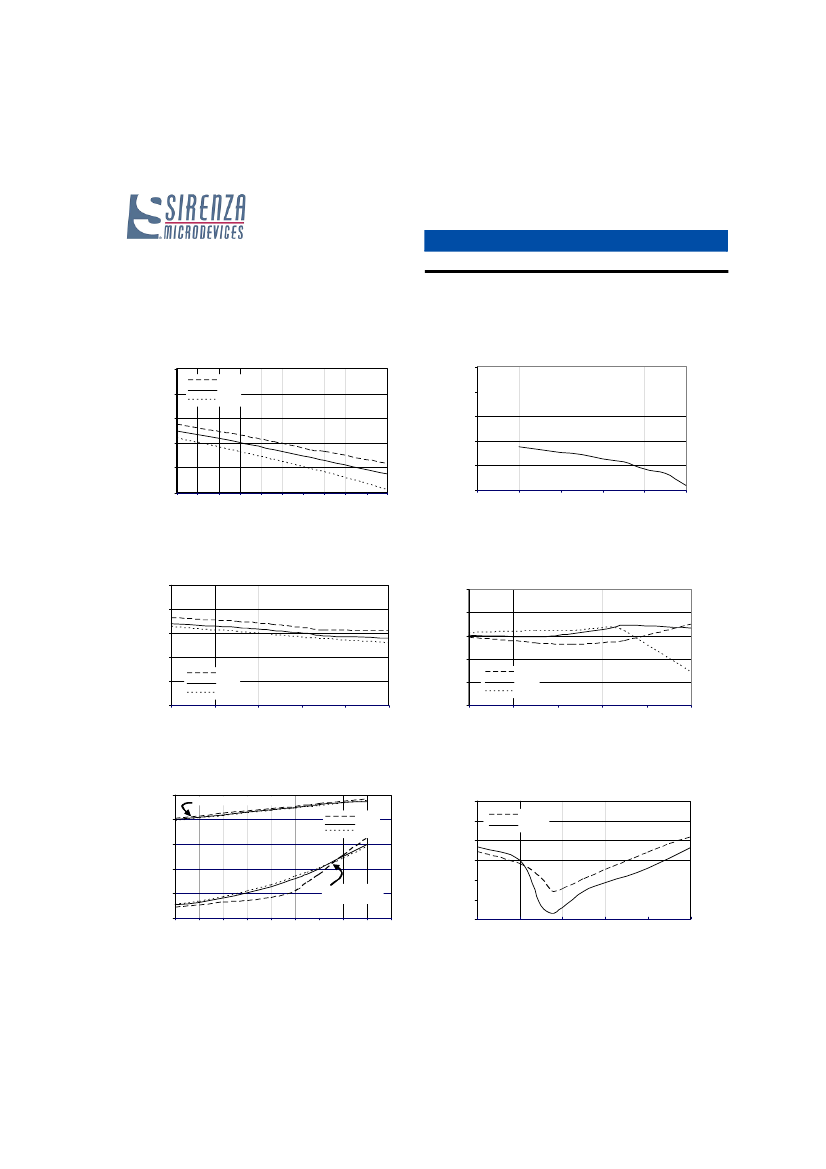

1500 - 2500 MHz Typical Device Performance
SSB Power vs. LO Frequency
-5
-7
SSB Power (dBm)
-9
-11
-13
-15
1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
LO Frequency
-40ºC
+25ºC
+85ºC
10
8
6
4
2
0
1500
Output P1dB vs. LO Frequency
Output P1dB (dBm)
1700
1900
2100
2300
2500
LO Frequency (MHz)
Carrier Feedthrough vs. LO Frequency
-30
-34
-38
-42
-46
-50
1500
-40ºC
+25ºC
+85ºC
1700
1900
2100
2300
2500
Sideband Suppression (dBm)
50
46
42
38
34
30
1500
Sideband Suppression vs. LO Frequency
Carrier Feedthrough (dBm)
-40ºC
+25ºC
+85ºC
1700
1900
2100
2300
2500
LO Frequency (MHz)
LO Frequency (MHz)
Intermodulation Distortion vs.
SSB Output Power @1960 MHz
0
BB Input Level (dBVp-p diff.)
-20
-40
-60
-80
-100
-12
-10
-8
-6
-4
-2
0
2
4
6
Output Power (dBm)
3rd Intermod.
(each tone)
Fundamental (each tone)
-40ºC
+27ºC
+85ºC
0
5
Return Loss (dB)
10
15
20
25
30
1500
RF & LO Port Return Losses
RFPort
LO Port
1700
1900
2100
2300
2500
Frequency (MHz)
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
4
http://www.sirenza.com
EDS-102083 Rev F

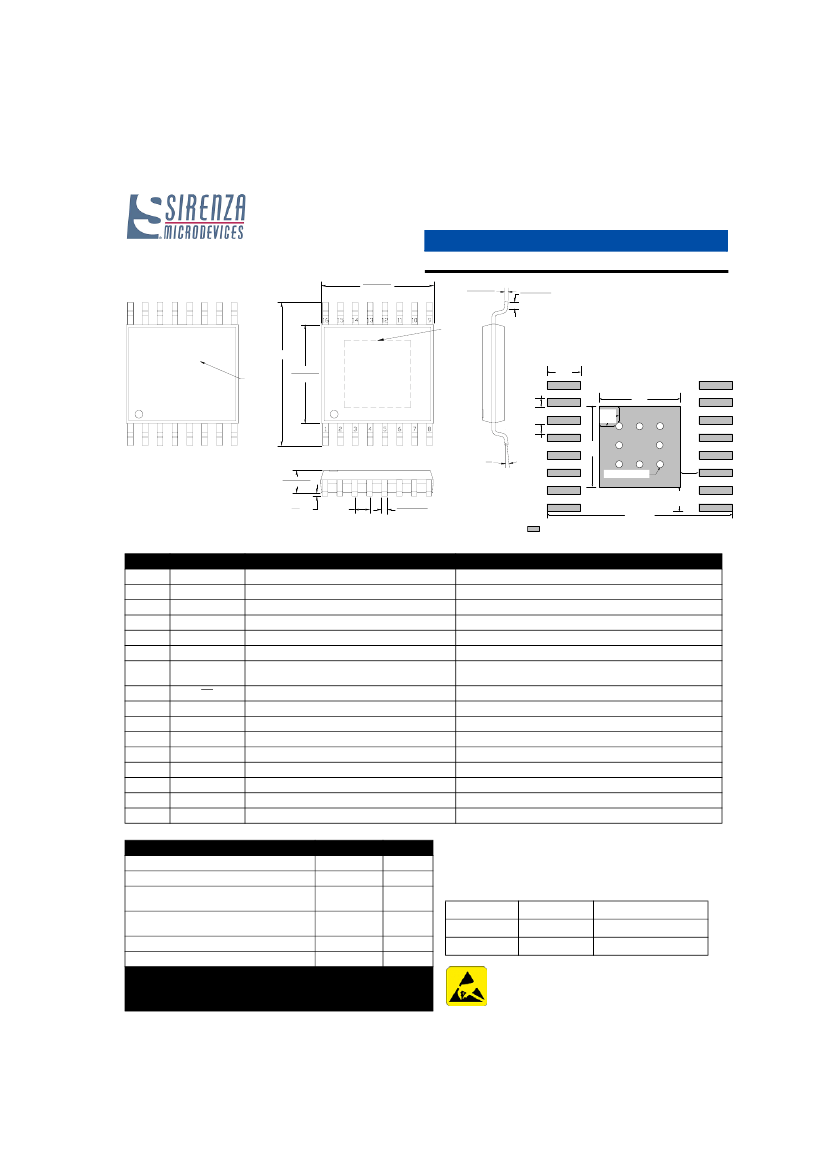

Package Dimensions (“16” Package)
D ensions in inches (m )
im
m
0.193 (4.9)
0.207 (5.25)
STQ-2016 Direct Quadrature Modulator
0.004 (0.1)
0.008 (0.2)
0.018 (0.45)
0.030 (0.75)
STQ
2016
(Z)
LO ID
T
EXPO
SED
THERM
AL
PAD ZO
NE
0.118 (3.0) SQ
.
0.252 (6.4)
0.169 (4.3)
0.177 (4.5)
Suggested PCB Pad Layout
0.049
(1.25)
0.012
(0.30)
0.118
(3.0)
0.024
(0.63)
Part #
0.014
(0.35)
0.118
(3.0)
φ0.010
(0.25) via
0.028
(0.7)
N TES:
O
1. PAC
KAG BO Y SIZES EXC
E
D
LUD M LD
E O
FLASH PR TRU
O
SIO S O G
N
R ATE BU S.
RR
2. TO
LER
ANC ±0.1M UN
E
M LESS O ERW
TH
ISE
SPEC
IFIED
.
3. C PLANAR
O
ITY: 0.1M
M
4. C N O
O TR LLING D EN
IM SIO IS M
N
ILLIM
ETER
,
CO
NVER
TED INC D ENSIO S AR N T
H IM
N
E O
N ESSAR
EC
ILY EXAC
T.
5. FO
LLO ED FR M JED M -153.
W
O
EC O
0.031 (0.8)
0.041 (1.05)
0.0
0.006 (0.15)
0.026 (.65)
0.007 (0.19)
0.012 (0.30)
0.035
(0.9)
0.272 (6.9)
all units are in inches (mm)
- vias connect pad to underlying ground plane
- Indicates metalization
Pin Out Description
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Function
BBQP
VCC
VEE
LOP
LON
VEE
SD
BBIP
BBIN
VCC
VEE
RFN
RFP
VEE
VCC
BBQN
Parameters
Supply Voltage (VCC)
LO, RF Input (LOP, LON, RFP, RFN)
Baseband Min Input Voltage
(BBIP, BBIN, BBQP, BBQN)
Baseband Max Input Voltage
(BBIP, BBIN, BBQP, BBQN)
Operating Temperature
Storage Temperature
Description
Q-channel baseband input, positive terminal
Positive supply (+5V)
Ground
Local oscillator input, positive terminal
Local oscillator input, negative terminal
Ground
Shut-down control
I-channel baseband input, positive terminal
I-channel baseband input, negative terminal
Positive supply (+5V)
Ground
RF output, negative terminal
RF output, positive terminal
Ground
Positive supply (+5V)
Q-channel baseband input, negative terminal
Value
6.0
+10
0
3
-40 to +85
-65 to +150
Unit
V
DC
dBm
V
DC
V
DC
ºC
ºC
Nominal DC bias voltage is 1.9V (biased internally)
Nominal DC voltage is 2.4V. Output should be AC-coupled.
Nominal DC voltage is 2.4V. Output should be AC-coupled.
Logic high = normal operation;
logic low = shut-down enabled.
Nominal DC bias voltage is 1.9V (biased internally)
Nominal DC bias voltage is 1.9V (biased internally)
Nominal DC voltage is 2.0V. Input should be AC-coupled.
Nominal DC voltage is 2.0V. Input should be AC-coupled.
Additional Comments
Nominal DC bias voltage is 1.9V (biased internally)
Absolute Maximum Ratings
Part Number Ordering Information
Part Number
STQ-2016
STQ-2016Z
Reel Size
7”
7”
Devices/Reel
1000
1000
Operation of this device beyond any one of these limits may
cause permanent damage. For reliable continuous operation the
device voltage and current must not exceed the maximum oper-
ating values specified in the table on page one.
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
5
Caution: ESD Sensitive
Appropriate precaution in handling, packaging
and testing devices must be observed.
http://www.sirenza.com
EDS-102083 Rev F

STQ-2016 Related Products

STQ-2016 STQ-2016Z
Description TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, PDSO16 TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, PDSO16
Number of functions 1 1
Number of terminals 16 16
Minimum operating temperature -40 Cel -40 Cel
Maximum operating temperature 85 Cel 85 Cel
Processing package description 5 X 6.40 MM, 1 MM HEIGHT, GREEN, MO-153, TSSOP-16 5 X 6.40 MM, 1 MM HEIGHT, GREEN, MO-153, TSSOP-16
EU RoHS regulations Yes Yes
state Transferred Transferred
Communication type RF AND BASEBAND CIRCUIT RF AND BASEBAND CIRCUIT
jesd_30_code R-PDSO-G16 R-PDSO-G16
jesd_609_code e3 e3
moisture_sensitivity_level 1 1
Packaging Materials PLASTIC/EPOXY PLASTIC/EPOXY
ckage_code HTSSOP HTSSOP
packaging shape RECTANGULAR RECTANGULAR
Package Size SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
eak_reflow_temperature__cel_ 270 270
qualification_status COMMERCIAL COMMERCIAL
seated_height_max 1.2 mm 1.2 mm
Rated supply voltage 5 V 5 V
surface mount YES YES
Temperature level INDUSTRIAL INDUSTRIAL
terminal coating MATTE TIN MATTE TIN
Terminal form GULL WING GULL WING
Terminal spacing 0.6500 mm 0.6500 mm
Terminal location DUAL DUAL
ime_peak_reflow_temperature_max__s_ NOT SPECIFIED NOT SPECIFIED
length 5 mm 5 mm
width 4.4 mm 4.4 mm
How can I make the encoder output of one motor exactly the same as the encoder output of another motor?
There are two different devices. The motor of the master device has a rotary encoder output, which is connected to the PLC input of the slave device. The control sequence of the slave device is PLC-> ...
eeleader-mcu Industrial Control Electronics
Safety protection design of hemodialysis equipment
Hemodialysis therapy is a new treatment for patients with renal failure. At present, hemodialysis therapy is also the most widely used method for treating renal failure at home and abroad. However, be...
dtcxn Medical Electronics
[Learn Power from TI] Series------TI's new LED driver achieves high color rendering and ultra-low dimming function
Texas Instruments (TI) has introduced three industry-leading DC/DC LED drivers for high-performance lighting. The new LED drivers can simplify white adjustment and enhance dimming performance and colo...
qwqwqw2088 Analogue and Mixed Signal
Analysis of compound triode amplifier circuit in analog electronics
Hello friends! The circuit shown above is from page 124 of the fourth edition of Analog Electronics. The other picture is the explanation of this circuit, which I can understand. But my question is, h...
一条咸鱼1992 Analog electronics
ns Chinese manual exquisite version
ns manual Chinese exquisite version...
sufuzheng MCU
Design of intelligent multi-channel serial data acquisition/transmission module for serial communication
With the continuous development of electronic technology, the detection and control of various physical quantities can be realized. Microcomputer detection and control systems are not only used in ind...
rain Robotics Development

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 267  1164  1553  373  328  6  24  32  8  7
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
