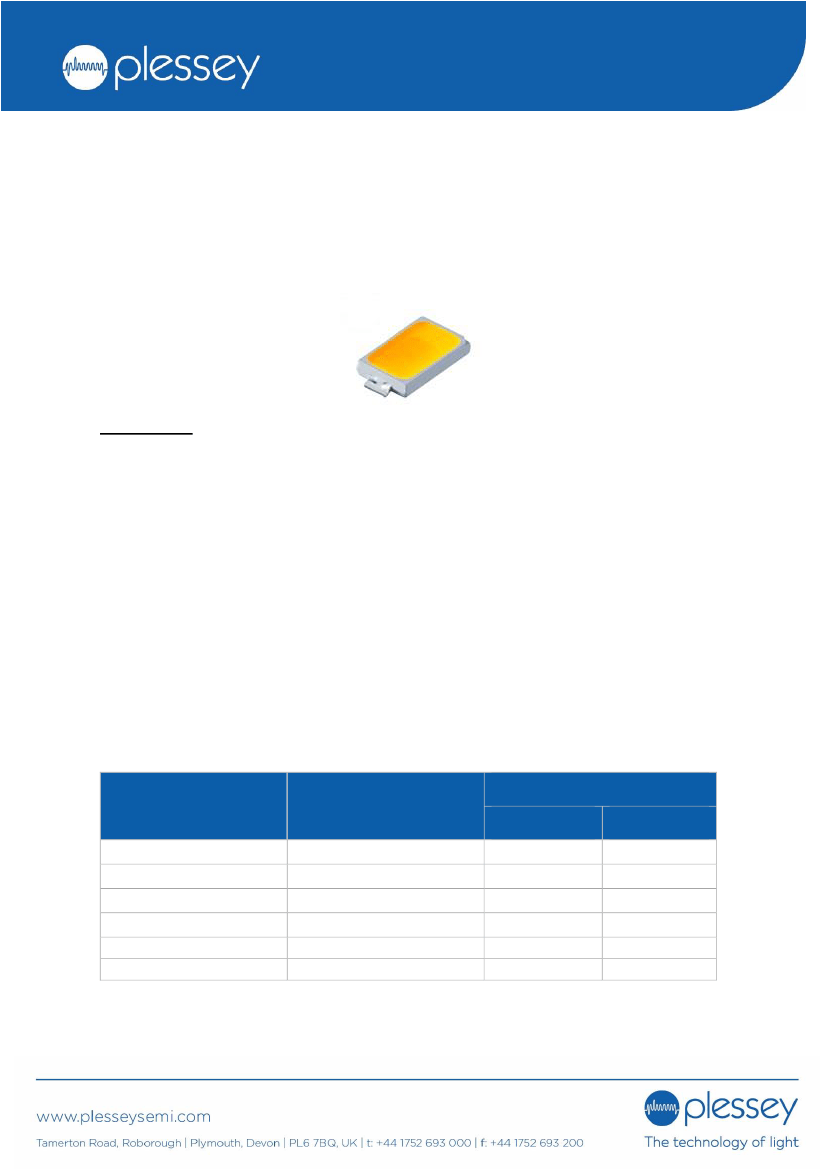

PLW5630BB Series 5630
Mid Power LED
Product Datasheet
Description
Plessey PLW5630BB SMT LEDs are designed for optical indicators, indoor displays, automotive
lighting, backlights for switches/symbols/LCD, tubular lighting and other general lighting
applications and the light is emitted close to a Lambertian distribution. The LEDs are packed
in reels containing 3000 pieces; each individual reel will be shipped in single intensity and
colour bin, to provide close uniformity.
Features
5630 footprint (5.7x3.0x0.8mm)
Colour binning
High reliability PLCC-2 packaging
Diffused pale yellow resin
120 degree wide viewing angle
LM80 Certified
Applications
Tubular Lighting
Instrument panel backlighting
Illumination symbols
Automotive lighting
General lighting
CCT
Variant
PLW5630BB-2700
PLW5630BB-3000
PLW5630BB-3400
PLW5630BB-4000
PLW5630BB-5000
PLW5630BB-6500
Colour
Min.
Warm White 2700K
Warm White 3000K
Warm White 3400K
Neutral White 4000K
Cool White 5000K
Cool White 6500K
2600K
2800K
3250K
3800K
4750K
6000K
Max.
2800K
3100K
3650K
4250K
5300K
7000K
Page
2
of
10
Document number 293958 V11
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Peak Pulse Forward Current
[1]
Power Dissipation
Storage Temperature
Junction Temperature
[1]
Pulse width 0.1ms, duty cycle ≤10%
Symbol
I
F
I
FP
P
d
T
stg
T
j
Minimum
-
-
-
-40
Maximum
180
200
612
+100
+115
Unit
mA
mA
mW
o
C
o
C
Electro-optical Characteristics
T
amb
= +25
o
C unless otherwise stated
Parameter
Forward Voltage
Reverse Current
Colour Rendering Index
Thermal Resistance
Half-Intensity Angle
Symbol
V
F
I
R
CRI
R
thj-sp
2
1/2
Condition
I
F
= 150mA
V
R
= 5V
I
F
= 150mA
I
F
= 150mA
Min.
2.8
-
80
-
-
Typ.
-
-
-
25
120
Max.
3.4
10
-
-
-
Unit
V
µA
%
ºC/W
deg
Recommended Operating Conditions
In typical applications, for optimum LED performance
Parameter
Operating Ambient Temperature
Symbol
T
opr
Minimum
-40
Maximum
+85
Unit
o
C
Ordering Information
Name
PLW5630BB -2700
PLW5630BB -3000
PLW5630BB -3400
PLW5630BB -4000
PLW5630BB -5000
PLW5630BB -6500
Order Code
PLW5630BBW27000
PLW5630BBW30000
PLW5630BBW34000
PLW5630BBN40000
PLW5630BBC50000
PLW5630BBC65000
LF Min.
Forward
Voltage
Range
2A
V1-V6
3A
Page
3
of
10
Document number 293958 V11
Intensity Bin Groups
I
F
= 150mA, T
amb
= +25
o
C, unless otherwise stated
Group
2A
3A
4A
[1]
Tolerance ±10%
Luminous flux
[1]
(lm)
Min.
Max.
56
63
63
70
70
77
Forward Voltage Bin Groups
I
F
= 150mA, T
amb
= +25
o
C, unless otherwise stated
Group
V1
V2
V3
V4
V5
V6
[1]
Tolerance ±0.1V
V
F
[1]
(V)
Min.
2.8
2.9
3.0
3.1
3.2
3.3
Max.
2.9
3.0
3.1
3.2
3.3
3.4
Page
4
of
10
Document number 293958 V11
Chromaticity Binning

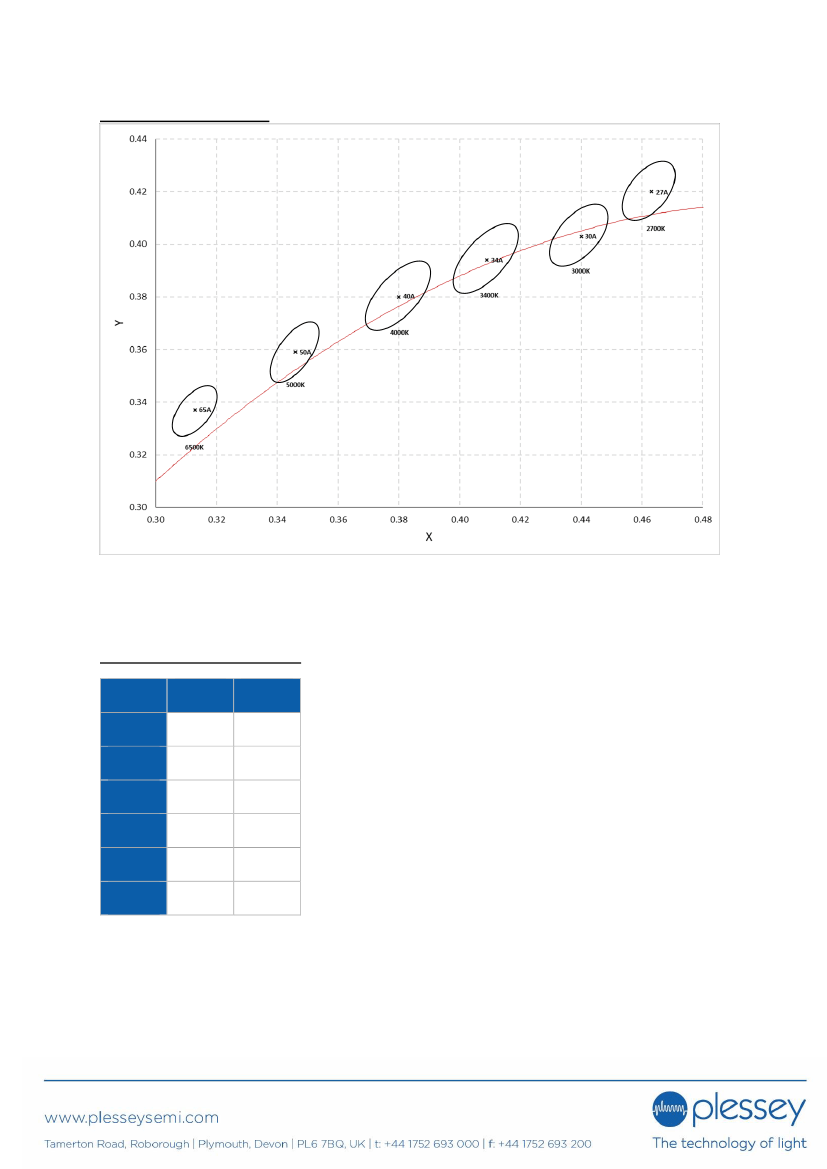

Figure 1. 5 SDCM Colour Chromaticity Binning
Chromaticity Tolerance: ±0.003
5 Step MacAdam Ellipses
CIE_x
27A
30A
34A
40A
50A
65A
0.463
0.440
0.409
0.380
0.346
0.313
CIE_y
0.420
0.403
0.394
0.380
0.359
0.337
Page
5
of
10
Document number 293958 V11

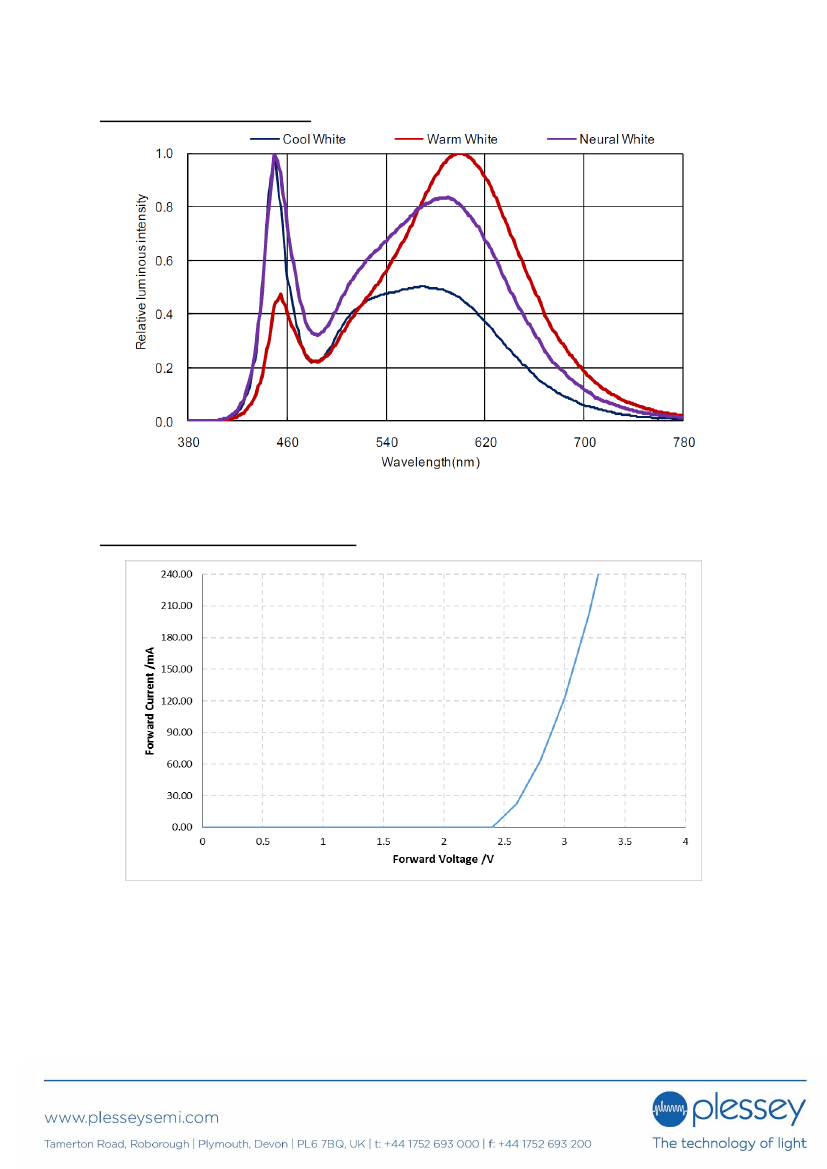

Relative Spectral Emission
Figure 2. Relative Luminous Intensity versus Wavelength
Forward Current Characteristics
Figure 3. Typical forward current versus forward voltage (T
a
=+25C)
