6.8mmx19.9mm LIGHT BAR
Part Number: DF3SURKD
Hyper Red
Features
Uniform light emitting area.
Easily mounted on P.C. boards or industry standard sockets.
Flush mountable.
Excellent on / off contrast.
Can be used with panels and legend mounts.
Mechanically rugged.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.
Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAH1899
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 1 OF 6
ERP: 1334000557
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [1]
@ 20mA
Min.
DF3SURKD
Hyper Red (AlGaInP)
Red Diffused
400
*80
Notes:
1. Luminous intensity / luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Typ.
620
*160
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
645
630
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
4. Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hyper Red
75
30
185
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAH1899
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 2 OF 6
ERP: 1334000557
Hyper Red
DF3SURKD
SPEC NO: DSAH1899
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 3 OF 6
ERP: 1334000557

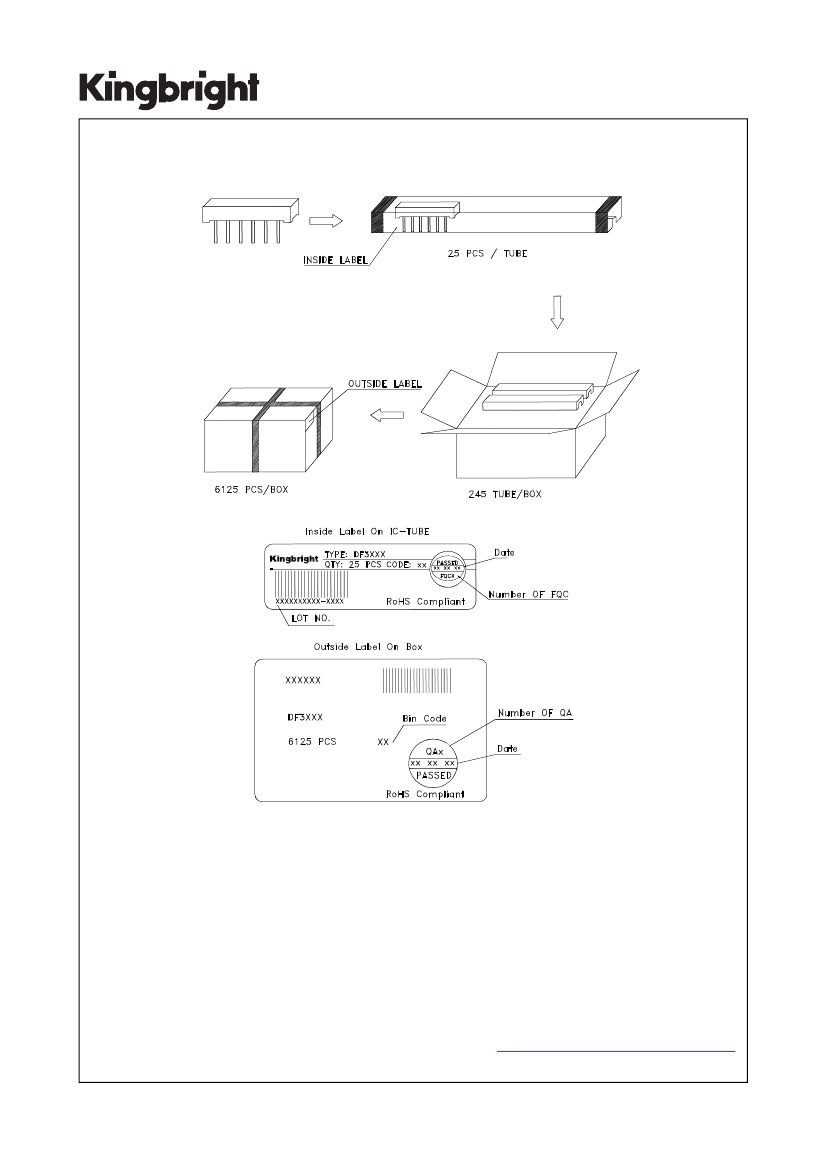

PACKING & LABEL SPECIFICATIONS
DF3SURKD
Terms and conditions for the usage of this document
1. The information included in this document reflects representative usage scenarios and is intended for technical reference only.
2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without
notice. Before production usage customer should refer to the latest datasheet for the updated specifications.
3. When using the products referenced in this document, please make sure the product is being operated within the environmental
and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible
for any subsequent issues.
4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has
special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with
Kingbright representative for further assistance.
5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright.
6. All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes
