6 PIN DIP SCHMITT TRIGGER PHOTOCOUPLER
H11LX Series
Schematic
Features:
•
High data rate, 1MHz typical (NRZ)
• Free from latch up and oscillation throughout voltage and temperature ranges.
• Microprocessor compatible drive
• Logic compatible output sinks 16mA at 0.4V maximum
• Guaranteed on/off threshold hysteresis
• Wide supply voltage capability, compatible with all popular logic systems
•
High isolation voltage between input and output (Viso=5000 V rms )
•
Compact dual-in-line package
•
Pb free and RoHS compliant.
•
UL approved (No. E214129)
•
VDE approved (No. 132249)
•
SEMKO approved
•
NEMKO approved
•
DEMKO approved
•
FIMKO approved
•
CSA approved
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. V
O
5. GND
6. V
CC
Truth Table
Description
The H11LX series of devices each consist of a GaAs infrared emitting diode optically coupled a high speed
integrated circuit detector. The output detector incorporates a Schmitt trigger, which provides hysteresis for noise
immunity and pulse shaping.
The devices are in a 6-pin DIP package and available in wide-lead spacing and SMD option.
Applications
Logic to logic isolator
Programmable current level sensor
Line receiver
eliminate noise and transient problems
AC to TTL conversion
square wave shaping
Digital programming of power supplies
Interfaces computers with peripherals
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:
DPC-0000022
－
－
Rev 3
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Input
Forward current
Reverse voltage
Power dissipation
Output
V
45
Allowed Range
V
65
Allowed Range
Output Current
power dissipation
Total power dissipation
Isolation voltage
Operating temperature
Storage temperature
Soldering temperature
*2
Symbol
I
F
V
R
P
D
V
o
V
CC
I
0
P
D
P
tot
V
iso
T
opr
T
stg
T
sol
Rating
60
6
120
0 to 16
3 to 16
50
150
250
5000
-55~+100
-55~+150
260
Unit
mA
V
mW
V
V
mA
mW
mW
V rms
°
C
°
C
°
C
Notes:
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6 are shorted together.
*
2 For 10 seconds
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000022 Rev. 3
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
Electro-Optical Characteristics (Ta=25℃ unless specified otherwise)
℃
Input
Parameter
Forward Voltage
Reverse Current
Input capacitance
Symbol
V
F
I
R
C
J
Min.
-
-
-
Typ.*
1.15
-
-
Max.
1.5
10
100
Unit
V
µA
pF
Condition
I
F
= 10mA
V
R
= 5V
V=0, f=1MHz
Output
Parameter
Operation Voltage Range
Supply Current
Output Current, High
Isolation Resistance
Symbol
V
CC
I
CC(off)
I
OH
R
ISO
Min.
3
-
-
10
11
Typ.*
-
1.6
-
-
Max.
15
5
100
-
Unit
V
mA
µA
Condition
I
F
=0mA, Vcc=5V
I
F
=0mA, Vcc=Vo=15V
V
I-O
=500VDC
Transfer Characteristics
Parameter
Supply Current
Output Voltage .low
H11L1
H11L2
H11L3
Turn off Threshold Current
Hysteresis Ratio
Turn on Time
Fall Time
Turn off Time
Rise Time
Data Rate
I
Foff
I
Foff
/I
Fon
t
on
t
r
t
off
t
r
I
Fon
Symbol
I
CC(on)
V
OL
Min
-
-
-
-
-
-
0.5
-
-
-
-
-
Typ.
1.6
-
-
-
-
1
-
-
0.1
-
0.1
1
Max.
5
0.4
1.6
10
5
-
0.9
4
-
4
-
-
S
S
S
S
Vcc=5V,
I
F
=I
Fon
,
R
L
=270
mA
mA
Unit
mA
V
Condition
I
F
=10mA, Vcc=5V
Vcc=5V, I
F
=I
Fon
(max.),
R
L
=270
Vcc=5V, R
L
=270
MHz
* Typical values at T
a
= 25°C
1
. Max. I
F(ON)
is the maximum current required to trigger the output. For examples, a 1.6mA maximum trigger current
would require the LED to be driven at a current greater than 1.6mA to guarantee the device will turn on. A 10% guard
band is recommended to account for degradation of the LED over its lifetime. The maximum allowable LED drive
current is 60mA.
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000022 Rev. 3
www.everlight.com
Ω
Ω
Vcc=5V, R
L
=270
Ω
Turn on
Threshold
1
Current
Vcc=5V, R
L
=270
Ω
Ω
μ
μ
μ
μ
Ω
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series

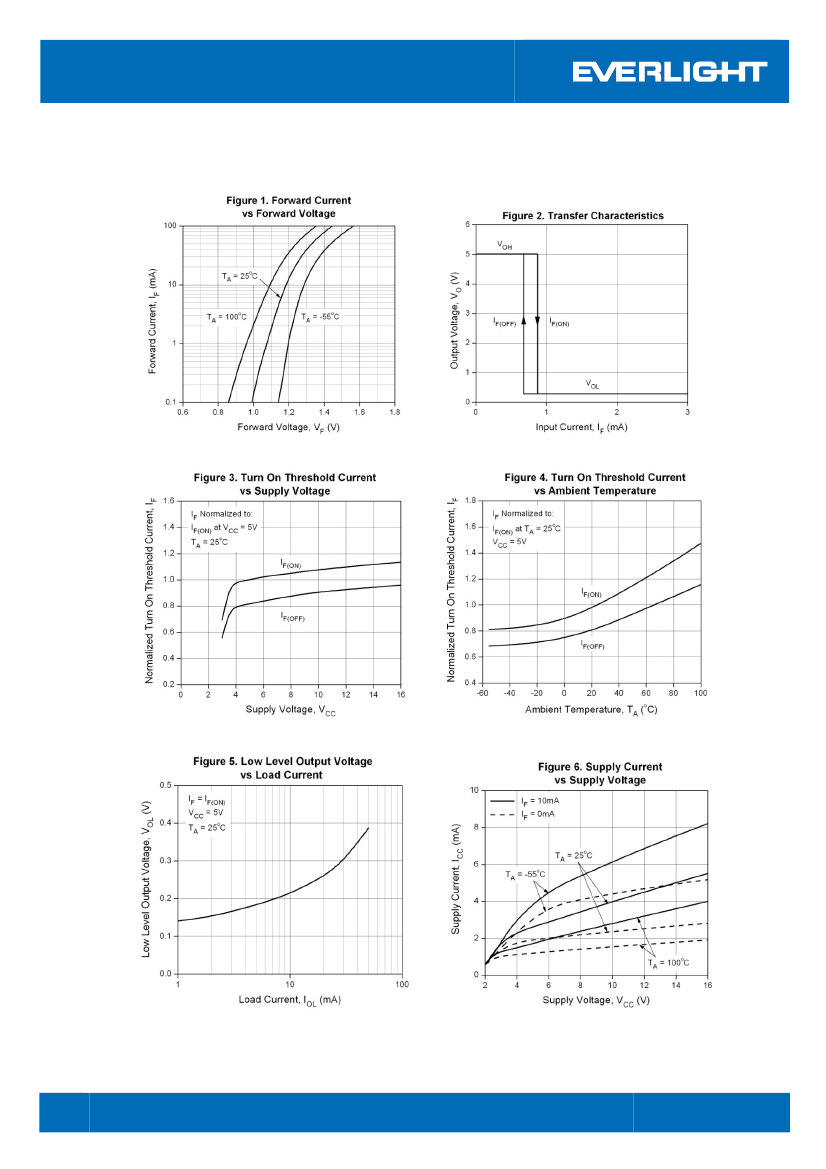

Typical Electro-Optical Characteristics Curves
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000022 Rev. 3
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
Figure 7. Switching Time Test Circuit & Waveforms
Order Information
Part Number
H11LXY(Z)-V
Note
X
= Part No. for 1, 2 or 3
Y
= Lead form option (S, S1, M or none)
Z
= Tape and reel option (TA, TB or none).
V
= VDE (optional)
Option
None
M
S + TA
S + TB
S1 + TA
S1 + TB
Description
Standard DIP-6
Wide lead bend (0.4 inch spacing)
Surface mount lead form + TA tape & reel option
Surface mount lead form + TB tape & reel option
Surface mount lead form (low profile) + TA tape & reel option
Surface mount lead form (low profile) + TB tape & reel option
Packing quantity
65 units per tube
65 units per tube
1000 units per reel
1000 units per reel
1000 units per reel
1000 units per reel
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000022 Rev. 3
www.everlight.com
