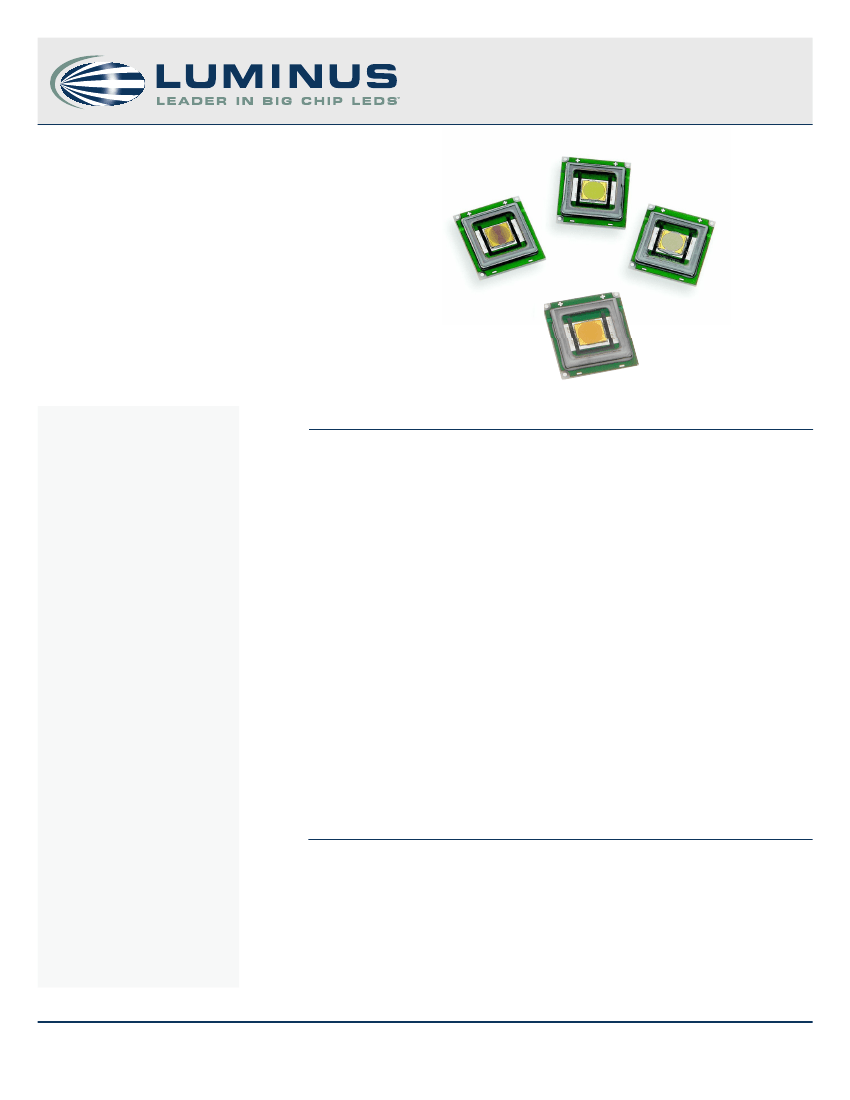

SBT-70 Product Datasheet
(Preliminary)
SBT-70 LEDs
Features:
•
Extremely high optical output from a 7 mm
2
circular emitter:
•
Up to 2,000 white lumens
•
Over 880 red Lumens
•
Over 1,900 green lumens
•
Over 425 blue lumens
•
Round emitting aperture provides most efficient match to circular optical systems and
narrow beam projectors
•
Unencapsulated die with low profile protective window optimizes optical coupling in
etendue-limited applications
•
High thermal conductivity package - junction to case thermal resistance of only
0.7 °C/W
•
Variable drive current: 1 A to 10.5 A
•
High CRI at tungsten white and daylight white color temperatures for natural lighting
•
Environmentally friendly: RoHS compliant
Table of Contents
Technology Overview . . . . . .2
White Flux Bins . . . . . . . . . . . . .3
White Chromaticity Bins . . . .4
RGB Flux & Wavelength Bins 7
Product Shipping &
Labeling Information . . . . . . .8
White Optical & Electrical
Characteristics . . . . . . . . . . . . .9
RGB Optical & Electrical
Characteristics . . . . . . . . . . . 12
Thermal Resistance . . . . . . 17
Mechanical Dimensions . . 18
Ordering Information . . . . 20
Applications
•
Architectural and Entertainment
Lighting
•
Fiber-coupled Illumination
•
Medical Lighting
•
Machine Vision
•
Microscopy
•
Spot Lighting
1
PDS-002014 Rev 04
© 2013 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SBT-70 Product Datasheet
(Preliminary)
Technology Overview
Luminus Big Chip LEDs™ benefit from a suite of innovations in the fields of LED die technology, packaging and thermal management.
These breakthroughs allow illumination engineers and designers to achieve solutions that are high brightness and high efficiency.
Luminus Technology
Luminus’ technology enables large area LED chips with uniform
brightness over the entire LED chip surface. The optical power
and brightness produced by these large monolithic chips
enable solutions which replace arc and halogen lamps where
arrays of traditional high power LEDs cannot.
Reliability
Designed from the ground up, Luminus Big Chip LEDs are one of
the most reliable light sources in the world today. Big Chip LEDs
have passed a rigorous suite of environmental and mechanical
stress tests, including mechanical shock, vibration, temperature
cycling and humidity, and have been fully qualified for use in
extreme high power and high current applications. With very
low failure rates and median lifetimes that typically exceed
60,000 hours, Luminus Big Chip LEDs are ready for even the
most demanding applications.
Packaging Technology
Thermal management is critical in high power LED applications.
With a thermal resistance from junction to case of 0.7º C/W,
Luminus SBT-70 LEDs have the lowest thermal resistance of any
LED on the market. This allows the LED to be driven at higher
current densities while maintaining a low junction temperature,
thereby resulting in brighter solutions and longer lifetimes.
Environmental Benefits
Luminus LEDs help reduce power consumption and the amount
of hazardous waste entering the environment. All Big Chip LED
products manufactured by Luminus are RoHS compliant and
free of hazardous materials, including lead and mercury.
Understanding Big Chip LED Test Specifications
Every Luminus LED is fully tested to ensure that it meets the high quality standards expected from Luminus’ products.
Testing Temperature
Luminus surface mount LEDs are typically tested with a 20 msec
input pulse and a junction temperature of 25ºC. Expected flux
values in real world operation can be extrapolated based on the
information contained within this product data sheet.
Multiple Operating Points (7.0 A, 10.5 A)
The tables on the following pages provide typical optical and
electrical characteristics. Since the LEDs can be operated over a
wide range of drive conditions (currents from1A to 10.5 A, and
duty cycle from <1% to 100%), multiple drive conditions are
listed.
SBT-70 White LEDs are production tested at 10.5 A. The values
shown at other current conditions are for additional reference at
other possible drive conditions.
2
PDS-002014 Rev 04
© 2013 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SBT-70 Product Datasheet
(Preliminary)
SBT-70 White Binning Structure
(T
j
= 25ºC)
SBT-70 white LEDs are tested for luminous flux and chromaticity at a drive current of 10.5 A (1.5 A/mm
2
) and placed into one of the
following luminous flux (FF) and chromaticity (WW) bins:
Flux Bins
Color
WCS
Cool White Standard CRI (typ. 75)
WDH
Daylight White High CRI (typ. 90)
WTH
Tungsten White High CRI (typ. 92)
Flux Bin (FF)
NB
PA
PB
KA
KB
LA
HB
JA
JB
Minimum Flux (lm)
at 10.5A
1,710
1,830
1,655
1,040
1,120
1,200
840
900
970
Maximum Flux (lm)
at 10.5A
1,830
1,965
2,100
1,120
1,200
1,290
900
970
1,040
*Note:
Luminus maintains a +/- 6% tolerance on flux measurements.
Luminus maintains a +/- 2 tolerance on CRI measurements.
3
PDS-002014 Rev 04
© 2013 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SBT-70 Product Datasheet
Preliminary)

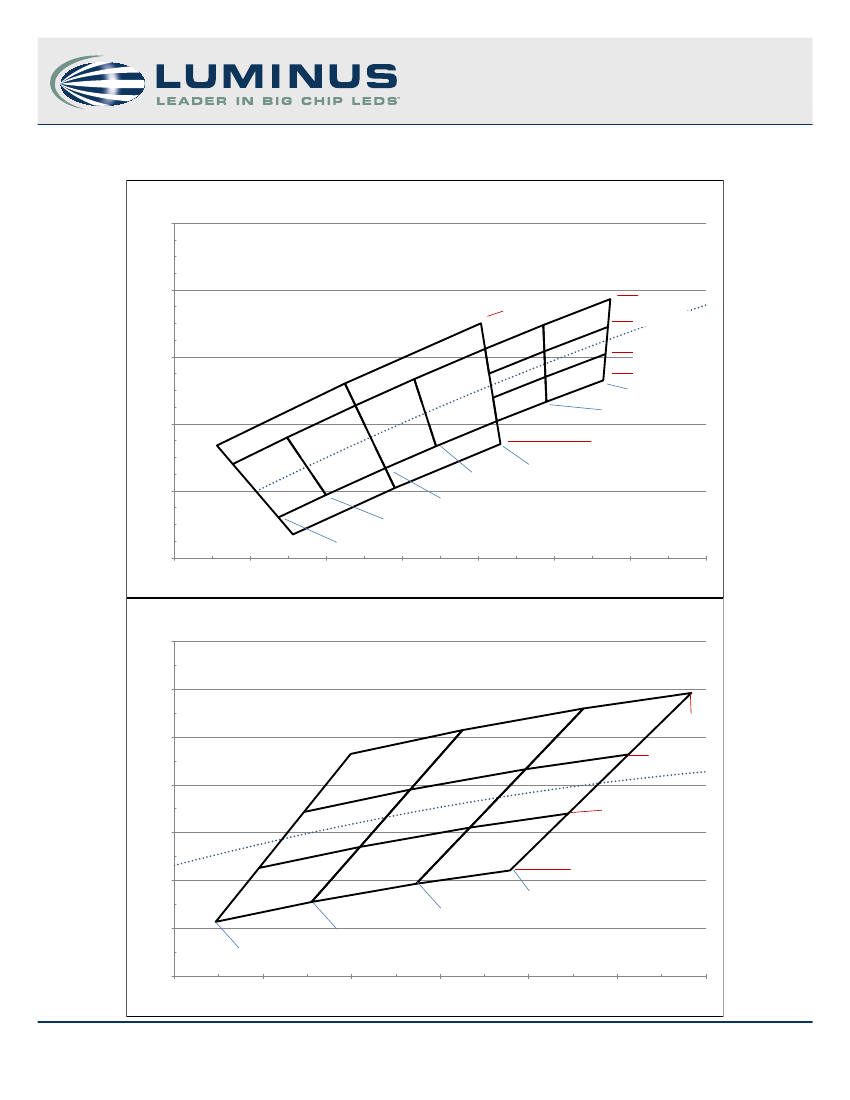

SBT-70 White Chromaticity Bins
The following tables describe the four chromaticity points that bound each chromaticity bin. Chromaticity bins are grouped together
based on the color temperature.
Cool White Chromaticity Bins
Bin Code(WW)
C1
CIEx
0.293
0.299
0.294
0.287
0.299
0.307
0.303
0.294
0.307
0.314
0.311
0.303
0.314
0.322
0.32
0.311
Cool White Chromaticity Bins
CIEy
0.292
0.298
0.315
0.307
0.298
0.306
0.325
0.315
0.306
0.313
0.333
0.325
0.313
0.32
0.342
0.333
Bin Code(WW)
CA
CIEx
0.293
0.295
0.309
0.307
CIEy
0.292
0.287
0.300
0.306
0.287
0.307
0.313
0.332
0.325
0.306
0.300
0.313
0.320
C2
CB
0.285
0.302
0.303
0.307
0.309
0.322
0.322
C3
CC
0.303
0.325
0.332
0.350
0.342
C4
CD
0.302
0.320
0.320
5
PDS-002014 Rev 04
© 2013 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
Test/Measurement
