AA3528ASURCK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> AA3528ASURCK

AA3528ASURCK: DescriptionStandard LEDs - SMD Red Water Clear 635nm 200mcd; CategoryLED optoelectronic/LED photoelectric; File Size193KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

AA3528ASURCK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AA3528ASURCK	-	-	View	Buy Now

AA3528ASURCK Overview

Standard LEDs - SMD Red Water Clear 635nm 200mcd

AA3528ASURCK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.50 X 2.80 MM, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.03 A
JESD-609 code	e4
Lens type	WATER CLEAR
Nominal luminous intensity	200.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL
peak wavelength	650 nm
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal surface	Gold (Au)
Terminal pitch	3.1 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

3.5x2.8mm SURFACE MOUNT LED LAMP

Part Number: AA3528ASURCK

Hyper Red

Features

Single color.

Suitable for all SMT assembly and solder process.

Available on tape and reel.

Ideal for backlighting.

Package : 1500pcs / reel.

Moisture sensitivity level : level 4.

RoHS compliant.

Description

The Hyper Red source color devices are made with Al-

GaInP on GaAs substrate Light Emitting Diode.

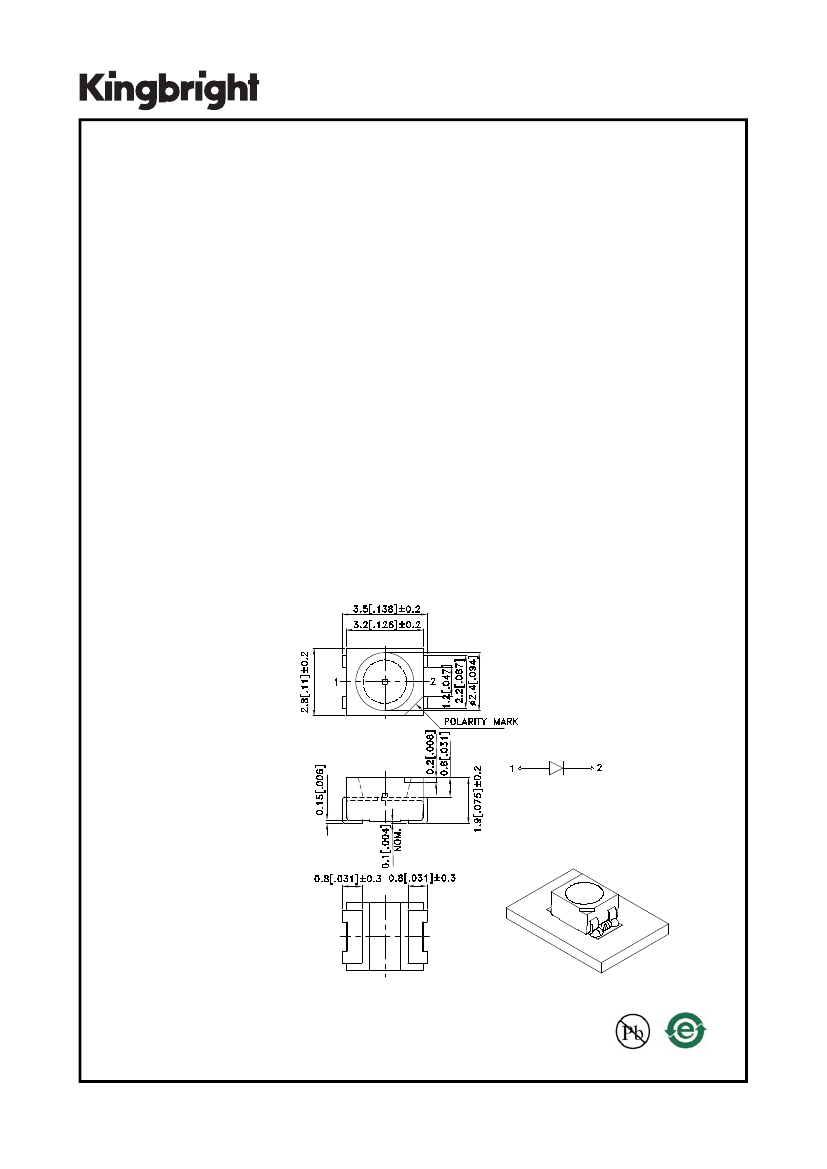

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice.

4.The device has a single mounting surface. The device must be mounted according to the specifications.

SPEC NO: DSAH4226

APPROVED: WYNEC

REV NO: V.4

CHECKED: Allen Liu

DATE: MAR/30/2009

DRAWN: Ting.Li

PAGE: 1 OF 5

ERP: 1201003995
