FEATURES
VOLTAGE: 12V DC PER MODULE
CURRENT: 45mA PER MODULE
LED VIEWING ANGLE (2 0 1/2): 120°
MODULE THICKNESS: 5.7mm
PACKAGE: 20 PIECES PER REEL
WATER RESISTANCE IP65
20 AWG
WIRES
68.2mm
(2.69")

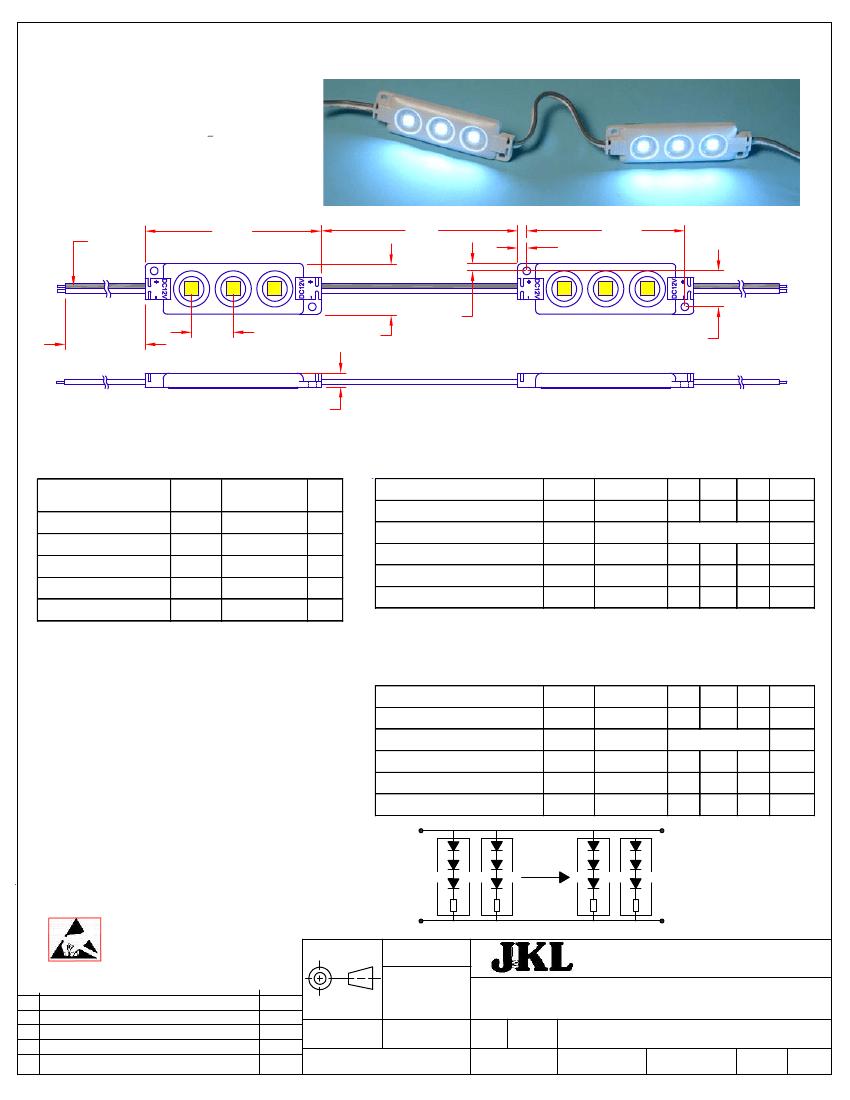

19.6mm X 68.2mm WATER RESISTANT LED MODULES
76mm
(3.00")
3.5mm
(.138")
61.2mm
(2.41")
94mm REF.
(3.70")
16.1mm
(.63")
19.6mm
(.77")
2.8mm
(,11")
13.9mm
(.547")
5.7mm
(.22")
ALL DIMENSIONS ARE REFERENCE ONLY
JKL PART NO.: ZM-1968-WW (WARM WHITE)
Absolute Maximum Rating at TA = 25ºC
Parameter
Forward Current
Power Dissipation
Electrostatic Discharge
Operating Temperature
Storage Temperature
Symbol
IF
PD
ESD
Topr
Tstg
Absolute
MAX. Rating
45
0.54
800
-20~+40
-25~+60
Unit
mA
W
V
ºC
ºC
Electrical/Optical Characteristics at TA = 25ºC
Parameter
Forward Voltage DC
Color Temperature
Luminous Flux per Module
Luminous Flux per Ft.
Recommend Forward Current
Symbol Condition
VF
TC
IF = 45mA
IF = 45mA
--
--
--
Min
--
Typ Max
12
3000
35
75
45
--
--
--
--
Unit
V
K
Im/mod
lm/ft
mA
φ
V/Mod IF = 45mA
--
φ
V/Ft
IF(rec)
--
JKL PART NO.: ZM-1968-CW (COOL WHITE)
JKL PART NO.: ZM-1968-CW (COOL WHITE)
NOTES:
1. STANDARD MOUNTING INCLUDES ADHESIVE
BACKING AND MOUNTING TABS FOR A #6
SCREW (SCREWS NOT INCLUDED).
2. JKL ACCESSORIES TO BE ORDERED SEPARATELY:
ZPS-1235 OR ZPS-1260 POWER SUPPLIES.
3. DUE TO WIRE GAUGE USED IN THE CONSTRUCT-
ION OF THE MODULES SERIAL RUNS SHOULD BE
LIMITED TO 38 FEET OR 80 MODULES.
4. POWER CONSUMPTION 1 WATTS PER FOOT.
Electrical/Optical Characteristics at TA = 25ºC
Parameter
Forward Voltage DC
Color Temperature
Luminous Flux per Module
Luminous Flux per Ft.
Recommend Forward Current
Symbol Condition
VF
TC
IF = 45mA
IF = 45mA
--
--
--
Min
--
Typ Max
12
6000
43
90
45
--
--
--
--
Unit
V
K
Im/mod
lm/ft
mA
φ
V/Mod IF = 45mA
--
φ
V/Ft
IF(rec)
--
+
+
PLEASE REFER TO JKL APPLICATION SHEET:
JKL-AS-ZM-CHANNEL-LED FOR INSTALLATION
AND POWER RECOMMENDATIONS.
ATTENTION
OBSERVE PRECAUTION
FOR HANDLING ELECTROSTATIC
DISCHARGE SENSITIVE DEVICES
DC12V
-
DIMENSIONS ARE
IN mm & (INCHES)
TOLERANCE UNLESS
OTHERWISE SPECIFIED
TITLE
-
COMPONENTS CORPORATION
METRIC
THIRD ANGLE
PROJECTION
DRAWN BY
B
A
REV.
NO.
ADD IP65 TO WATER RESISTANCE
ADDED DIMENSIONS FOR MOUNTING HOLES
4/18/16
1 PL +/-
2 PL +/-
ANGLE +/-
REF.
WHITE 3-LED CHANNEL LIGHT
55335
NONE
FSCM NO.
DRAWING
NO.
RELEASED
DATE
RELEASED
DESCRIPTION/ECO
NUMBER
11/22/12
L. WENGSTROM
L.R.
2/14/12
APPV'D
DATE
APPV'D BY
DATE
SIZE
4/18/16
MANUAL REVISIONS NOT PERMITTED
- CAD DRAWING -
SCALE
A
ZM-1968 MULTI
2/14/12
REVISION
DATE
4/18/16
REV.
NO.
B
1
SHEET
OF
1
