PM5-AP7R20V: DescriptionLED Panel Mount Indicators IP68 Blk Al Red 7mm 630nm 600mcd Diff; CategoryLED optoelectronic/LED; File Size159KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5-AP7R20V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5-AP7R20V	-	-	View	Buy Now

PM5-AP7R20V Overview

LED Panel Mount Indicators IP68 Blk Al Red 7mm 630nm 600mcd Diff

PM5-AP7R20V Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Panel Mount Indicators
RoHS	Details
Illumination Color	Red
Mounting Hole Size	8.5 mm
Mounting Style	Nut and Washer
Termination Style	Wire
Lens Color/Style	Red Diffused
LED Size	7 mm
Vf - Forward Voltage	2 VDC
Wavelength/Color Temperature	630 nm
Packaging	Bulk
Luminous Intensity	600 mcd
IP Rating	IP68
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

B

C

D

Engineering Release

Added Wire Specs

Engineering Update w/o Changes

07/28/11

02/13/13

08/11/16

T. Y.

J. C.

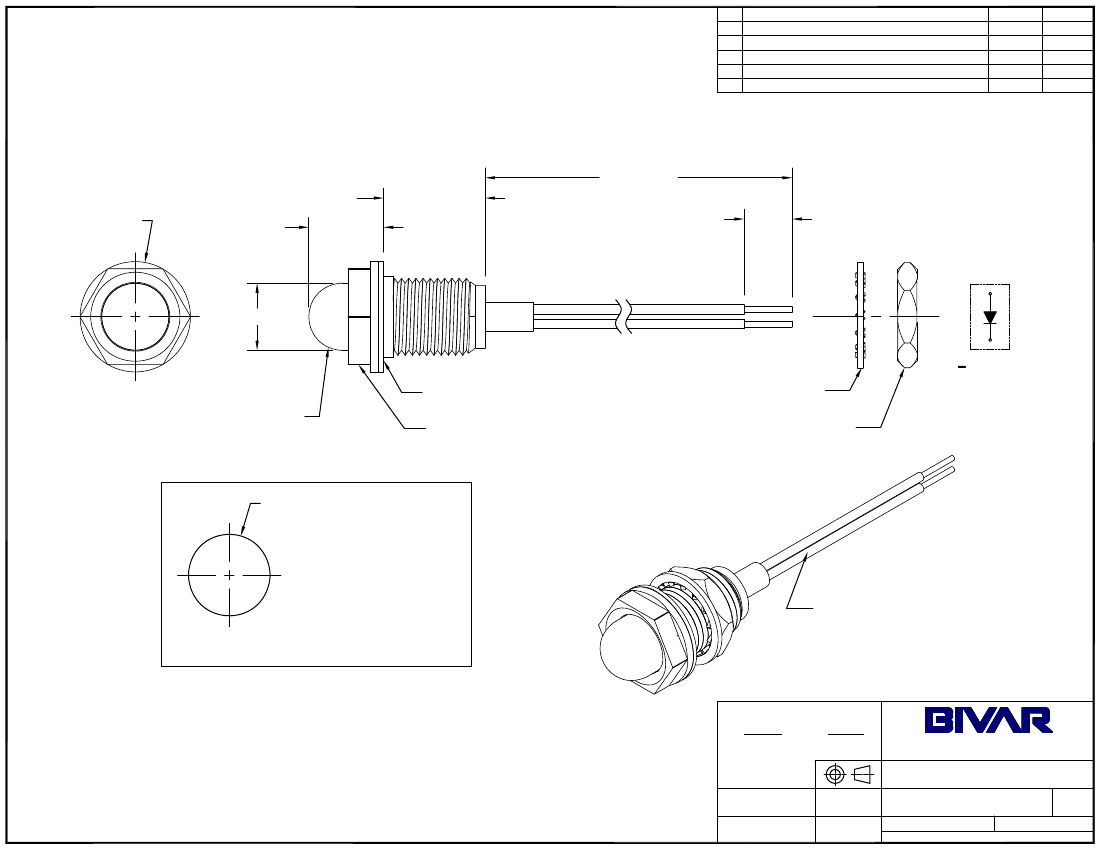

5.9 [150mm]

0.42 [10.6mm]

Ø.453 [Ø11.5mm]

0.31 [7.8mm]

0.20 [5.0mm] STRIPPED AND TINNED

(+) Anode

Red Wire

0.275 [7.0mm]

PTFE SEALING RING

DIFFUSED LENS

BLACK ANODIZED HARD

ALUMINUM HOUSING

SPRING STEEL LOCK WASHER

NICKEL PLATED BRASS NUT

MOUNTING TORQUE 1.0 Nm

( ) Cathode

Black Wire

Ø.335+.004 Ø8.5mm+0.1mm

-.000

-0.0mm

[

]

22 GAUGE, 600V, STRANDING

(19/0.16mm), 1.19mm DIAMETER

RECOMMENDED MOUNTING HOLE

1.5 - 5.0mm PANEL THICKNESS

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

®

NOTES:

1. SEALED TO IP68 RATING

2. HEXAGON BEZEL

3. ROHS COMPLIANT

4. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

5. INSERT PTFE RING ON PANEL MOUNT ASSEMBLY PRIOR TO PANEL INSTALLATION

DECIMALS

ANGULAR

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

R. Paje

CHECKED:

02/23/11

DATE:

TITLE:

WATER TIGHT PANEL MOUNT

LED ASSEMBLY, 8.5MM MOUNTING

REVISION:

PART NO:

PM5-AP7XXX

CAGE CODE : 32559

D

T. Yin

02/23/11

SHEET #

1

OF

2

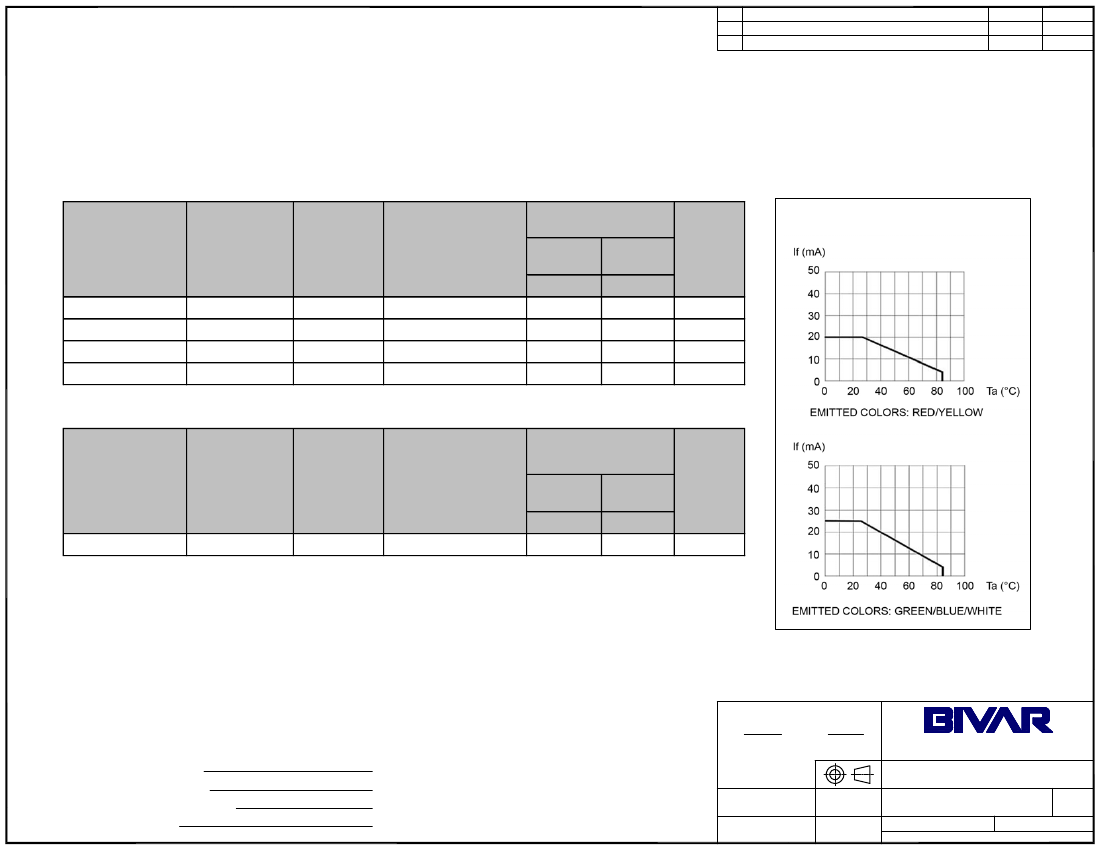

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PM5-AP7R20V Related Products

	PM5-AP7R20V	PM5-AP7B34V	PM5-AP7W34V	PM5-AP7G34V	PM5-AP7Y20V
Description	LED Panel Mount Indicators IP68 Blk Al Red 7mm 630nm 600mcd Diff	LED Panel Mount Indicators IP68 Blk Al Blu 7mm 465nm 400mcd Diff	LED Panel Mount Indicators IP67 Blk Al Wht 7mm 1200mcd 120deg Diff	LED Panel Mount Indicators IP68 Blk Al Grn 7mm 515nm 800mcd Diff	LED Panel Mount Indicators IP68 Blk Al Ylw 7mm 585nm 600mcd Diff
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
RoHS	Details	Details	Details	Details	Details
Illumination Color	Red	Blue	White	Green	Yellow
Mounting Hole Size	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm
Mounting Style	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer
Termination Style	Wire	Wire	Wire	Wire	Wire
Lens Color/Style	Red Diffused	Blue Diffused	Non-Tinted, Diffused	Green Diffused	Yellow Diffused
LED Size	7 mm	7 mm	7 mm	7 mm	7 mm
Vf - Forward Voltage	2 VDC	3.4 VDC	3.4 VDC	3.4 VDC	2 VDC
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Luminous Intensity	600 mcd	400 mcd	1200 mcd	400 mcd	600 mcd
IP Rating	IP68	IP68	IP68	IP68	IP68
Factory Pack Quantity	100	100	100	100	100
Wavelength/Color Temperature	630 nm	515 nm	-	515 nm	585 nm
NumOfPackaging	1	1	1	-	-
