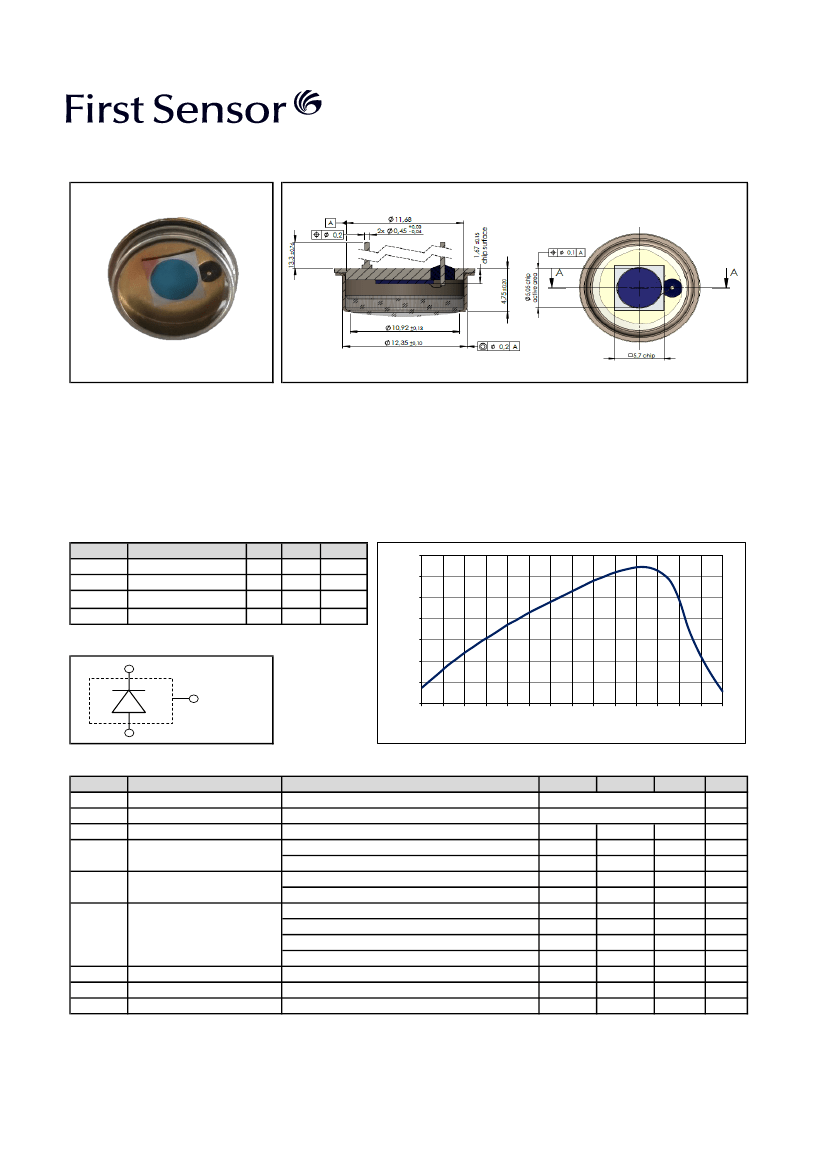

First Sensor PIN PD Data Sheet
Part Description PC20-6 TO
Order # 3001047
Features
• 20 mm² PIN detector
• Low dark current
• High shunt resistance
• High sensitivity
Description
Circular active area PIN photodiode
with 20 mm² active area. Metal can
type hermetic TO8 package with
clear glass window.
Application
• Precision photometry
• Bar code readers
• Medical equipment
• Pulsed light sensor
RoHS
2011/65/EU
Absolute maximum ratings
Symbol
T
STG
T
OP
V
max
I
PEAK
Parameter
Storage temp
Operating temp
Max reverse voltage
Peak DC current
Min
-55
-40
Max
125
100
30
10
Unit
°C
°C
V
mA
Spectral response (23 °C)
0,70
0,60
0,50
Responsivity (A/W)
0,40
0,30
0,20
Schematic
PIN 1
PIN 1
PIN 3
0,10
0,00
400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
Wavelength (nm)
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Capacitance
Responsivity
t
R
Rise time
Test Condition
Min
Typ
Max
diameter 5050
20
0.3
3
220
35
0.4
0.64
2000
25
15
6
700
1.5 E-14
Unit
µm
mm²
nA
pF
pF
A/W
A/W
ns
ns
ns
ns
MΩ
W/√Hz
V
I
D
C
V
BR
Shunt Resistance
N.E.P.
Breakdown voltage
V
R
= 10 V
V
R
= 0 V
V
R
= 10 V
λ = 632 nm
λ = 900 nm
V
R
= 0 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 10 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 20 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 80 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 10 mV
V
R
= 10 V; λ = 900 nm
I
R
= 2 µA
30
Rev. 24/01/2018
subject to change without notice
www.first-sensor.com
contact@first-sensor.com
Page 1/3
ata Sheet
First Sensor PIN PD Data Sheet
Part Description PC20-6 TO
Order # 3001047
PC20-6 TO
# 3001047
Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
200,0
Quantum efficiency (%)
80
150,0
60
Capacitance (pF)
400 450 500 550 600 650 700 750 800 850 900 950 100010501100
100,0
40
20
50,0
0
0,0
0
5
10
15
20
25
30
Wavelength (nm)
Reverse bias (V)
Dark current as fct of bias (23 °C)
1,0E-09
Dark current as fct of temperature (10 V)
1,0E-06
1,0E-07
Dark current (A)
Dark current (A)
1,0E-08
1,0E-10
1,0E-09
1,0E-10
1,0E-11
0
5
10
15
20
25
30
1,0E-11
30
40
50
60
70
80
90
100
Reverse bias [V]
Temperature [°C]
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Handling:
Please refer to document "Instructions for handling and processing"
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
Rev. 24/01/2018
subject to change without notice
www.first-sensor.com
contact@first-sensor.com
Page 2/3
ta Sheet
First Sensor PIN PD Data Sheet
Part Description PC20-6 TO
Order # 3001047
PC20-6 TO
# 3001047

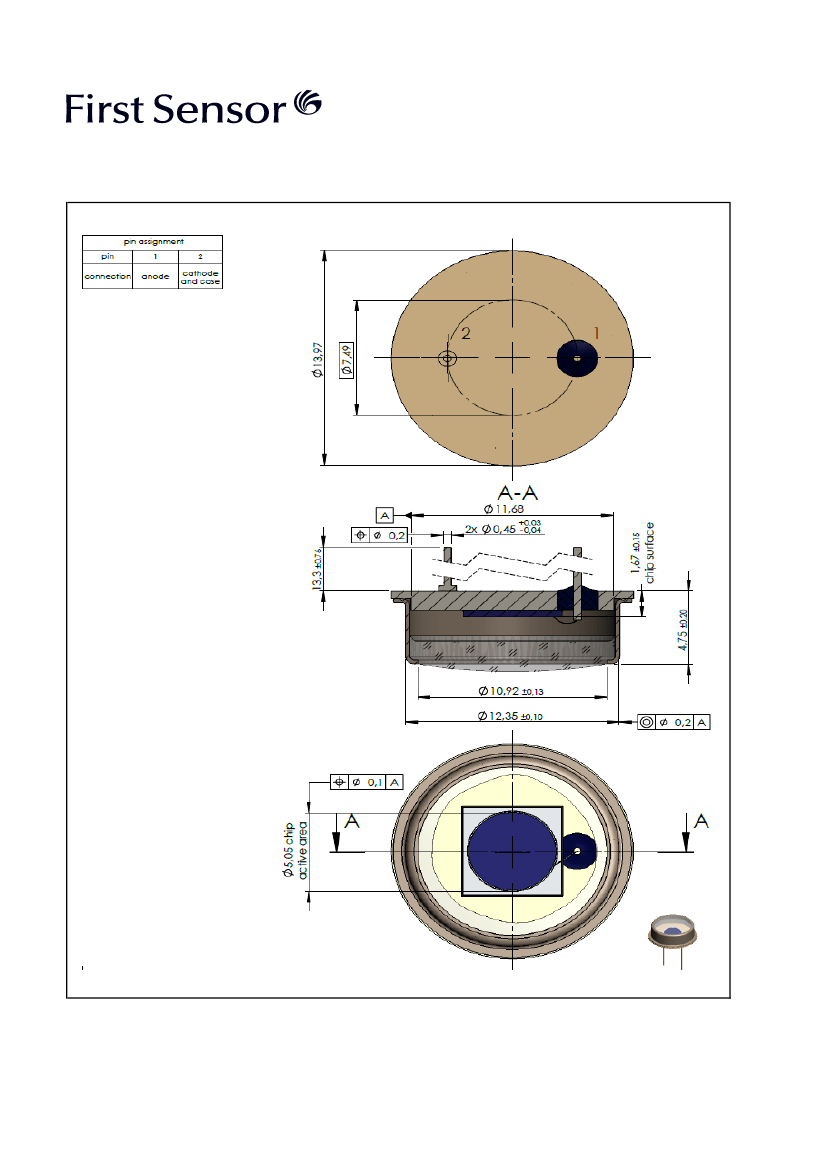

Dimensions
Rev. 24/01/2018
subject to change without notice
www.first-sensor.com
contact@first-sensor.com
Page 3/3
