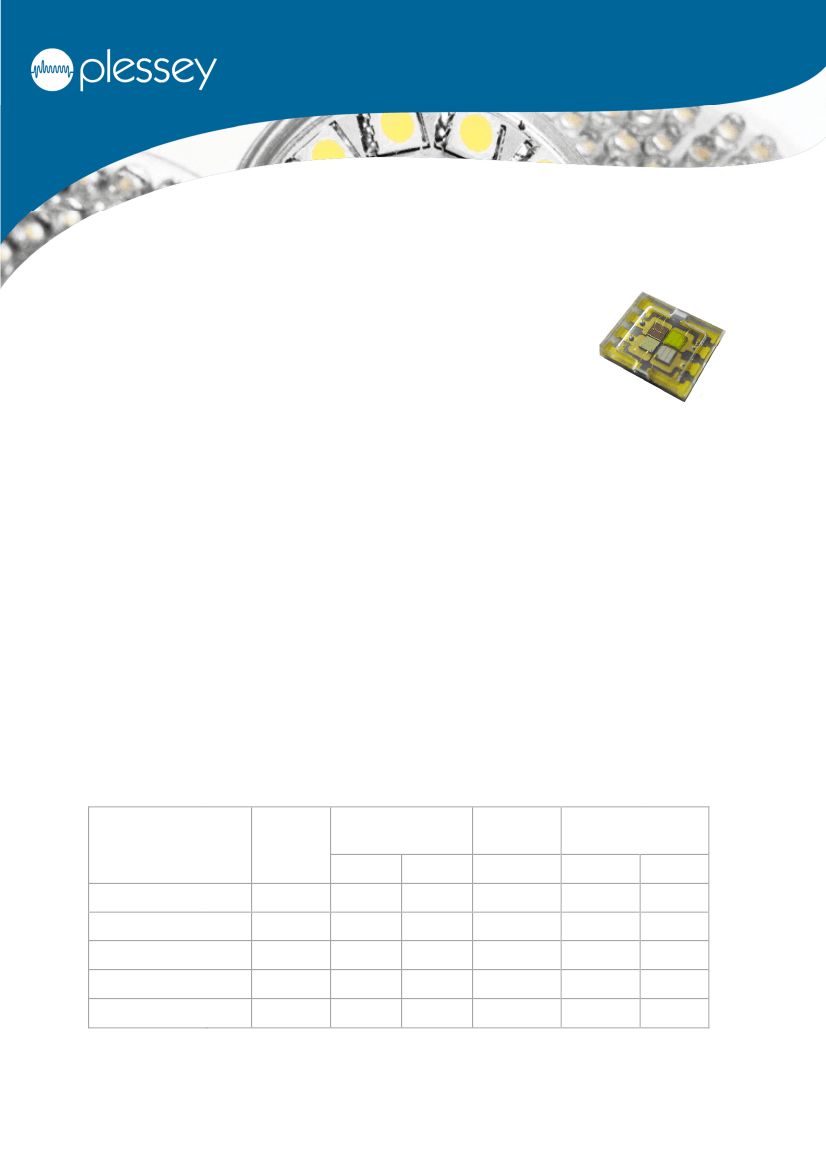

CERRO 5060 series LED
Advanced Datasheet
Description
The Plessey CERRO series is a family of multi-colour, high efficacy LED’s in high power
packages. Two standard versions are available in RGBW and RGBA configurations.
The CERRO 5060 series is packaged in a glass window 5060 package with low thermal
resistance to ensure high optical output, cool running and optimum reliability. The LED
die are unconnected to allow maximum flexibility in the application. The CERRO series
LED’s are supplied in quantities of 400 per reel.
Features
•
•
•
•
•
•
•
RGBW & RGBA variants
700mA operating current
Industry standard 5060 footprint
High optical output
High reliability ceramic packaging
140deg domed silicone lens
Integrated ESD protection
Applications
•
•
•
•
•
Stage Lighting
Entertainment Lighting
Commercial Lighting
Signage
Displays
CCT /
λ
DOM
colour
min
PLM5060AA
Red
Green
Blue
-A
-W
Amber
White
620nm
520nm
450nm
585nm
6000K
max
635nm
535nm
460nm
595nm
7000K
Iv @
700mA
min
45 lm
95 lm
600mW
45 lm
140 lm
2.0
2.8
2.8
2.0
2.8
V
F
(V)
min
max
3.0
4.0
4.0
3.0
4.0
Datasheet No 293309 Issue 1
1 of 12
13/10/2014
CERRO 5060 Series
| Advanced Datasheet
Pin Configuration
Chip
A
B
C
D
RGBA
Red
Green
Blue
Amber
RGBW
Red
Green
Blue
White
Package Outline Dimensions
Notes:
1. All dimensions are in mm
2. Tolerances ±0.13mm
unless otherwise stated

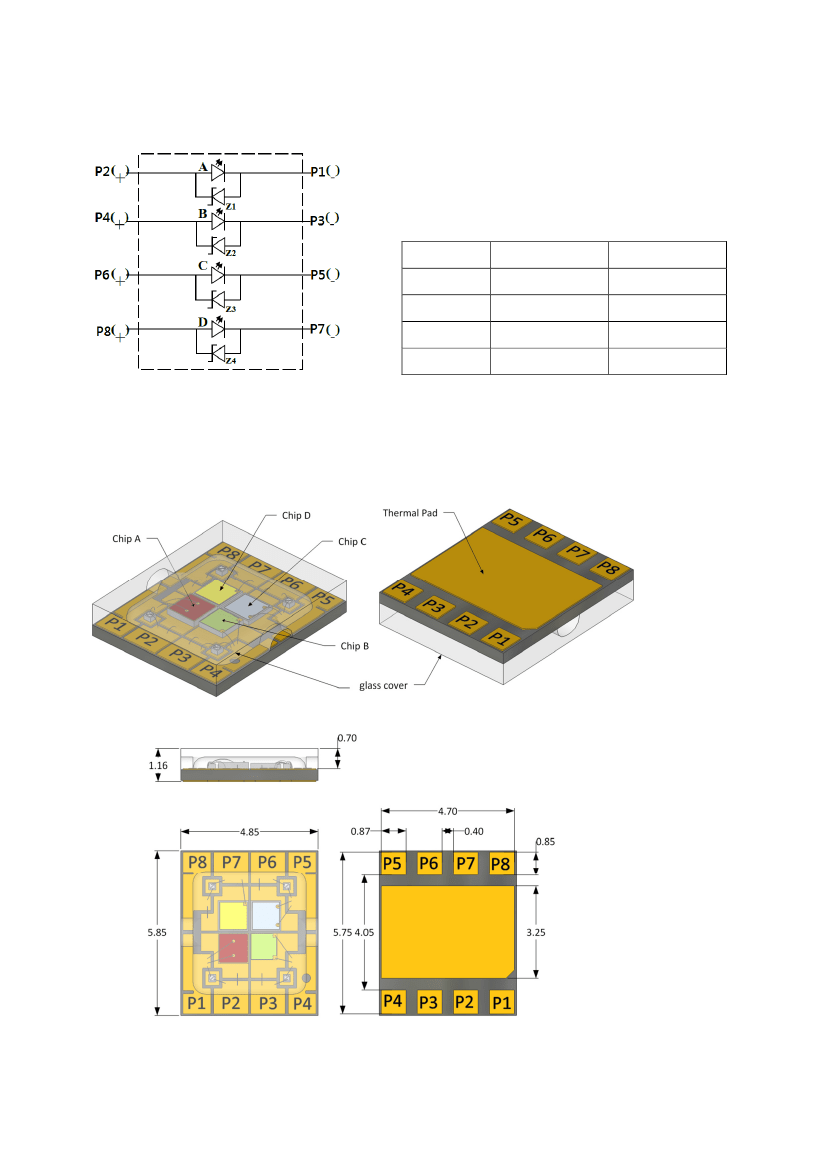

Fig.1 Mechanical drawings of the 5060 package
Datasheet No 293309 Issue 1
Page 2 of
12
13/10/2014
CERRO 5060 Series
| Advanced Datasheet
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Reverse Voltage
[1]
ESD Withstand Voltage
[2]
Storage Temperature
Junction Temperature
[1]
[2]
Symbol
I
F
V
R
Min
-
-
-
Max
700
5
2000
110
125
Unit
mA
V
V
o
T
stg
T
J
-40
-40
C
C
o
Plessey LED’s are not designed to be driven in reverse bias
JESD-22A-114-B Human Body Model (HBM)
Relative Spectral Emission (Typical)

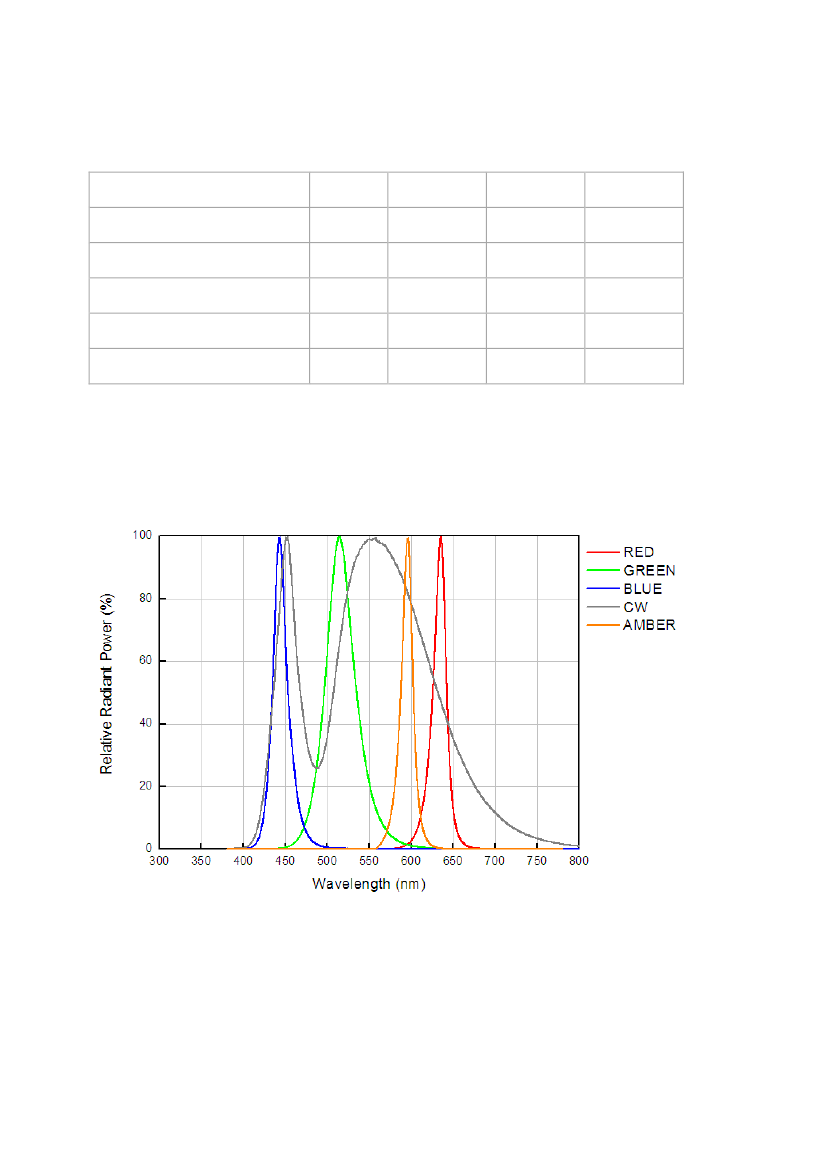

Fig.2 Normalised spectral power distribution
Datasheet No 293309 Issue 1
Page 3 of
12
13/10/2014
CERRO 5060 Series
| Advanced Datasheet
Typical Spatial Radiation Pattern

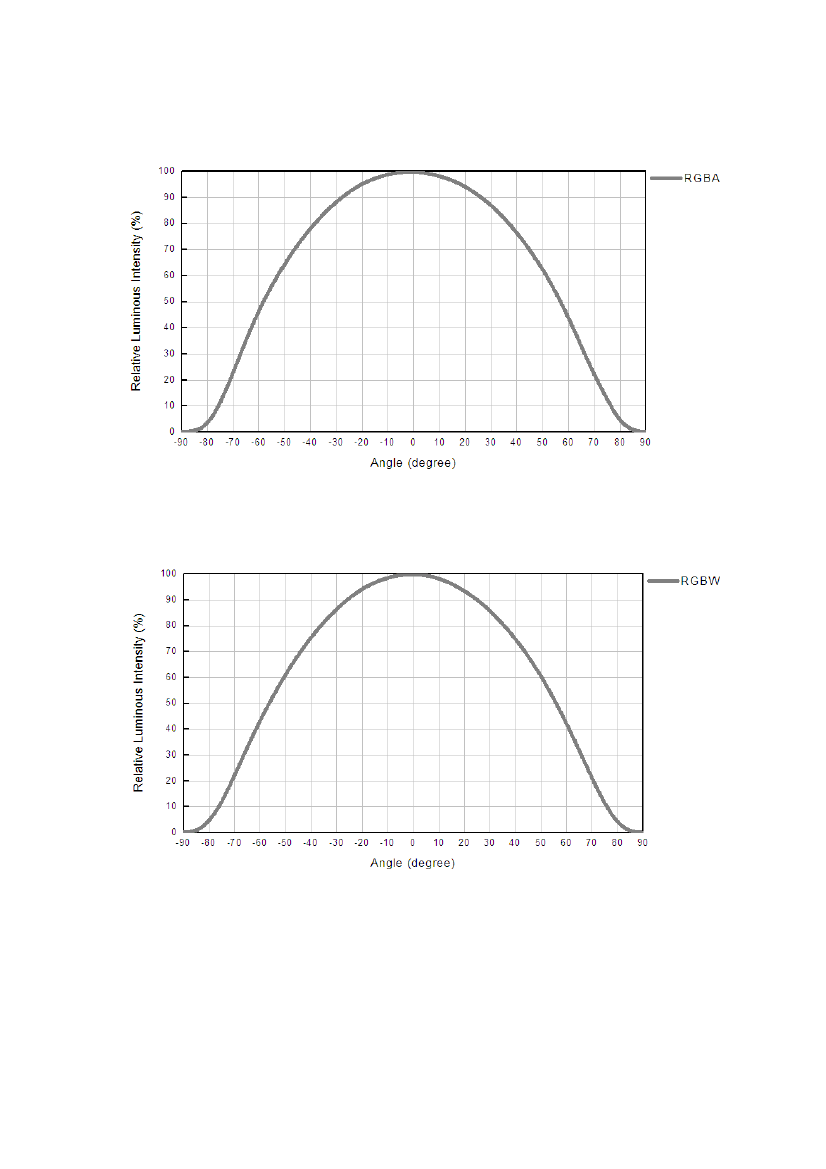

Fig.4 Typical spatial radiation pattern – RGBA
Fig.5 Typical spatial radiation pattern – RGBW
Datasheet No 293309 Issue 1
Page 4 of
12
13/10/2014
CERRO 5060 Series
| Advanced Datasheet
Luminous Flux Characteristics
Fig.6 Relative Luminous Flux versus Forward Current – Red
Fig.7 Relative Luminous Flux versus Forward Current – Green
Datasheet No 293309 Issue 1
Page 5 of
12
13/10/2014
