XMLBWT-02-0000-000US60Z7 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XMLBWT-02-0000-000US60Z7

XMLBWT-02-0000-000US60Z7: DescriptionHigh Power LEDs - White Warm White, 3000 K 182lm, 700mA, 90 CRI; CategoryLED optoelectronic/LED; File Size1MB，22 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XMLBWT-02-0000-000US60Z7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XMLBWT-02-0000-000US60Z7	-	-	View	Buy Now

XMLBWT-02-0000-000US60Z7 Overview

High Power LEDs - White Warm White, 3000 K 182lm, 700mA, 90 CRI

XMLBWT-02-0000-000US60Z7 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cree
Product Category	High Power LEDs - White
RoHS	Details
Package / Case	SMD-2
Illumination Color	White (Warm White)
Wavelength/Color Temperature	3000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	182 lm
Color Rendering Index - CRI	90
Viewing Angle	125 deg
Lens Color/Style	Clear
If - Forward Current	700 mA
Vf - Forward Voltage	2.85 V
Power Rating	10 W
Mounting Style	SMD/SMT
Length	5 mm
Width	5 mm
Height	3.02 mm
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Packaging	Reel
Features	-
Type	XLamp XM-L2 LEDs
LED Size	5 mm x 5 mm x 3.02 mm
Lens Shape	Dome
Color Temperature	3000 K
Lens Dimensions	4.52 mm
NumOfPackaging	1
Factory Pack Quantity	250
Vr - Reverse Voltage	5 V
Unit Weight	0.007055 oz

Preview

Download Datasheet

View All

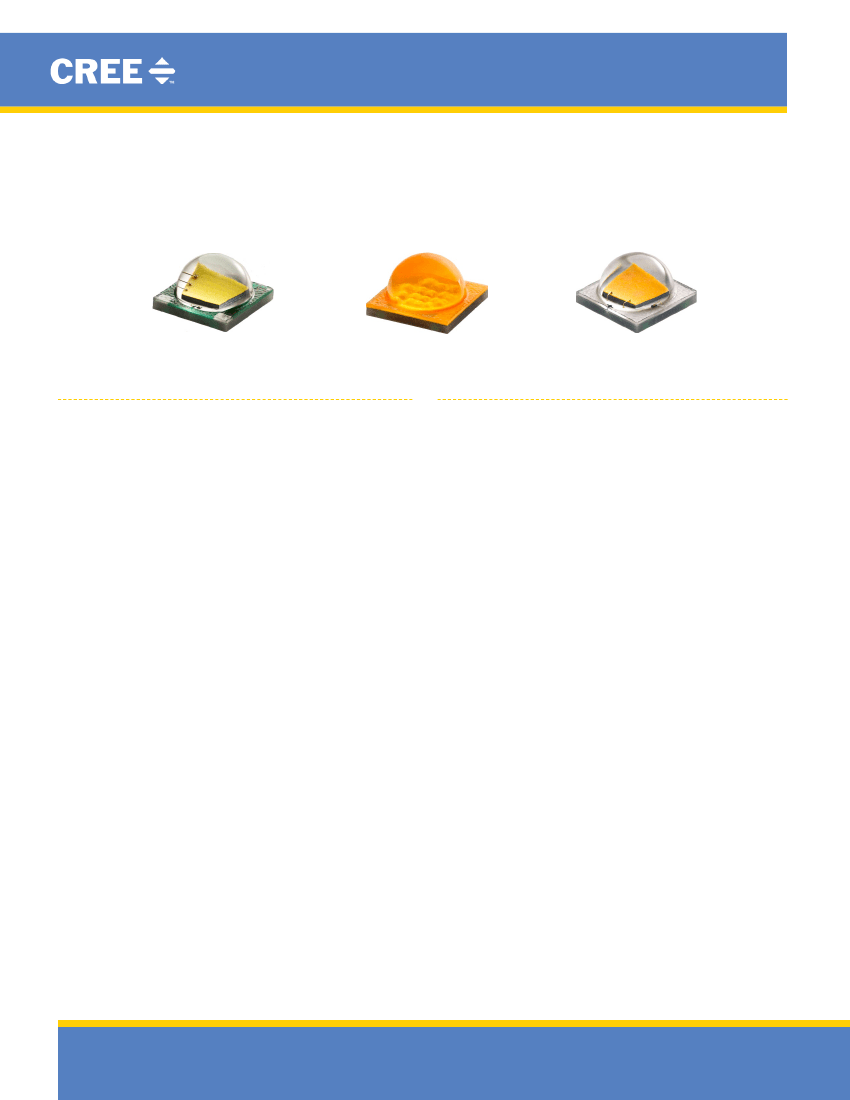

CLD-AP44 Rev 9B

Binning & LaBeLing

Cree

XLamp

XM Family LEDs

tabLE oF ContEnts

Introduction ....................................................................................1

Bin and Order Code Formats .........................................................2

Performance Groups – Luminous Flux.........................................3

Performance Groups – Chromaticity............................................4

Performance groups – voltage.....................................................6

Cree’s Standard Chromaticity Regions Plotted on the 1931 CIe

Curve

...............................................................................................7

Cree’s Standard Cool White Kits Plotted on ANSI Standard

Chromaticity Regions ....................................................................9

Cree’s Standard Warm and Neutral White Kits Plotted on ANSI

Standard Chromaticity Regions ..................................................10

Cree’s Standard Chromaticity Kits ..............................................12

Standard Order Codes and Bins

XM-L ANSI Cool White .........................................................13

XM-L ANSI Neutral White .....................................................14

XM-L ANSI Warm White .......................................................15

XM-L2 ANSI Cool White .......................................................16

XM-L2 ANSI Neutral White ...................................................17

XM-L2 ANSI Warm White .....................................................18

XM-L High Voltage ANSI Cool White

...................................20

XM-L High Voltage ANSI Neutral White

..............................21

XM-L High Voltage ANSI Warm White

.................................22

www.Cree.Com/XLAmp

IntroDuCtIon

This document describes the product nomenclature required

to select and order Cree’s XLamp

XM family of LeDs. XLamp

XM family LeDs are tested and sorted into bins which are then

combined into orderable kits identified by an order code.

All XLamp LeDs are tested and sorted by color and brightness

into a unique bin. each bin contains LeDs from only one color

and brightness group and is uniquely identified by a bin code.

White XLamp LeDs are sorted by chromaticity (color) and

luminous flux (brightness). High Voltage White XLamp LEDs

are sorted by chromaticity, luminous flux and voltage. LEDs are

shipped on reels containing LeDs from one bin and are always

labeled with the appropriate bin code.

Kits contain LeDs from a number of similar bins and are fully

defined by their order codes. A full explanation of the order

codes for XLamp XM family LeDs, as well as a list of standard

order codes, is provided in this document.

and XLamp

are

registered trademarks and the Cree logo is a trademark of Cree, Inc. This document is provided for informational purposes only and is not a warranty

or a specification. For product specifications, please see the data sheets available at www.cree.com. For warranty information, please contact Cree

Sales at sales@cree.com.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
