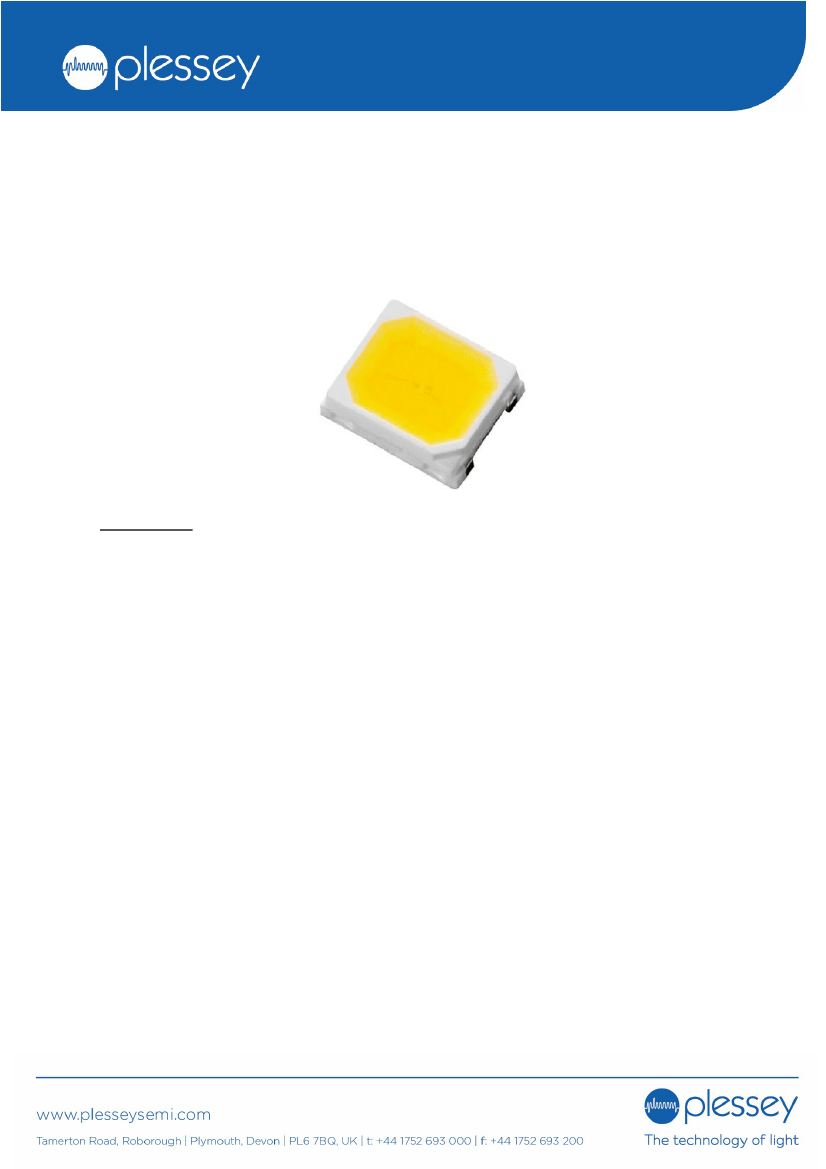

PLW2835AA Series 2835
Mid Power LED
Product Datasheet
Description
Plessey PLW2835AA SMT LEDs are designed for optical indicators, indoor displays,
automotive lighting, backlights for switches/symbols/LCD, tubular lighting and other general
lighting applications and the light is emitted close to a Lambertian distribution. The LEDs are
packed in reels containing 4000 pieces; each individual reel will be shipped in single
intensity and colour bin, to provide close uniformity.
Features
•
•
•
•
•
•
2835 footprint (2.8 x 3.5 x 0.7mm)
Colour binning
High reliability PLCC-2 packaging
Diffused pale yellow resin
120 degree wide viewing angle
LM80 Certified
Applications
•
•
•
•
•
Tubular Lighting
Instrument panel backlighting
Illumination symbols
Automotive lighting
General lighting
Page
2
of
11
Document number 293875 V8
CCT
Variant
PLW2835AA-3000
PLW2835AA-4000
PLW2835AA-5700
Colour
Min.
Warm White
3000K
2870K
3705K
5300K
Max.
3220K
4255K
6054K
Neutral White 4000K
Cool White
5700K
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
Symbol
DC Forward Current
I
F
Peak Pulse Forward Current
[1]
I
FP
Power Dissipation
P
d
Storage Temperature
T
stg
Junction Temperature
T
j
[1]
Pulse width ≤10ms, duty cycle ≤10%
Minimum
-
-
-
-40
Maximum
180
350
612
+100
+115
Unit
mA
mA
mW
o
C
o
C
Electro-optical Characteristics
T
amb
= +25
o
C unless otherwise stated
Parameter
Forward Voltage
Reverse Current
Colour Rendering Index
Thermal Resistance
Half-Intensity Angle
Symbol
V
F
I
R
CRI
R
thj-sp
2Θ
1/2
Condition
I
F
= 150mA
V
R
= 5V
I
F
= 150mA
I
F
= 150mA
Min.
2.8
-
80
-
-
Typ.
3.1
-
82
30
120
Max.
3.4
10
84
-
-
Unit
V
µA
%
ºC/W
deg
Recommended Operating Conditions
In typical applications, for optimum LED performance
Parameter
Operating Ambient Temperature
Symbol
T
opr
Minimum
-40
Maximum
+85
Unit
o
C
Page
3
of
11
Document number 293875 V8
Ordering Information
Name
PLW2835AA-3000
PLW2835AA-4000
PLW2835AA-5700
Order Code
PLW2835AAW30000
PLW2835AAN40000
PLW2835AAC57000
Luminous Flux
Range
2A, 3A, 4A, 5A
Forward
Voltage
Range
V1-V6
Intensity Bin Groups
I
F
= 150mA, T
amb
= +25
o
C, unless otherwise stated
Group
2A
3A
4A
5A
[1]
Tolerance ±10%
Luminous flux
[1]
(lm)
Min.
Max.
50
55
55
60
60
65
65
70
Forward Voltage Bin Groups
I
F
= 150mA, T
amb
= +25
o
C, unless otherwise stated
Group
V1
V2
V3
V4
V5
V6
[1]
Tolerance ±0.1V
V
F
[1]
(V)
Min.
2.8
2.9
3.0
3.1
3.2
3.3
Max.
2.9
3.0
3.1
3.2
3.3
3.4
Page
4
of
11
Document number 293875 V8
Chromaticity Binning

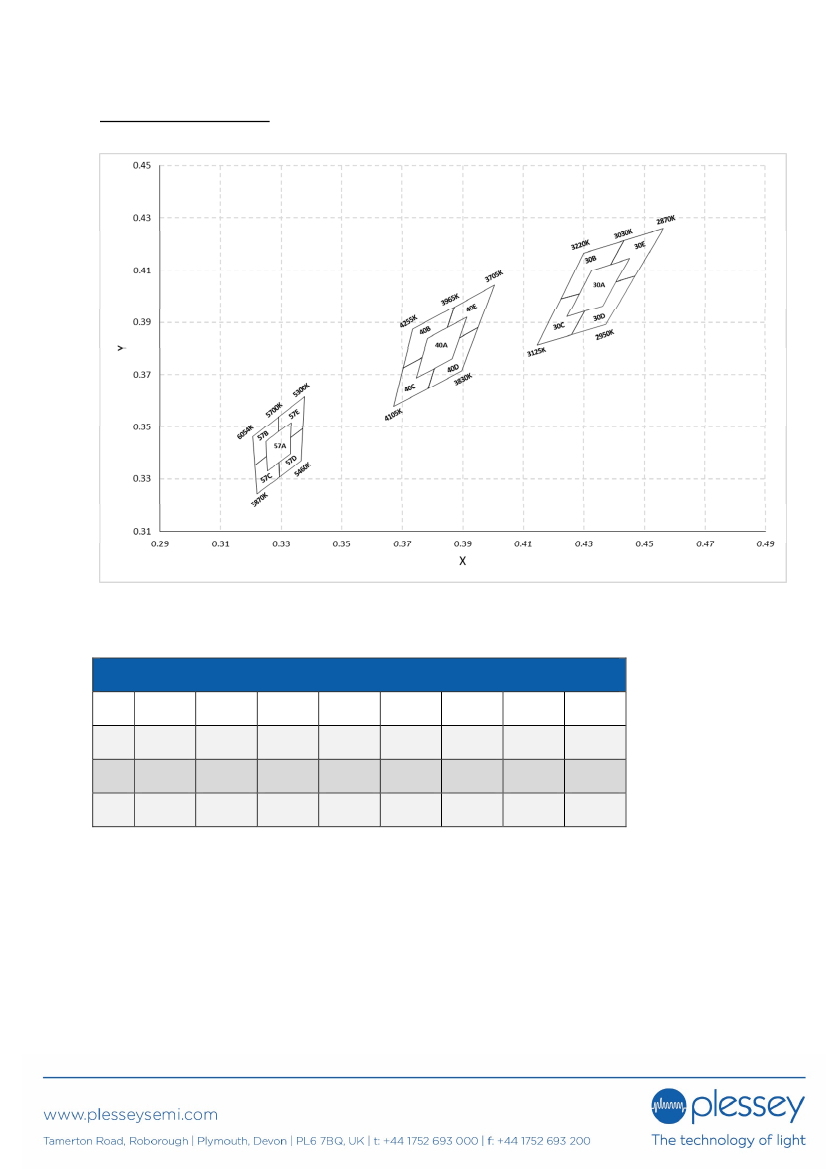

Figure 1. Colour Chromaticity Binning
ANSI 4-Step
X1
Y1
X2
Y2
X3
Y3
X4
Y4
30A 0.4324 0.4100 0.4451 0.4146 0.4361 0.3964 0.4244 0.3923
40A 0.3784 0.3840 0.3914 0.3921 0.3865 0.3761 0.3746 0.3688
57A 0.3251 0.3444 0.3333 0.3518 0.3331 0.3398 0.3256 0.3331
Page
5
of
11
Document number 293875 V8
ANSI 7-Step
X1
30B
30C
30D
30E
40B
40C
40D
40E
57B
57C
57D
57E
Y1
X2
Y2
X3
Y3
X4
Y4
X5
Y5
X6
Y6
0.4388 0.4123 0.4431 0.4213 0.4299 0.4165 0.4223 0.3990 0.4284 0.4011 0.4324 0.4100
0.4260 0.3854 0.4303 0.3944 0.4244 0.3923 0.4284 0.4011 0.4223 0.399 0.4147 0.3814
0.4260 0.3854 0.4303 0.3944 0.4361 0.3964 0.4406 0.4055 0.4468 0.4077 0.4373 0.3893
0.4388 0.4123 0.4431 0.4213 0.4562 0.4260 0.4468 0.4077 0.4406 0.4055 0.4451 0.4146
0.3849 0.3880 0.3871 0.3959 0.3736 0.3874 0.3703 0.3726 0.3765 0.3764 0.3784 0.3840
0.3784 0.3647 0.3805 0.3724 0.3746 0.3688 0.3765 0.3764 0.3703 0.3726 0.367 0.3578
0.3784 0.3647 0.3805 0.3724 0.3865 0.3761 0.3890 0.3841 0.3951 0.3880 0.3897 0.3716
0.3849 0.3880 0.3871 0.3959 0.4005 0.4044 0.3951 0.3880 0.3890 0.3841 0.3914 0.3921
0.3292 0.3481 0.3292 0.3539 0.3207 0.3462 0.3214 0.3352 0.3253 0.3388 0.3251 0.3444
0.3294 0.3306 0.3293 0.3364 0.3256 0.3331 0.3253 0.3388 0.3214 0.3352 0.3222 0.3243
0.3294 0.3306 0.3293 0.3364 0.3331 0.3398 0.3332 0.3458 0.3371 0.3493 0.3366 0.3369
0.3292 0.3481 0.3292 0.3539 0.3376 0.3616 0.3371 0.3493 0.3332 0.3458 0.3333 0.3518

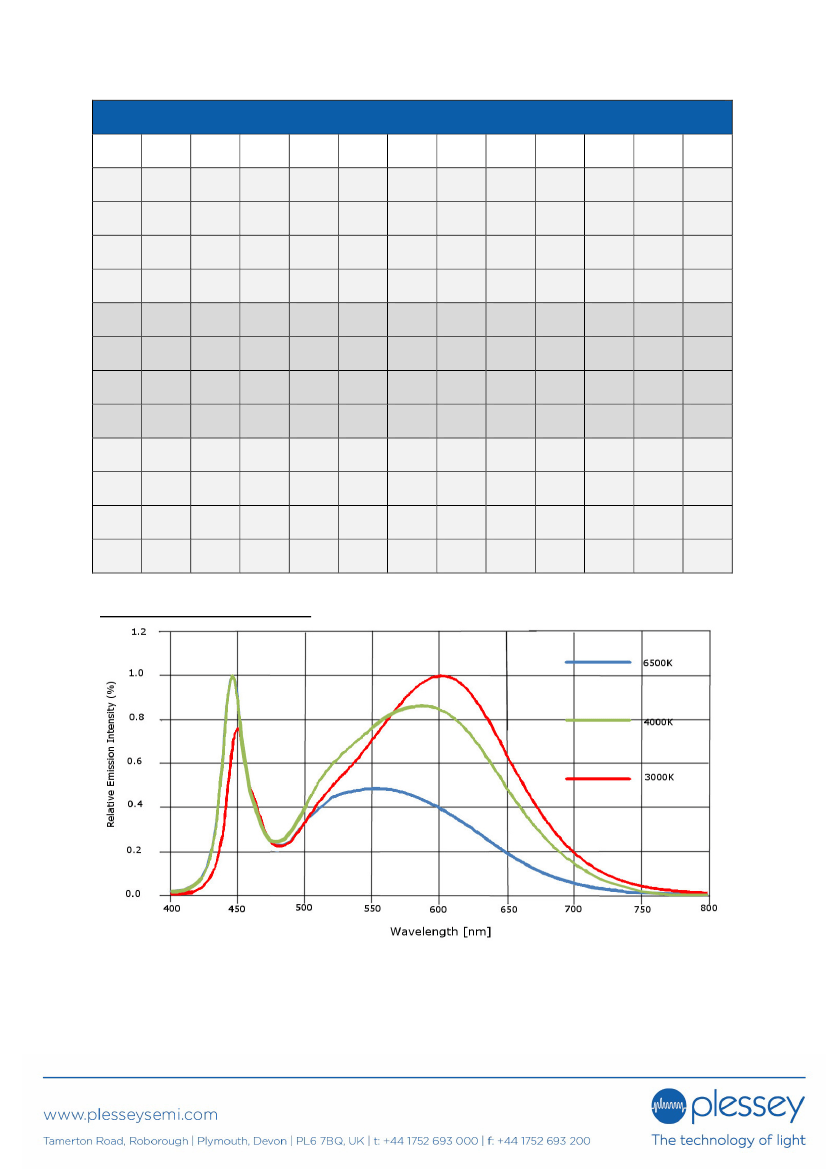

Relative Spectral Emission
Figure 2. Normalised spectral power distribution Note: The relative spectral emission
corresponds to a random LED sample.
