H480CYGYGD: DescriptionLED Circuit Board Indicators LED Assembly, Right Angle, 2x3mm Rectangular LED, Quad-Level, 1 Station, Yellow, Green, Yellow, Green, Diffused Lens.; CategoryLED optoelectronic/LED photoelectric; File Size101KB，3 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

H480CYGYGD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H480CYGYGD	-	-	View	Buy Now

H480CYGYGD Overview

LED Circuit Board Indicators LED Assembly, Right Angle, 2x3mm Rectangular LED, Quad-Level, 1 Station, Yellow, Green, Yellow, Green, Diffused Lens.

H480CYGYGD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bivar
Reach Compliance Code	unknown
Samacsys Description	LED Circuit Board Indicators LED Assembly, Right Angle, 2x3mm Rectangular LED, Quad-Level, 1 Station, Yellow, Green, Yellow, Green, Diffused Lens.
Optoelectronic device types	LED MOUNTING HARDWARE

Preview

Download Datasheet

View All

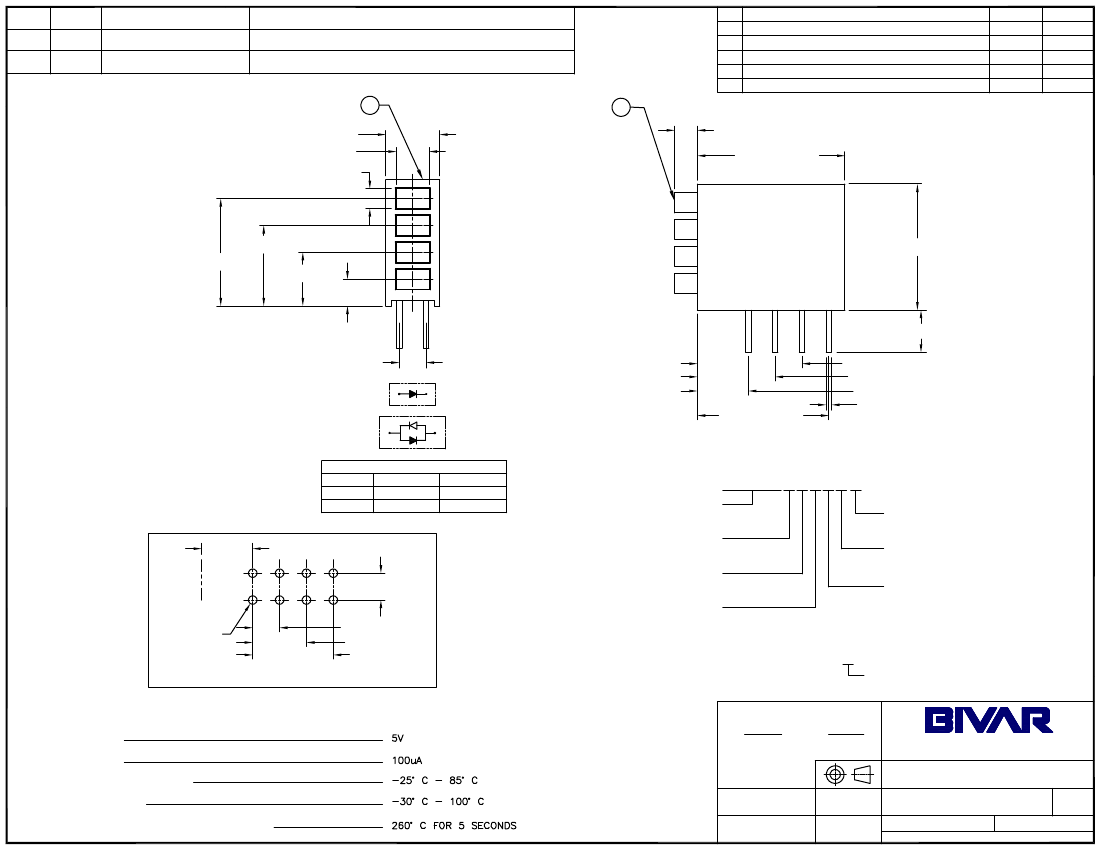

ITEM

Q'TY

PART NUMBER

H-480C

R3XXX

PART DESCRIPTION

Quad-Level 2X3mm LED Holder

2x3mm Rectangular LED

REV.

DESCRIPTION

DATE

APPROVED

Updated LED Protrusion

Added P/N Designation Note

Added H480CRD Specs

Added All R3XXX LED Specs

Engineering Update w/o Changes

09/15/06

10/30/08

12/04/08

08/01/11

08/04/16

M. C.

T. Y.

J. C.

0.200 [5.1mm]

0.122 [3.1mm]

0.075 [1.9mm]

TYP.

0.085 [2.2mm] TYP.

0.550 [14.0mm]

0.300 [7.6mm]

0.400 [10.2mm]

0.200 [5.1mm]

0.100 [2.5mm]

0.470 [11.9mm]

0.157 [4.0mm]

0.100 [2.5mm]

Single Color 1

Bi-Color 1

0.490 [12.4mm]

0.390 [9.9mm]

0.290 [7.4mm]

0.190 [4.8mm]

0.020 [0.5mm]

SQ. TYP.

NOTE: P/N DESIGNATION

BI-COLOR POLARITY

LED P/N (1) CATHODE (2) CATHODE

RED

R3BC

GREEN

R3BC-Y/G

YELLOW

GREEN

H480CXXXXDX

H-480C

Holder Series

Color of top LED

- Use "X" if blank

Color of 2nd from top LED

- Use "X" if blank

Color of 3rd from top LED

- Use "X" if blank

- Blank for Standard LED

- "L" for Low Current LED

- "5V" for 5V LED

Lens Appearance

Color of bottom LED

- Use "X" if blank

0.190 [4.8mm]

Holder

Face

0.100 [2.5mm]

Ø.032+.003

-.002

TYP.

0.100 [2.5mm]

0.200 [5.1mm]

0.300 [7.6mm]

-If LEDs are the same,

use e.g. H480CGD

All Green LEDs

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

Recommended Mounting Holes

ABSOLUTE MAXIMUM RATINGS (Ta=25° C)

REVERSE VOLTAGE

REVERSE CURRENT

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

RECTANGULAR 2X3MM

90° QUAD-LEVEL LED ASSEMBLY

REVISION:

T. Yin

CHECKED:

03/08/04

DATE:

PART NO:

H480CXX

D. Green

03/08/04

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
